Modular Kit with Platform and Double Height Handrails (1100mm x 8000mm long)
Modular Wheelchair Ramp Systems - Legal Compliance
These systems are designed to be both portable and temporary - therefore they do not need to comply with building regulations (Part M or Part K) - if you require your system to be compliant please get in contact as this something we can provide but the specification would need to be altered.

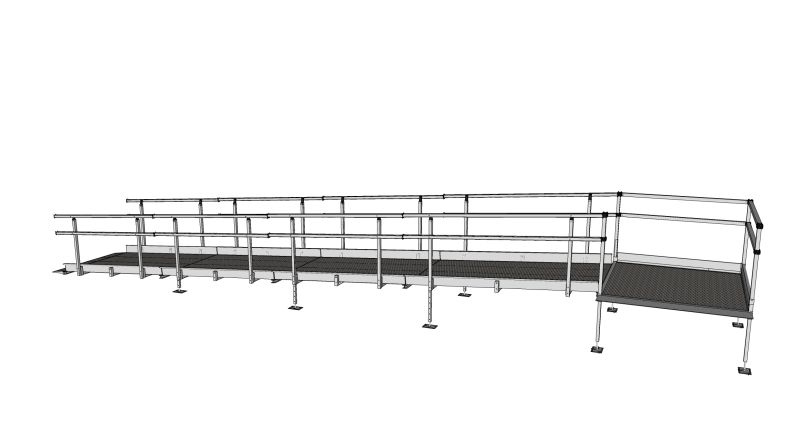

Modular Ramp Kit, 8000mm long, 1100mm wide, with double height handrails and mesh anti-slip surface.
Kit includes:
- Lead In Ramp: 340mm deep x 960mm long
- Ramp Module incl. Double Height Handrails: 6900mm long x 1100mm wide
- Platform incl. 2x Double Height Handrails: 1100mm wide x 1100mm long
- Connection to step/threshold: 470mm deep x 960mm long; can be ordered cut to size if required. The necessary door measurements can be found here.
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
All instructions and a video for assembling the system can be found here.
SKU | TRP-MS1100-8000 |
---|---|
Capacity (kg) | 200kg / sq. meter |
Two Year Warranty | Yes |
Customisable | Yes |
Easy to Fit | Yes |
Electric Wheelchair | Yes |
European Made | Yes |
Fixings Included | Yes |
Manual Wheelchair | Yes |
Mobility Scooter Friendly | Yes |
Leave Outside | Yes |
Certain goods and services for disabled people are zero-rated for VAT, including mobility aids, as long as the customer is eligible and the goods are for domestic or personal use. All of our wheelchair ramps classify as mobility aids and therefore those eligible can purchase these VAT exempt.
Who is eligible?
VAT relief is available for individuals with chronic illnesses and or disabilities. The wheelchair ramp must be for exclusive use by the disabled individual. VAT relief is also available to registered UK charities.
Who is not eligible?
Businesses are not eligible for VAT relief. VAT relief is also not available where the ramp is being purchased for a group of people to use, except for charities. In addition, those with temporary incapacities, such as broken bones, are required to pay the VAT.
How do I claim my VAT back?
At the checkout stage, prior to entering payment details, there is a VAT exemption box. Simply enter the full name of the person the ramp is for and their disability, or the charity name and number, and tick to confirm it is correct. The VAT will then automatically be removed from your purchase.
If you are in any doubt as to whether you are eligible to receive goods or services zero-rated for VAT, please contact our team, consult Notice 701/7 VAT Relief for Disabled People or contact the National Advice Service on 0845 010 9000.
Modular Ramp Length & Load Height & Delivery
It is crucial for you to know your load height. This guide should help you gauge how long a ramp you require. If you are still not sure, please call us on 01372 478960.
Load Height: This is the vertical measurement from the ground to where you rest the ramp onto.
For Modular Wheelchair Systems:
Minimum recommended gradient: 1 : 12
For e.g. for a 1 ft load height you'll need a 12 ft long ramp.
Delivery:
Will occur to kerbside on a pallet, unassembled and will require a signature. Please make sure that the pallet is not damaged and all parts are present before sign for the delivery.
Which wheelchair ramp length? Use our ramp length calculator! Learn more
