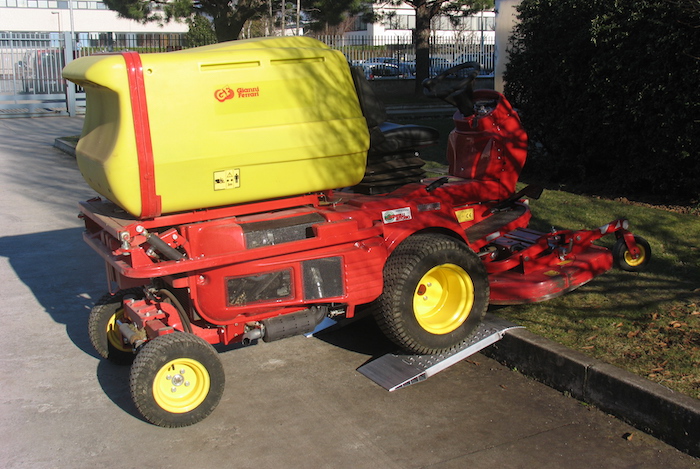

Aluminium Container Ramps
Our TUV certified container ramps can accommodate plant machinery, loading vehicles and other machinery making them suitable for a variety of industries. The EU made ramps come in a variety of series that can take various capacities and work with a variety of load heights to allow you to load into containers and other small obstacles.
Capacities range from 1250kg up to 7500kg and the ramps are also available in various widths and lengths to suit your requirements.
SKU | Capacity (kg) | Height (mm) | Height of Ramps Profile (mm) | Length (mm) | Max Load Height (mm) | Min. Load Height (mm) | Weight per Ramp (kg) | Weight Per Pair (kg) | Width (mm) | Minimum Track Width (mm) | Maximum Track Width (mm) | Price |
---|---|---|---|---|---|---|---|---|---|---|---|---|
TRP40B2/05 | 1250 | 40 | 40 | 500 | 150 | 120 | 3 | 6 | 215 | 150 | 220 | £306.00 £255.00 |
TRP40B2/08 | 1250 | 40 | 40 | 800 | 180 | 160 | 4 | 8 | 215 | 150 | 220 | £324.00 £270.00 |
TRP40B3/05 | 2000 | 40 | 40 | 500 | 150 | 120 | 4 | 8 | 315 | 150 | 220 | £330.00 £275.00 |
TRP40B3/08 | 2000 | 40 | 40 | 800 | 180 | 160 | 6 | 12 | 315 | 150 | 220 | £378.00 £315.00 |
TRP80/05 | 3000 | 65 | 67 | 495 | 150 | 120 | 3.5 | 7 | 300 | 150 | 220 | £432.00 £360.00 |
TRP80/08 | 3000 | 65 | 67 | 810 | 180 | 160 | 5 | 10 | 300 | 150 | 220 | £498.00 £415.00 |
TRP140/10 | 7500 | 140 | 140 | 1000 | 210 | 170 | 15.5 | 31 | 510 | 200 | 430 | £726.00 £605.00 |
TRP150/12 | 7500 | 150 | 150 | 1250 | 260 | 220 | 20.5 | 41 | 510 | 200 | 430 | £846.00 £705.00 |
TRP150/15 | 7500 | 150 | 150 | 1500 | 310 | 270 | 22 | 44 | 510 | 200 | 430 | £930.00 £775.00 |
TRP150/17 | 7500 | 150 | 150 | 1750 | 360 | 320 | 25 | 50 | 510 | 200 | 430 | £1,218.00 £1,015.00 |
TRP160/20 | 7500 | 160 | 160 | 2000 | 400 | 370 | 30 | 60 | 510 | 200 | 430 | £1,392.00 £1,160.00 |
Hook ends are available at an extra charge – please contact our team if you would like to customise the ramp in this way. Please note, hook connections make the ramp slightly shorter than the advertised length.
