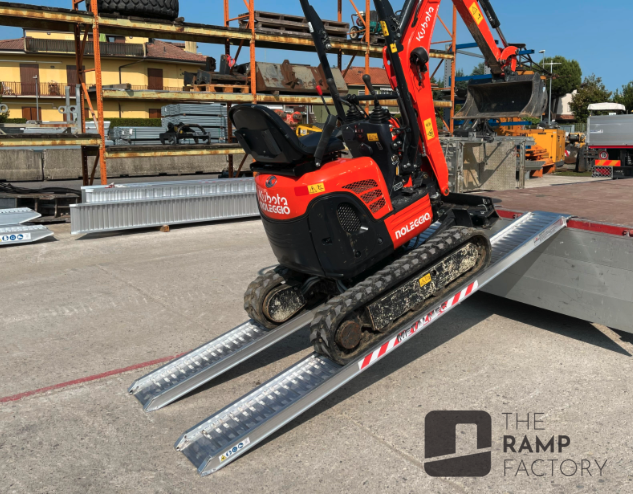

We have a large range of Aluminium Ramps that are suitable for heavy tracked machinery, cars and steel tracked machinery. Our 4m long ramps are suitable for load heights between 1050mm and 1200mm.

With capacities up to 9,000kg and various customisations available we are sure to have something to suit your needs. Please be aware that if you request a hook end to your vehicle ramp, it will be about 10cm shorter than the advertised length.

SKU Capacity (kg) Height of Ramps Profile (mm) Length (mm) Max Load Height (mm) Min. Load Height (mm) Weight per Ramp (kg) Weight Per Pair (kg) Width (mm) Minimum Track Width (mm) Maximum Track Width (mm) Price
TRP65/40 800 65 4000 1200 1050 20,5 41 300 150 220 £978.00 £815.00
TRP74/40 1000 75 4000 1200 1050 22,5 45 300 150 220 £1,020.00 £850.00
TRP60/40 1200 70 4000 1200 1050 27 54 315 150 295 £1,074.00 £895.00
TRP76/40 1400 75 4000 1200 1050 25,5 51 300 150 220 £1,086.00 £905.00
TRP101/40 1500 100 4000 1200 1050 25,5 51 360 200 280 £1,158.00 £965.00
TRP101/40L 1500 100 4000 1200 1050 27 54 400 200 320 £1,194.00 £995.00
TRP65/40L 800 65 4000 1200 1050 28 56 500 300 420 £1,194.00 £995.00
TRP116/40 2500 115 4000 1200 1050 29 58 360 200 280 £1,236.00 £1,030.00
TRP116/40L 2500 115 4000 1200 1050 32 64 400 200 320 £1,296.00 £1,080.00
TRP126/40 3435 125 4000 1200 1050 33,5 67 360 200 280 £1,326.00 £1,105.00
TRP126/40L 3435 125 4000 1200 1050 36,5 73 400 200 320 £1,392.00 £1,160.00
TRP140/40 4155 140 4000 1200 1050 40 80 400 200 320 £1,548.00 £1,290.00
TRP140/40L 4155 140 4000 1200 1050 43 86 480 200 380 £1,614.00 £1,345.00
TRP150/40 5150 150 4000 1200 1050 43.5 87 400 200 320 £1,620.00 £1,350.00
TRP160/40 6320 160 4000 1200 1050 53 106 460 200 380 £1,866.00 £1,555.00
TRP160/40L 6320 160 4000 1200 1050 56 112 510 200 430 £1,980.00 £1,650.00
TRP170/40 7200 170 4000 1200 1050 58.5 117 510 200 430 £2,172.00 £1,810.00
TRP186/40 8870 185 4000 1200 1050 63.5 127 510 200 430 £2,310.00 £1,925.00
TRP231/40 15010 230 4000 1200 1050 88 176 580 300 480 £2,700.00 £2,250.00
TRP201/40 10620 200 4000 1200 1050 80.5 161 580 300 480 £2,724.00 £2,270.00

The Ramp Factory's aluminium ramps are available with profile depths of up to 150mm, up 5.5m long and have two widths available; 300mm and 500mm. All of our aluminium ramps are created without safety edges, however, these can be added on request for an additional charge. Please note, this will make the internal width of the ramp 60mm narrower. The rest on connection can also be modified for a small fee. Options can be found here.

Please note, these are not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks.

Nylon grab handles are available to increase the safe manual handling of the heavy-duty ramps, please contact us for a custom quote.
