| SKU | Capacity (kg) | Height of Ramps Profile (mm) | Length (mm) | Max Load Height (mm) | Min. Load Height (mm) | Weight (kg) | Weight per Ramp (kg) | Width (mm) | Price |
|---|---|---|---|---|---|---|---|---|---|
| TRP13060/10 | 58,000 | 130 | 1000 | 300 | 150 | 85 | 42.50 | 600 | £2,214.00 £1,845.00 |
| TRP13060/15 | 50,000 | 130 | 1500 | 450 | 300 | 121 | 60.5 | 600 | £2,706.00 £2,255.00 |
| TRP13060/20 | 50,000 | 130 | 2000 | 600 | 450 | 156 | 78 | 600 | £3,342.00 £2,785.00 |
| TRP13060/25 | 48,000 | 130 | 2500 | 750 | 600 | 192 | 96 | 600 | £3,858.00 £3,215.00 |
| TRP13060/30 | 36,000 | 130 | 3000 | 900 | 750 | 227 | 113.50 | 600 | £4,368.00 £3,640.00 |
| TRP13060/35 | 26,100 | 130 | 3500 | 1050 | 900 | 263 | 131.50 | 600 | £4,878.00 £4,065.00 |
| TRP13060/40 | 19,000 | 130 | 4000 | 1200 | 1050 | 298 | 149 | 600 | £5,388.00 £4,490.00 |
| TRP13060/45 | 12,000 | 130 | 4500 | 1350 | 1200 | 334 | 167 | 600 | £5,898.00 £4,915.00 |
| TRP13060/50 | 10,500 | 130 | 5000 | 1500 | 1350 | 370 | 185 | 600 | £6,462.00 £5,385.00 |

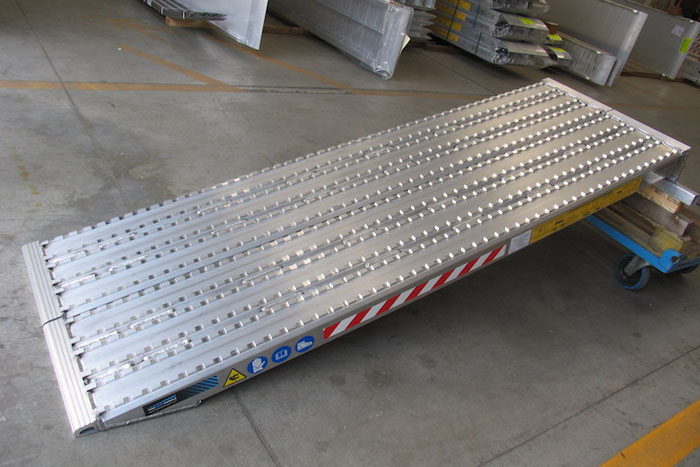

The milled aluminium ramps from The Ramp Factory are TUV-certified and are suitable for professional loading applications. This range has a width of 600mm and a maximum load capacity of 58,000 kg.
The rest on connection can be modified for a small fee. Options can be found here. Additional customisations are also available upon request - please contact our customer service team to find out more.
