| SKU | Capacity (kg) | Height of Ramps Profile (mm) | Length (mm) | Max Load Height (mm) | Min. Load Height (mm) | Weight (kg) | Weight per Ramp (kg) | Width (mm) | Price |
|---|---|---|---|---|---|---|---|---|---|
| TRP13045/10 | 50,000 | 130 | 1000 | 300 | 150 | 64 | 32 | 450 | £1,860.00 £1,550.00 |
| TRP13045/15 | 50,000 | 130 | 1500 | 450 | 300 | 91 | 44.50 | 450 | £2,232.00 £1,860.00 |
| TRP13045/20 | 40,000 | 130 | 2000 | 600 | 450 | 117 | 58.5 | 450 | £2,754.00 £2,295.00 |
| TRP13045/25 | 34,000 | 130 | 2500 | 750 | 600 | 144 | 72 | 450 | £3,150.00 £2,625.00 |
| TRP13045/30 | 26,200 | 130 | 3000 | 900 | 750 | 170 | 85 | 450 | £3,546.00 £2,955.00 |
| TRP13045/35 | 18,000 | 130 | 3500 | 1050 | 900 | 197 | 98.5 | 450 | £3,942.00 £3,285.00 |
| TRP13045/40 | 14,000 | 130 | 4000 | 1200 | 1050 | 224 | 112 | 450 | £4,338.00 £3,615.00 |
| TRP13045/45 | 10,500 | 130 | 4500 | 1350 | 1200 | 250 | 125 | 450 | £4,740.00 £3,950.00 |
| TRP13045/50 | 8,500 | 130 | 5000 | 1500 | 1350 | 277 | 138.50 | 450 | £5,184.00 £4,320.00 |

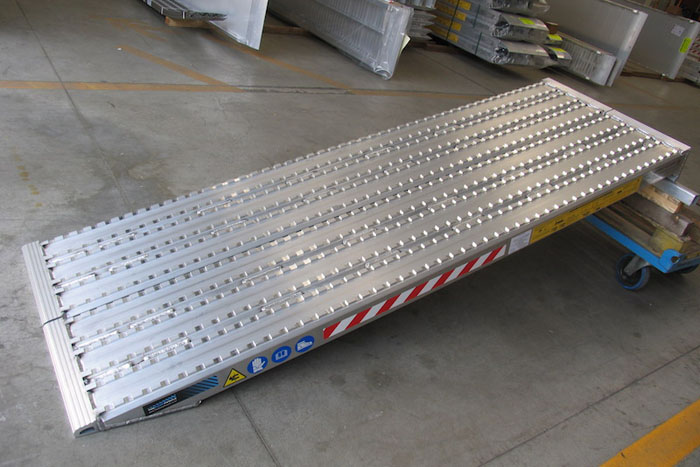

The milled aluminium ramps from The Ramp Factory are TUV-certified and are suitable for professional loading applications. This range has a width of 450mm and a maximum load capacity of 50,000 kg.
The rest on connection can be modified for a small fee. Options can be found here. Additional customisations are also available upon request - please contact our customer service team to find out more.
