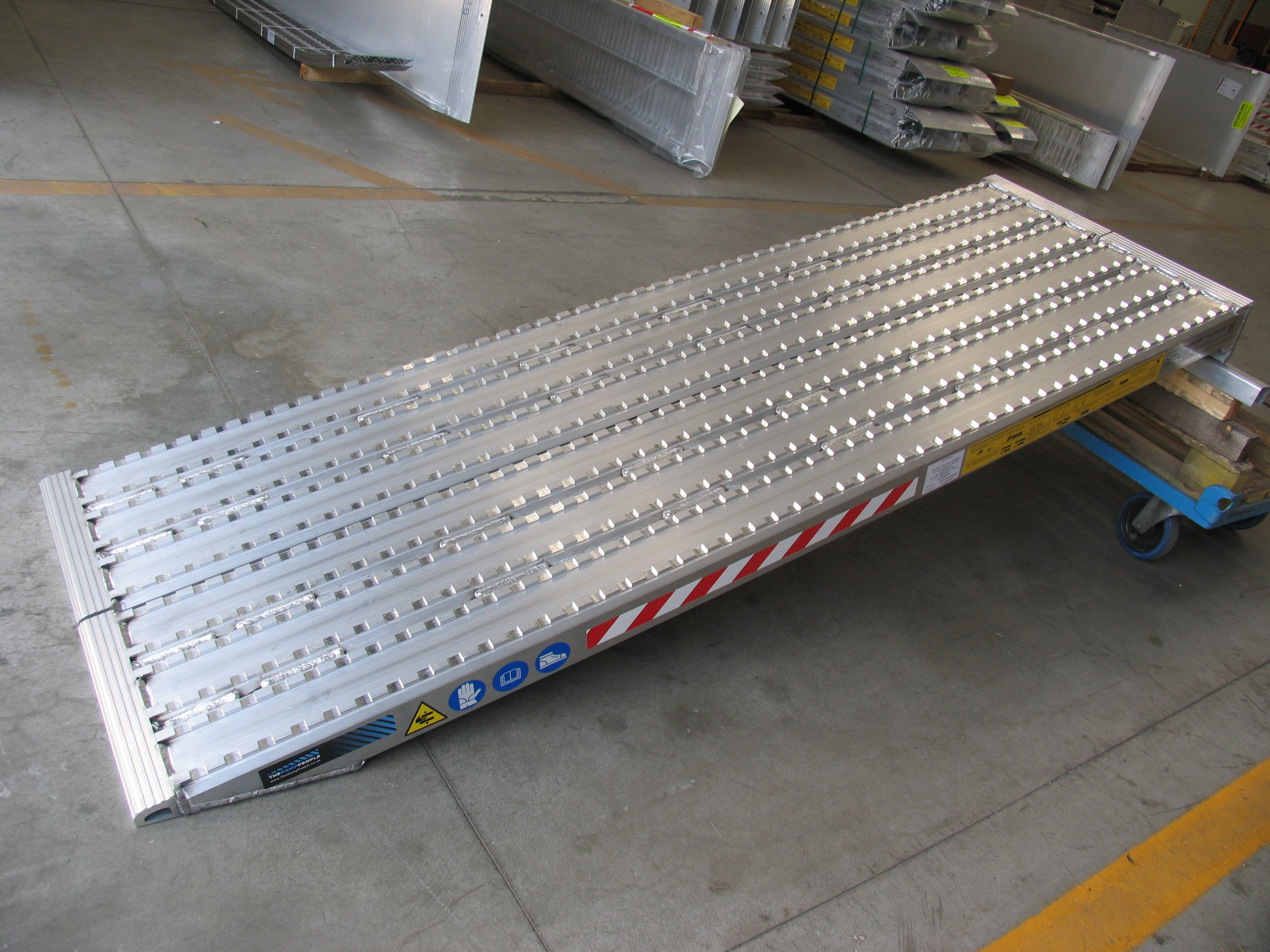

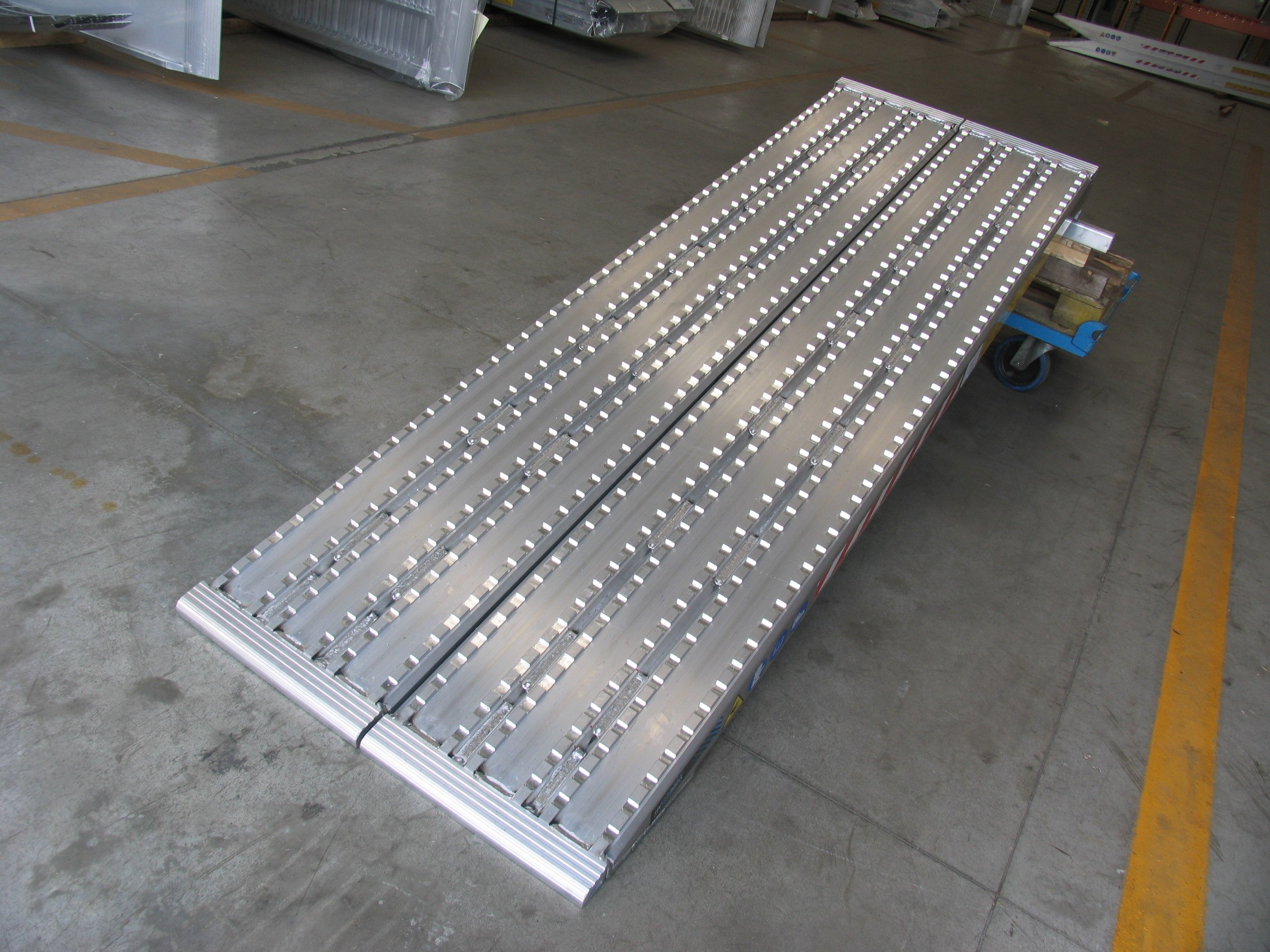

Milled Surface Aluminium Professional Loading Ramps (4m Long)

SKU
TRP13060/40

The Ramp Factory's Industrial Aluminium Ramps are European made and TUV certified and are ideal for use as a plant ramp, digger ramp and for tele-handlers.

Length (mm) 4000
Width (mm) 600
Min to Max Load Height (mm) 1050-1200
Capacity (kg) 19,000

Contact our customer services team for custom built orders.

Price and capacity stated is for the PAIR.

£5,388.00 £4,490.00
Built to Order

Aluminium Ramps for Plant & Machinery FAQs

Description

Our heaviest duty ramps, designed to carry steel tracked vehicles and equipment. The Ramp Factory range of steel tracked ramps' core profile thickness is 130mm. Available 600mm wide, these ramps feature no external welds and offer a capacity of up to 19,000kg. They are ideal for use as industrial plant ramps and as heavy duty as commercial ramps.

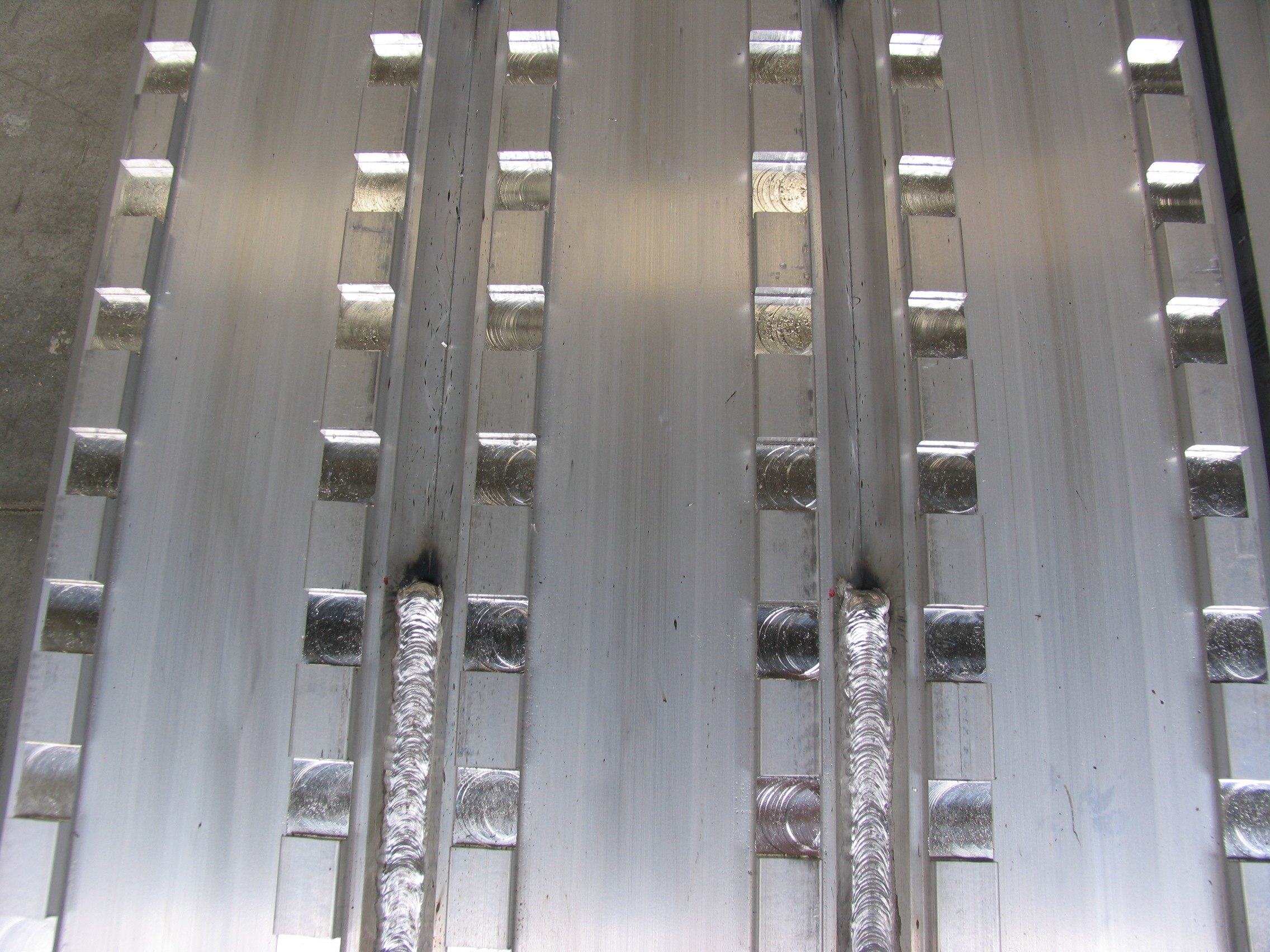

  • Flat top with no external welds
  • On capacities over 20,000kg only Bottom Hook Connection or Tube Connection possible
  • Custom load heights available
  • Quotes for bespoke ramps can be supplied on request
  • Please note, the stated maximum weight capacities are only valid for vehicles where the weight is equally distributed – for vehicles where this is not the case, please contact us directly for assistance.
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Fully TUV certified

TUV Certification Image

Usage guidelines and safety information for our full vehicle ramp range can be found here.


Details
SKU TRP13060/40
Capacity (kg) 19,000
Height of Ramps Profile (mm) 130
Length (mm) 4000
Max Load Height (mm) 1200
Min. Load Height (mm) 1050
Weight (kg) 298
Weight per Ramp (kg) 149
Width (mm) 600
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Capacity Wheelbase 1500mm (kg) 13,100
Capacity Wheelbase 1750mm (kg) 15,600
Capacity Wheelbase 2000mm (kg) 19,000
