Checkers Guard Dog - 3 Channel Cable Protector Orange/Black

SKU
TRP-GD3X225-O/B

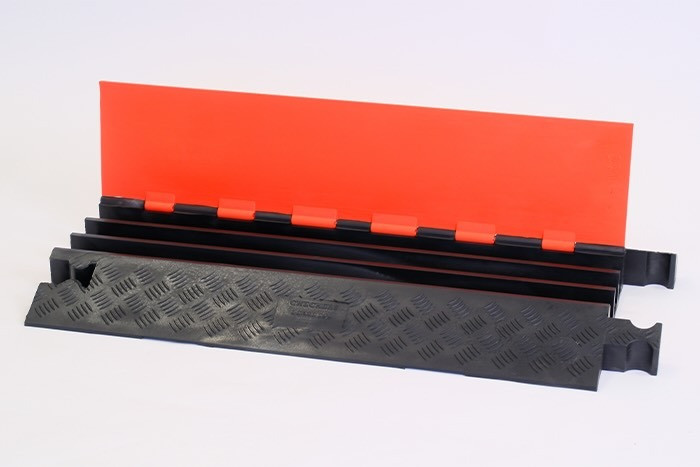

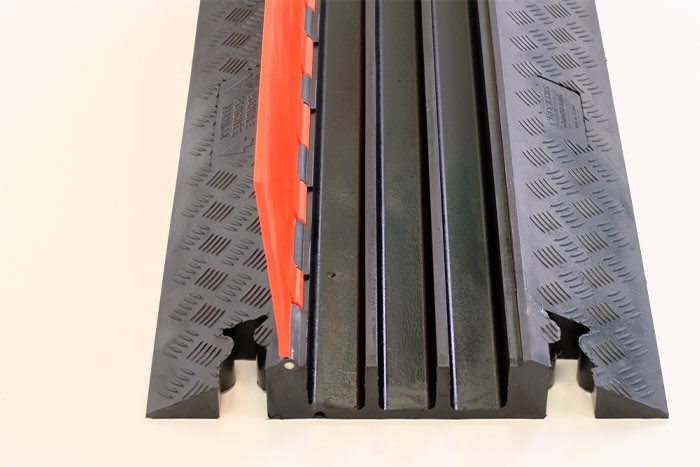

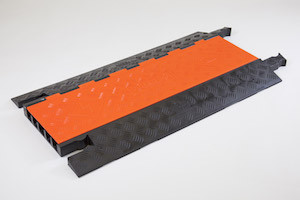

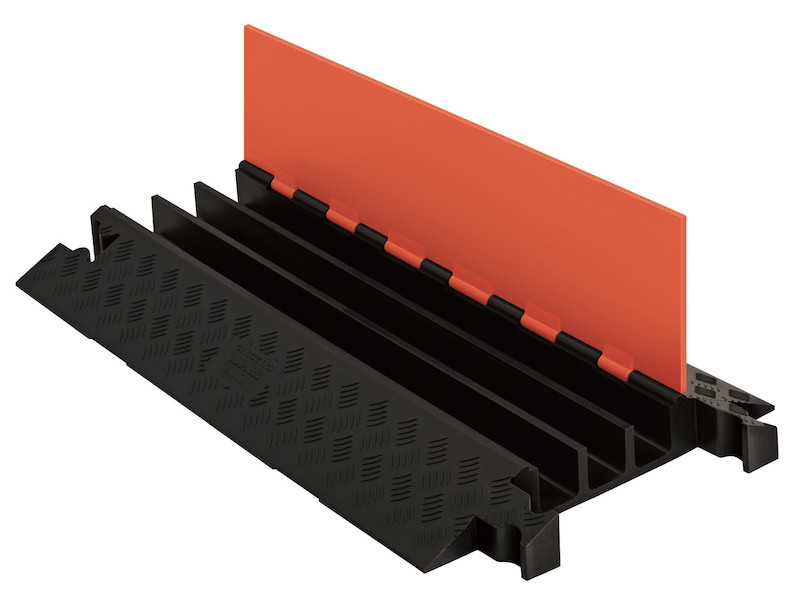

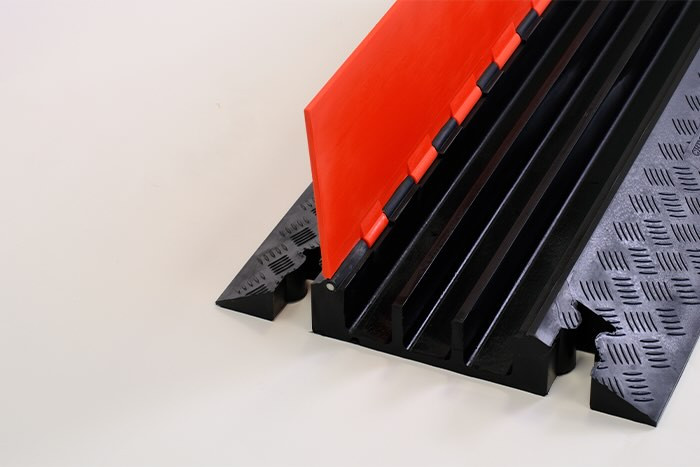

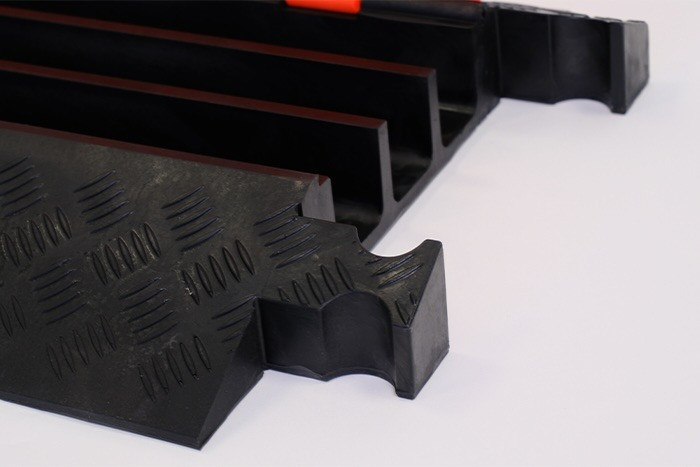

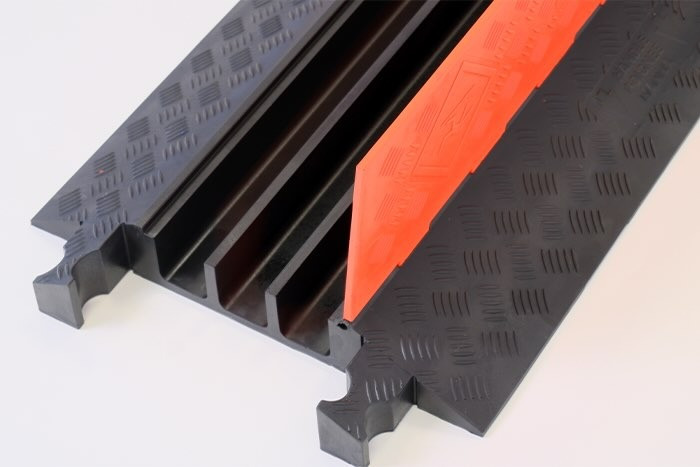

The Ramp Factorys Guard Dog 3-Channel cable protector in orange/black offers a hinged lid. Corner units are available upon request.

Capacity 12892
Channel Size (mm) 57.2
Height (mm) 76.5
Width (mm) 510
Length (mm) 914



£294.00 £245.00
Built to Order
Description

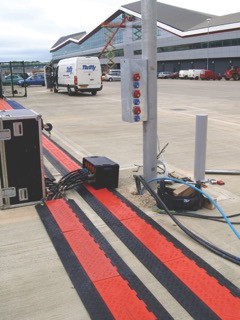

Guard Dog 3-Channel Cable Protector with hinged lid provides a safe crossing for vehicle and pedestrian traffic while protecting valuable electrical cables and hose lines from damage. Modular interlocking design is ideal for use in amusement parks, entertainment venues, sporting events, and most public, commercial, industrial, construction, and utility applications.

  • Protects cables and hoses up to 2.25" outside diameter.
  • Dog-bone connector to extend to any desired length
  • Reinforced hinged lid for easy cable placement
  • All-weather polyurethane construction
  • Patented 5-bar tread surface for maximum traction
  • Modular interlocking design for easy Setup
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

Details
SKU TRP-GD3X225-O/B
Capacity (kg) 12,892
Height (mm) 76.5
Length (mm) 914
Weight (kg) 13.6
Width (mm) 510
One Year Warranty Yes
Easy to Fit Yes
Leave Outside Yes
Cable Protector Color Orange/Black
Channel Width (mm) 57.2
Channel Size (mm) 57.2
Channel Height (mm) 57.2
Max Cable/ Hose Diameter (mm) 57.1
No. Channels 3
Capacity per Axle (kg) 12,892
Capacity per Tyre (kg) 6,446
Operating Temperature (deg. F) 70
Speedlimit (mph) 5
