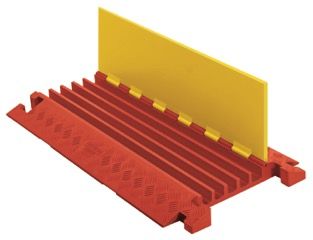

Checkers Line Backer - 5 Channel Cable Protector Orange/Yellow

SKU
TRP-CP5X125-Y/O

The Ramp Factorys Checkers Linebacker 5-Channel cable protector in orange/yellow offers a hinged lid. Corner units are available upon request.

Capacity 18280
Channel Size (mm) 34.3
Height (mm) 57.2
Width (mm) 508
Length (mm) 914.4
£300.00 £250.00
Built to order / 5-7 working days
Description

Linebacker 5-Channel cable protector with a hinged lid provides a safe crossing for vehicles and pedestrian traffic while protecting valuable electrical cables and hose lines from damage in extreme weather conditions and work environments. Modular interlocking design is ideal for use in oil and gas applications, mining, military, and other industrial environments with heavy trucks and forklifts. With a capacity from 18,280kg it is one of our strongest cable protectors.

  • Protects cables and hoses up to 1.35" outside diameter
  • T-connector to extend to any desired length
  • Reinforced hinged lid for easy cable placement
  • All-weather polyurethane construction
  • Patented 5-bar tread surface for maximum traction
  • Modular interlocking design for easy setup
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

Details
SKU TRP-CP5X125-Y/O
Height (mm) 57.2
Length (mm) 914.4
Weight (kg) 11.3
Width (mm) 508
One Year Warranty Yes
Easy to Fit Yes
Leave Outside Yes
Cable Protector Color Orange/Yellow
Channel Width (mm) 34.3
Channel Height (mm) 34.3
Max Cable/ Hose Diameter (mm) 34.3
No. Channels 5
Capacity per Axle (kg) 18,280
Capacity per Tyre (kg) 9,140
Operating Temperature (deg. F) 70
Speedlimit (mph) 10
