Checkers Guard Dog - 5 Channel Cable Protector Orange/Black

SKU
TRP-GD5X125-O/B
£264.00 £220.00
Built to Order

The Ramp Factorys Guard Dog 5-Channel cable protector in orange/black offers a hinged lid. Corners, end caps and 4 way cross units are available upon request.

Capacity 9526
Channel Size (mm) 34
Height (mm) 47.6
Width (mm) 502
Length (mm) 914
Description
Cable Protectors Guard Dog

The Guard Dog 5-Channel Cable Protector (model GD5X125) features a hinged lid, a modular, interlocking design, and the capacity to protect up to five cables and hoses with an outside diameter of up to 1.325". Its all-weather polyurethane construction gives it unmatched durability, and with the use of Dog Bone connectors, it can extend to any length. It also features a 5-bar tread surface, ensuring maximum traction for both vehicles and pedestrians.

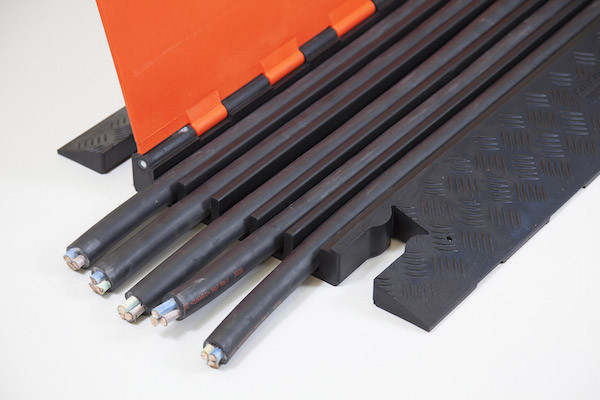

  • Protects cables and hoses up to 1.325" outside dia.

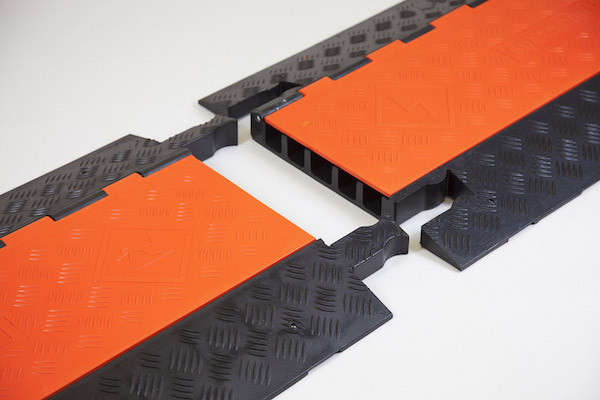

  • Dog-bone connector to extend to any desired length

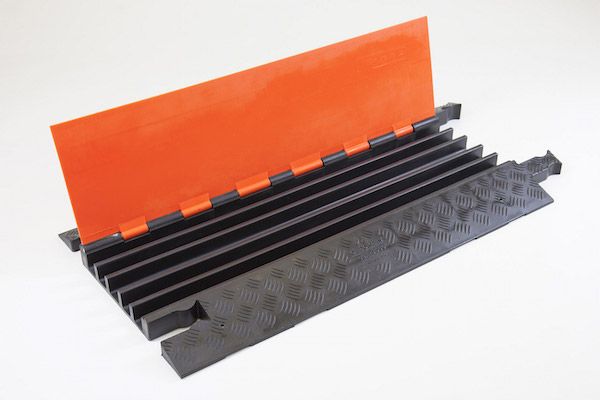

  • Reinforced hinged lid for easy cable placement
  • All-weather polyurethane construction
  • Patented 5-bar tread surface for maximum traction
  • Modular interlocking design for easy setup
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

Details
SKUTRP-GD5X125-O/B
Capacity (kg)9,526
Height (mm)47.6
Length (mm)914
Weight (kg)9.6
Width (mm)502
One Year WarrantyYes
Easy to FitYes
Leave OutsideYes
Cable Protector ColorOrange/Black
Channel Width (mm)34
Channel Size (mm)34 x 33.7
Channel Height (mm)33.7
No. Channels5
Capacity per Axle (kg)9526
Capacity per Tyre (kg)4763
Operating Temperature (deg. F)70
Speedlimit (mph)10
