Extra Wide Loading Ramp
These extra-wide and extremely popular motorcycle ramps have a capacity of up to 680kg and are available in lengths of 2380mm and 2750mm.
Please scroll down to see the description showing full product specifications as widths, load heights and capacities vary.

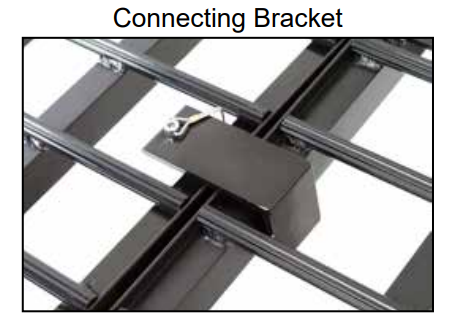

While the standard ramp kit includes safety straps to connect the ramp to the vehicle while loading, you can also add an additional level of security and save time by using the U-shaped joining brackets to lock the ramp with this attaching system which is sold separately, please click here
Please note, these folding motorcycle ramps are not suitable for commercial/industrial usage, these ramps are unsuitable for single axle or tracked machinery or vehicles. For any of these uses we would recommend a solution from our professional loading ramps
2380 length options:
Single Ramp TRP612M (middle ramp only):
- Length - 2380mm
- Folded Length - 1190mm
- Weight - 18.1kg
- Capacity - 680kg
- Width - 440mm
- Max. load height - 714mm
Pair of Ramps TRP612O (outer ramps only):
- Length - 2380mm
- Folded Length - 1190mm
- Weight - 9kg per ramp/18kg per pair
- Capacity - 540kg (across the pair)
- Width per ramp - 280mm
- Max. load height - 714mm
Extra Wide Motorcycle Ramp Kit XL:
3 part ramp kit for motorbikes. The kit allows you to load a motorbike whilst riding up. Motorbike 3 Ramp kit: 1 central ramp TRP612M and a pair of TRP612O outer ramps. The middle ramp has a maximum capacity of 680kg for the bike itself, the outer sections have a maximum capacity across the pair of 540kg for the person who is pushing or riding the bike up the ramps.
2750mm length options:

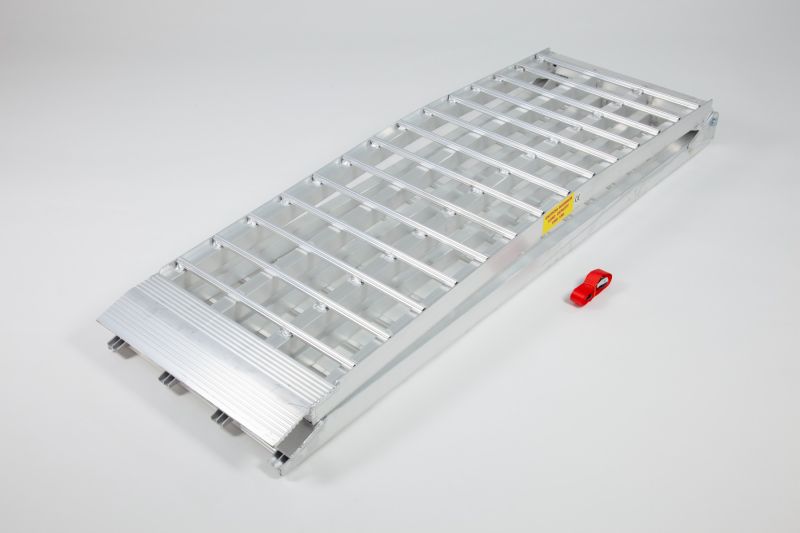

Single Ramp TRP615M (middle ramp only):
- Length - 2750mm
- Folded length - 1375mm
- Weight - 19kg
- Capacity - 680kg
- Width - 440mm
- Max. load height - 835mm
Pair of Ramps TRP615S (outer ramps only):
- Length - 2750mm
- Folded Length - 1375mm
- Weight - 9.5kg per ramp/19kg per pair
- Capacity - 540kg (across the pair)
- Width per ramp - 280mm
- Max. load height - 835mm
Extra Wide Motorcycle Ramp Kit XL:
3 part ramp kit for motorbikes. The kit allows you to load a motorbike whilst riding up. Motorbike 3 Ramp kit: 1 central ramp TRP615M and a pair of TRP615S outer ramps. The middle ramp has a maximum capacity of 680kg for the bike itself, the outer sections have a maximum capacity across the pair of 540kg for the person who is pushing or riding the bike up the ramps. Total width of the kit is 1000mm.
Please note: These ramps are unsuitable for single axle machinery, tracked machinery or vehicles. These ramps are not designed for commercial or industrial use, for professional use please view our professional vehicle ramps.
- Folds in half for quick storage
- Solid plate style lip rest for grip on tailgate
- All aluminum construction
- Ramps can be strapped together
- Safety straps included to keep ramp secure to loading surface, black joining brackets can be purchased separately
- One person loading and unloading
- Walk or ride your bike up the ramps
- Notched cross rungs provide extra traction for wet tires
- Arched for greater clearance
- Safety straps included to keep ramp secure to loading surface
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
SKU | TRP615Conf |
---|---|
Capacity (kg) | 540 - 680 |
Height (mm) | 80 - 120 |
Length (mm) | 2380 - 2750 |
Max Load Height (mm) | 714 - 835 |
Weight (kg) | 18 - 38 |
Width (mm) | 280 - 1000 |
One Year Warranty | Yes |
Easy to Fit | Yes |
Ramp Capacity, Length & Load Height
This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.
Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.
Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).
For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load height x 3.3, gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.
Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase.
For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.
For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.
Further information can be seen in this blog article here
Which wheelchair ramp length? Use our ramp length calculator! Learn more
