Pair of aluminium loading ramps for plant machinery

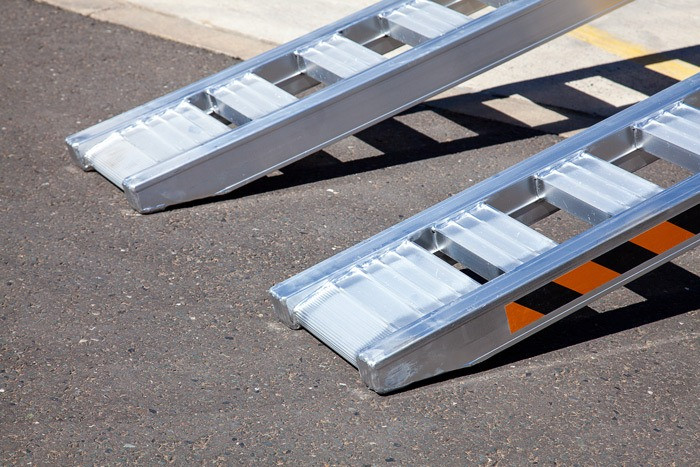

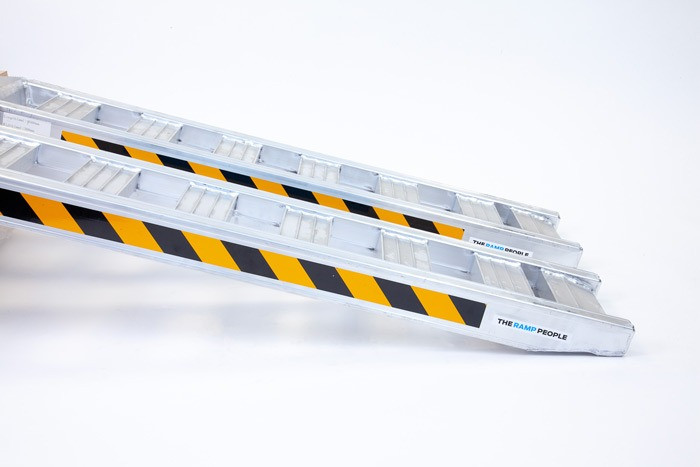

Pair of aluminium loading ramps for plant machinery Angled foot for The Ramp People loading ramps Side of the aluminium loading ramps with warning tape Rest on connection with pre-drilled hole High traction aluminium loading ramps Security pin for the loading ramps TRP Loading Ramps up to 4000kg Pair of loading ramps resting securely on the ground Foot of the loading ramps Rest on connection with pin Foot of the loading ramps TRP Loading Ramps up to 4000kg Pair of loading ramps resting on concrete Pair of loading ramps resting on ground Pair of loading ramps TRP Loading Ramps up to 4000kg Curved rest on connection of the loading ramps TRP Loading Ramps up to 4000kg Ramps resting on pallet TRP Loading Ramps up to 4000kg
  • Easy to Fit
  • One Year Warranty

TRP Loading Ramps up to 4000kg

SKU
TRP-HDAR
As low as £420.00 £350.00
94 In stock at our warehouse

Buy Now, Pay Later for business with... Mondu

T&Cs apply. Learn more

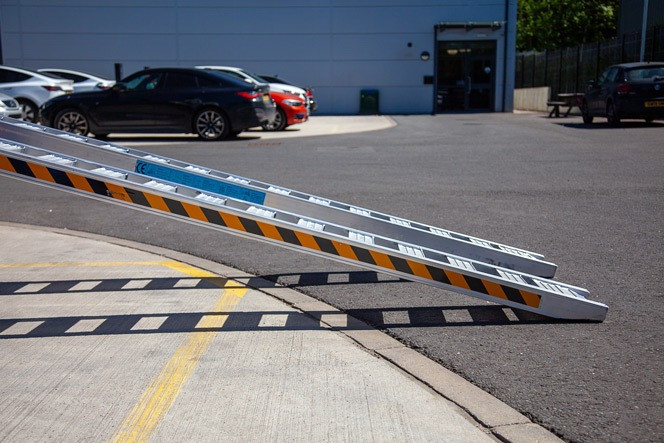

The Ramp Factory's aluminium plant ramps are designed for safely loading rubber tracked or rubber wheeled machinery into vans and trailers or over steps. Offering a 2,000kg capacity across the pair, they are a popular choice for those seeking to load mini-diggers, micro-diggers, ride-on mowers, quad bikes and more. Simply rest the ramps onto your vehicle and start loading.

Aluminium Ramps for Plant & Machinery FAQs

Description

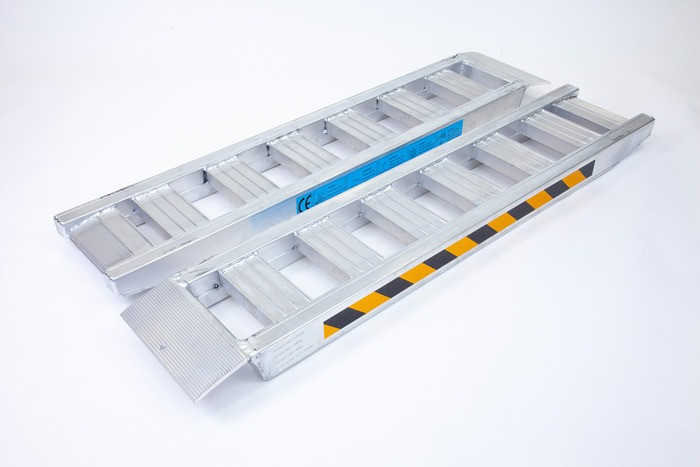

  • Heavy duty design, 2000kg, 3,000kg or 4,000kg capacity across the pair

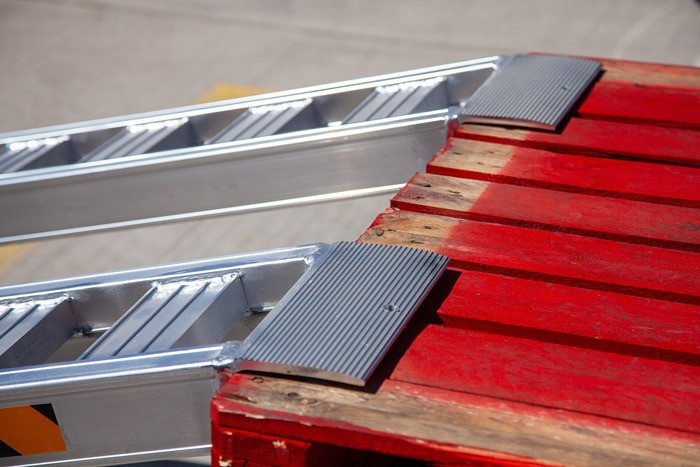

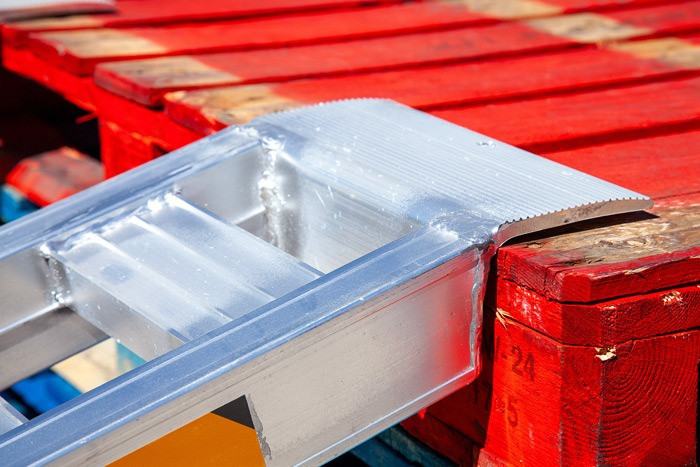

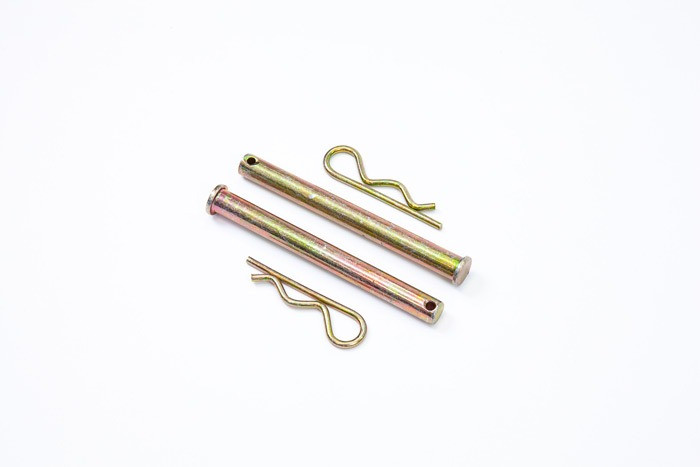

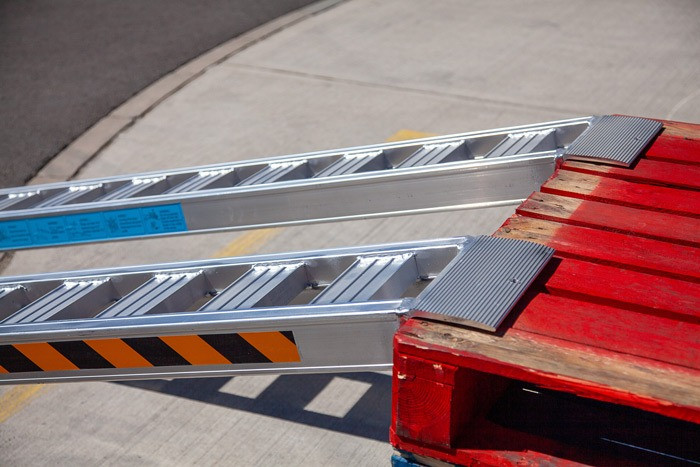

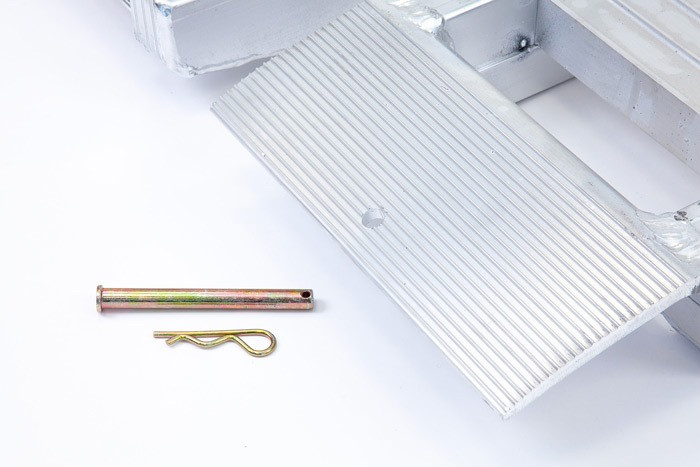

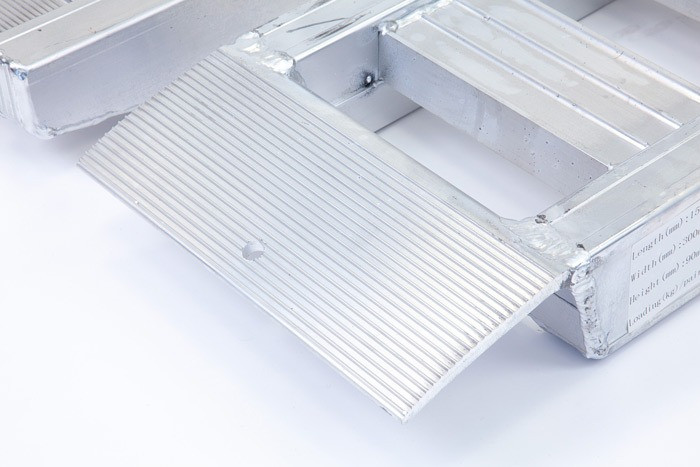

  • Rest on connection with a pre-drilled fixing hole to secure the ramps to the vehicle during loading, perfect for flat bed vehicles

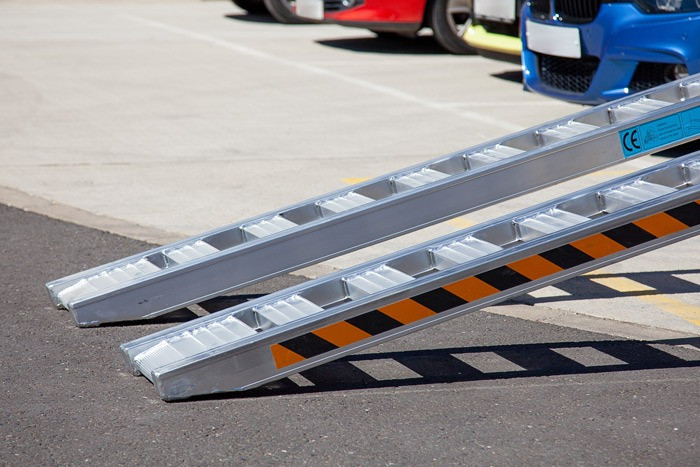

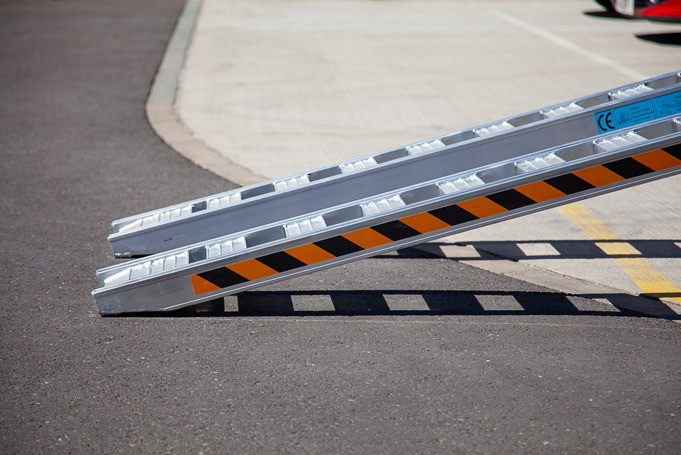

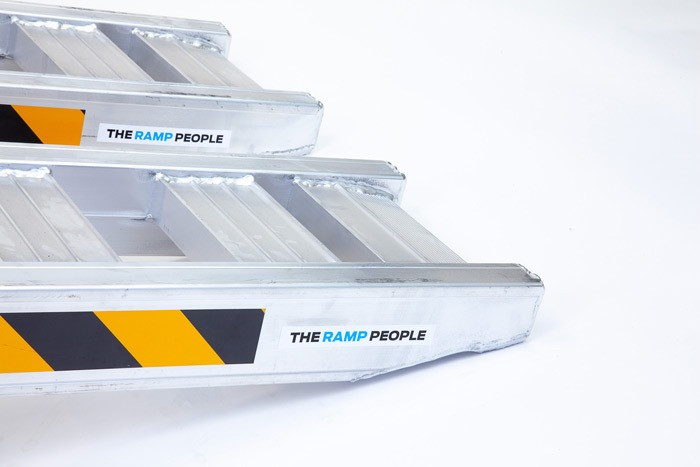

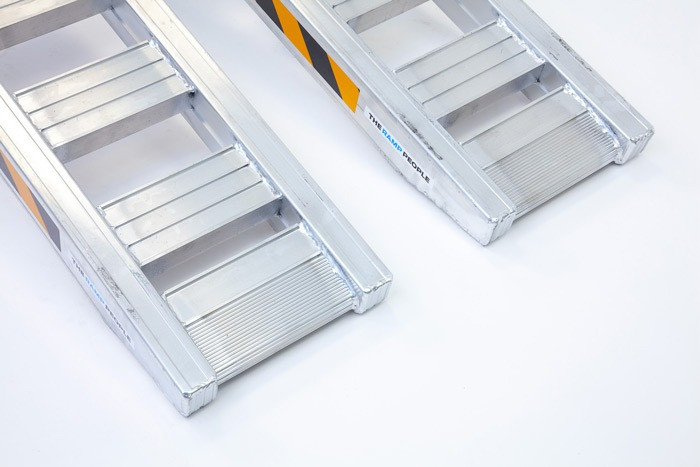

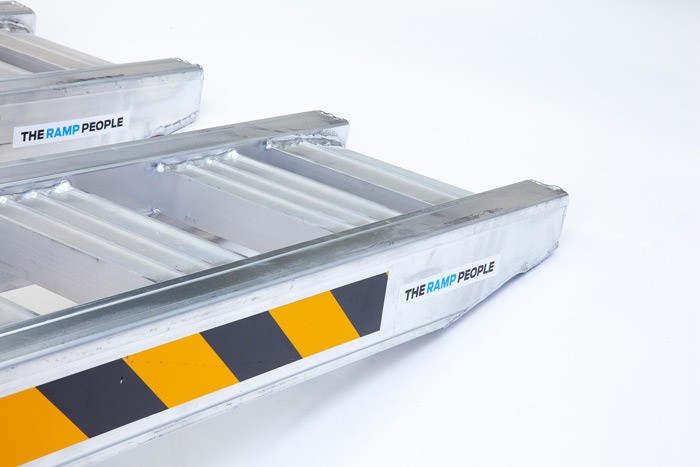

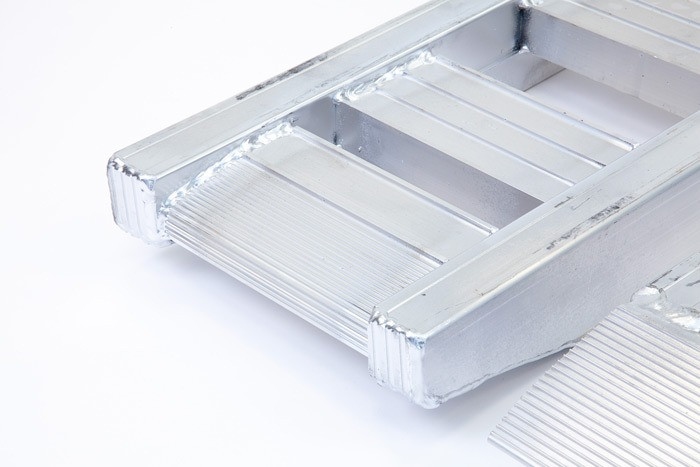

  • Angled foot for smooth entry onto the ramp and for enhanced stability, designed for loading at a maximum gradient of 33% in line with EU guidelines
  • Lightweight design, easily lift and move when needed
  • Designed for rubber tracked and rubber wheeled machinery, safely load diggers, excavators, dumper trucks, compact tractors, ride-on mowers and more
  • Available in a selection of lengths from 1.5m to 3.5m to allow you to achieve a smooth gradient

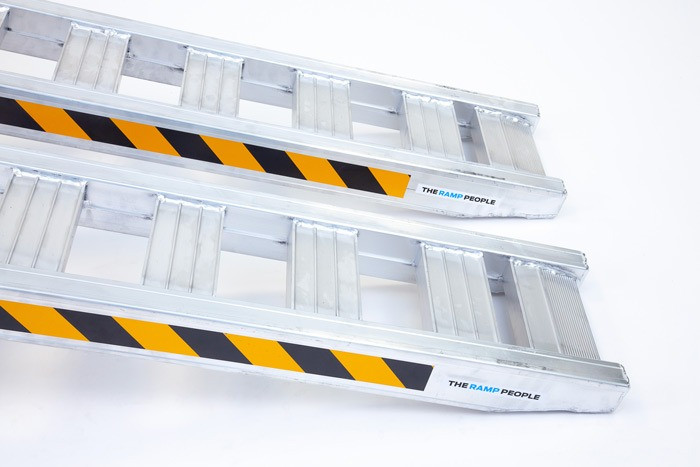

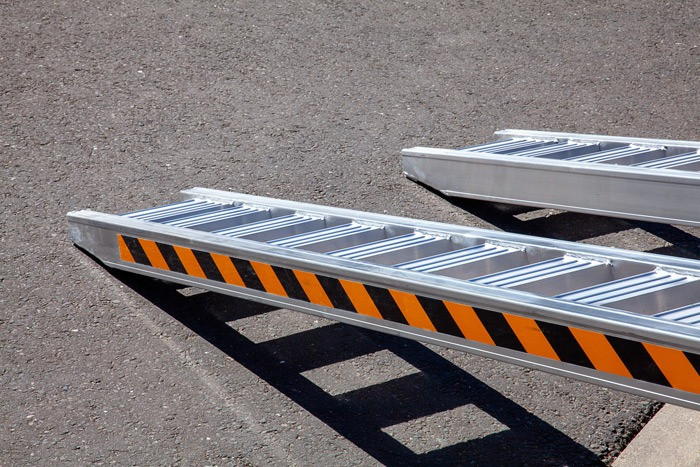

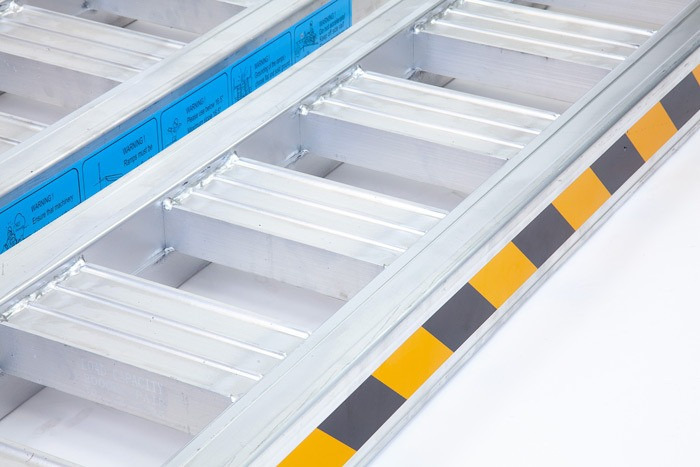

  • High-visibility safety edges to alert passers-by to the ramps
  • Low profile design, perfect for storing in vans and trailers
  • Designed for domestic or professional use
  • CE-marked

The ramps are not designed for loading items with solid wheels.

Aluminium Loading Ramps

1500mm x 2000kg capacity

  • Length: 1500mm
  • Width per ramp: 300mm
  • Internal Width per ramp: 206mm
  • Height: 90mm
  • Min. Load Height: 300mm
  • Max. Load Height: 450mm
  • Weight per ramp: 9.5kg
  • Capacity per pair: 2000kg

2000mm x 2000kg capacity

  • Length: 2000mm
  • Width per ramp: 300mm
  • Internal Width per ramp: 206mm
  • Height: 90mm
  • Min. Load Height: 450mm
  • Max. Load Height: 600mm
  • Weight per ramp: 12kg
  • Capacity per pair: 2000kg

2500mm x 2000kg capacity

  • Length: 2500mm
  • Width per ramp: 300mm
  • Internal Width per ramp: 206mm
  • Height: 90mm
  • Min. Load Height: 600mm
  • Max. Load Height: 750mm
  • Weight per ramp: 17.5kg
  • Capacity per pair: 2000kg

3000mm x 2000kg capacity

  • Length: 3000mm
  • Width per ramp: 300mm
  • Internal Width per ramp: 206mm
  • Height: 90mm
  • Min. Load Height: 750mm
  • Max. Load Height: 900mm
  • Weight per ramp: 18kg
  • Capacity per pair: 2000kg

3500mm x 2000kg capacity

  • Length: 3500mm
  • Width per ramp: 300mm
  • Internal Width per ramp: 206mm
  • Height: 90mm
  • Min. Load Height: 900mm
  • Max. Load Height: 1050mm
  • Weight per ramp: 24kg
  • Capacity per pair: 2000kg

1500mm x 3000kg capacity

  • Length: 1500mm
  • Width per ramp: 300mm
  • Internal Width per ramp: 206mm
  • Height: 90mm
  • Min. Load Height: 300mm
  • Max. Load Height: 450mm
  • Weight per ramp: 9.5kg
  • Capacity per pair: 2000kg

2000mm x 3000kg capacity

  • Length: 2000mm
  • Width per ramp: 400mm
  • Internal Width per ramp: 306mm
  • Height: 90mm
  • Min. Load Height: 450mm
  • Max. Load Height: 600mm
  • Weight per ramp: 14.5kg
  • Capacity per pair: 3000kg

2500mm x 3000kg capacity

  • Length: 2500mm
  • Width per ramp: 400mm
  • Internal Width per ramp: 306mm
  • Height: 90mm
  • Min. Load Height: 600mm
  • Max. Load Height: 750mm
  • Weight per ramp: 17.5kg
  • Capacity per pair: 3000kg

3000mm x 3000kg capacity

  • Length: 3000mm
  • Width per ramp: 400mm
  • Internal Width per ramp: 206mm
  • Height: 90mm
  • Min. Load Height: 750mm
  • Max. Load Height: 900mm
  • Weight per ramp: 21kg
  • Capacity per pair: 3000kg

3500mm x 3000kg capacity

  • Length: 3500mm
  • Width per ramp: 400mm
  • Internal Width per ramp: 306mm
  • Height: 110mm
  • Min. Load Height: 900mm
  • Max. Load Height: 1050mm
  • Weight per ramp: 30kg
  • Capacity per pair: 3000kg

1500mm x 4000kg capacity

  • Length: 1500mm
  • Width per ramp: 400mm
  • Internal Width per ramp: 306mm
  • Height: 110mm
  • Min. Load Height: 300mm
  • Max. Load Height: 450mm
  • Weight per ramp: 12.5kg
  • Capacity per pair: 4000kg

2000mm x 4000kg capacity

  • Length: 2000mm
  • Width per ramp: 400mm
  • Internal Width per ramp: 306mm
  • Height: 110mm
  • Min. Load Height: 450mm
  • Max. Load Height: 600mm
  • Weight per ramp: 15.5kg
  • Capacity per pair: 4000kg

2500mm x 4000kg capacity

  • Length: 2500mm
  • Width per ramp: 400mm
  • Internal Width per ramp: 306mm
  • Height: 110mm
  • Min. Load Height: 600mm
  • Max. Load Height: 750mm
  • Weight per ramp: 20kg
  • Capacity per pair: 4000kg

3000mm x 4000kg capacity

  • Length: 3000mm
  • Width per ramp: 400mm
  • Internal Width per ramp: 306mm
  • Height: 110mm
  • Min. Load Height: 750mm
  • Max. Load Height: 900mm
  • Weight per ramp: 25kg
  • Capacity per pair: 4000kg

3500mm x 4000kg capacity

  • Length: 3500mm
  • Width per ramp: 400mm
  • Internal Width per ramp: 306mm
  • Height: 140mm
  • Min. Load Height: 900mm
  • Max. Load Height: 1050mm
  • Weight per ramp: 33kg
  • Capacity per pair: 4000kg
Specifications
SKUTRP-HDAR
One Year WarrantyYes
Easy to FitYes
