Heavy Duty Rubber Kerb Ramp 100mm - 200mm

SKU
TRP1MConf
From £42.00 £35.00
Over 300 In stock at our warehouse
Only %1 left

Saturday Delivery ‐ AVAILABLE

Buy Now, Pay Later for business with... Mondu

T&Cs apply. Learn more

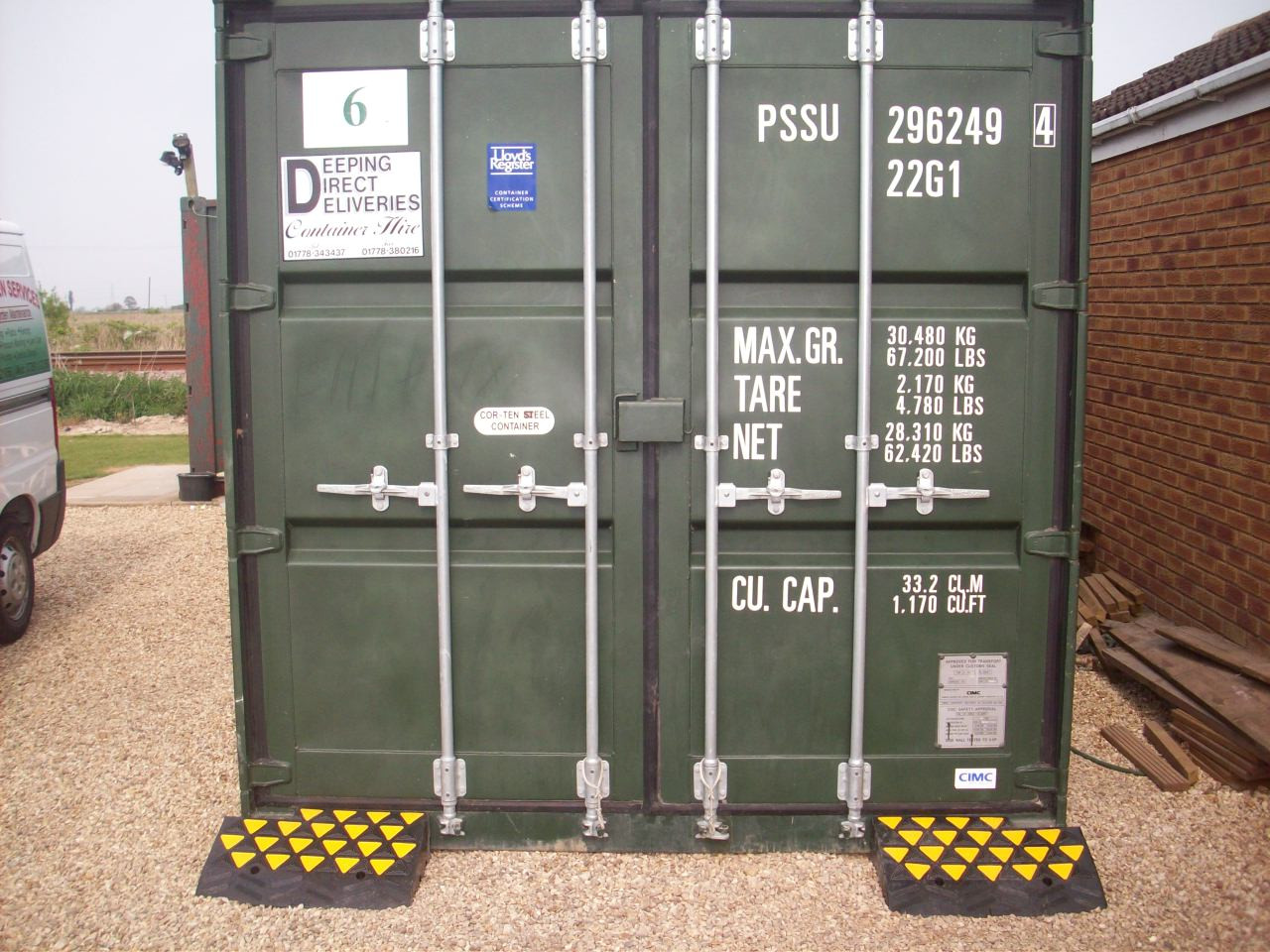

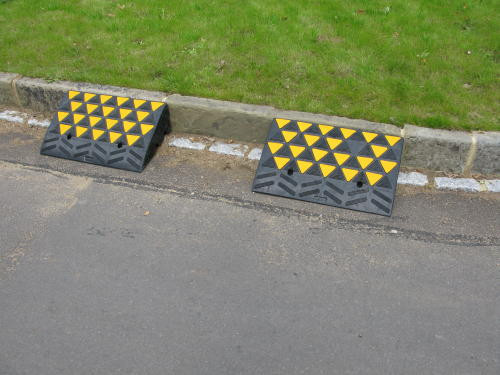

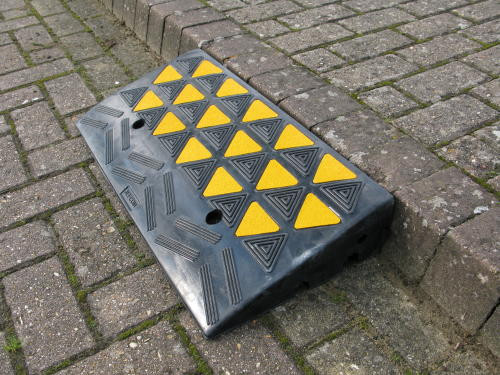

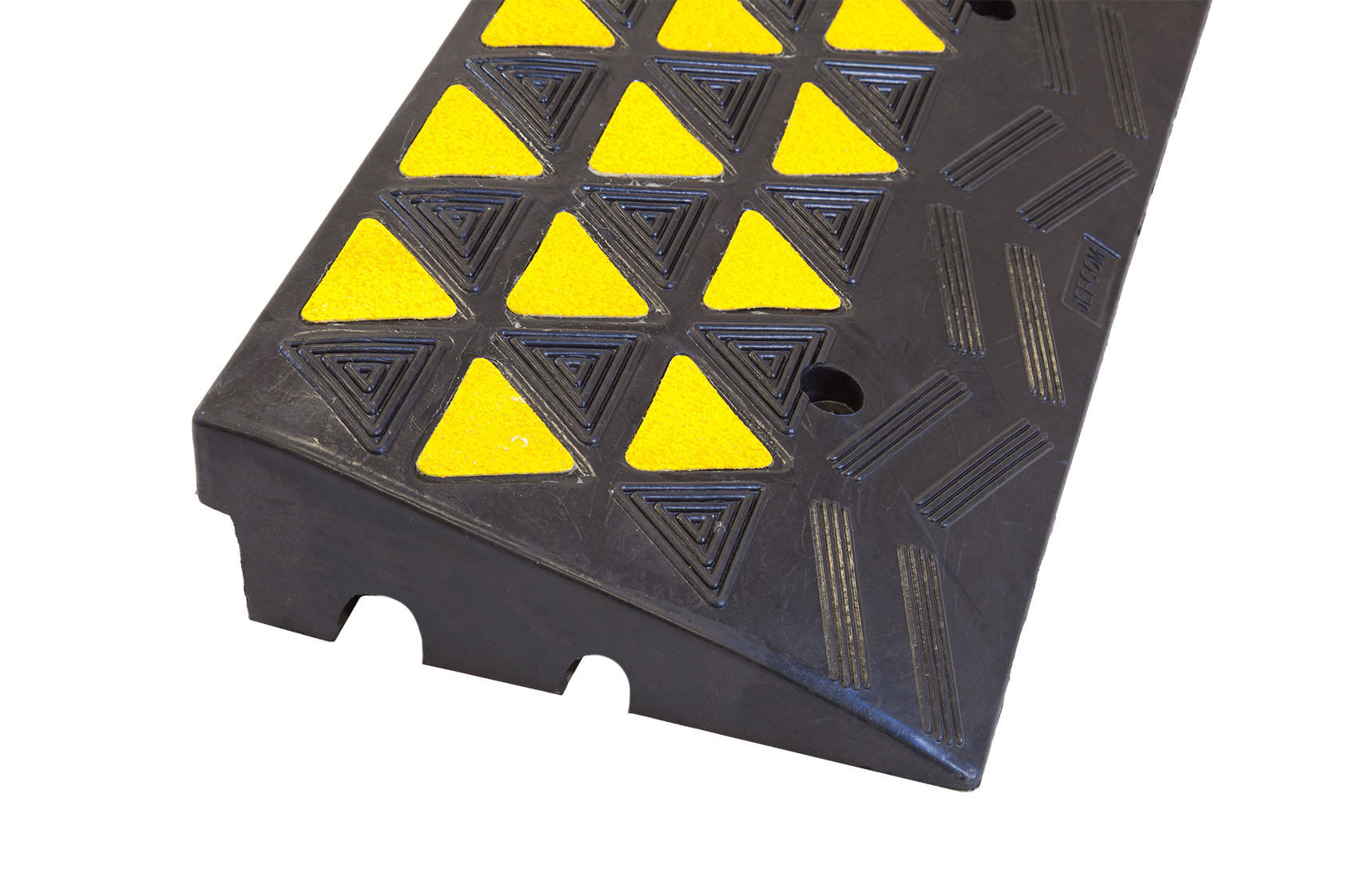

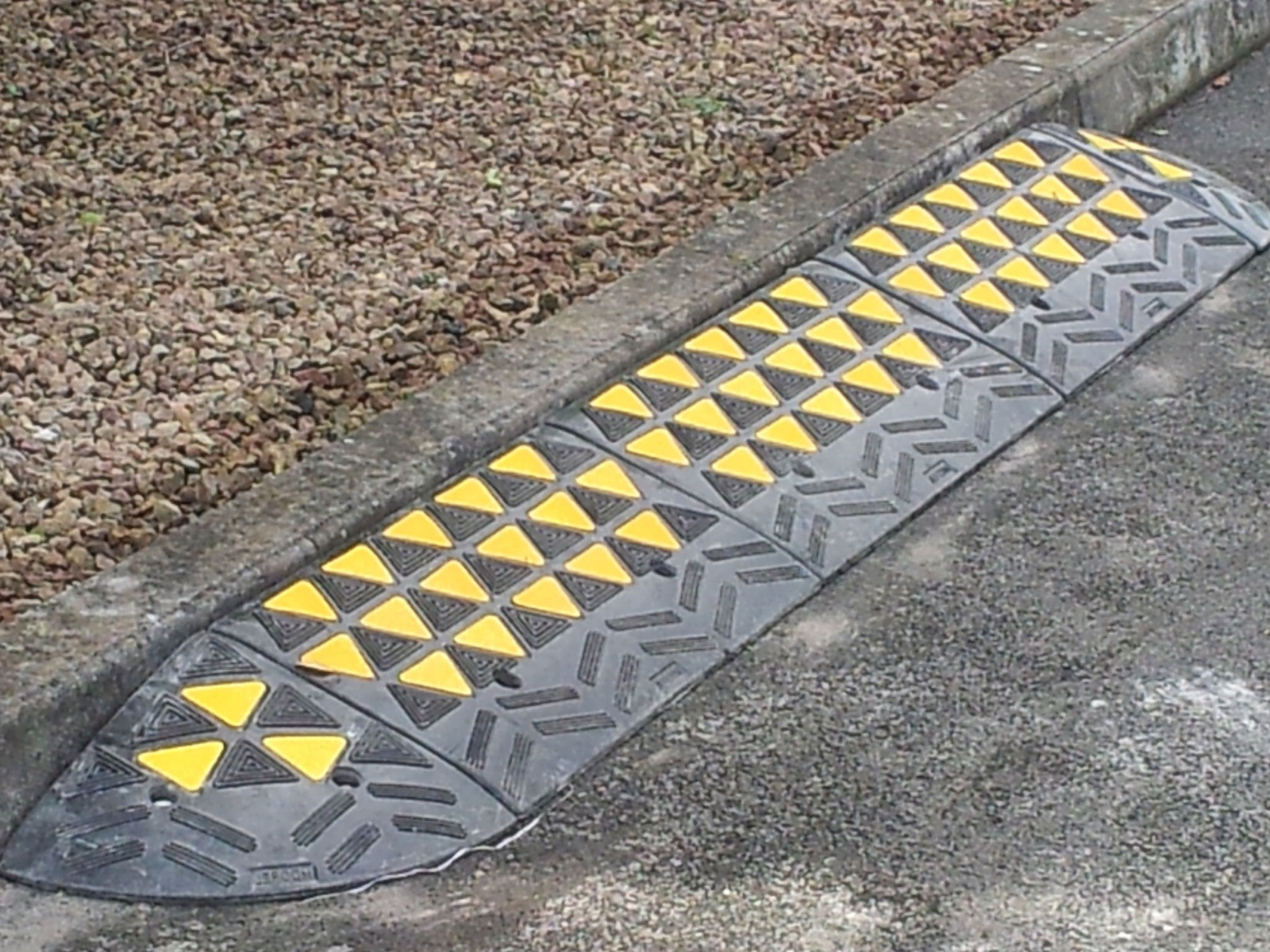

Heavy duty rubber kerb ramps/curb ramps from The Ramp Factory are ideal for protecting kerbs from heavy machinery or vehicles. These curb ramps/kerb ramps are suitable for vehicles that need to overcome kerbs/curbs and are supplied with fixings for tarmac and concrete. They are available in heights of 100 mm, 150mm and 200mm and have a 20,000 kg capacity, as well as two channels for allowing cables to pass underneath the ramps. The ramps are made from hard-wearing rubber resistant to harsh elements.

If you are interested in other cable protection products or speed control products, The Ramp Factory is sure to have something suitable for your needs.

Description

Rubber Kerb Ramp 100mm TRP1M

Single Kerb Ramp

  • Length: 300mm
  • Width: 600mm
  • Height: 100mm
  • Weight: 9.4kg
  • Capacity: 20,000kg
  • Number of ramps: One

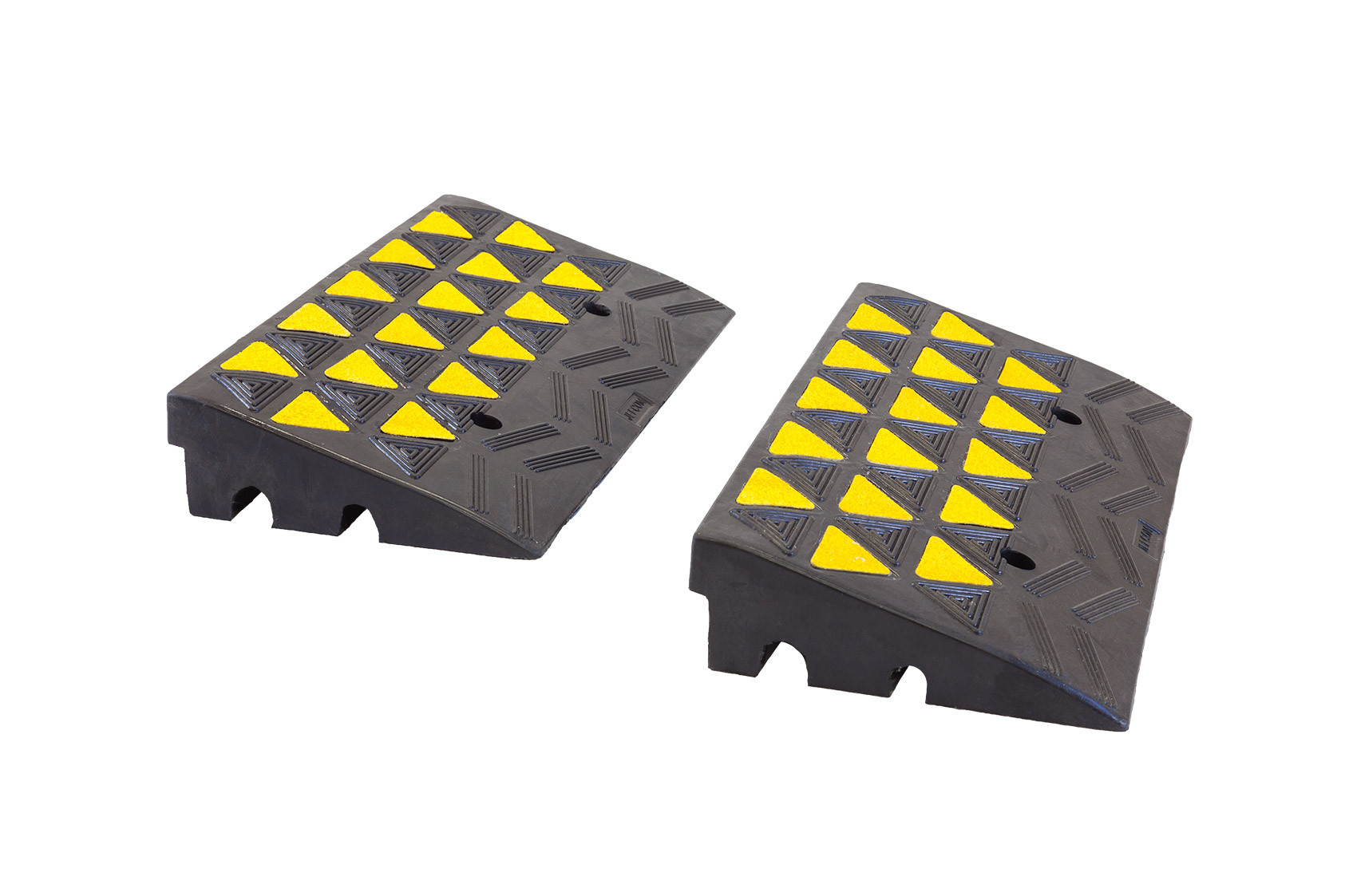

Pair of Rubber Kerb Ramps

  • Length: 300mm
  • Width: 1200mm
  • Height: 100mm
  • Weight: 18.8kg
  • Capacity: 20,000kg
  • Number of ramps: Two

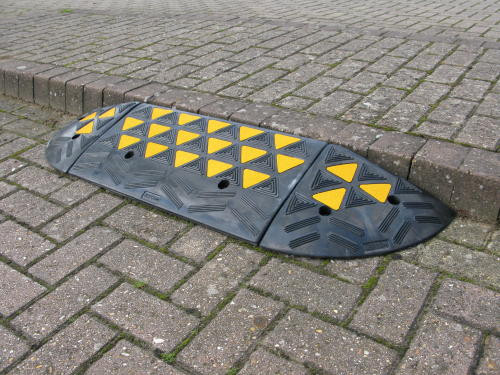

Rubber Kerb Ramp Kit

  • Length: 300mm
  • Width: 1800mm
  • Height: 100mm
  • Weight: 24.8kg
  • Capacity: 20,000kg
  • Number of ramps: Two middle ramps (2 x 600mm) & 2 end caps (2 x 300mm)

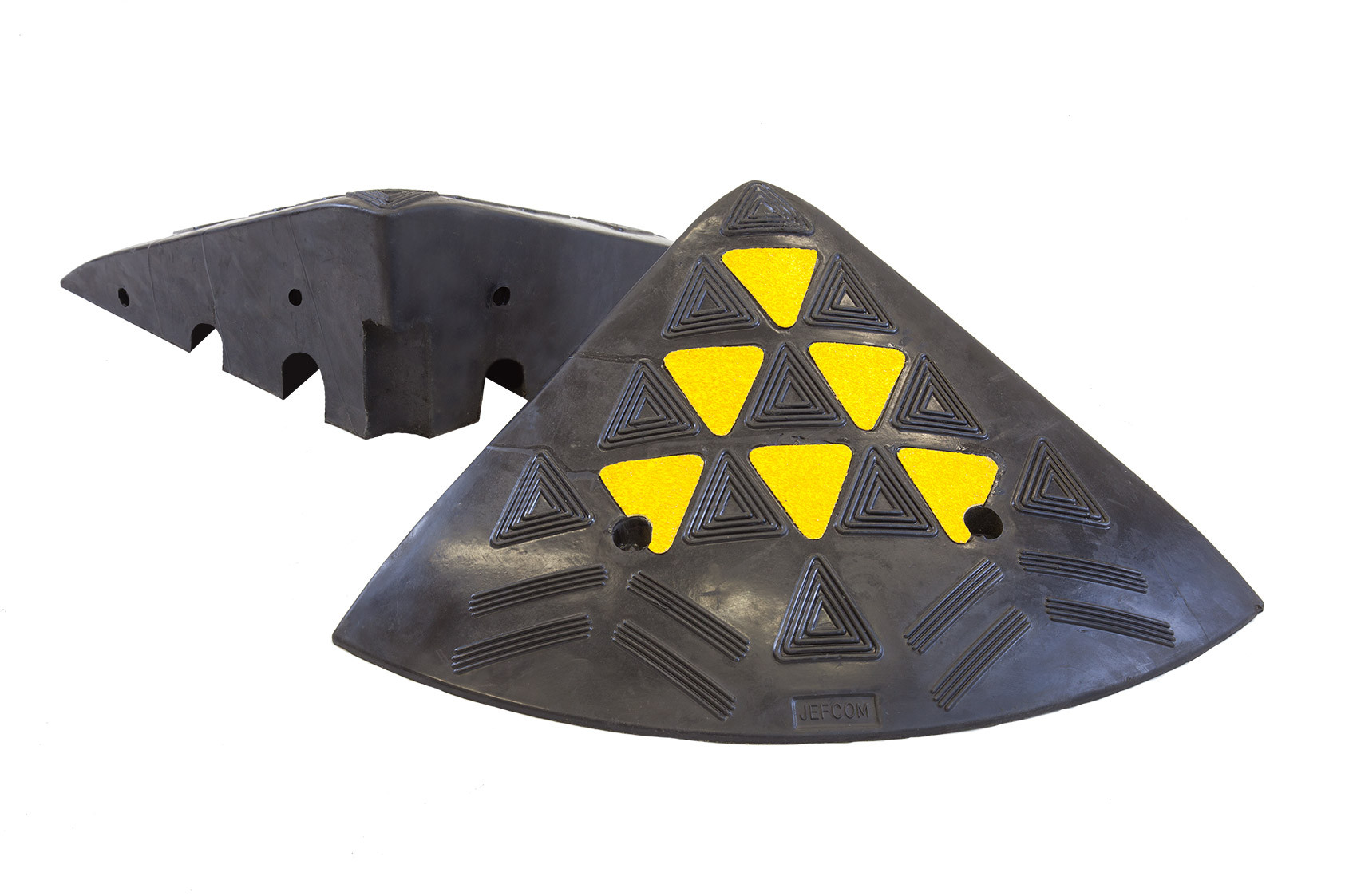

End Cap

  • Length: 300mm
  • Width: 300mm
  • Height: 100mm
  • Weight: 3kg
  • Capacity: 20,000kg
  • Number of ramps: 1 end cap

Rubber Kerb Ramp 150mm TRP2M

Single Kerb Ramp

  • Length: 360mm
  • Width: 600mm
  • Height: 150mm
  • Weight: 16.10kg
  • Capacity: 20,000kg
  • Number of ramps: One

Pair of Rubber Kerb Ramps

  • Length: 360mm
  • Width: 1200mm
  • Height: 150mm
  • Weight: 32.20kg
  • Capacity: 20,000kg
  • Number of ramps: Two

Rubber Kerb Ramp Kit

  • Length: 360mm
  • Width: 1920mm
  • Height: 150mm
  • Weight: 44.90kg
  • Capacity: 20,000kg
  • Number of ramps: Two middle ramps (2 x 600mm) & 2 end caps (2 x 360mm)

End Cap

  • Length: 360mm
  • Width: 360mm
  • Height: 150mm
  • Weight: 6.35kg
  • Capacity: 20,000kg
  • Number of ramps: 1 end cap

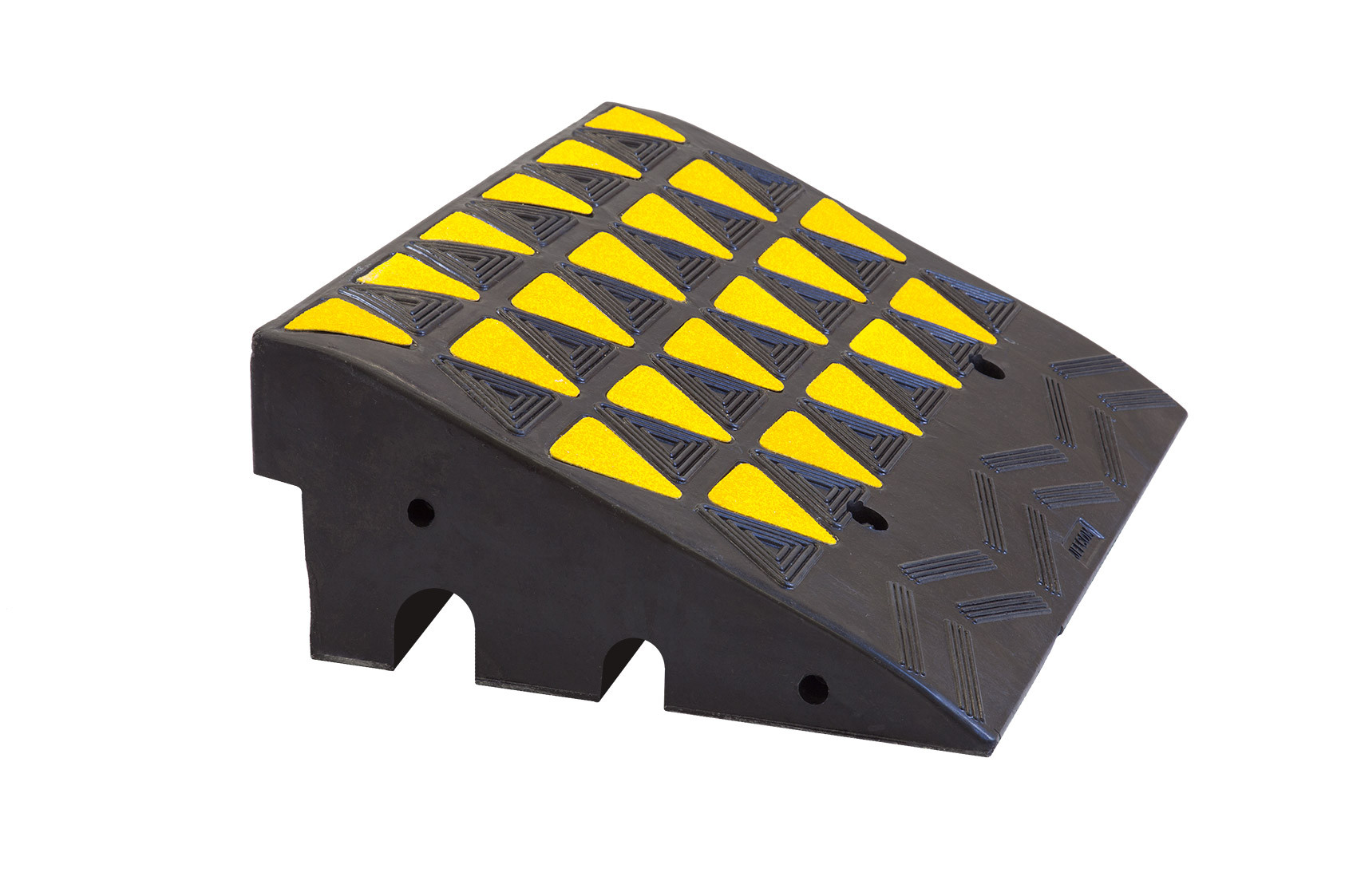

Rubber Kerb Ramp 200mm TRP3M

Single Kerb Ramp

  • Length: 450mm
  • Width: 600mm
  • Height: 200mm
  • Weight: 23.7kg
  • Capacity: 15,000kg
  • Number of ramps: One

Pair of Rubber Kerb Ramps

  • Length: 450mm
  • Width: 1200mm
  • Height: 200mm
  • Weight: 47.4kg
  • Capacity: 15,000kg
  • Number of ramps: Two

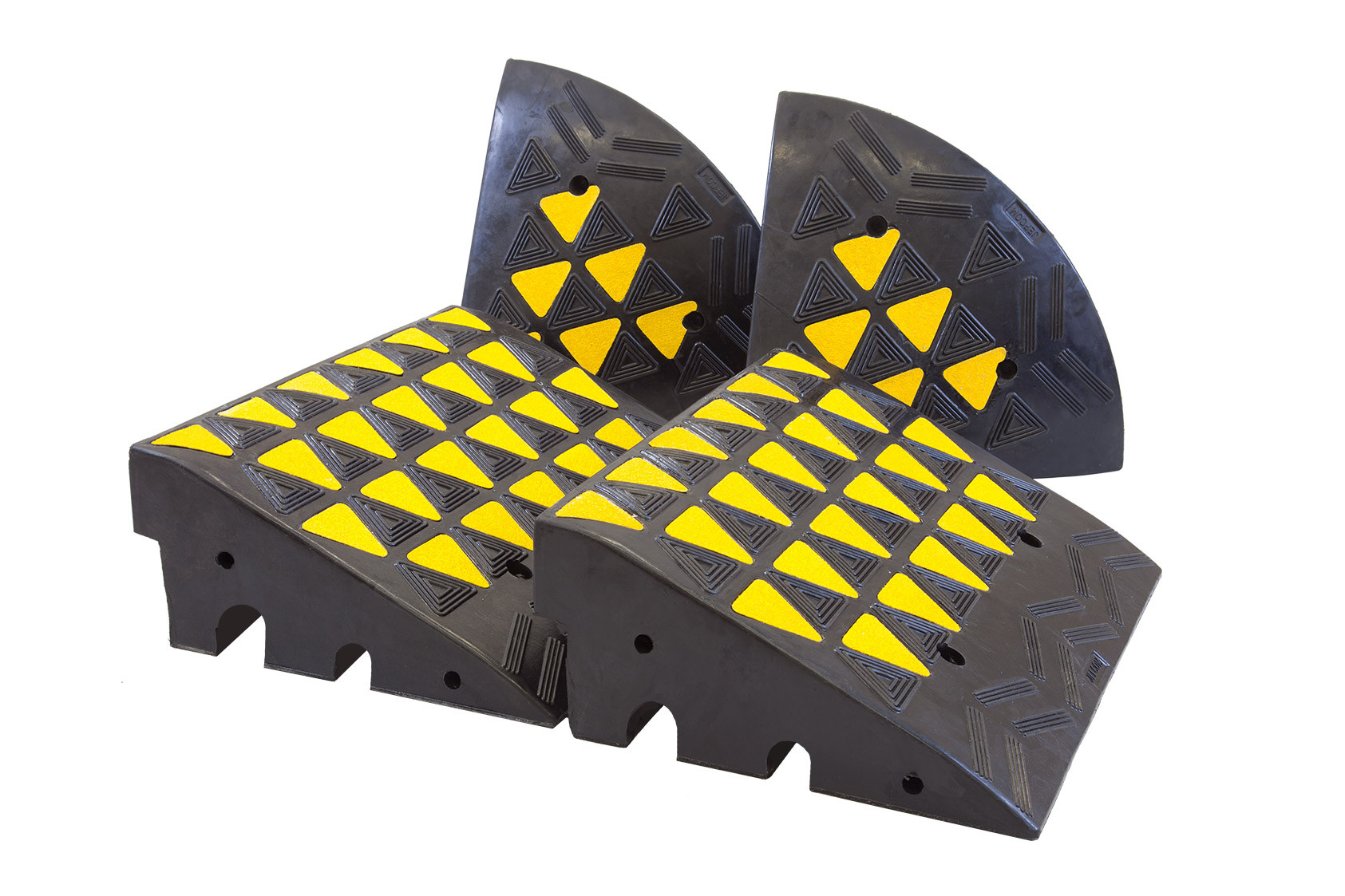

Rubber Kerb Ramp Kit

  • Length: 450mm
  • Width: 2100mm
  • Height: 200mm
  • Weight: 88kg
  • Capacity: 15,000kg
  • Number of ramps: Two middle ramps (2 x 600mm) & 2 End Caps (2 x 450mm).

End Cap

  • Length: 450mm
  • Width: 450mm
  • Height: 200mm
  • Weight: 14kg
  • Capacity: 15,000kg
  • Number of ramps: 1 end cap
Product Questions
What fixings are provided with The Ramp Factory's Heavy Duty Rubber Kerb Ramps?

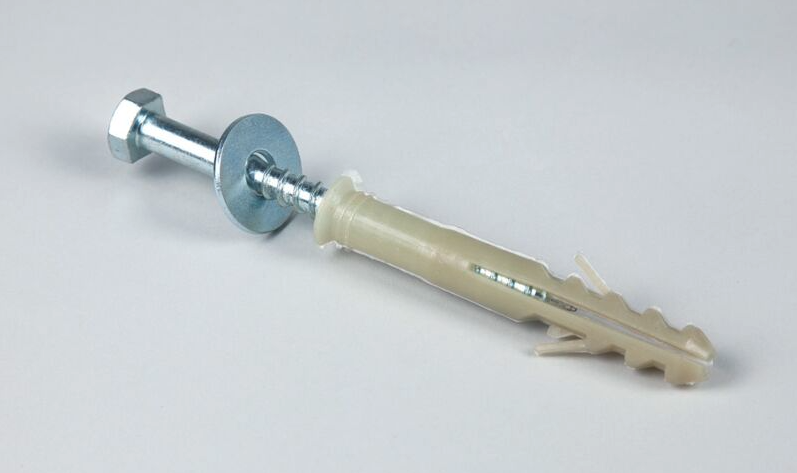

The Heavy Duty Rubber Kerb Ramps are provided with fixings for tarmac and concrete. The fixings are an M10 x 120mm. If you wish to secure the ramps to the ground, you will also require a drill bit (not provided).
I am interested in the Heavy Duty Rubber Kerb Ramps, do I need to secure these in place?
The Heavy Duty Rubber Kerb Ramps can be used as portable ramps or they can be fixed in place with the fixings provided.
Are The Ramp Factory's Heavy Duty Rubber Kerb Ramps suitable for providing wheelchair access?
Due to the gradient, we do not advise using these ramps to provide wheelchair access. For wheelchair access please instead view our range of rubber ramps in our Threshold Ramps category.

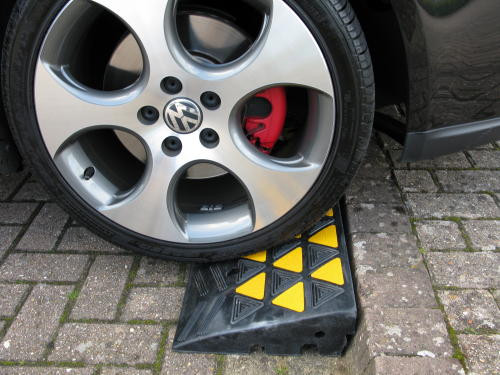

I require kerb ramps for loading a car, will the Heavy Duty Rubber Kerb Ramps be suitable?
The Heavy Duty Rubber Kerb Ramp offers a 20,000kg capacity so are suitable for loading cars, vans and HGVs. Please do check your car's clearance, for cars with low clearance you may wish to view the all black rubber ramps which are built to a smoother gradient or our aluminium car ramps.
Video

Details
SKUTRP1MConf
Capacity (kg)15,000 - 20,000
Height (mm)100 - 200
Length (mm)300 - 450
Weight (kg)3 - 47.4
Width (mm)300 - 2100
One Year WarrantyYes
Easy to FitYes
Fixings IncludedYes
High VisabilityYes
Leave OutsideYes
Channel Size (mm)100mm: #1: 32mm x 29.5mm & #2: 29.5mm x 24.5mm I 150mm: #1: 33mm x 26.2mm & # 2: 28.1 x 23.6mm I 200mm: #1 50 mm x 50 mm & #2: 40 mm x 40 mm
No. Channels2
Colour OptionBlack
