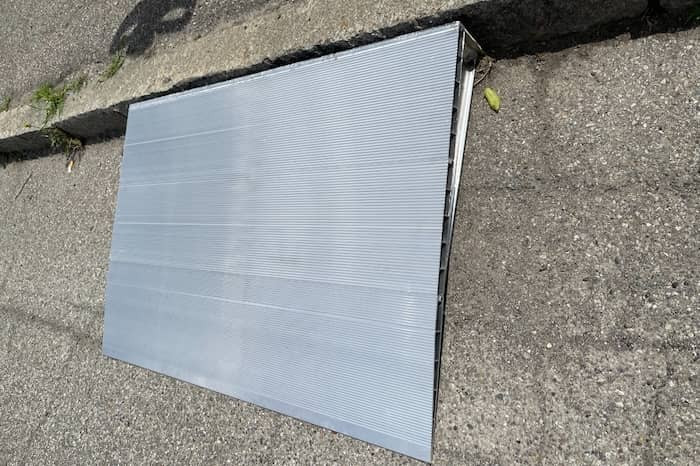

Aluminium Wedge Ramp from 60mm to 170mm
The Ramp Factory's Aluminium Wedge Ramp is available in heights up to 170mm. The ramps offer a 1000kg capacity and are perfect for allowing trolleys and pallet trucks to easily overcome kerbs and access containers. These lightweight loading ramps are TUV certified and can be customised to your requirements.
Aluminium Wedge Ramp features:

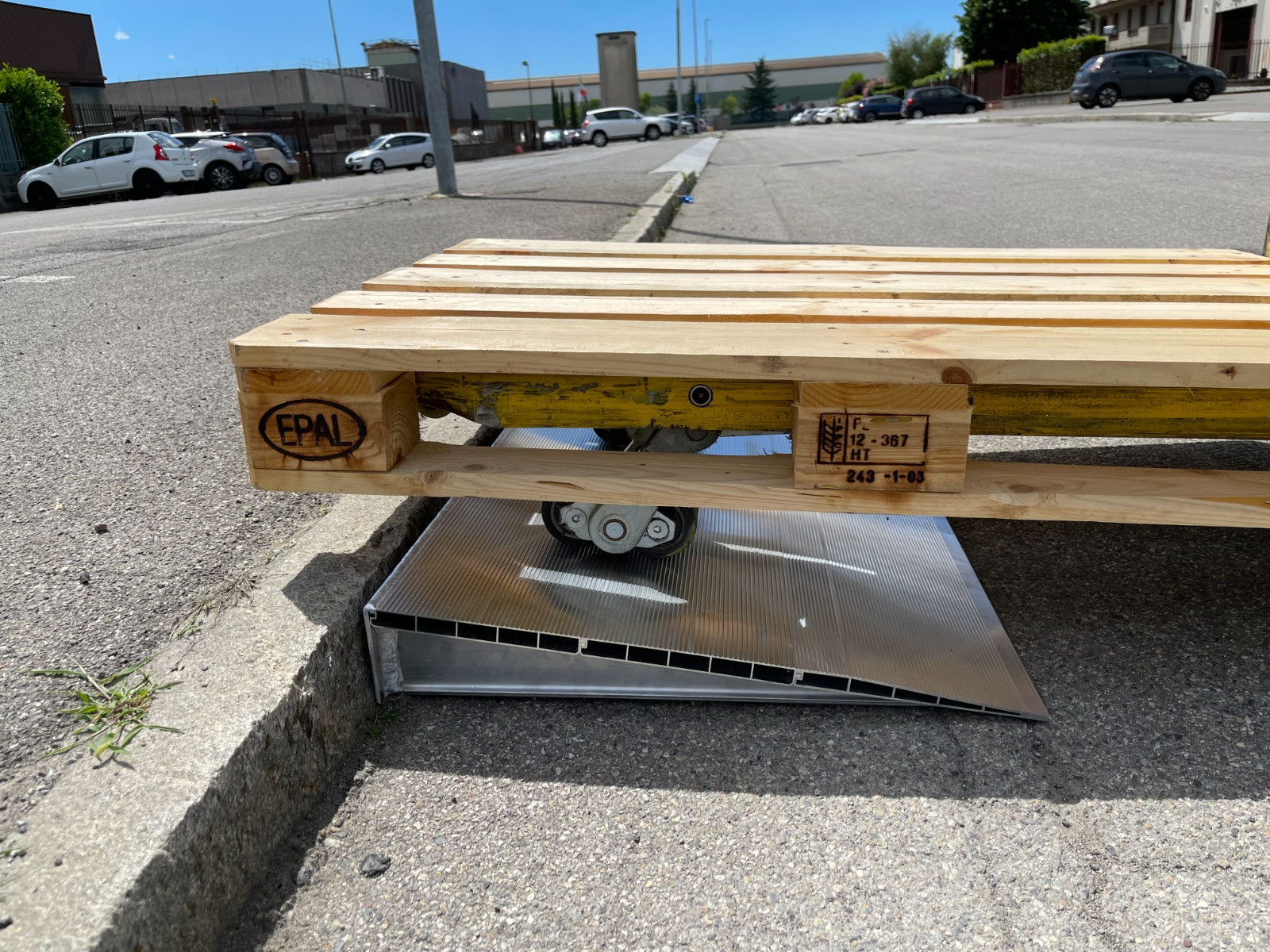

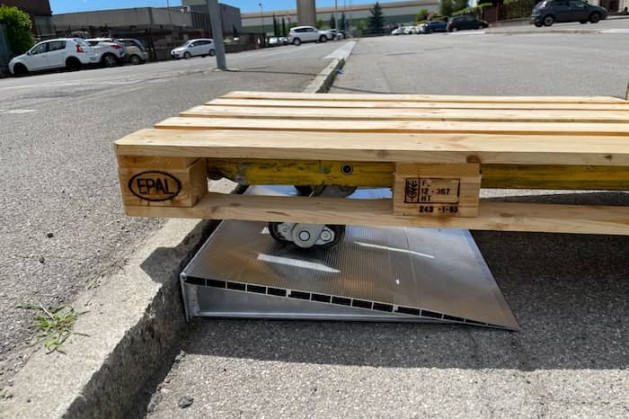

Available in heights from 60mm to 170mm. The ramps have a capacity of 1000kg and are provided in a width of 950mm. The ramps are perfect for allowing items including trolleys and pallet trucks to easily overcome kerbs and small height differences.
- Simply put the ramp in place and start loading
- Lightweight portable solution
- Created from high-resistant aluminium
- Non-slip transit surface
- Suitable for loading items including trolleys and pallet trucks
- Robot welded for solid, strong and durable construction
- Smooth gradient for easy loading
- Fully TUV Certified
- Made in Europe
- Maximum loading capacity of 1000kg at 1000mm wheelbase
- Suitable for caster wheels
- No edges
- Not suitable for forklifts, for loading forklifts please view our aluminium container ramps
- Custom solutions available on request including capacities up to 3000kg and custom widths
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
Aluminium Wedge Ramp
60mm
- Height (mm): 60
- Width (mm): 950
- Length (mm): 635
- Weight (kg): 8
- Capacity (kg): 1000
65mm
- Height (mm): 65
- Width (mm): 950
- Length (mm): 635
- Weight (kg): 8
- Capacity (kg): 1000
70mm
- Height (mm): 70
- Width (mm): 950
- Length (mm): 635
- Weight (kg): 9
- Capacity (kg): 1000
75mm
- Height (mm): 75
- Width (mm): 950
- Length (mm): 635
- Weight (kg): 9
- Capacity (kg): 1000
80mm
- Height (mm): 80
- Width (mm): 950
- Length (mm): 635
- Weight (kg): 9
- Capacity (kg): 1000
85mm
- Height (mm): 85
- Width (mm): 950
- Length (mm): 635
- Weight (kg): 9
- Capacity (kg): 1000
90mm
- Height (mm): 90
- Width (mm): 950
- Length (mm): 635
- Weight (kg): 9
- Capacity (kg): 1000
95mm
- Height (mm): 95
- Width (mm): 950
- Length (mm): 635
- Weight (kg): 9
- Capacity (kg): 1000
100mm
- Height (mm): 100
- Width (mm): 950
- Length (mm): 635
- Weight (kg): 9
- Capacity (kg): 1000
105mm
- Height (mm): 105
- Width (mm): 950
- Length (mm): 635
- Weight (kg): 9
- Capacity (kg): 1000
110mm
- Height (mm): 110
- Width (mm): 950
- Length (mm): 835
- Weight (kg): 12
- Capacity (kg): 1000
115mm
- Height (mm): 115
- Width (mm): 950
- Length (mm): 835
- Weight (kg): 12
- Capacity (kg): 1000
120mm
- Height (mm): 120
- Width (mm): 950
- Length (mm): 830
- Weight (kg): 12
- Capacity (kg): 1000
125mm
- Height (mm): 125
- Width (mm): 950
- Length (mm): 830
- Weight (kg): 12
- Capacity (kg): 1000
130mm
- Height (mm): 130
- Width (mm): 950
- Length (mm): 830
- Weight (kg): 12
- Capacity (kg): 1000
135mm
- Height (mm): 135
- Width (mm): 950
- Length (mm): 830
- Weight (kg): 12
- Capacity (kg): 1000
140mm
- Height (mm): 140
- Width (mm): 950
- Length (mm): 1030
- Weight (kg): 15
- Capacity (kg): 1000
145mm
- Height (mm): 145
- Width (mm): 950
- Length (mm): 1030
- Weight (kg): 16
- Capacity (kg): 1000
150mm
- Height (mm): 150
- Width (mm): 950
- Length (mm): 1030
- Weight (kg): 16
- Capacity (kg): 1000
155mm
- Height (mm): 155
- Width (mm): 950
- Length (mm): 1030
- Weight (kg): 16
- Capacity (kg): 1000
160mm
- Height (mm): 160
- Width (mm): 950
- Length (mm): 1030
- Weight (kg): 16
- Capacity (kg): 1000
165mm
- Height (mm): 165
- Width (mm): 950
- Length (mm): 1030
- Weight (kg): 16
- Capacity (kg): 1000
170mm
- Height (mm): 170
- Width (mm): 950
- Length (mm): 1030
- Weight (kg): 17
- Capacity (kg): 1000
Usage Guidelines and Safety Information for these ramps can be found here.
SKU | TRP-MBAS |
---|---|
Capacity (kg) | 1000 |
Height (mm) | 60 - 170 |
Length (mm) | 635 - 1050 |
Weight (kg) | 8 - 17 |
Width (mm) | 950 |
One Year Warranty | Yes |
Customisable | Yes |
Easy to Fit | Yes |
European Made | Yes |
Capacity Wheelbase 1000mm (kg) | 1000 |
Ramp Length & Load Height
This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.
Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.
Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).
For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load height x 3.3, gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.
For loading vehicles with Low ground clearance and Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle)
Capacity & Wheelbase Info
What is the wheelbase? - Wheelbase is the distance between the front and the back wheels.
Our loading ramps are usually safety tested and certified for three different length wheelbases. This is because the length of the wheelbase effects the spread of the weight applied to the ramps. The smaller the wheel base the more focused the load & therefore the less capacity the ramps can take.
The same applies with the width of the tyre or track which is why we list a ‘minimum track width’ within each product specification. We recommend reading the safety information supplied with the ramps before use to be sure the set supplied are suitable for your application.
Usage Guidelines and Safety Information for these ramps can be found here.
Load Height & Threshold Ramps
Threshold ramps are designed to be left in place if required and should allow any door to be opened over the top of them - to get the correct height just simply measure the vertical height from the ground to the entrance of the property. So a 3 inch rise requires a 3 inch threshold ramp. These are not always suitable for scooters or electric wheelchairs so please check with us first.
