Aluminium Loading Ramp (3000x360x4500kg)

£1,115.40 £929.50
In Stock
Ask A Question
Aluminium Loading Ramp (3000x360x4500kg)

SKU
TRP116/30

3000mm length, 360mm width and a profile height of 115mm . These ramps include a maximum capacity of 4500kg, ideal for loading plant machinery and vehicles. These ramps are made from aluminium, which makes them exceptionally thin and lightweight. Please note these ramps require a min/max track or tyre width of 200mm/280mm.

Capacity and price is for the PAIR.

Aluminium Ramps for Plant & Machinery FAQs

  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
Description

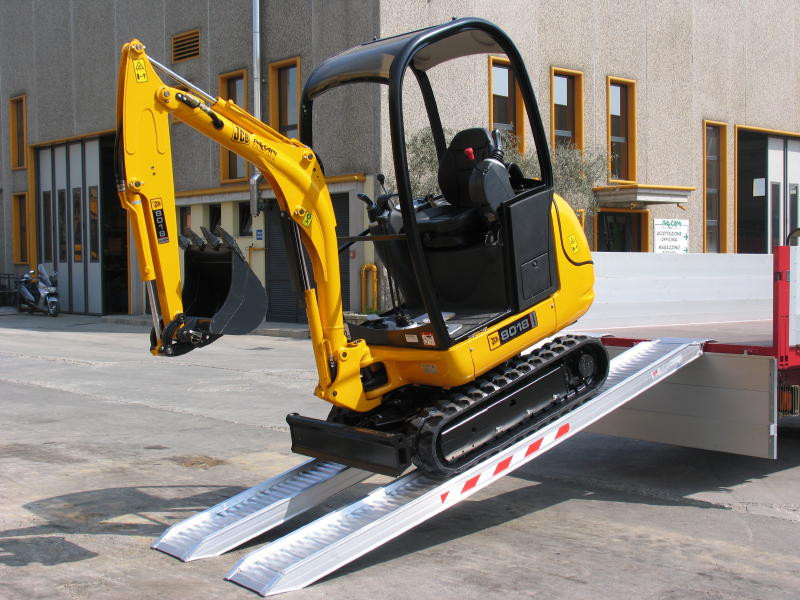

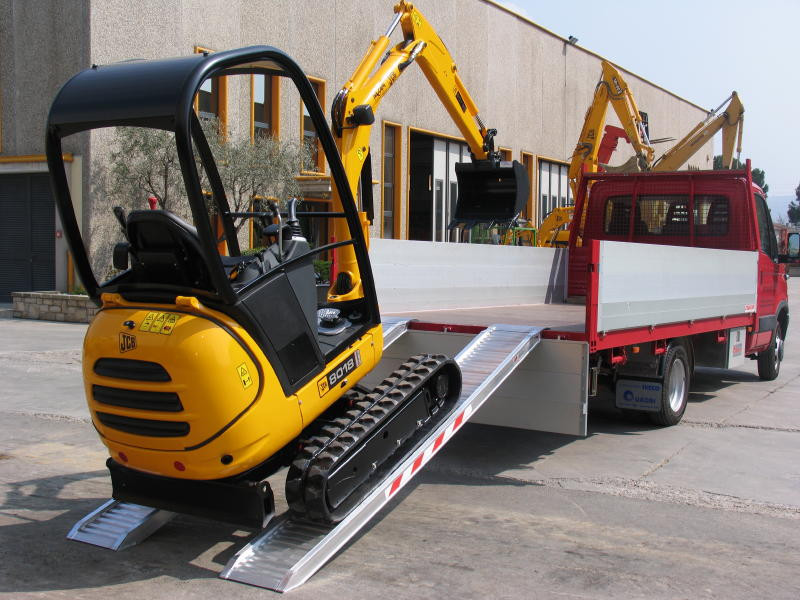

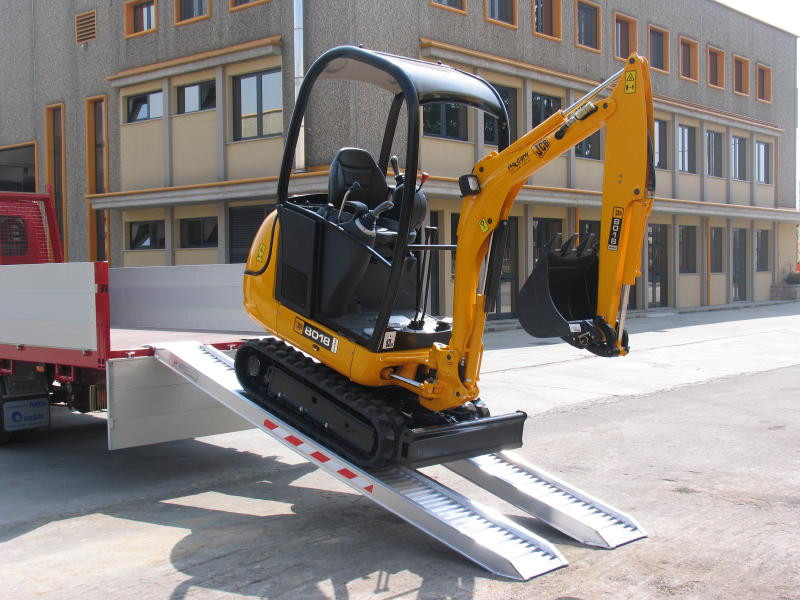

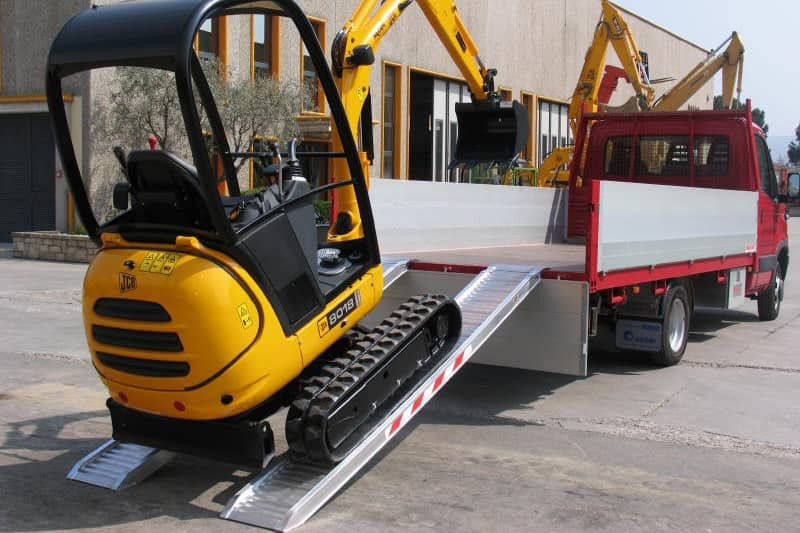

Our best selling plant ramps, the TRP116 has a core profile thickness of 115mm. Their width is 360mm. They feature a capacity of up to 4500kg and are ideal for use as plant ramps and mini digger ramps.

On the TRP116 Series the minimum width of tracks/wheels is 200mm and these ramps are not designed for use over 30% gradient

  • These ramps are available both with and without edges. The default is however without edges
  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Quotes for bespoke ramps can be supplied on request
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Fully TÜV certified

TUV Certification Image

Usage Guidelines and Safety Information for these ramps can be found here

Details
SKU TRP116/30
Default Connection Rest On Connection
Capacity (kg) 4500
Height of Ramps Profile (mm) 115
Length (mm) 3000
Max Load Height (mm) 900
Min. Load Height (mm) 750
Weight per Ramp (kg) 22
Weight Per Pair (kg) 44
Width (mm) 360
Minimum Track Width (mm) 200
Maximum Track Width (mm) 280
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 2500
Capacity Wheelbase 1500mm (kg) 3000
Capacity Wheelbase 2000mm (kg) 4500
