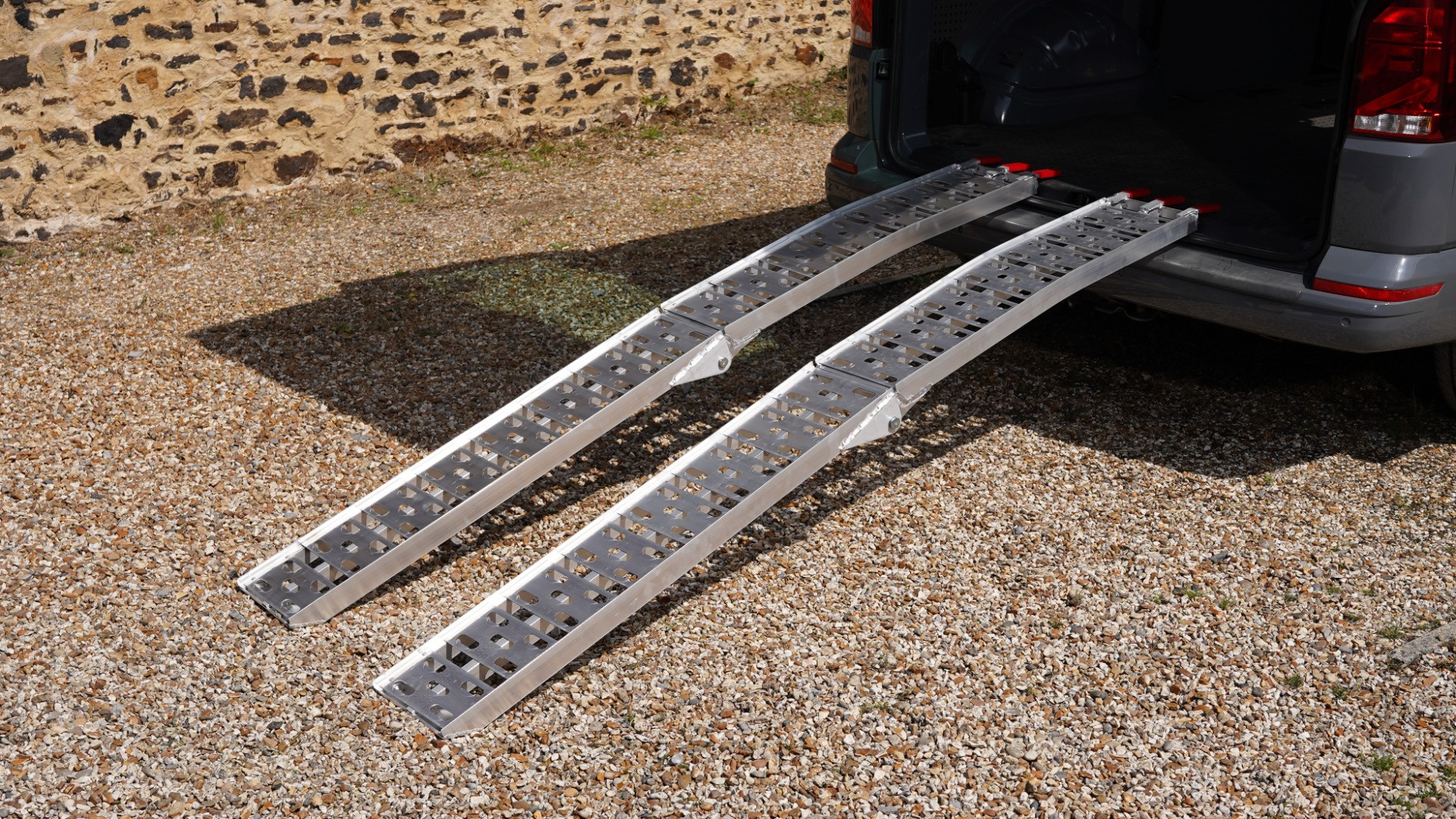

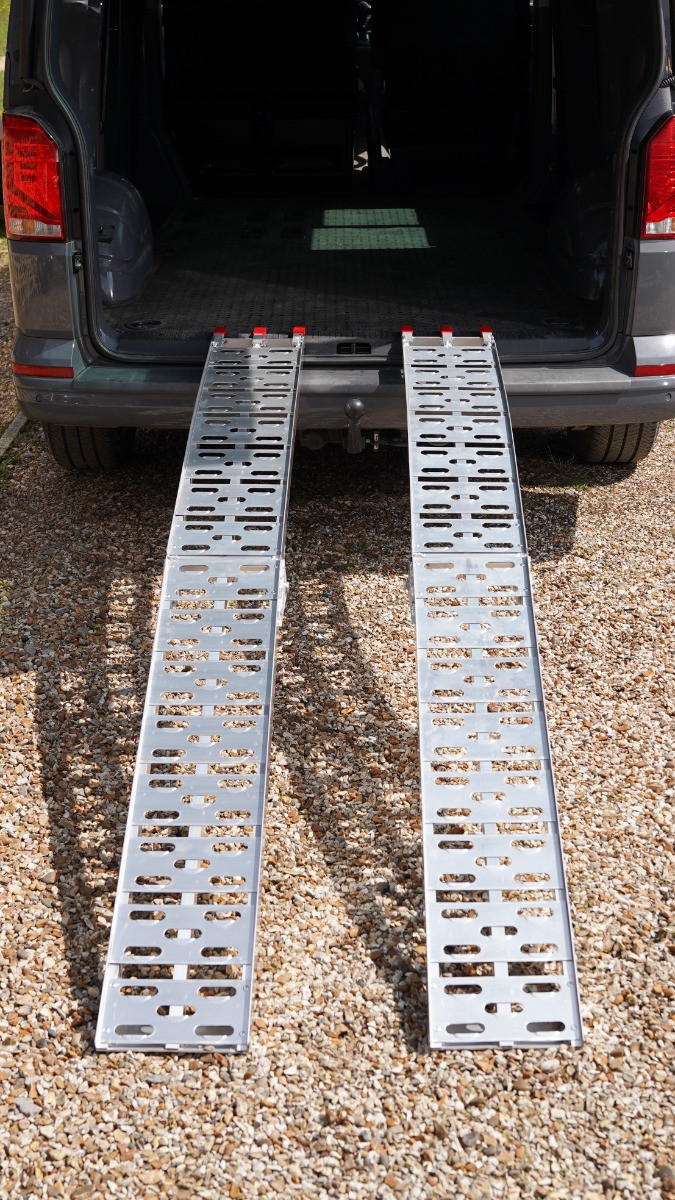

Motorcycle Loading Ramp (2200mmx230mm)

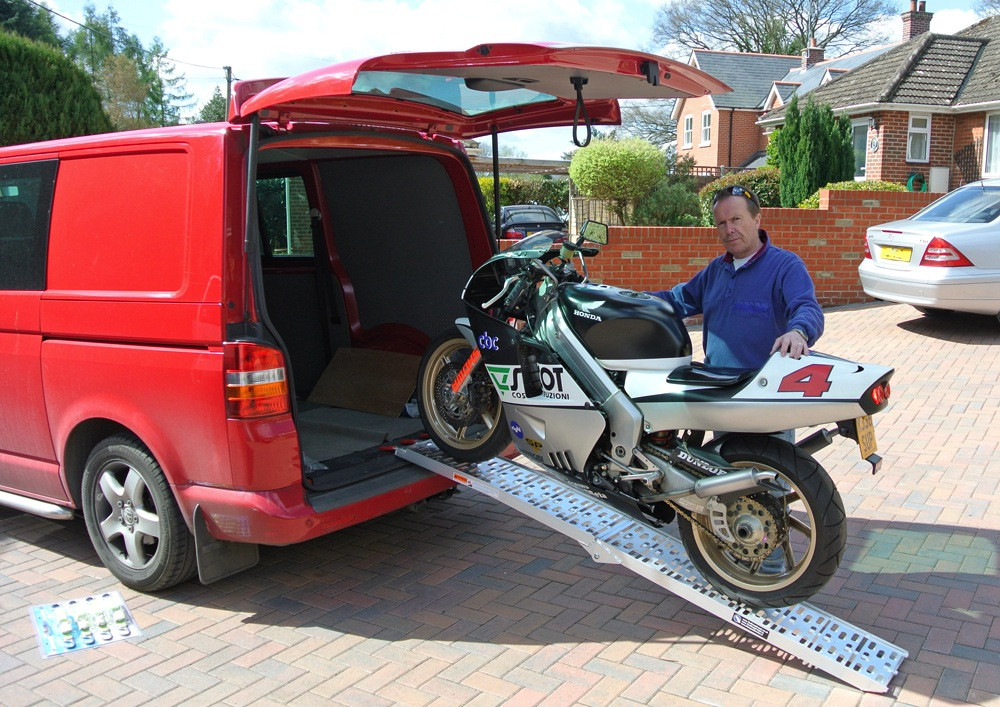

The Ramp Factory's bestselling motorbike ramp, with a capacity of 300kg per ramp and 600kg capacity across the pair. Each ramp is 2200mm long x 230mm wide and 1100mm long when folded. Please be aware, minimum wheel width required is 100mm.
Please note, these folding motorcycle ramps are not suitable for commercial/industrial usage, these ramps are unsuitable for single axle or tracked machinery or vehicles. For any of these uses we would recommend a solution from our professional loading ramps
The Ramp Factory offer many motorcycle ramps. If you are looking to load weights up to 1360kg check out the support leg ramps or double support bar ramps. For ATV's The Ramp Factory offer the aussie or the extra wide ramp kit.

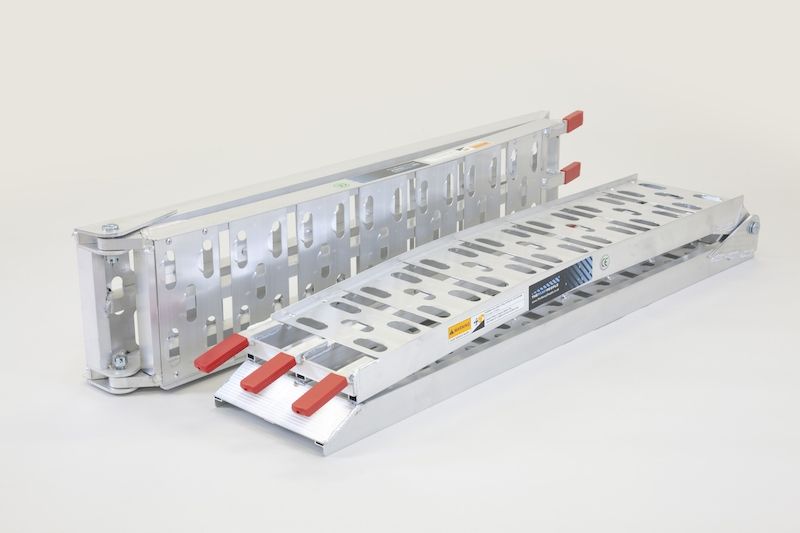

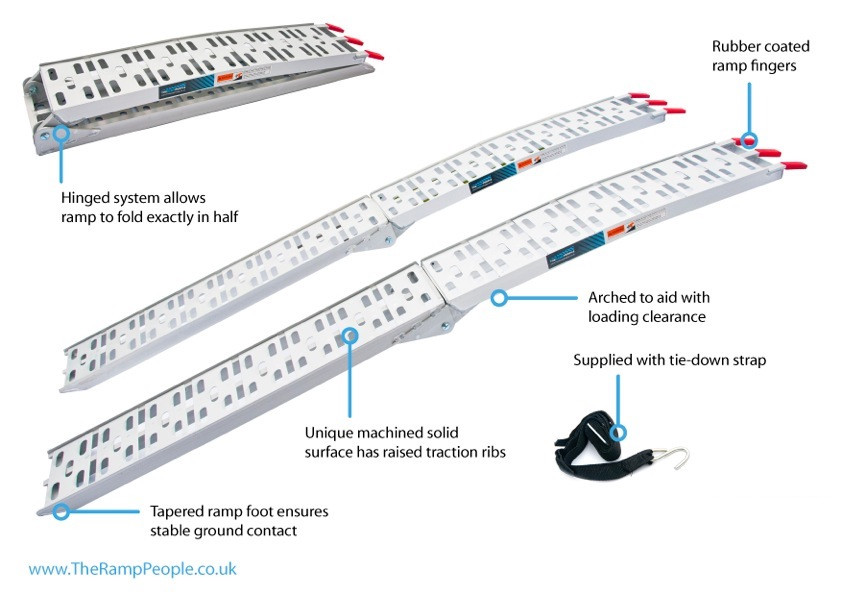

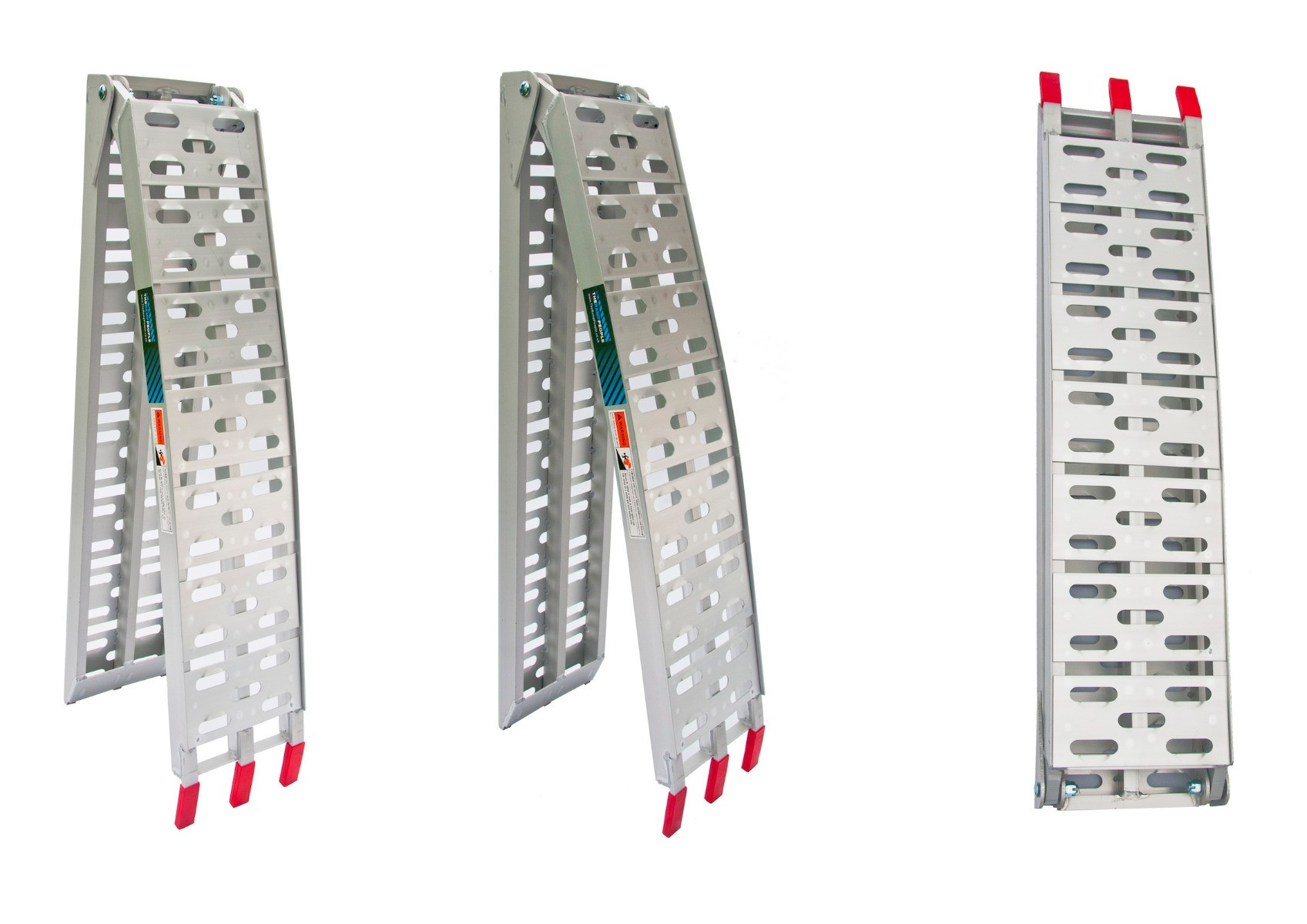

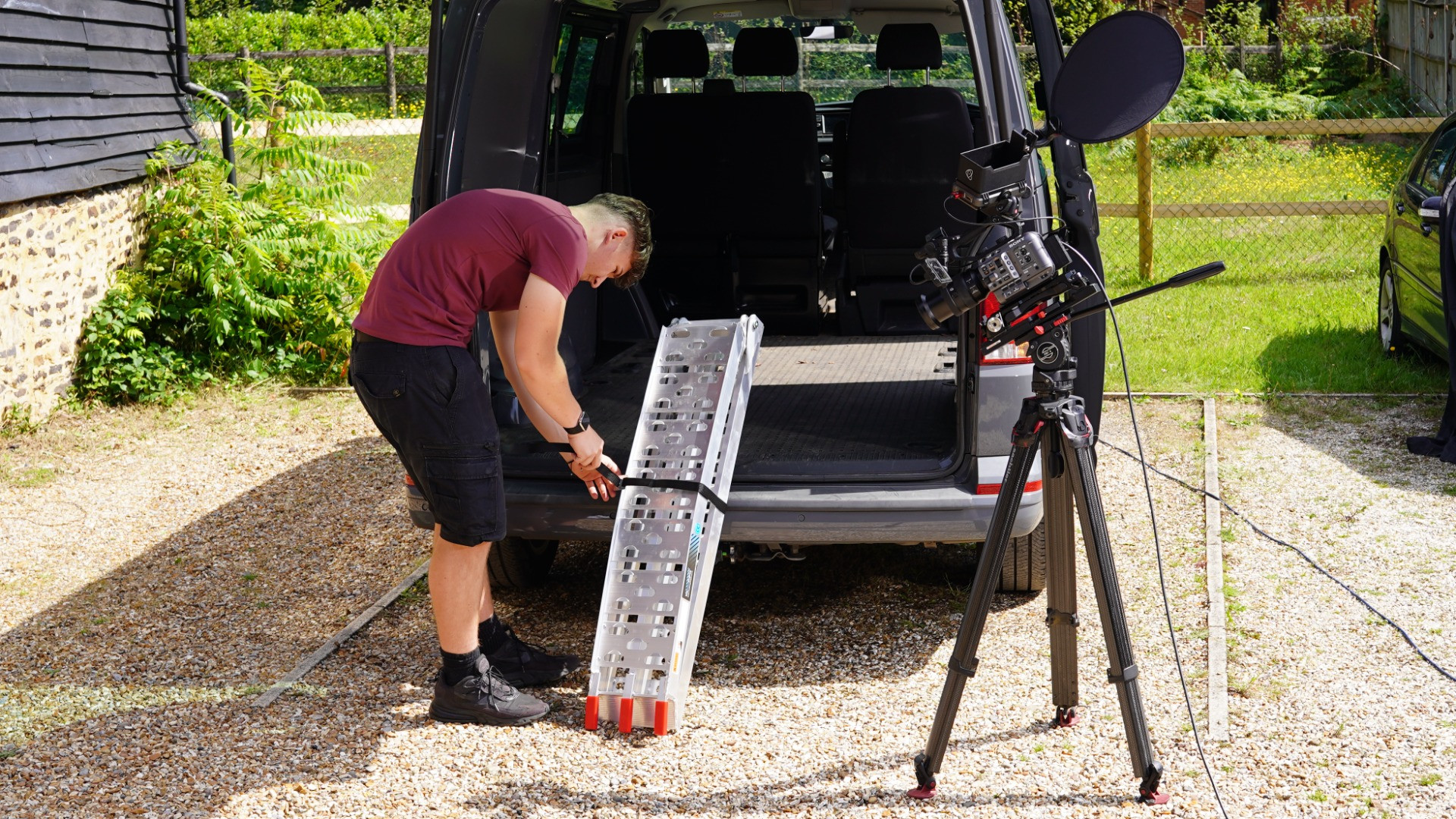

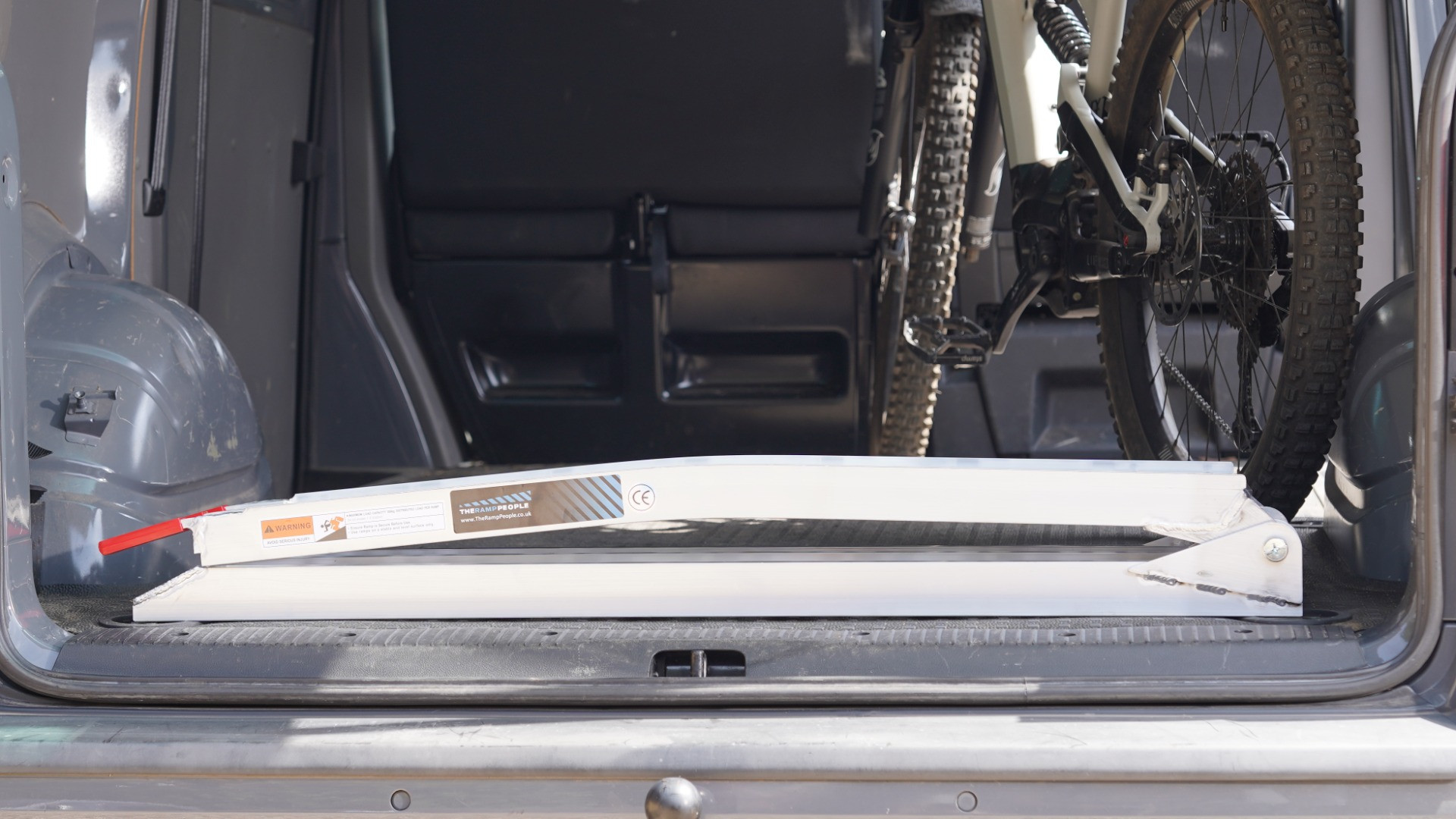

- Folding ramp, easy to transport and store

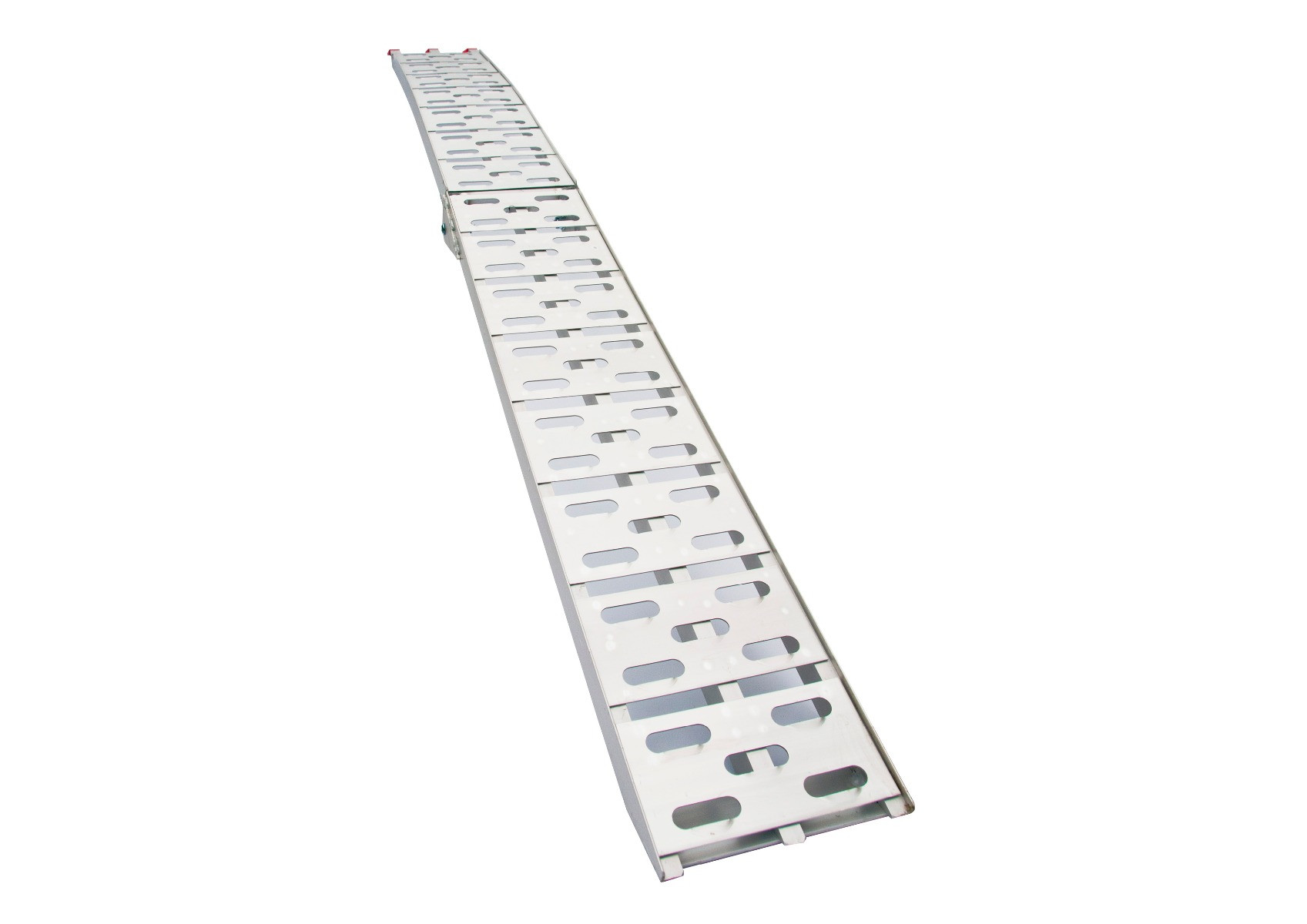

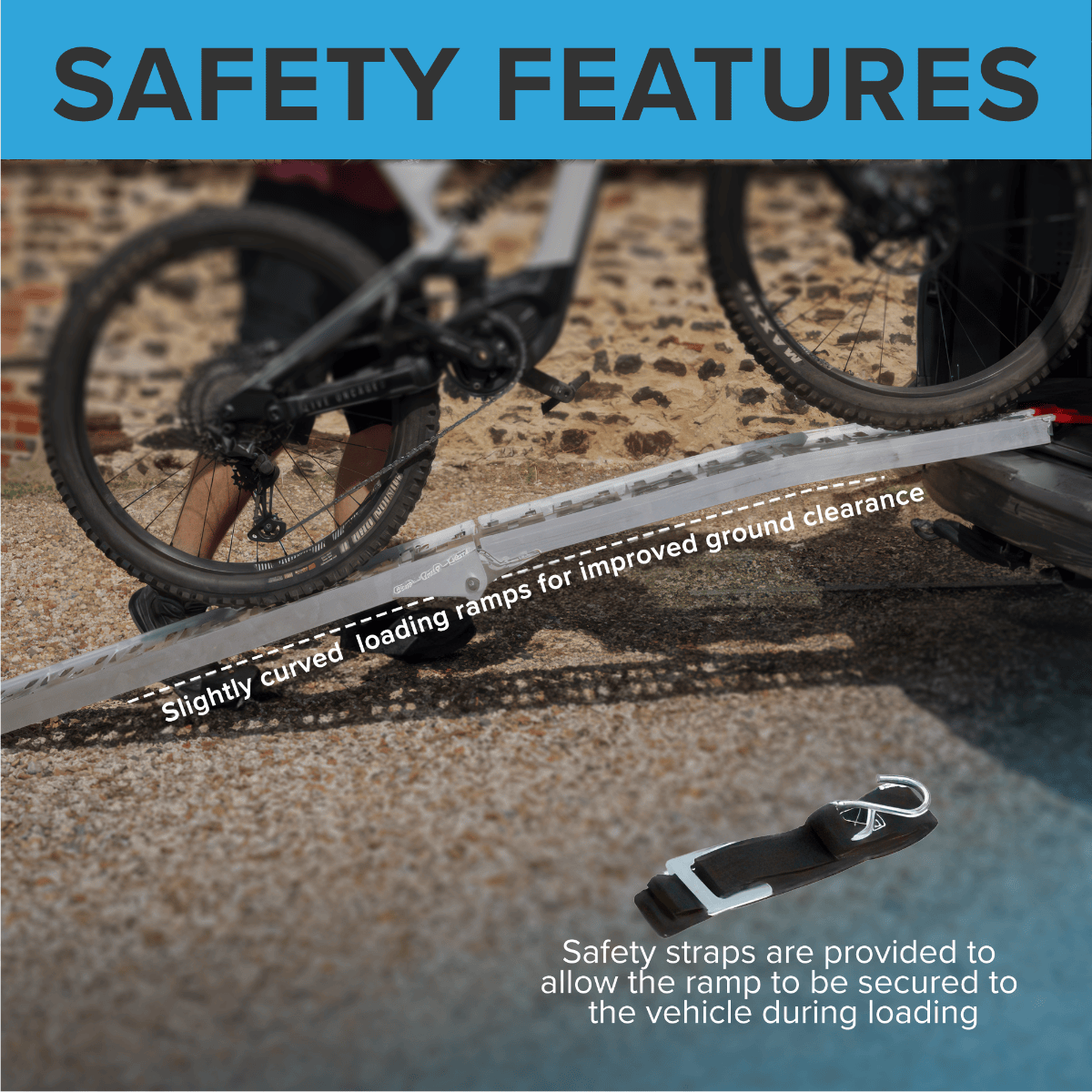

- Slightly curved for improved ground clearance
- Manufactured from lightweight aircraft grade aluminium (type 6005A)

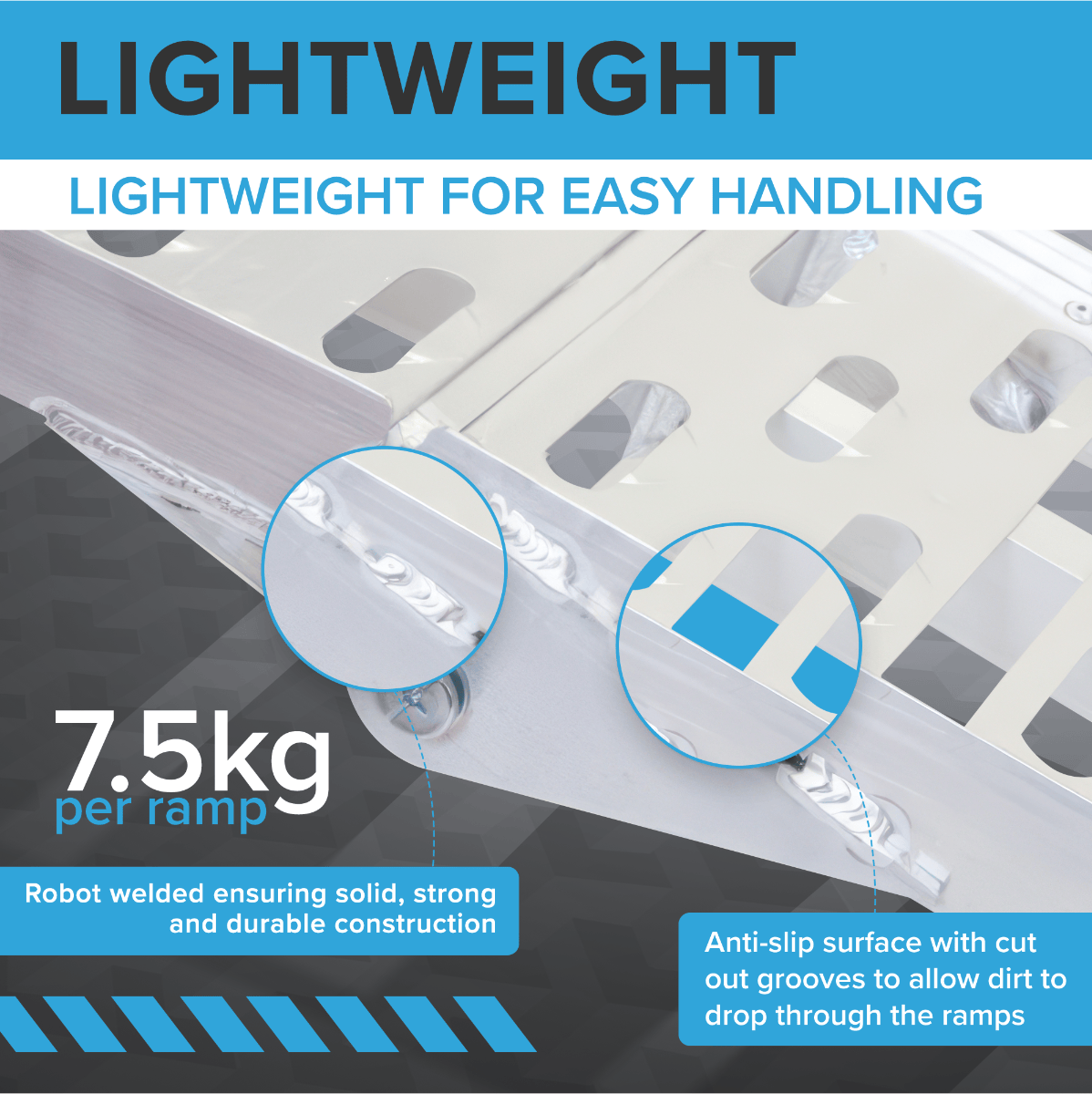

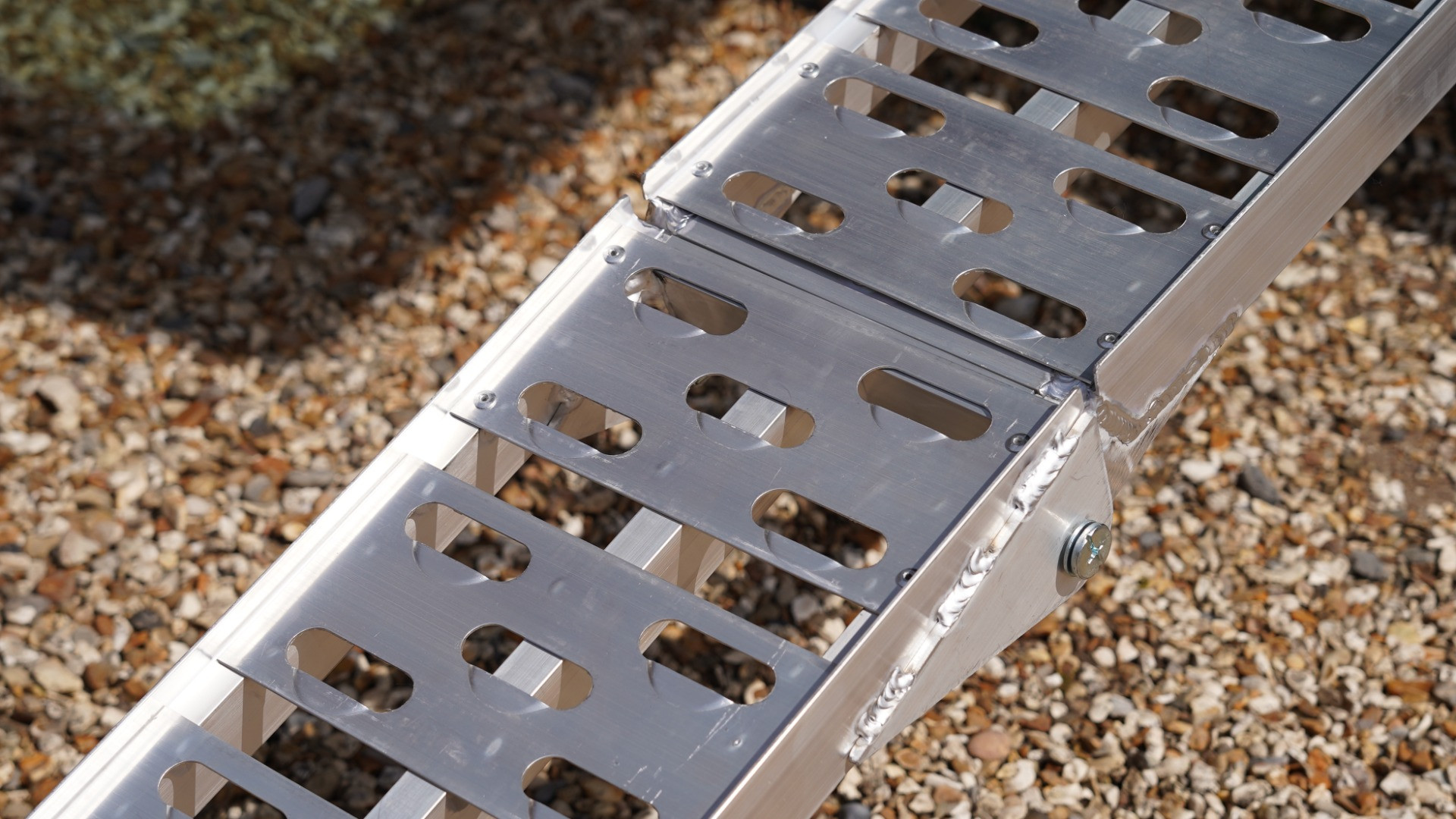

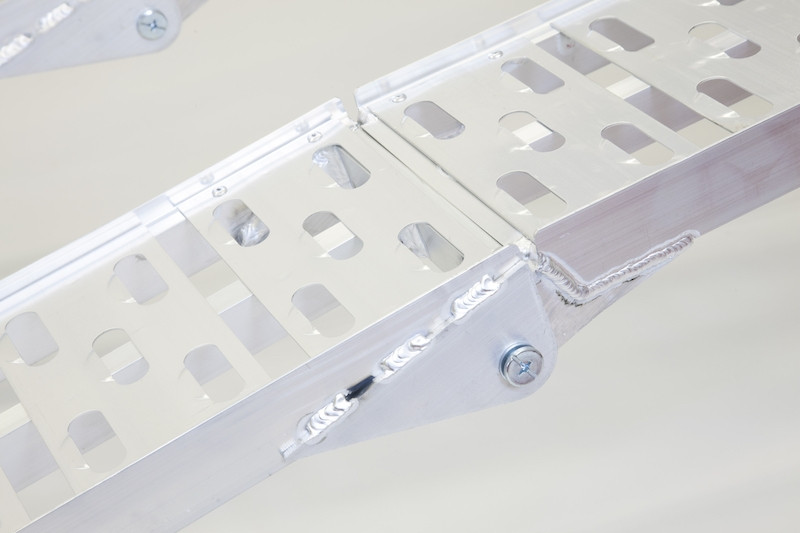

- Robot welded to ensure a solid, strong and durable construction

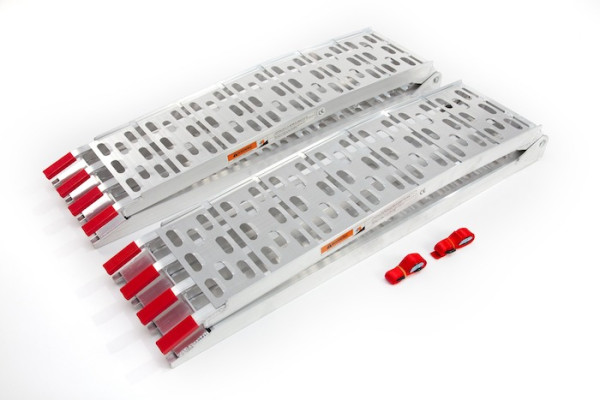

- 2 connection straps supplied with each pair of ramps (single strap shown in photo)
- Lightweight for easy handling

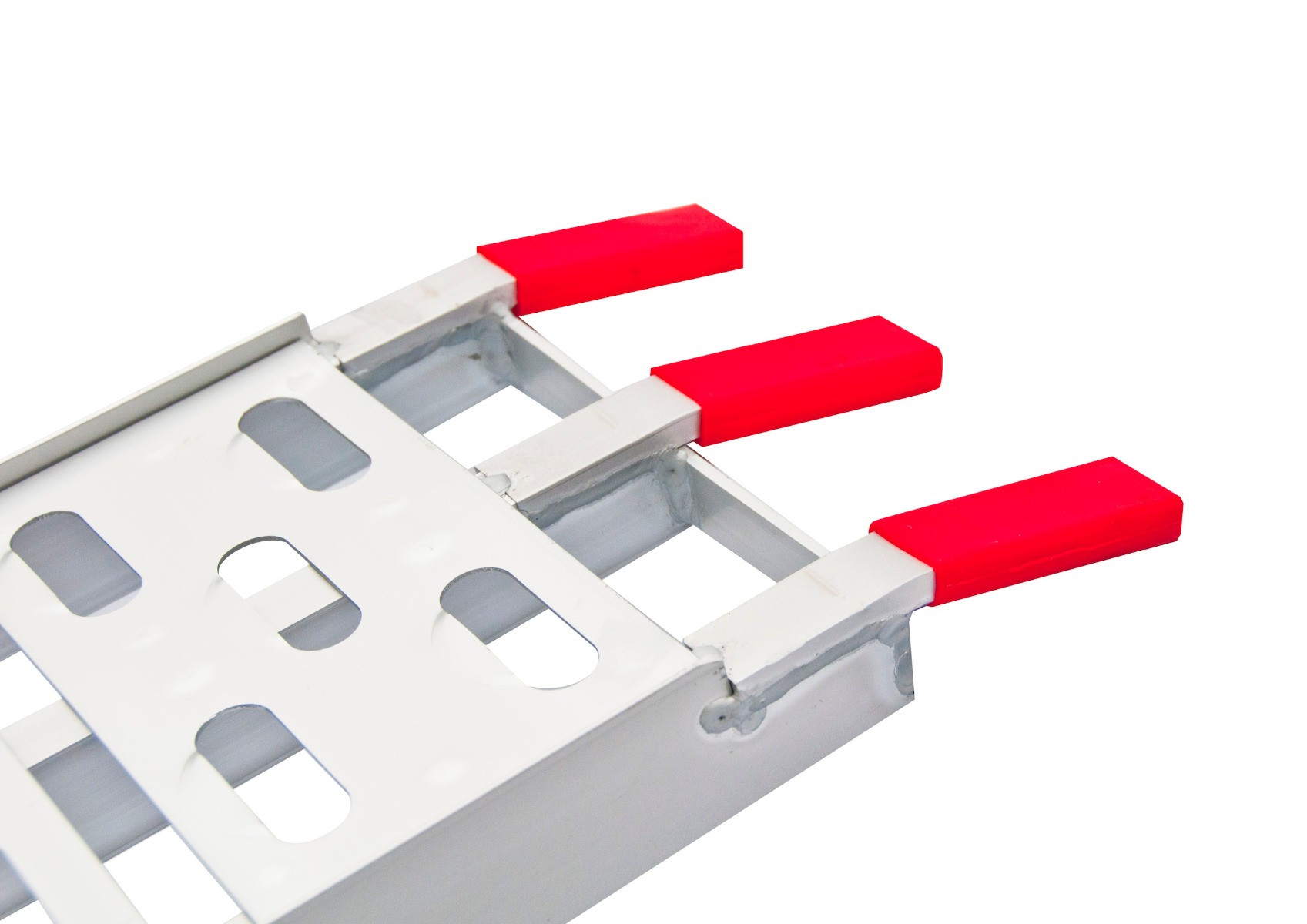

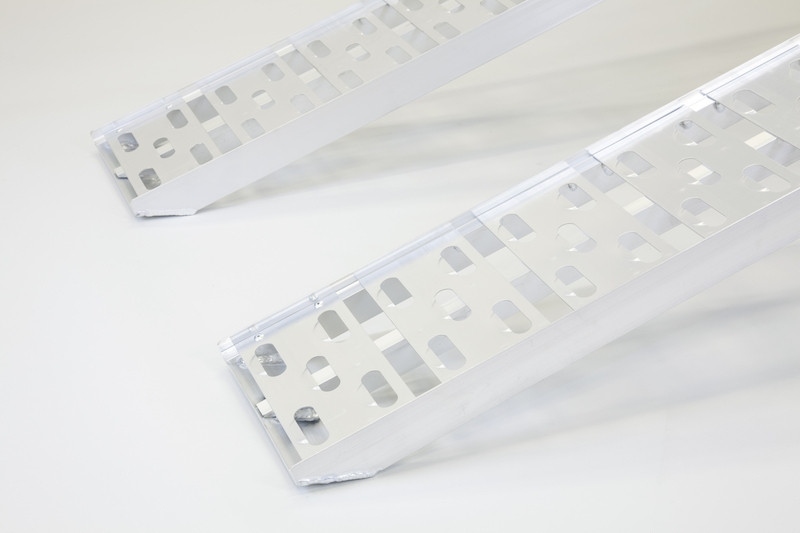

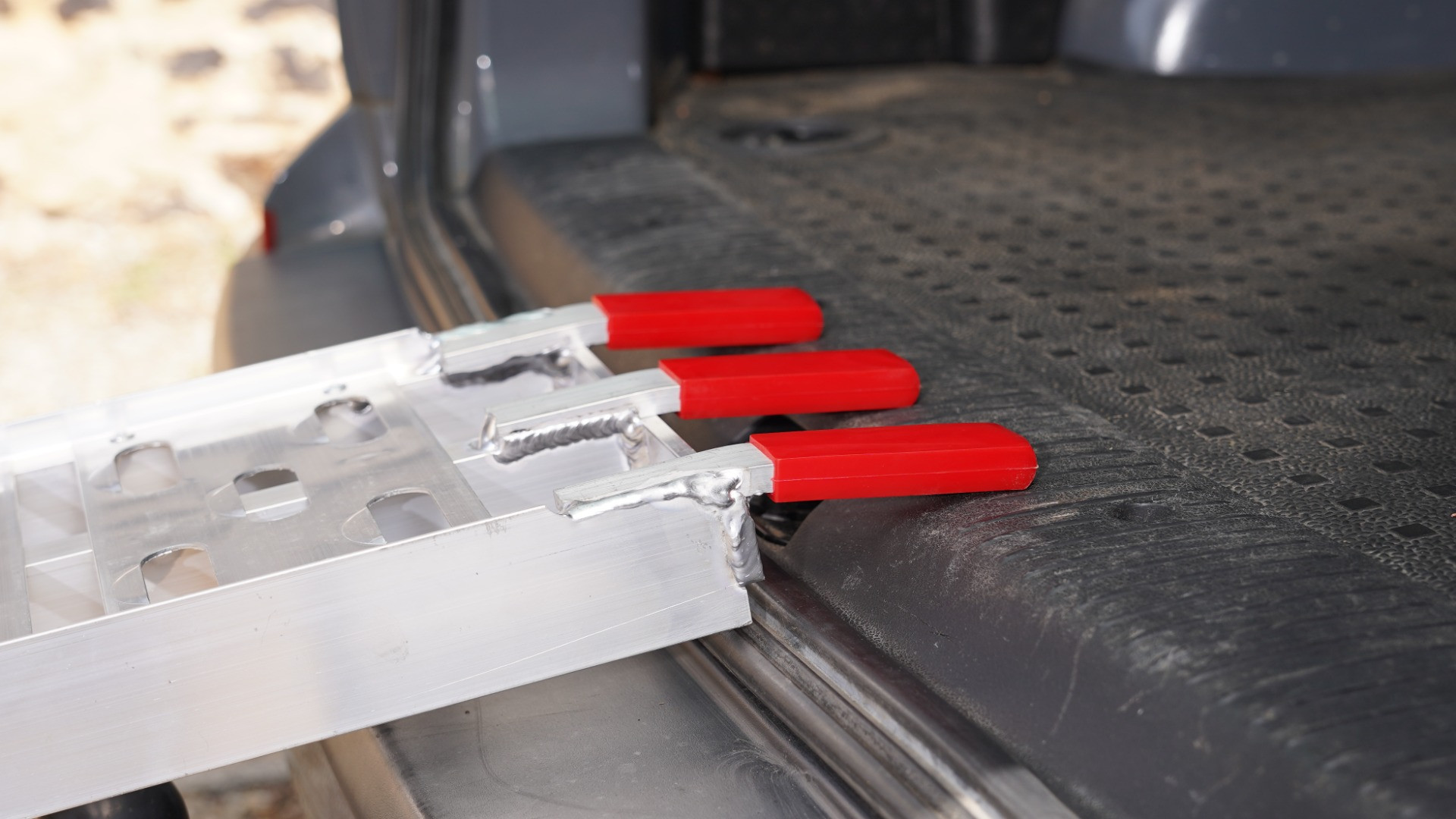

- Angled foot provides smooth access onto the ramp
- Can be used singularly or as a pair

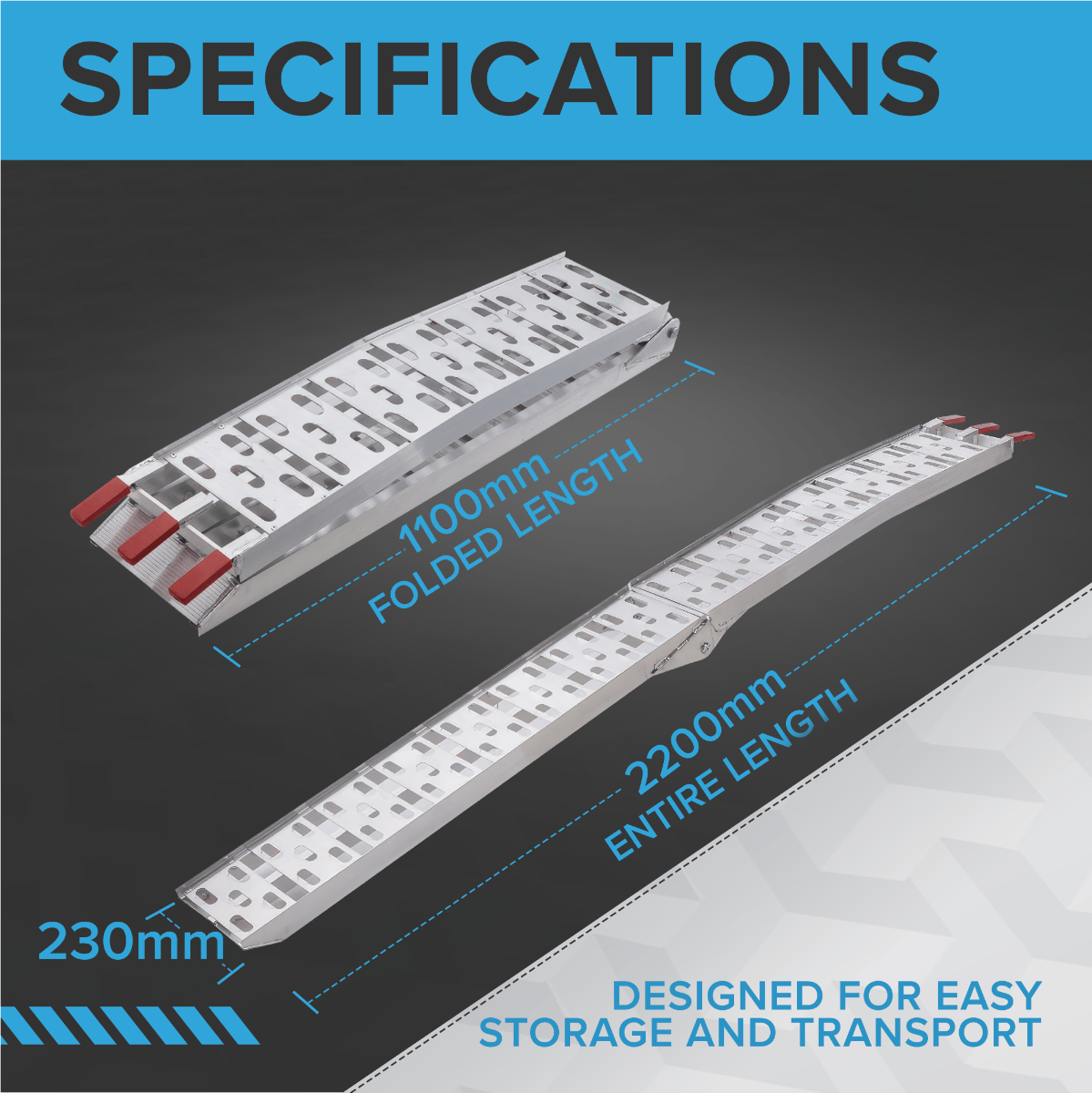

- Single ramp dimensions: 2200mm x 230mm.

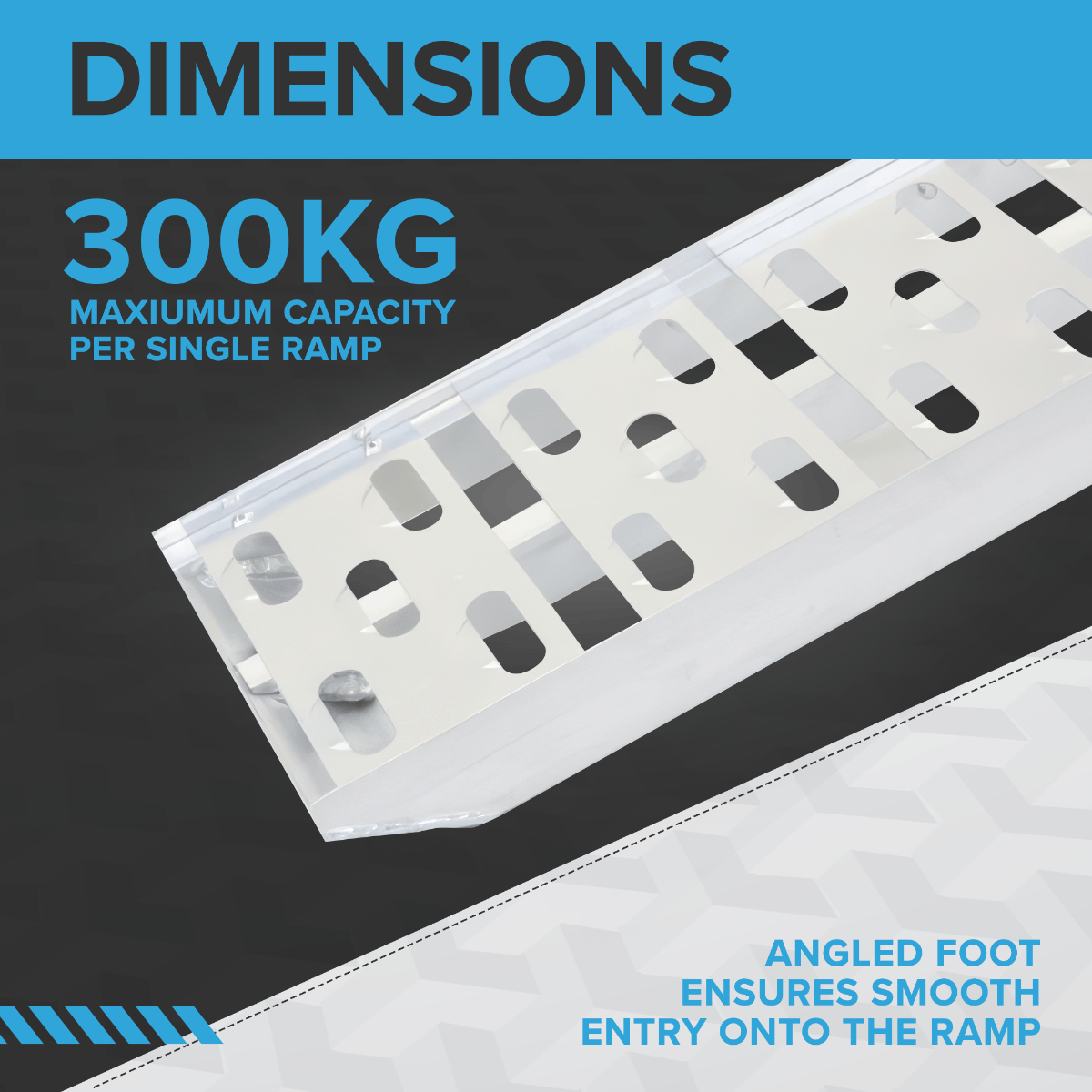

- Capacity of 300kg per ramp , 600kg max when using 2 or more ramps
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
Please note, these ramps are unsuitable for single axle or tracked machinery or vehicles, also not suitable for caster wheels or solid wheels. These Ramps are not suitable for industrial use or professional use, for this application please view our professional range.
| SKU | TRP623Conf |
|---|---|
| Capacity (kg) | 300-600 |
| Folded Length (mm) | 1100 |
| Height (mm) | 100 |
| Length (mm) | 2200 |
| Max Load Height (mm) | 666 |
| Weight per Ramp (kg) | 7.5 |
| Width (mm) | 230 |
| Minimum Track Width (mm) | 100 |
| One Year Warranty | Yes |
| Easy to Fit | Yes |
Ramp Capacity, Length & Load Height
This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.

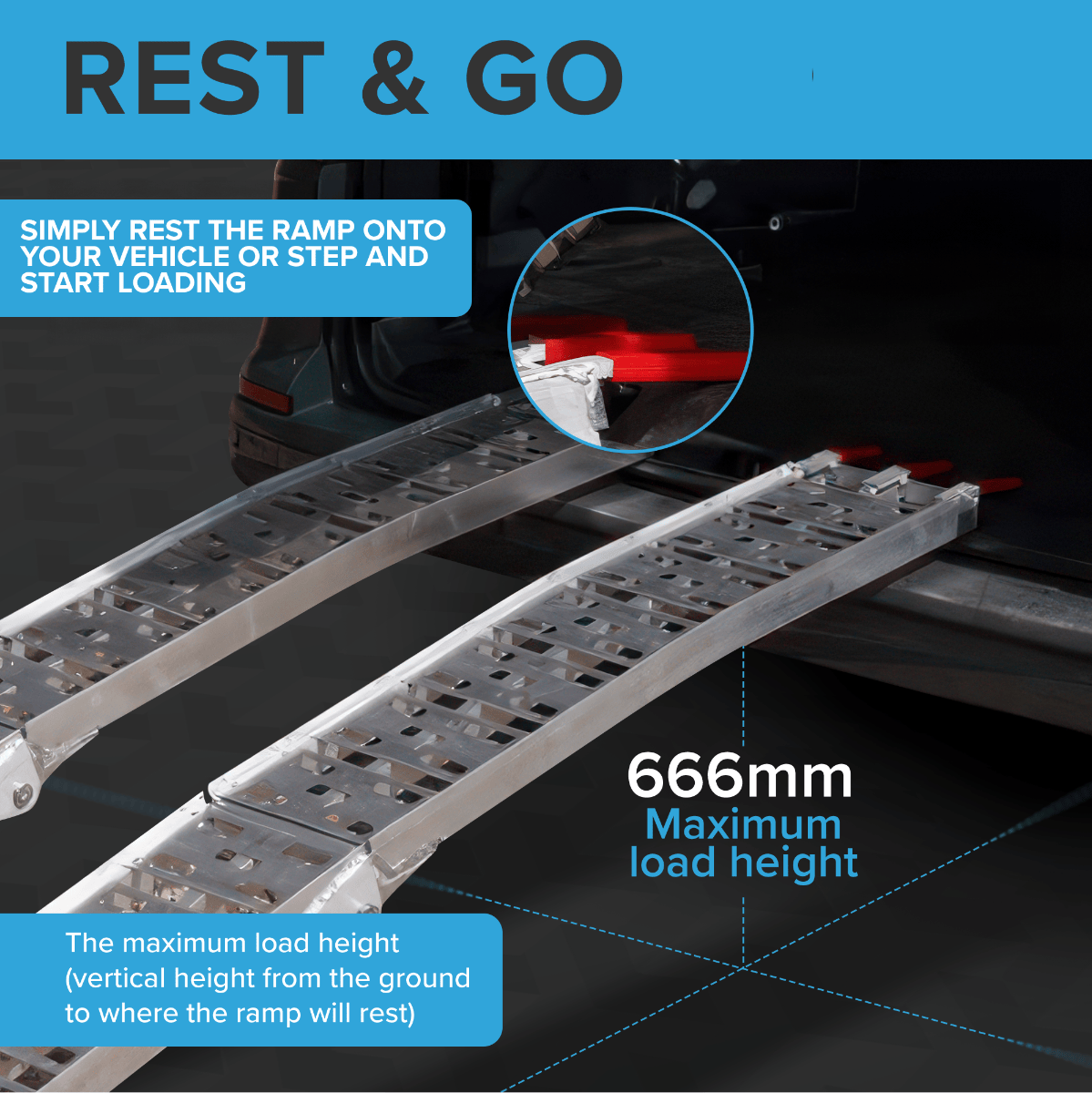

Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.
Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).
For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load height x 3.3, gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.
Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase.
For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.
For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.
Further information can be seen in this blog article here
Which wheelchair ramp length? Use our ramp length calculator! Learn more
