RollAble Loading Ramp, 685mm Wide

SKU
TRP-RollAbleVan660
From £342.00 £285.00
Built to order / 2-3 working days
Only %1 left

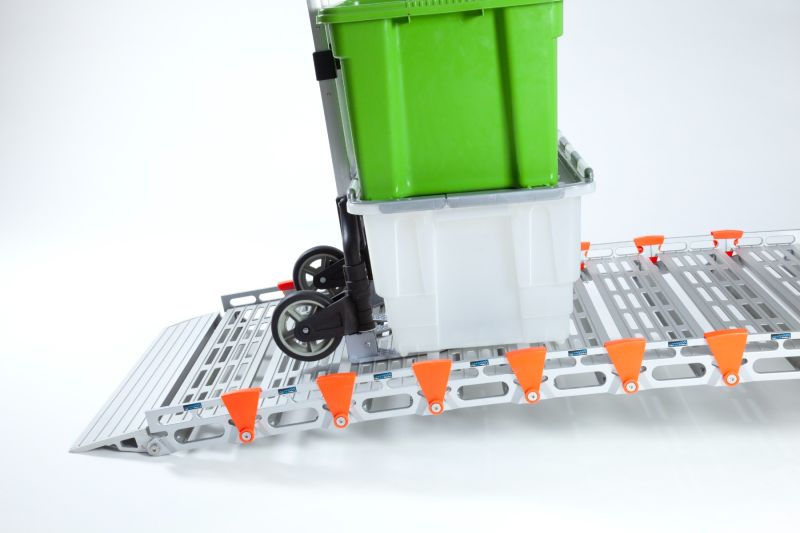

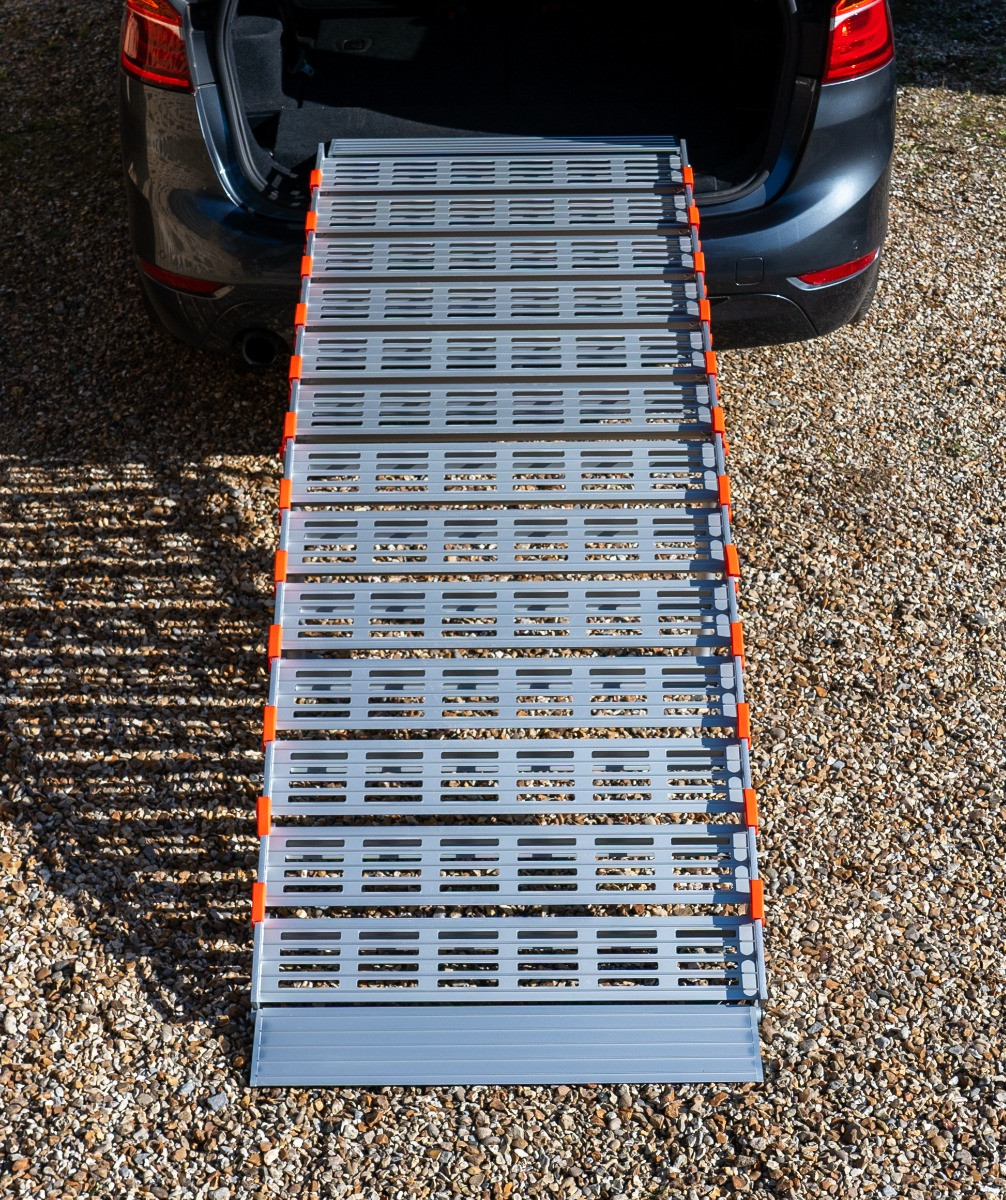

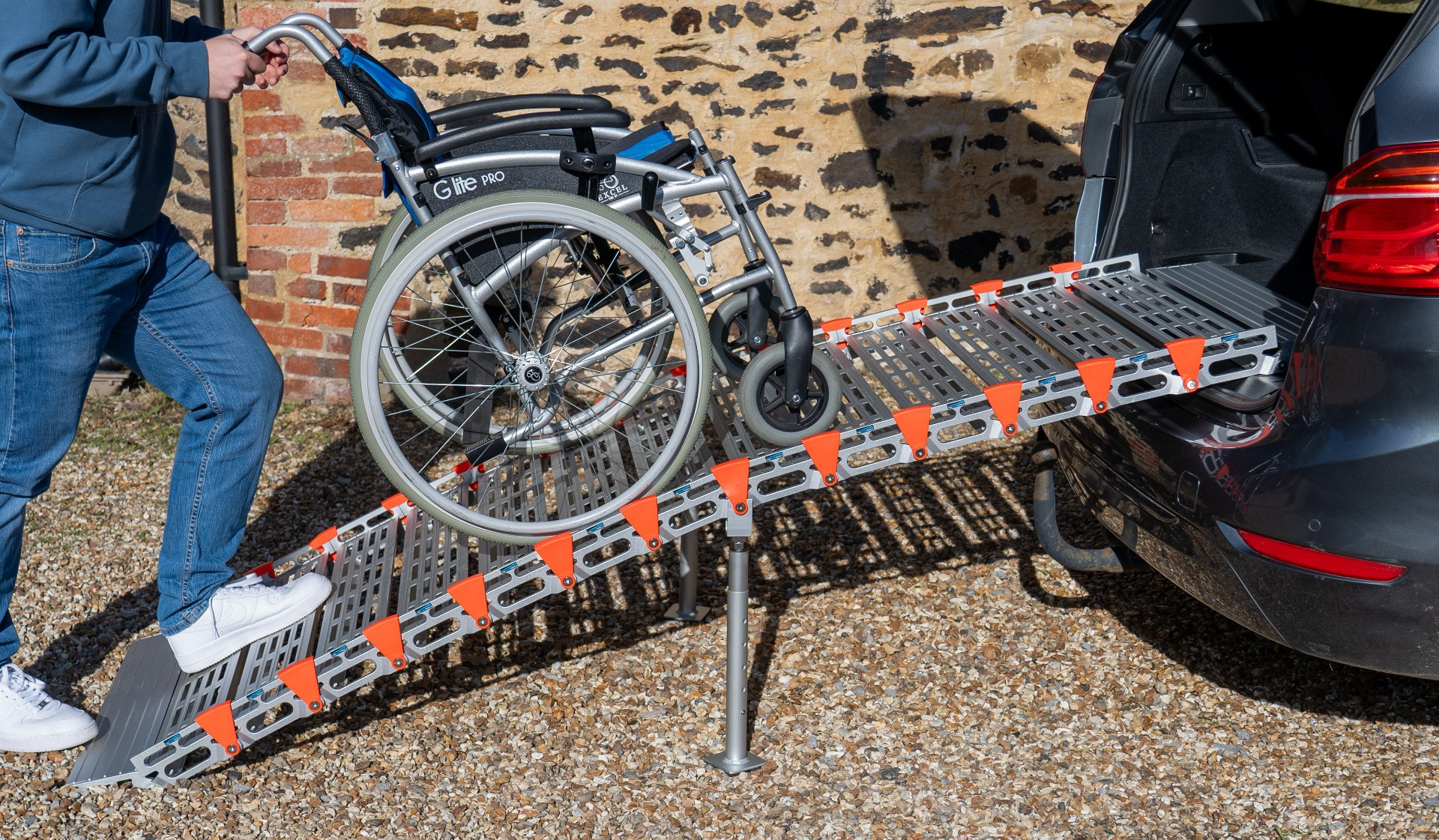

This 685mm wide RollAble Loading Ramp can be used both for commercial and private purposes. Featuring a capacity of 453kg, the ramp can be used for a variety of purposes including loading equipment, ATVs and motorbikes into vans, over steps and over kerbs.

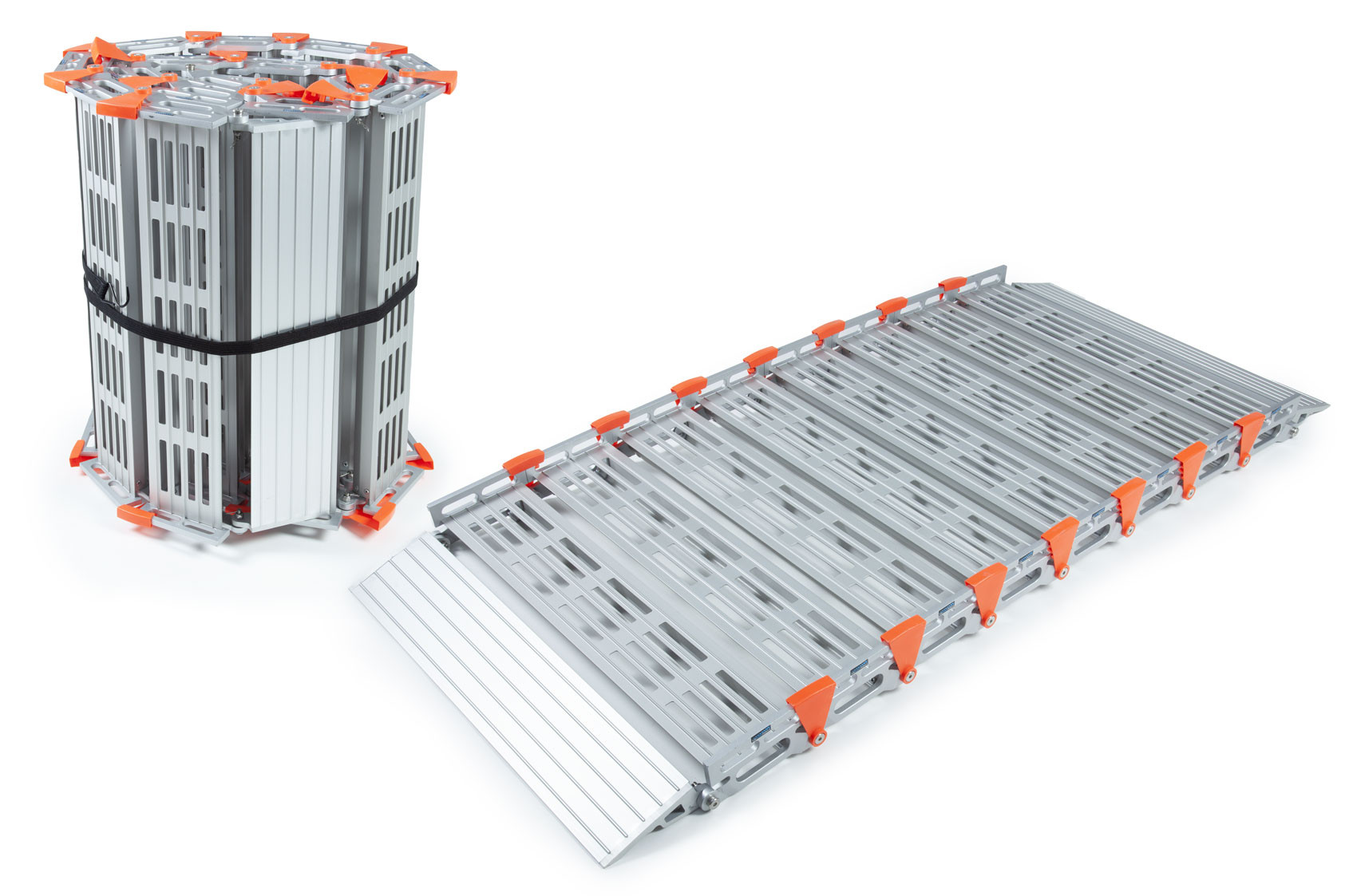

The portable ramp can be rolled for storage and transportation. Where required sections can be removed or added to reduce or increase the ramp length.

Adjustable support stands are included with ramps which are 2.4m / 8ft or longer.

RollAble Ramps can be built at any length, please contact us if you need the ramps to longer.

Description

RollAble Ramp Logo

RollAble Ramp Features Include:

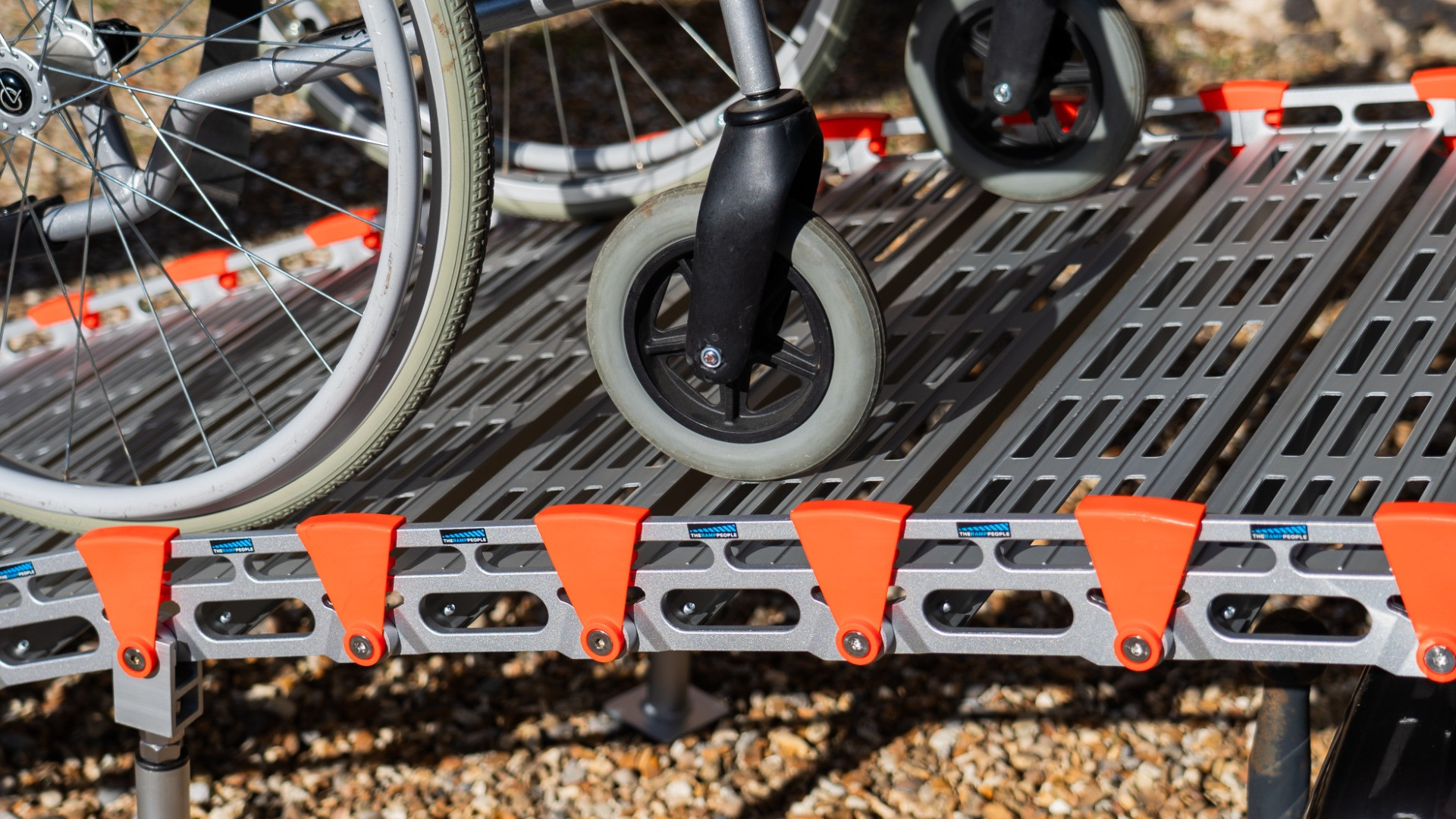

  • Constructed using high-tensile aluminium
  • RollAble Ramp is lightweight, flexible and highly portable
  • Roll up design for easy storage and transport. Provided with black safety strap to hold the ramp shut when stored.
  • Lengths from 91cm / 3ft to any length available

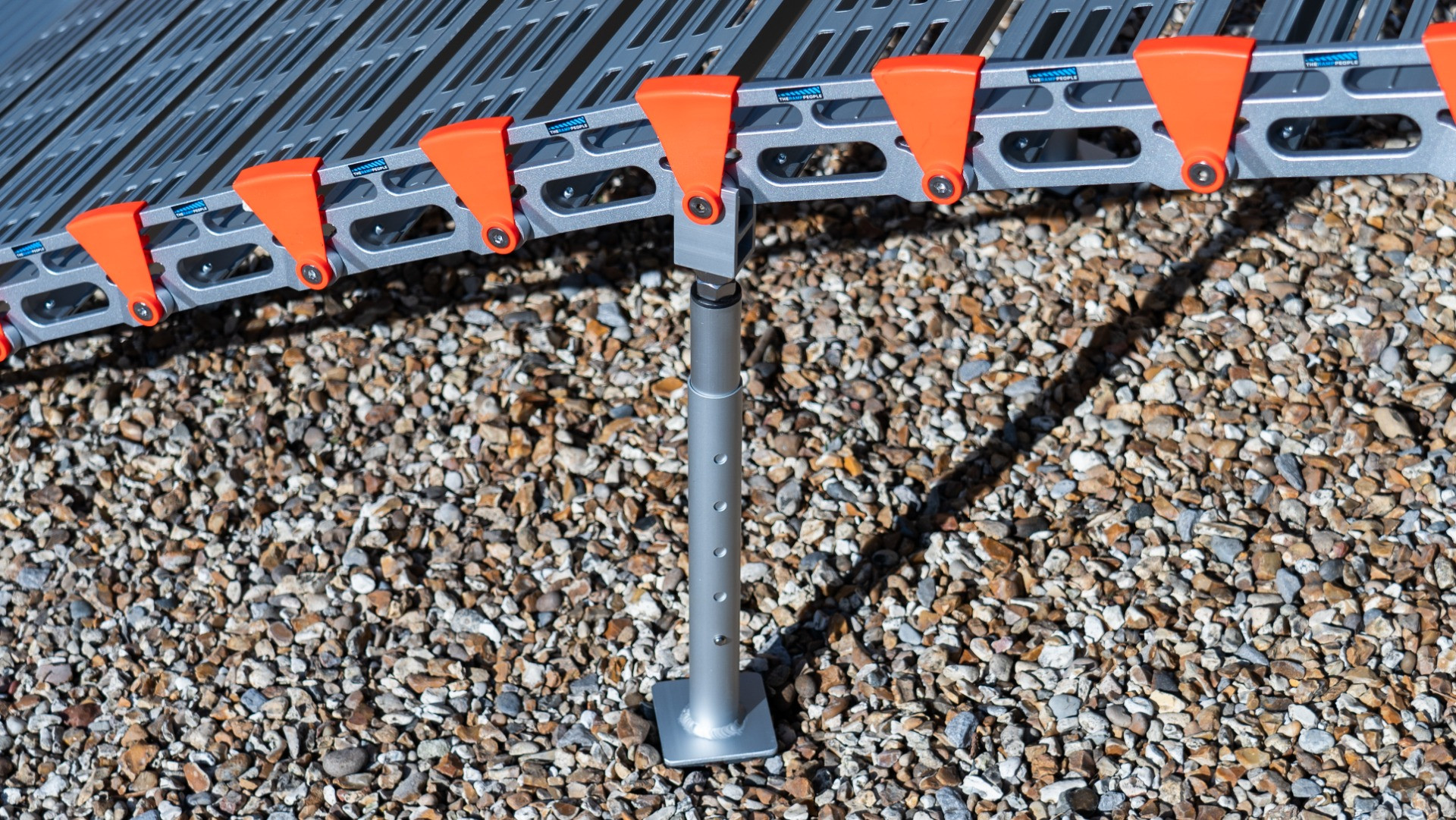

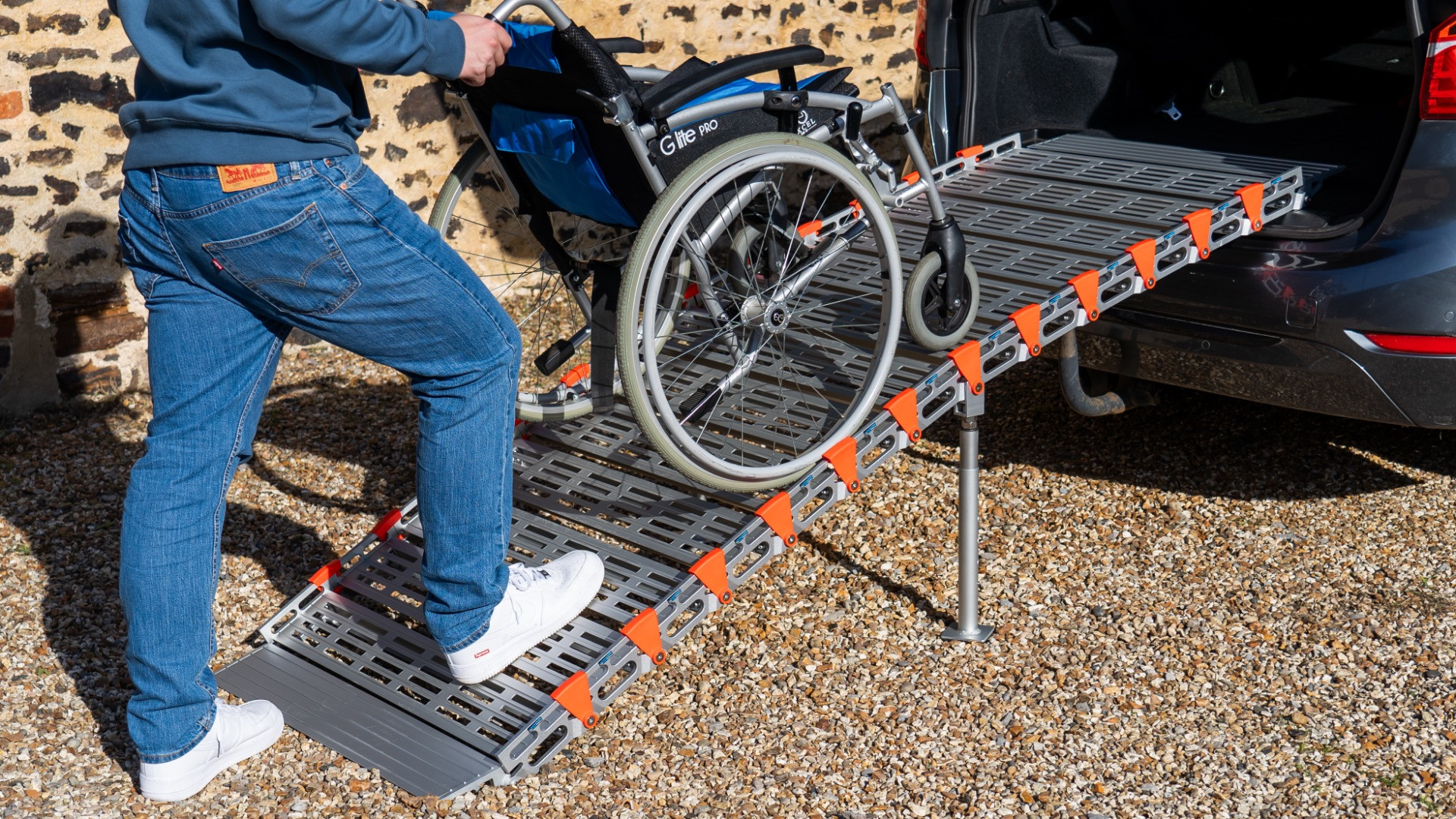

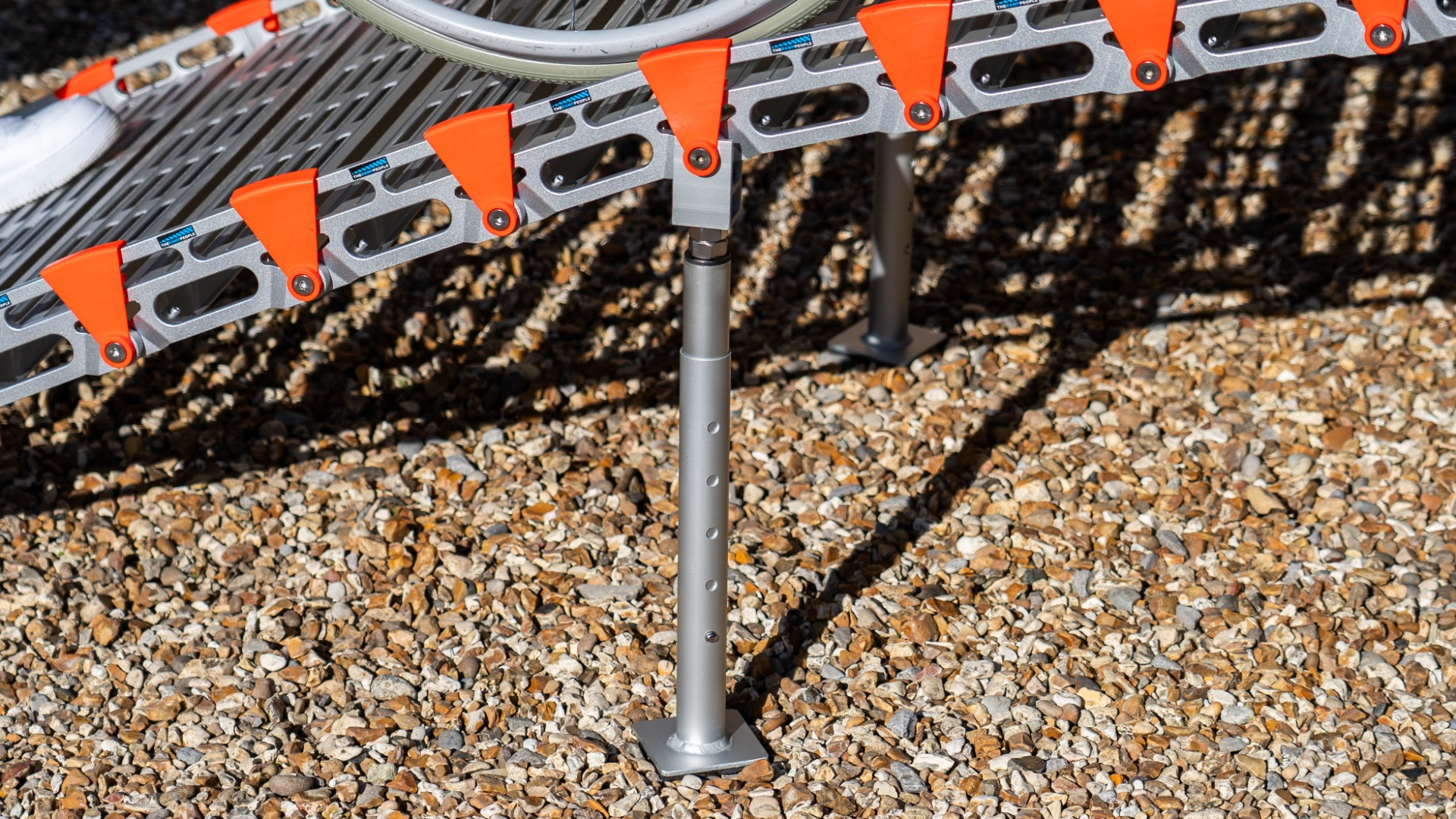

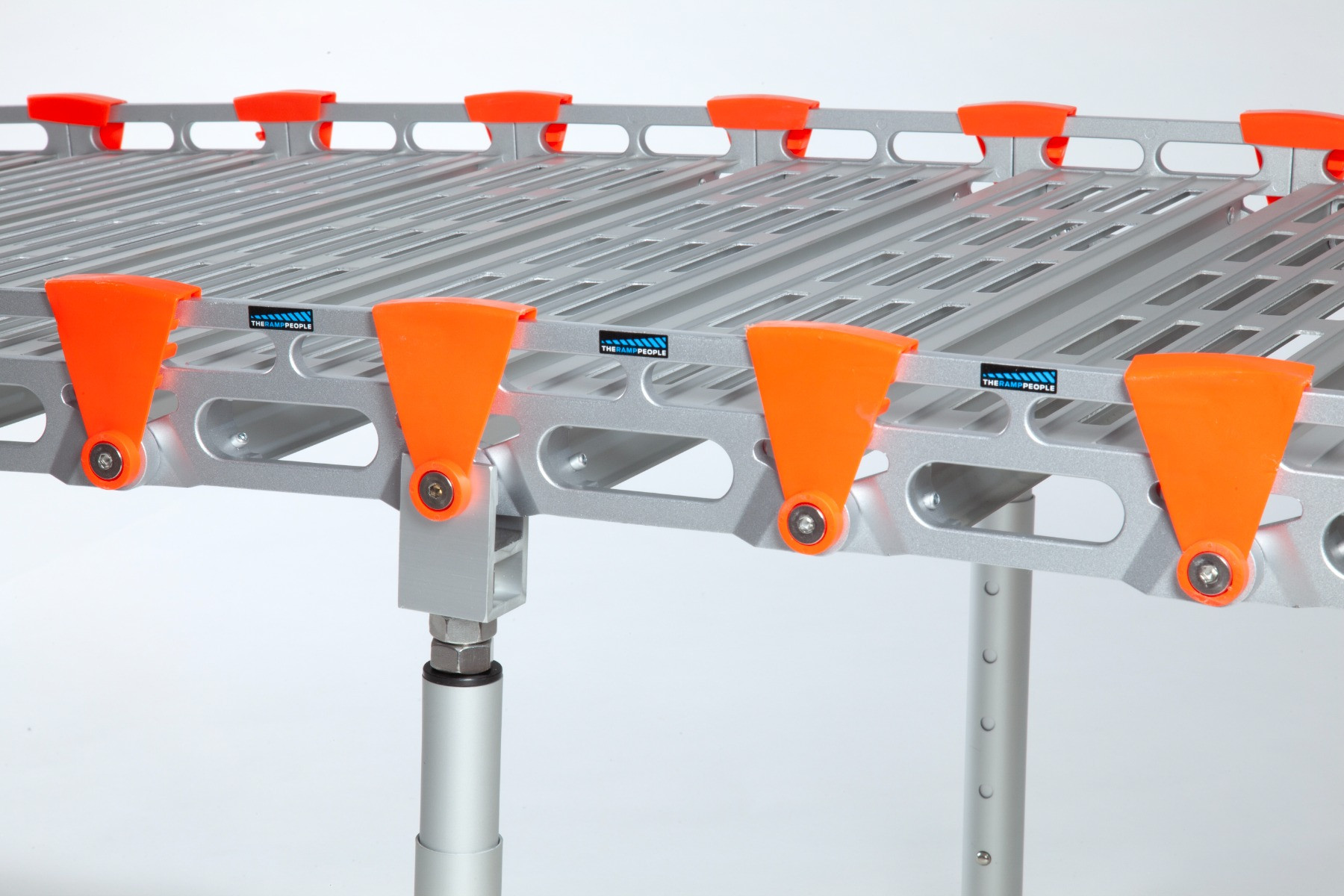

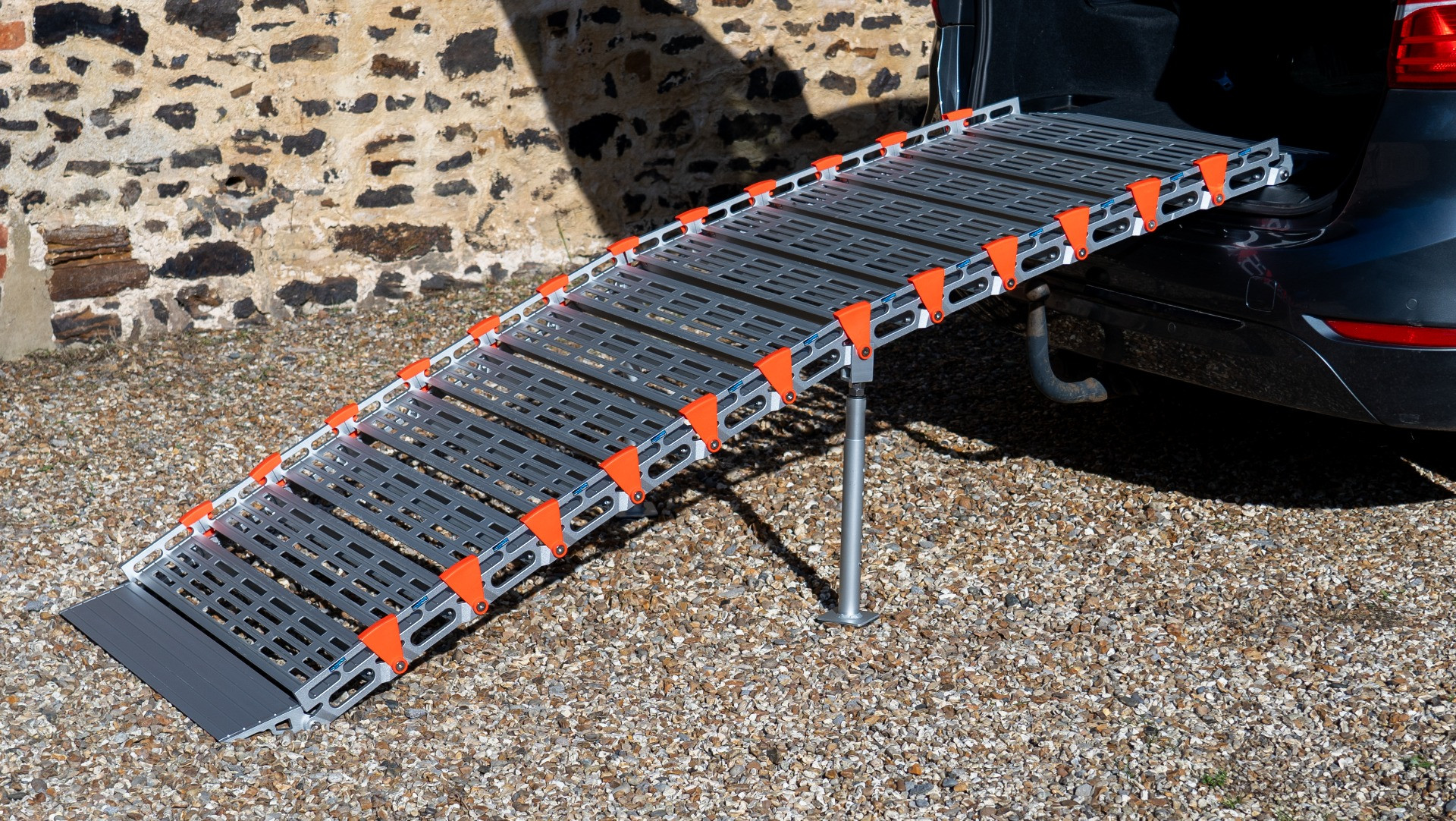

  • Lengths of 240cm / 8ft and longer are provided with extra supports which are adjustable , support stands are to be fitted by the customer
  • No installation is required, simply rest the ramp onto the step, kerb or van and start loading
  • Anti-slip surface, R13 rating
  • 453kg capacity
  • The total width including the orange edges is 685mm, total ramp width 660mm. The internal width useable width is 640mm

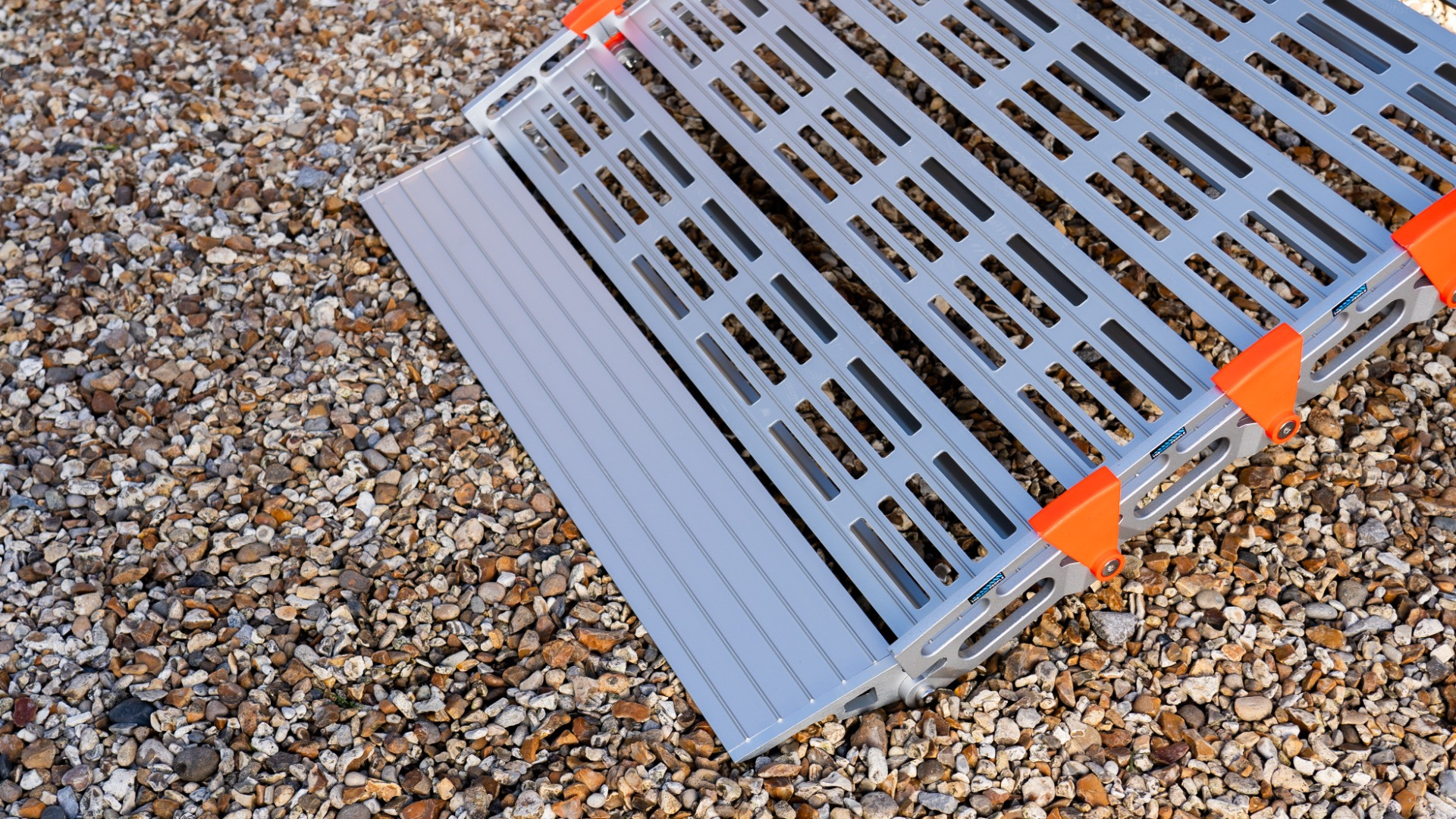

  • Smooth access onto the ramp

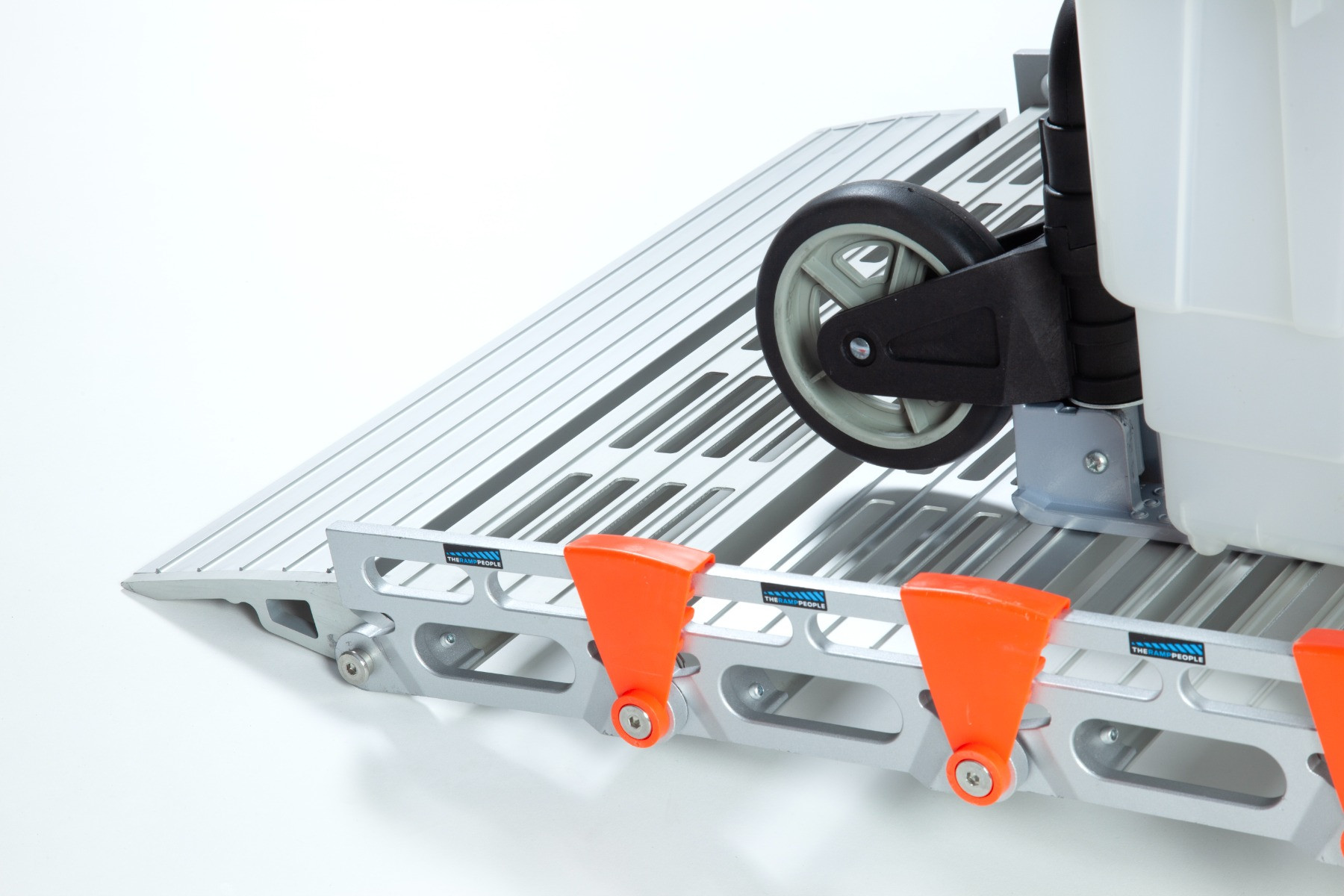

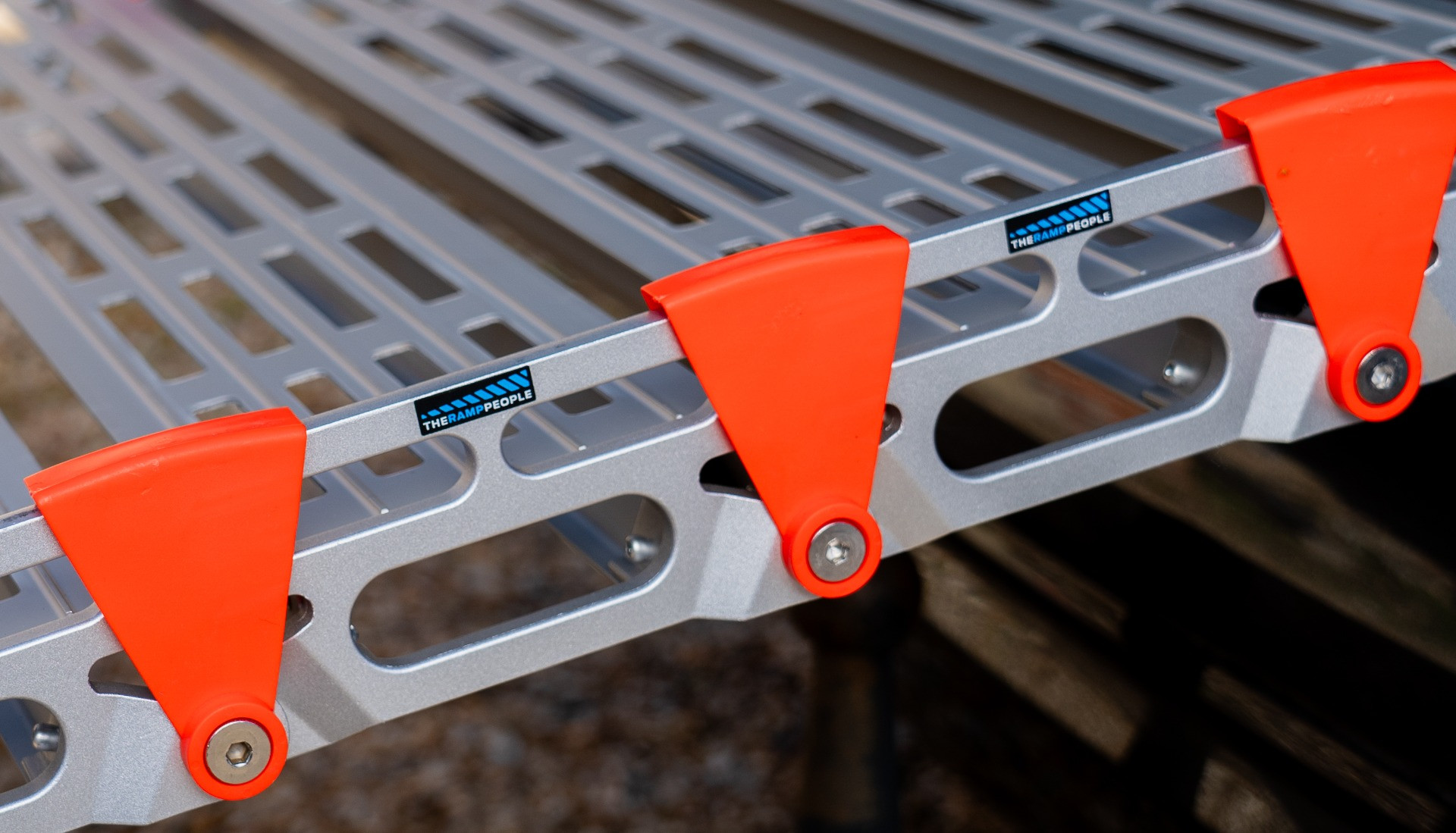

  • High visibility safety edges (30mm high) on each side of the ramp to prevent accidentally wheeling off and reducing trip hazards
  • The safety edges are cut out to also act as handles to allow the ramp to easily be moved as required
  • Lightweight for easy handling and compliance with health and safety guidelines

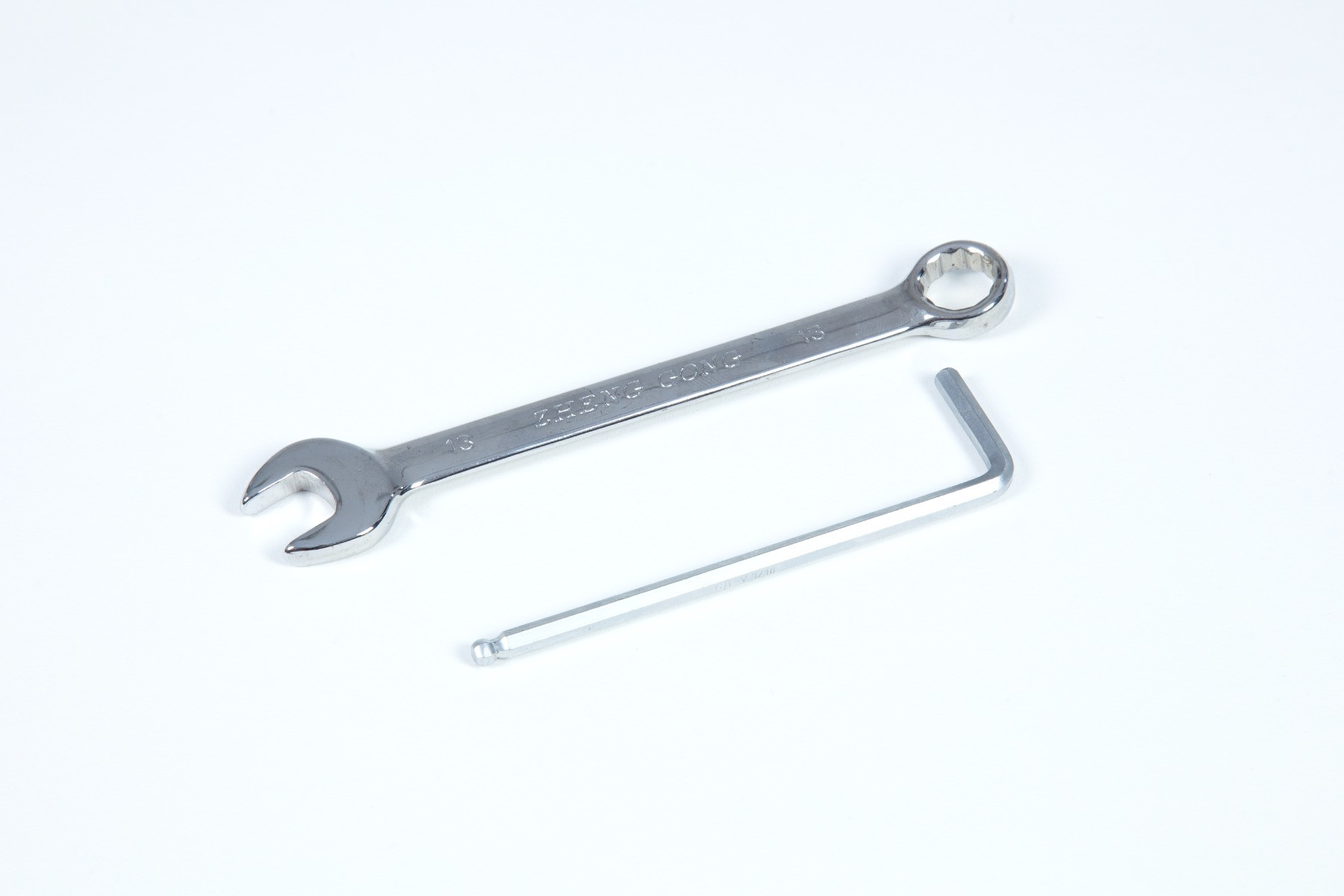

  • Add/remove sections to amend the ramp length as required, allen key and spanner provided
  • Suitable for indoor and outdoor use, can be left outside
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • CE marked

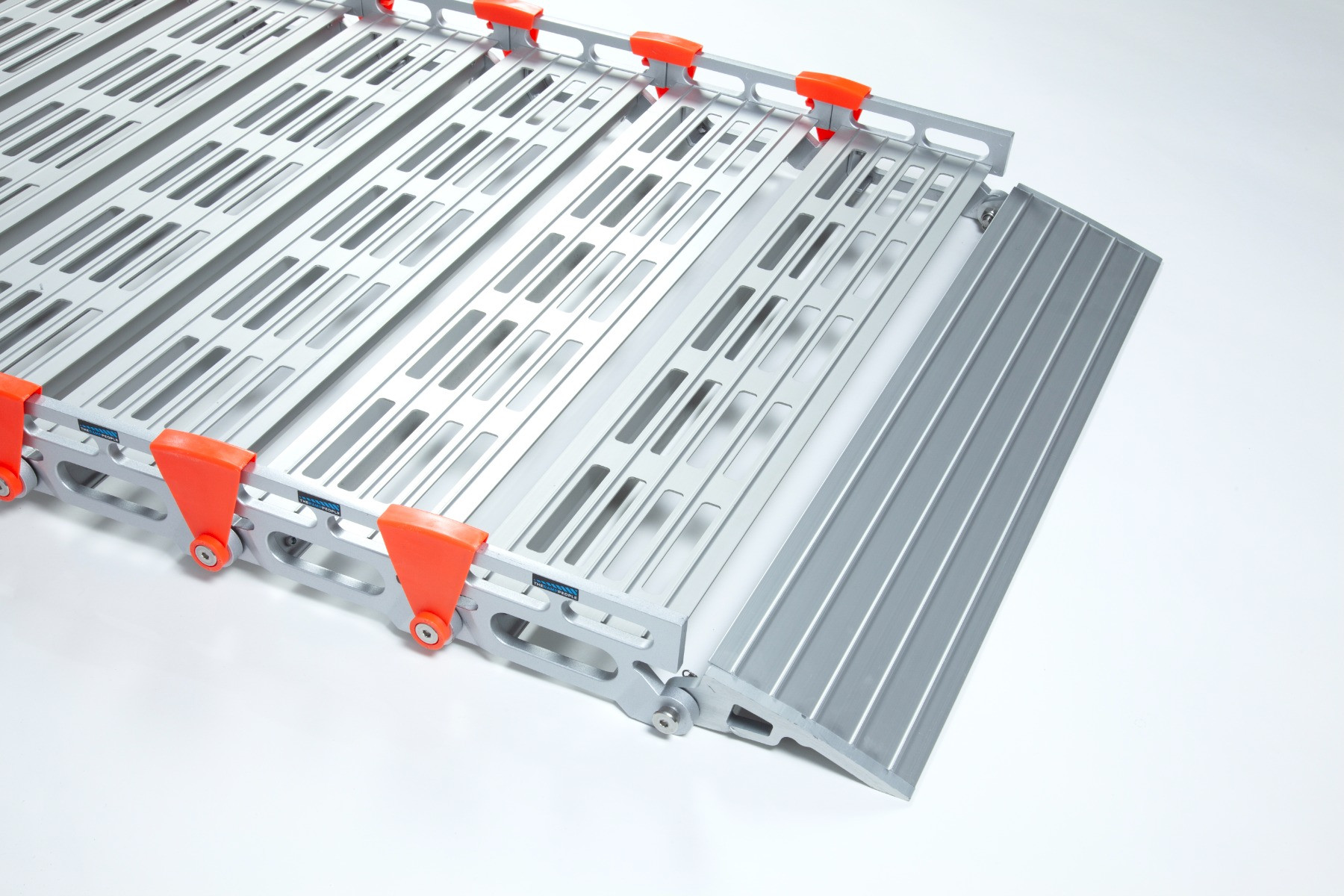

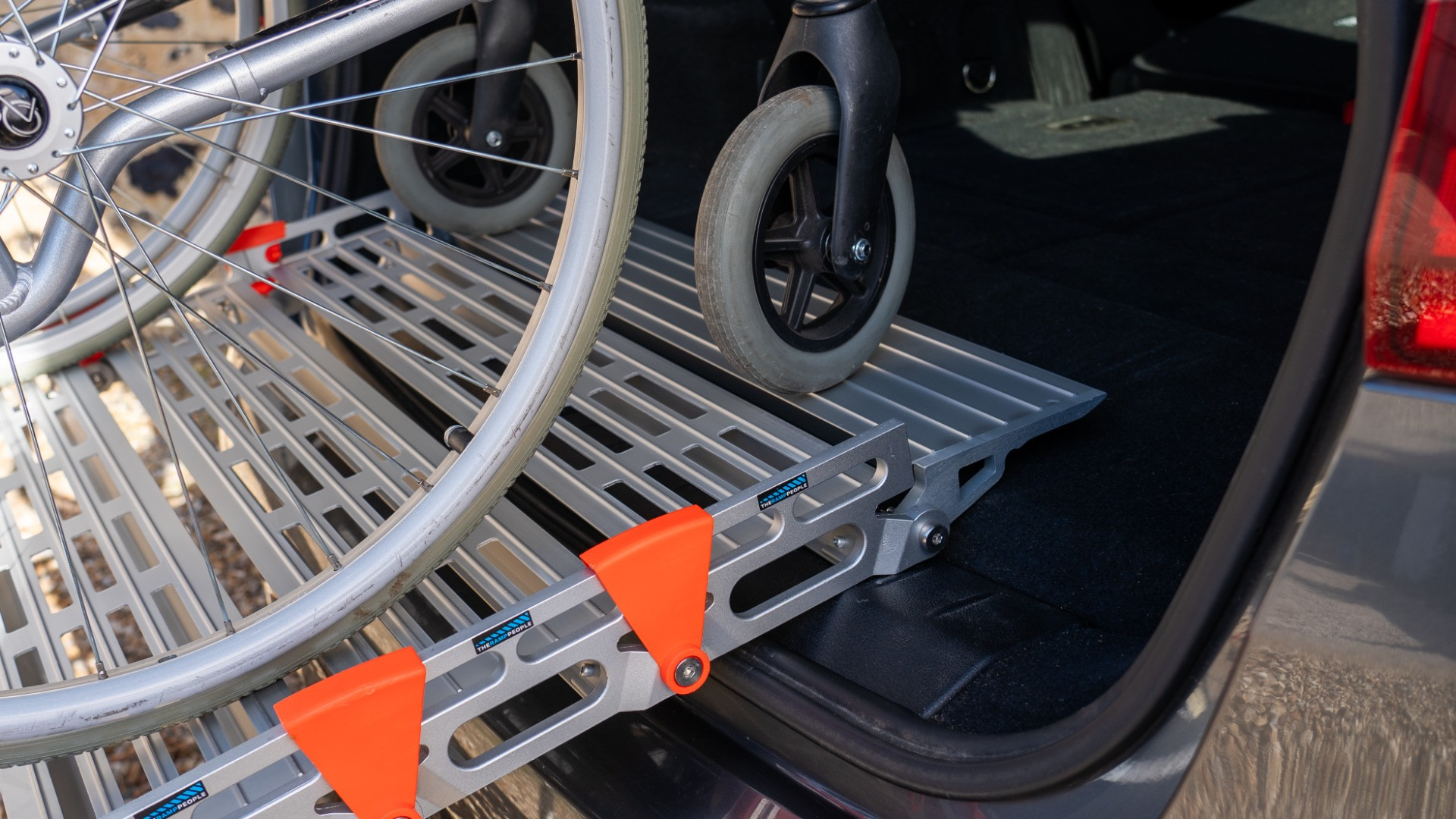

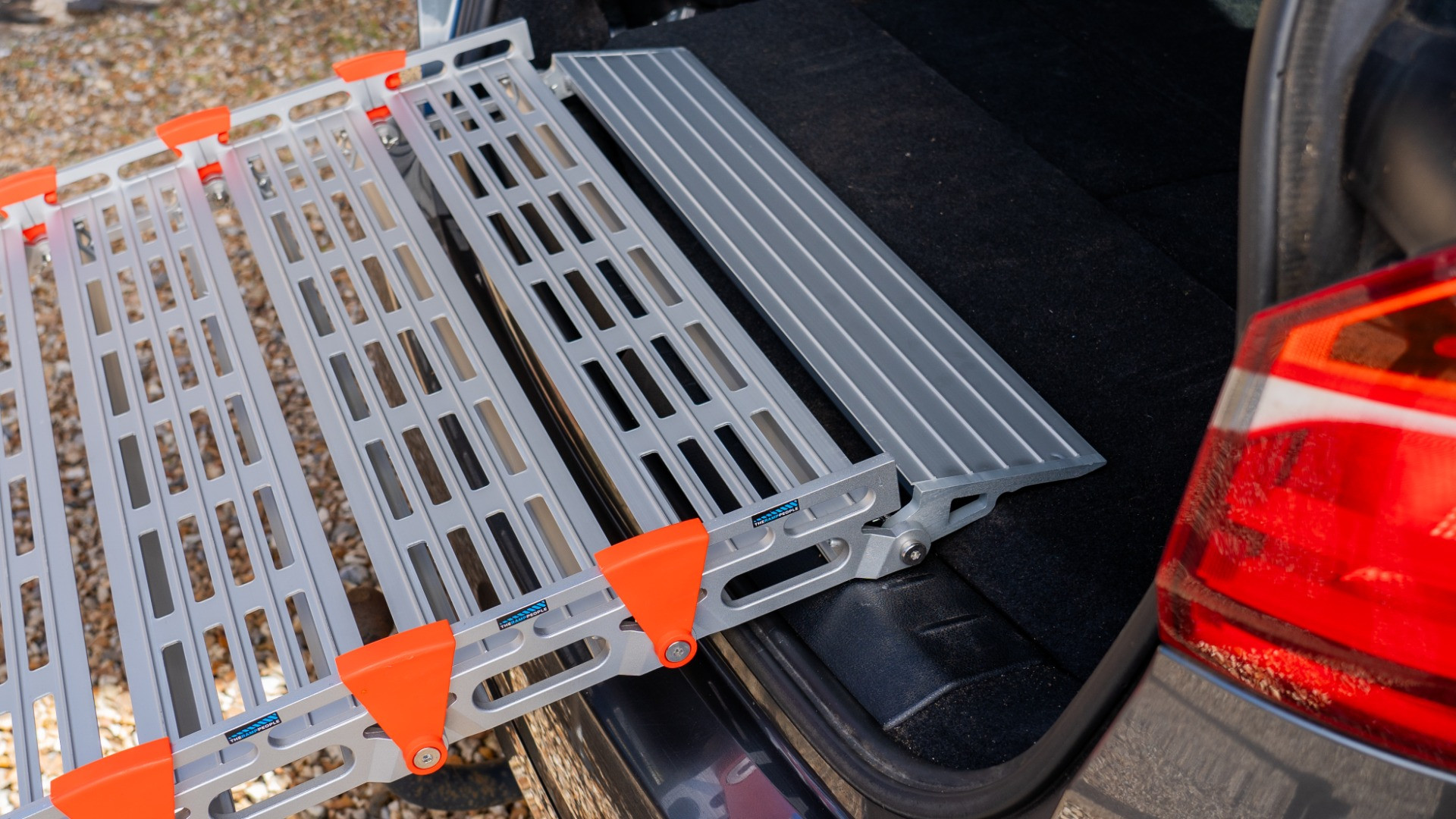

  • Please note the length of the rest on connection is larger on this ramp than other ramps (circa 28cm), the maximum recommended load height is therefore lower than those of other loading ramps
  • Not suitable for solid wheels
  • Not suitable for rubber wheels with a diameter of under 20cm
  • Please note some lengths are sent on a pallet with delivery to the kerbside only, if this is not suitable for you please let us know when ordering
  • Please note, this product is built to order so non-returnable/refundable

The RollAble Ramp user guide can be found here.

RollAble Ramp, 685mm wide

91cm / 3ft

  • Length 914mm
  • Weight 8kg
  • Capacity 453kg
  • Rolled Diameter 355mm
  • Max. load height 184mm

121cm / 4ft

  • Length 1219mm
  • Weight 10.5kg
  • Capacity 453kg
  • Rolled Diameter  406mm
  • Max. load height 273mm

152cm / 5ft

  • Length 1524mm
  • Weight 13kg
  • Capacity 453kg
  • Rolled Diameter 457mm
  • Max. load height 367mm

182cm / 6ft

  • Length 1828mm
  • Weight 16.5kg
  • Capacity 453kg
  • Rolled Diameter 508mm
  • Max. load height 458mm

213cm / 7ft

  • Length 2133mm
  • Weight 19.5kg
  • Capacity 453kg
  • Rolled Diameter 558mm
  • Max. load height 550mm

243cm / 8ft

  • Length 2438mm
  • Weight 22kg
  • Capacity 453kg
  • Rolled Diameter 609mm
  • Max. load height 642mm
  • Support Stands: Included

274cm / 9ft

  • Length 2743mm
  • Weight 25kg
  • Capacity 453kg
  • Rolled Diameter 660mm
  • Max. load height 733mm
  • Support Stands: Included

304cm / 10ft

  • Length 3048mm
  • Weight 27kg
  • Capacity 453kg
  • Rolled Diameter 711mm
  • Max. load height 825mm
  • Support Stands: Included

335cm / 11ft

  • Length 3352mm
  • Weight 30kg
  • Capacity 453kg
  • Rolled Diameter 762mm
  • Max. load height 916mm
  • Support Stands: Included

365cm / 12ft

  • Length 3657mm
  • Weight 32kg
  • Capacity 453kg
  • Rolled Diameter 812mm
  • Max. load height 1006mm
  • Support Stands: Included

396cm / 13ft

  • Length 3962mm
  • Weight 35kg
  • Capacity 453kg
  • Rolled Diameter 863mm
  • Max. load height 1099mm
  • Support Stands: Included

426cm / 14ft

  • Length 4267mm
  • Weight 39kg
  • Capacity 453kg
  • Rolled Diameter 914mm
  • Max. load height 1191mm
  • Support Stands: Included

457cm / 15ft

  • Length 4572mm
  • Weight 41.5kg
  • Capacity 453kg
  • Rolled Diameter 965mm
  • Max. load height 1282mm
  • Support Stands: Included

Video
Details
SKU TRP-RollAbleVan660
Default Connection Rest On Connection
Capacity (kg) 453
Edge Height (mm) 30
Height (mm) 75
Internal Width (mm) 640
Max Load Height (mm) 1282
Min. Load Height (mm) 100
Weight (kg) 7 - 43
Width (mm) 660
One Year Warranty Yes
Customisable Yes
Easy to Fit Yes
High Visability Yes
Not Solid Wheels Yes
Leave Outside Yes
