Aluminium Loading Ramp

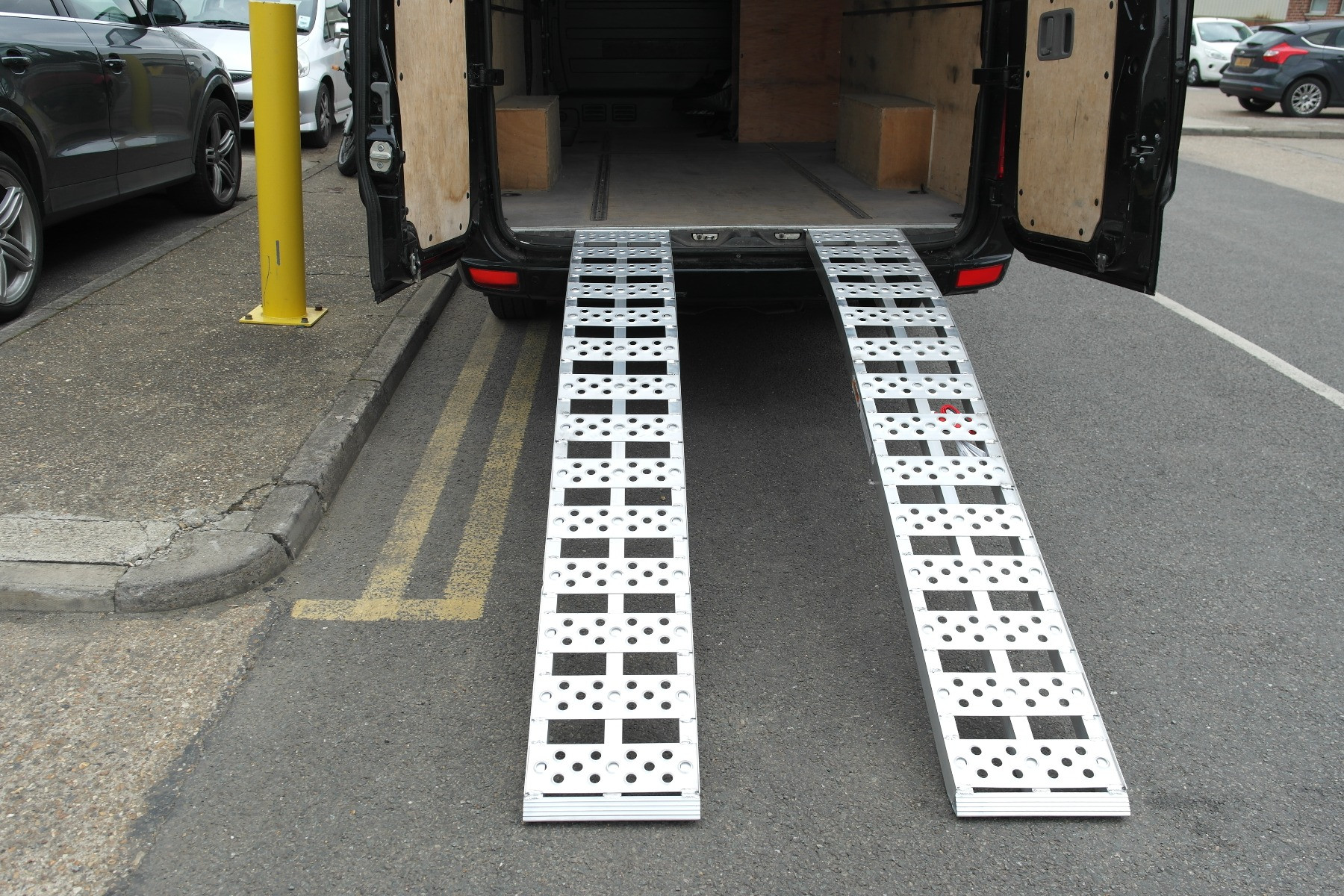

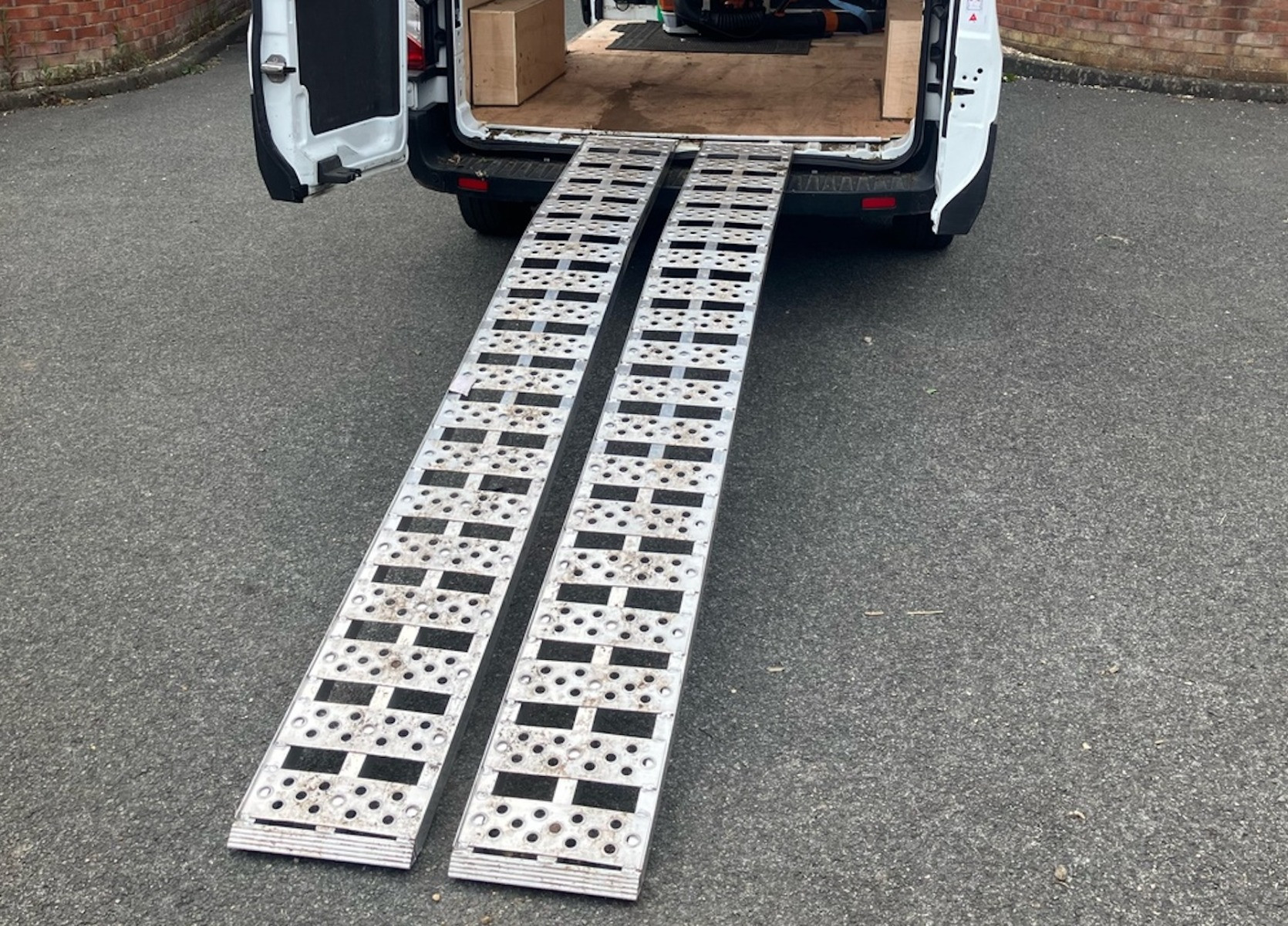

The Ramp Factory Lightweight Aluminium Loading Ramps are tested to a 200% load capacity and manufactured from lightweight aircraft grade aluminium (type 6005A). The ramps can be used for motorbikes, scooters, some garden machinery, lawnmowers, quad bikes, and ATVs. This ramp has an angled foot that provides smooth access for wheeled vehicles, as well as a flat-top/no edge design that allows greater flexibility in its use.
The price and capacity are stated across the pair.
The Ramp Factory have the answer to all your loading needs. Look no further than the heavy duty folding ramps, in widths of 750mm or 975mm. Alternatively, The Ramp Factory offer foldable van ramps with a capacity of up to 1000kg. Loading something smaller? Our ATV motorcycle ramps could be the answer. With kits and the aussie able to load up to 680kg.

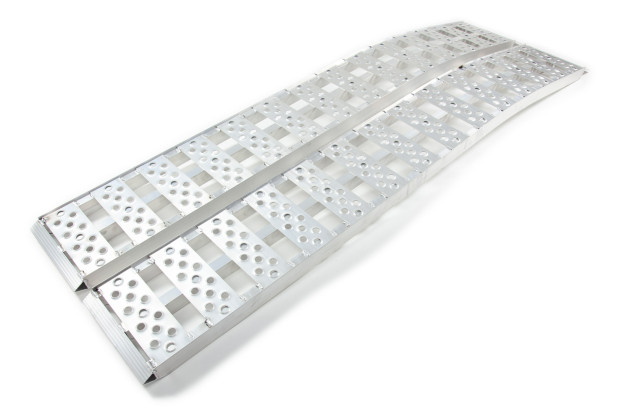

Pair of ATV Aluminium Loading Ramps
- Ramps lie flat for easy storage when not being used

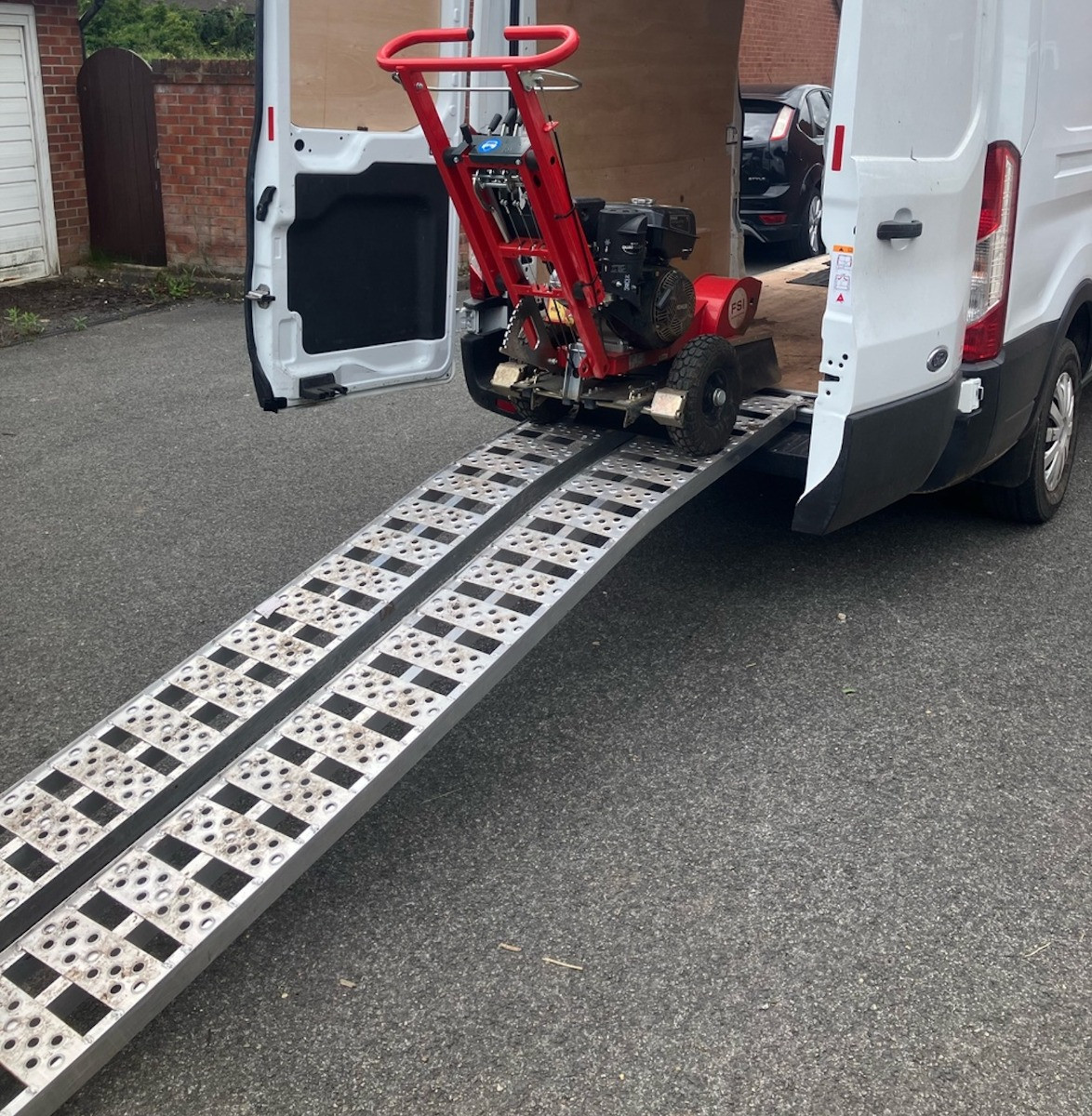

- Suitable for lawnmowers, ATV/quad bikes and other wheeled garden machinery/Use as pair.
- Suitable for motorcycles, scooters and other two wheel garden machinery/Use as piece.

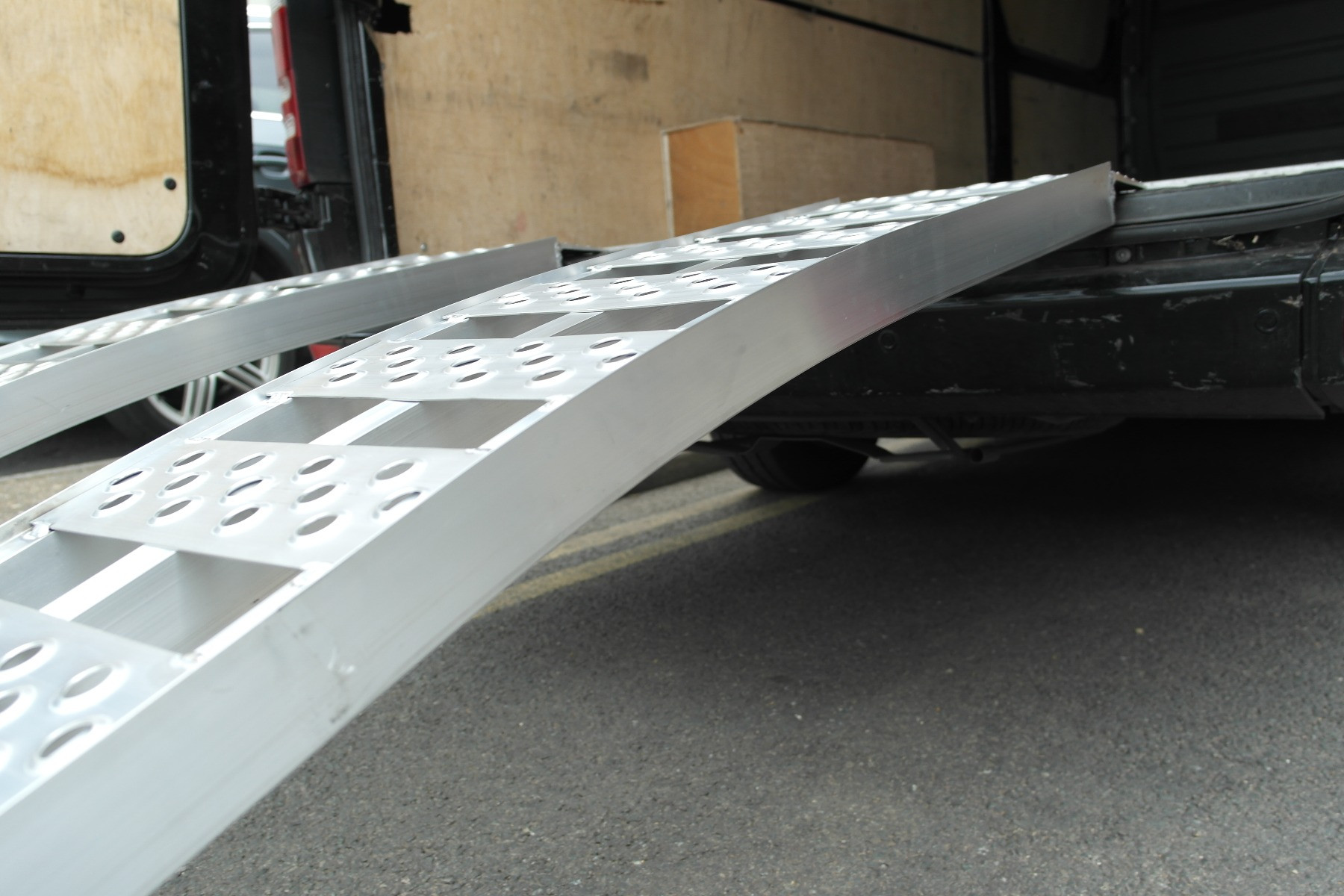

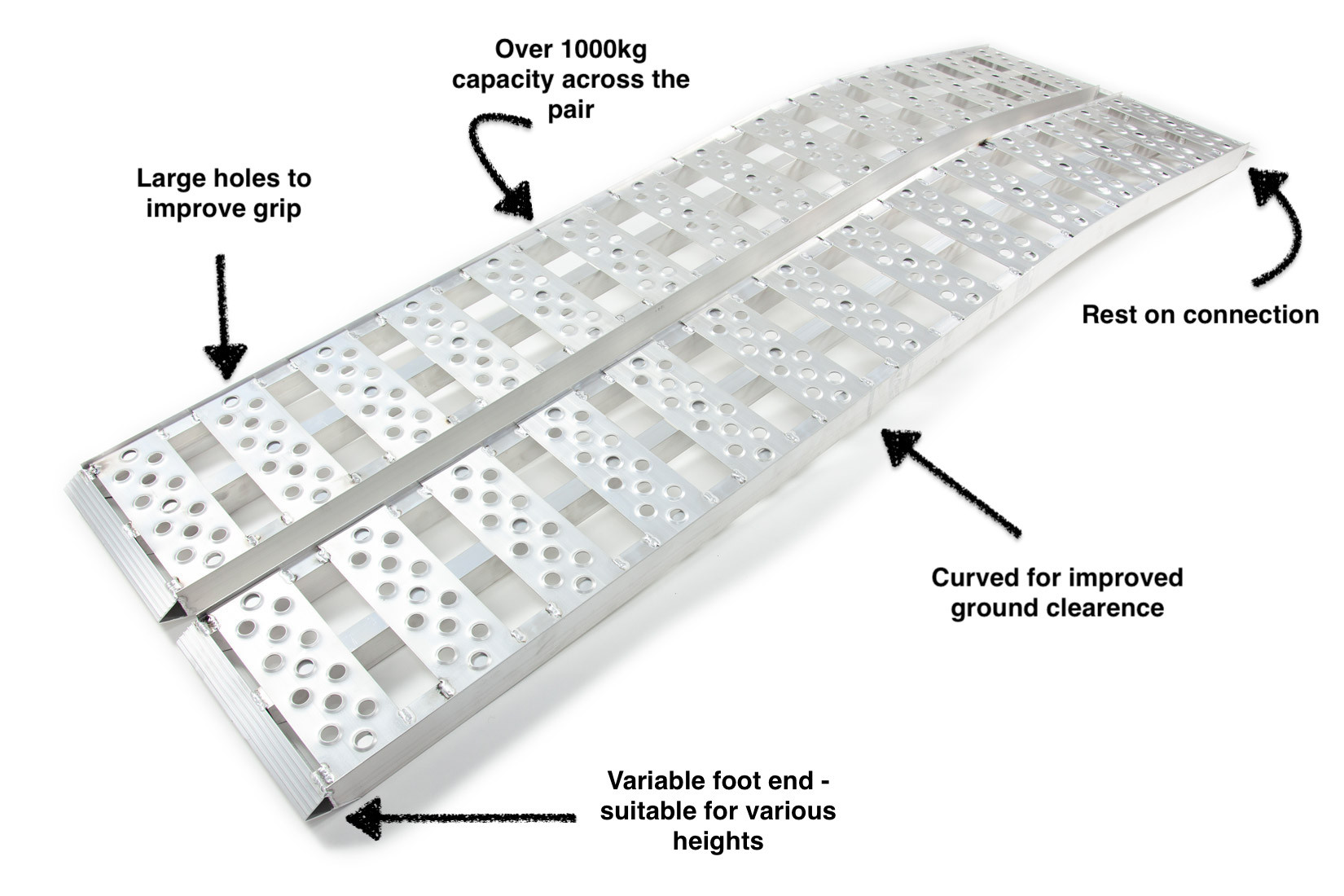

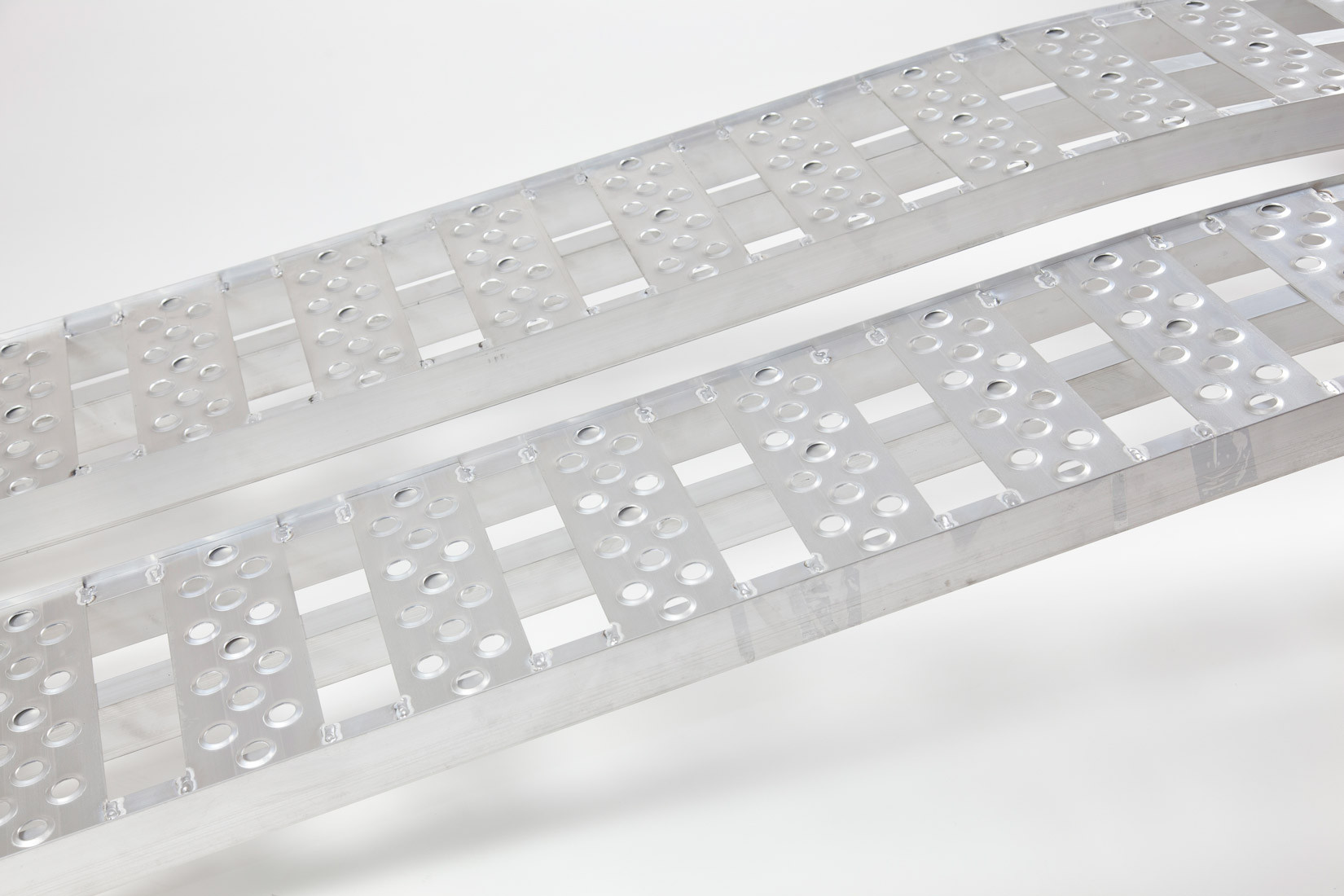

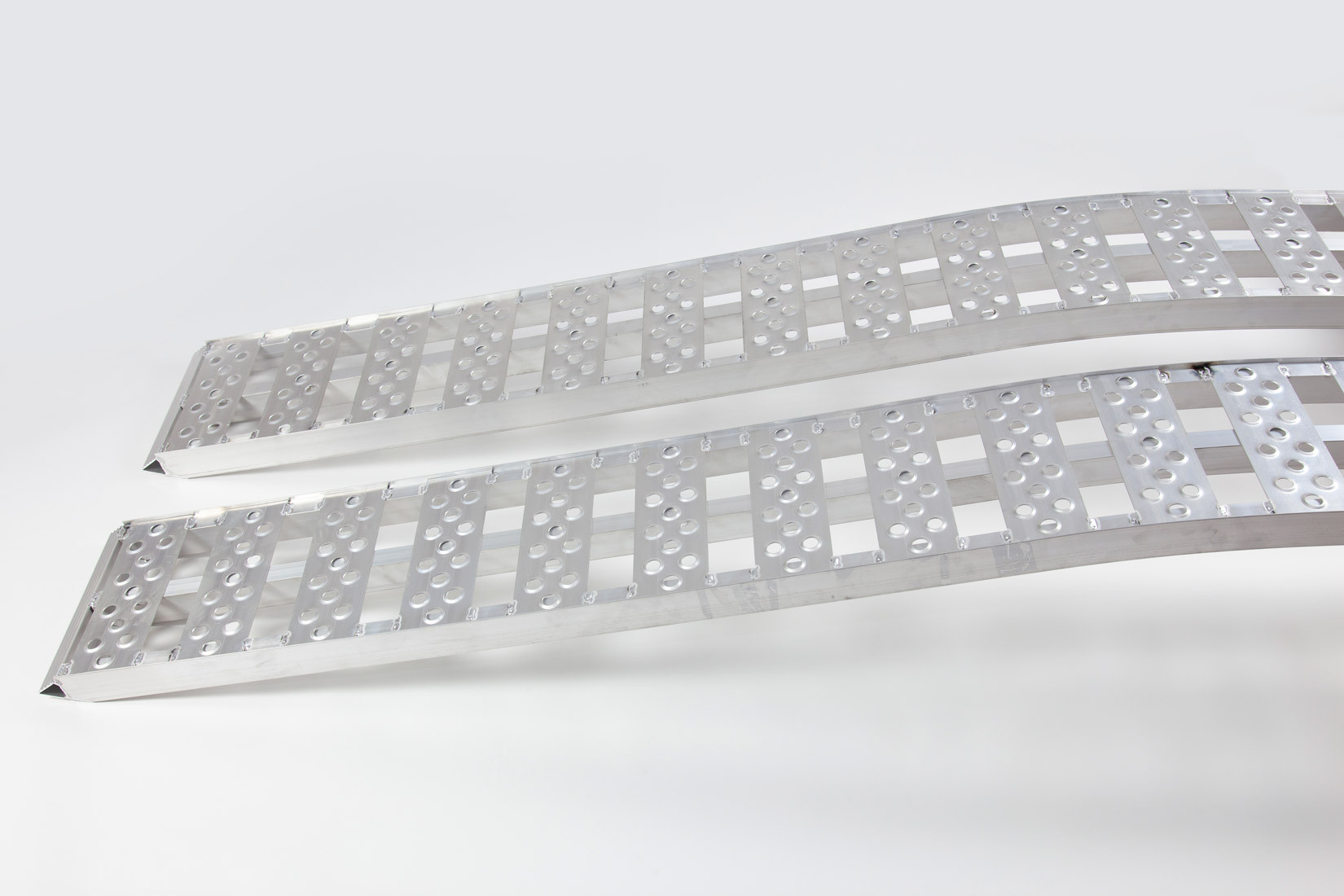

- Curved ramps for improved ground clearance
- Manufactured from lightweight aircraft grade aluminium (type 6005A)
- Lightweight for easy handling

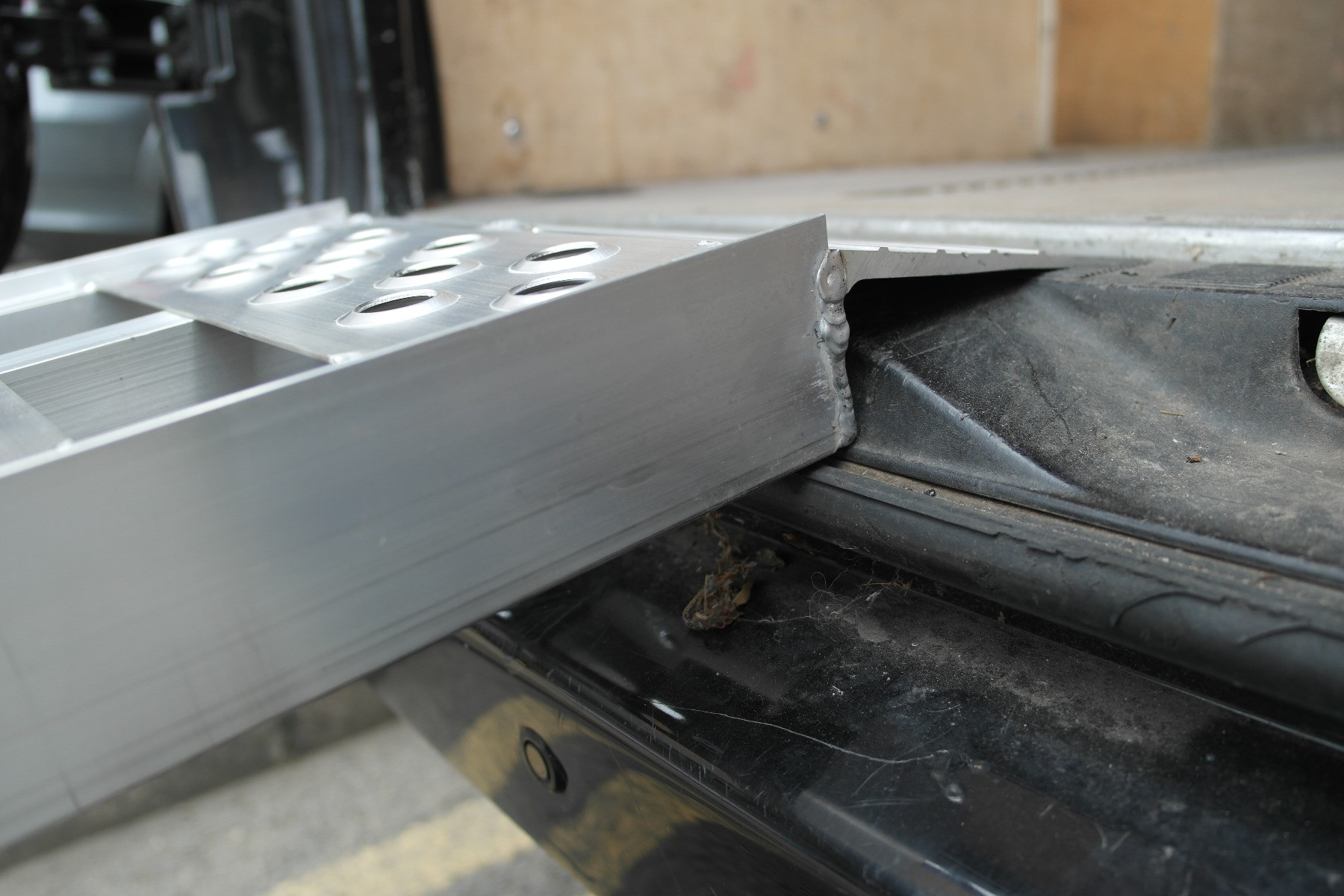

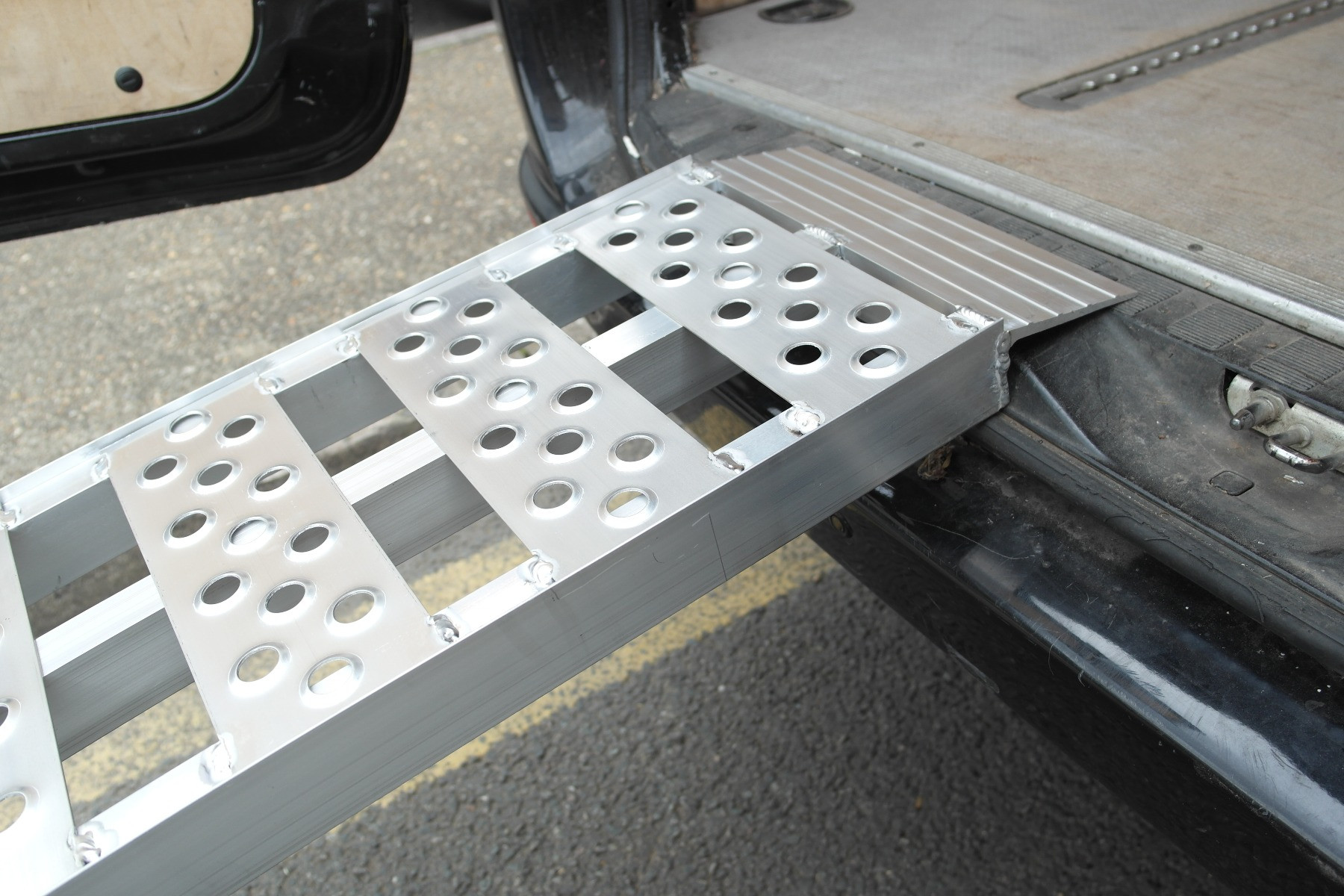

- Angled foot, this allows for smooth access onto the ramp when using wheeled vehicles
- Flat-top/no edge design gives greater flexibility of use

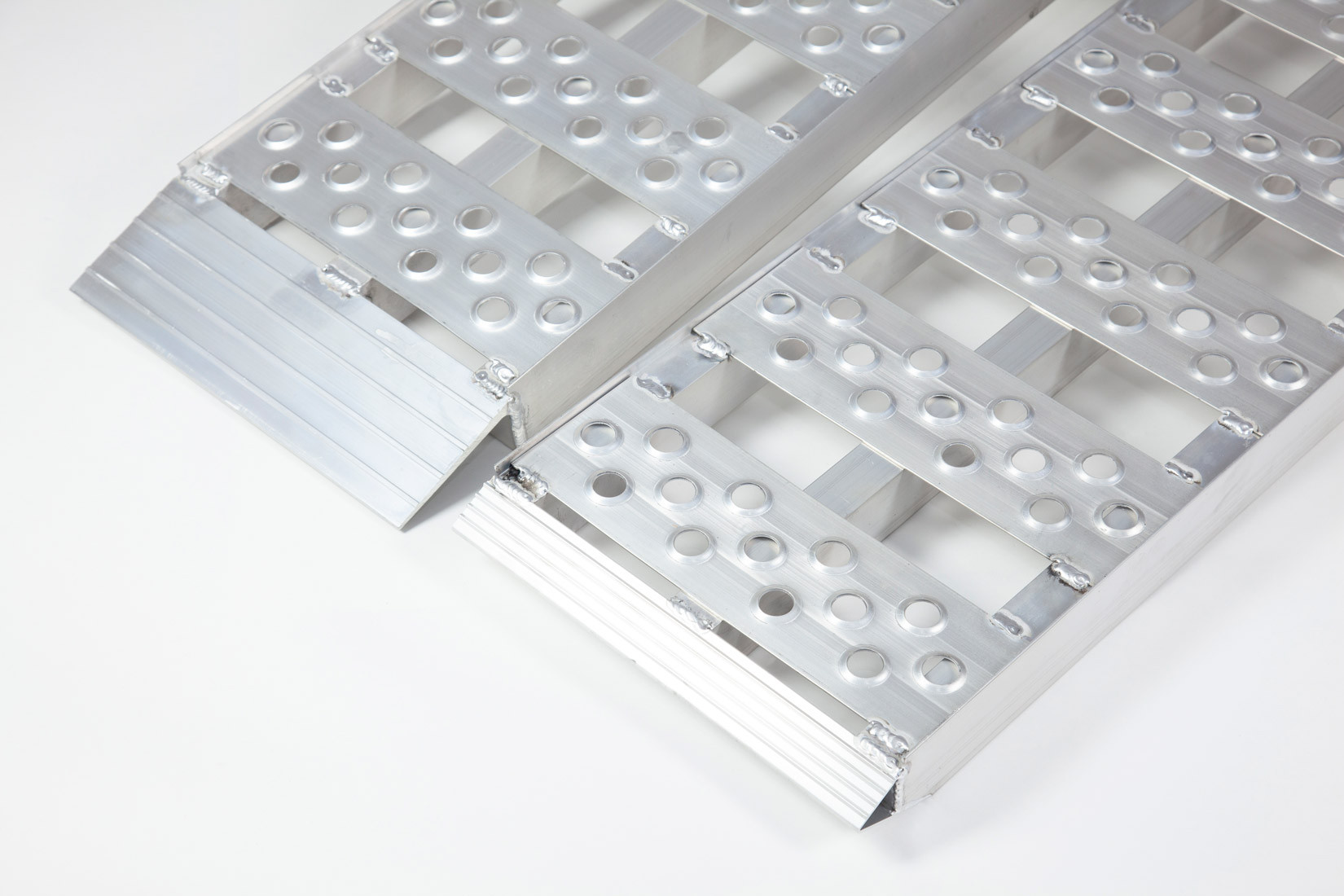

- Dynamic foot end, exclusive to The Ramp People, allows the ramp to be used at various heights
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
Not suitable for mini diggers, mini excavators, or any similar machineries either on wheels or tracks, for these type of machinery please view our aluminium plant loading ramps.
Aluminium Loading Ramp
TRP-2330 2330mm
- Length (mm): 2330
- Width (mm): 305
- Internal Width (mm): 280
- Max. load height (mm): 699
- Min. load height (mm): 555
- Weight per pair (kg): 14.2
- Weight per ramp (kg): 7.1
- Capacity (kg) : 1360
TRP-3000 3000mm
- Length (mm): 3000
- Width (mm): 305
- Internal Width (mm): 280
- Max. load height (mm): 850
- Min. load height (mm): 700
- Weight per pair (kg): 20
- Weight per ramp (kg): 10
- Capacity (kg) : 1000
SKU | TRP-ATVConf |
---|---|
Capacity (kg) | 1000 - 1360 |
Height of Ramps Profile (mm) | 65 |
Internal Width | 280 |
Length (mm) | 2330 - 3000 |
Max Load Height (mm) | 705 - 850 |
Width (mm) | 305 |
One Year Warranty | Yes |
Easy to Fit | Yes |
Ramp Capacity, Length & Load Height
This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.
Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.
Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).
For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load height x 3.3, gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.
Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase.
For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.
For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.
Further information can be seen in this blog article here
