Viper Economy Van Ramp

SKU

TRP-Viper700E

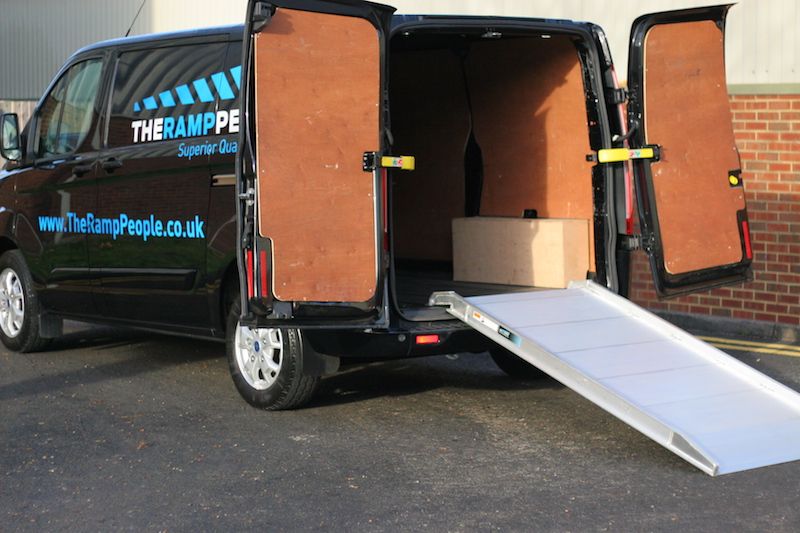

The Ramp Factory Economy Heavy Duty Van Ramp is a single aluminium ramp available in widths of 750mm or 975mm. It is available in lengths ranging from 1800mm to 2700mm and has a capacity of up to 900kg. The ramp features a non-slip tread pattern, is lightweight and easy to install. It is also corrosion-resistant, making it suitable for a variety of applications. The Ramp Factory Economy Heavy Duty Van Ramp is an affordable and reliable solution for loading and unloading vans.

The Ramp Factory have the answer to all your loading needs. Look no further than the industrial channel ramps or foldable van ramps with a capacity of up to 1000kg.

From £402.00 £335.00

In Stock

Only %1 left

Truck and Van Ramps FAQ's

Description

Rest on connection: to fit just rest on and start loading
Perfect for flight cases
Manufactured from lightweight aluminium (type 6005A)
Optimised ramp weight ensures the ramp stays connected to the van
Entry onto ramp slightly steeper than our premium version
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

Viper Heavy Duty Van Ramp 750mm Wide

1800mm/6ft TRP1800/700E

Length (mm): 1800
Height of Raised Edges (mm): 40
Max Load Height (mm): 540
External Width (mm): 750
Internal Width (mm): 700
Weight per ramp (kg): 28
Capacity (kg): 900

2100mm/7ft TRP2100/700E

Length (mm): 2100
Height of Raised Edges (mm): 40
Max Load Height (mm): 630
External Width (mm): 750
Internal Width (mm): 700
Weight per ramp (kg): 32
Capacity (kg): 800

Viper Heavy Duty Van Ramp 975mm Wide

1800mm⁄6ft TRP1800/920E

Length (mm): 1800
Height of Raised Edges (mm): 38
Max Load Height (mm): 540
External Width (mm): 975
Internal Width (mm): 920
Weight per ramp (kg): 35
Capacity (kg): 900

2100mm⁄7ft TRP2100/920E

Length (mm): 2100
Height of Raised Edges (mm): 38
Max Load Height (mm): 630
External Width (mm): 975
Internal Width (mm): 920
Weight per ramp (kg): 40.5
Capacity (kg): 800

2400mm⁄8ft TRP2400/920E

Length (mm): 2400
Height of Raised Edges (mm): 38
Max Load Height (mm): 720
External Width (mm): 975
Internal Width (mm): 920
Weight per ramp (kg): 45
Capacity (kg): 770

2700mm⁄9ft TRP2700/920E

Length (mm): 2700
Height of Raised Edges (mm): 38
Max Load Height (mm): 815
External Width (mm): 975
Internal Width (mm): 920
Weight per ramp (kg): 49
Capacity (kg): 680

Video

Details

SKU	TRP-Viper700E
Default Connection	Rest On Connection
Capacity (kg)	680 - 900
Height of Raised Side (mm)	38 - 40
Height of Ramps Profile (mm)	95
Length (mm)	1800 - 2700
Max Load Height (mm)	540 - 815
Total Width (mm)	750 - 975
Weight per Ramp (kg)	22.1 - 37.8
One Year Warranty	Yes
Easy to Fit	Yes
Usable Width (mm)	700

Print/Save Datasheet

Ramp Length & Load Height Information

Ramp Capacity, Length & Load Height

This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.

Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.

Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).

For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load height x 3.3, gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.

Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase. For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.

For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.

Further information can be seen in this blog article here
