Car Ramps - Buying Guide

Using car ramps is an essential part of loading cars and vehicles into containers and climbing kerbs. In accordance with European guidelines, vehicles should be loaded at no more than 30% gradient. However, if your car has low ground clearance, such as a classic car or sports car, you may need a steeper gradient. Car ramps are crucial tools for car owners and enthusiasts. They provide accessibility, convenience, and safety features for various tasks, including maintenance and repair work, changing tires, cleaning, and even storage and transportation. Investing in car ramps is a wise investment that will contribute to your overall vehicle ownership experience.

What To Check Prior To Purchasing Car Ramps

• Your load height - the vertical height from the ground to where the ramp will rest
• The maximum weight you wish to load - you will need to check the weight of the car, normally we recommend adding around 200kg to this weight to account for any fuel, weight in the car and operator
• Where the ramps are resting on to - we have 4 connection options available, the most popular is the rest on connection
• The cars clearance - for low clearance vehicles you will require longer ramps

Ramp Options

Car ramps are available from The Ramp Factory in lengths from 1.5 - 4m. Our Car Ramps are designed to handle loads up to 600mm high, and their capacities range up to 2900kg. Due to their thin 40mm thickness, these ramps are ideal for low-bearing vehicles such as sports cars or vintage cars. Besides being TUV certified, the ramps can also be customized. Four different connection options are available, but the rest on connection is most popular for flat-beds and tippers. Various alternative connections are available, such as the hook connection that is ideal for loading onto beaver tail trailers.

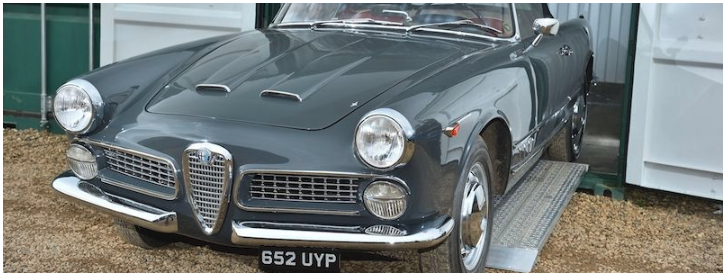

The Ramp Factory's car ramps are ideal for loading cars into containers, on to vehicles, or up kerbs. They are sold as a pair and are priced accordingly. A low ground clearance car, such as a sports car or classic car, can easily be loaded using one of these ramps.

Bestselling 1.5m Car Ramps

Capacity	2900
Length	1500
Width	415
Height of Ramp Profile	40
Max Load Height	225

Bestselling 2m Car Ramps

Capacity	2132
Length	2000
Width	315
Height of Ramp Profile	40
Max Load Height	300

Bestselling 2.5m Car Ramps

Capacity	1421
Length	2500
Width	315
Height of Ramp Profile	40
Max Load Height	375

Bestselling 3m Car Ramps

Capacity	1197
Length	3000
Width	415
Height of Ramp Profile	40
Max Load Height	450

Bestselling 3.5m Car Ramps

Capacity	1535
Length	3500
Width	615
Height of Ramp Profile	55
Max Load Height	625

Bestselling 4m Car Ramps

Capacity	1208
Length	4000
Width	615
Height of Ramp Profile	55
Max Load Height	600

Kerb Ramps

Kerb ramps are ideal for loading vehicles up to 200mm in height and up to 40,000kg in capacity, depending on the ramp chosen. Tarmac and concrete fixings are provided. A cable can be passed below the ramp via a channel provided beneath the ramp. In addition to singles and pairs, kerb ramp kits are available for 100mm and 200mm heights. Generally, kerb ramps are steeper than aluminium car ramps, so they may not be suitable for vehicles with low ground clearance. A non-slip surface makes the kerb ramps perfect for loading. It is recommended that you measure your kerb height before purchasing.

Our kerb ramps come with quantity discounts.

Heavy Duty Rubber Kerb Ramp (100mm-200mm)

Heavy duty rubber kerb ramps from The Ramp Factory are ideal for protecting kerbs from heavy machinery or vehicles. These ramps are suitable for vehicles that need to overcome kerbs and are fitted with fixings for tarmac and concrete. They are available in heights of 100 mm, 150mm and 200mm and have a 20,000 kg capacity, as well as two channels for allowing cables to pass underneath the ramps. The ramps are made from hard-wearing rubber resistant to harsh elements.

Rubber Container Ramps (114mm-178mm)

Made from 100% recycled rubber, these rubber ramps are perfect for allowing easy access to containers. They offer a 1000kg capacity and are provided with a non-slip surface. The rubber container ramps are suitable for both indoor and outdoor use. Please note, a single ramp has a width of 400mm, so pairs are often required to create meaningful width.

Rubber Kerb Ramps (135mm)

The Ramp Factory's Pair of Rubber Kerb Ramps has a capacity of 5,000 kg each. The product comes with universal fixings that can be used on both concrete and tarmac. The ramp is made of durable and long-lasting rubber to ensure a safe, stable surface for vehicles. It is easy to use and install. Cables and hoses can be routed through two channels: Channel 1 measures 31mm x 19.8mm, and Channel 2 measures 38.5mm x 30.5mm.
