Heavy Duty Loading Ramps for Steel Tracks (3000mm x 450mm x 26,200kg)

£3,900.60 £3,250.50
Built to Order
Ask A Question

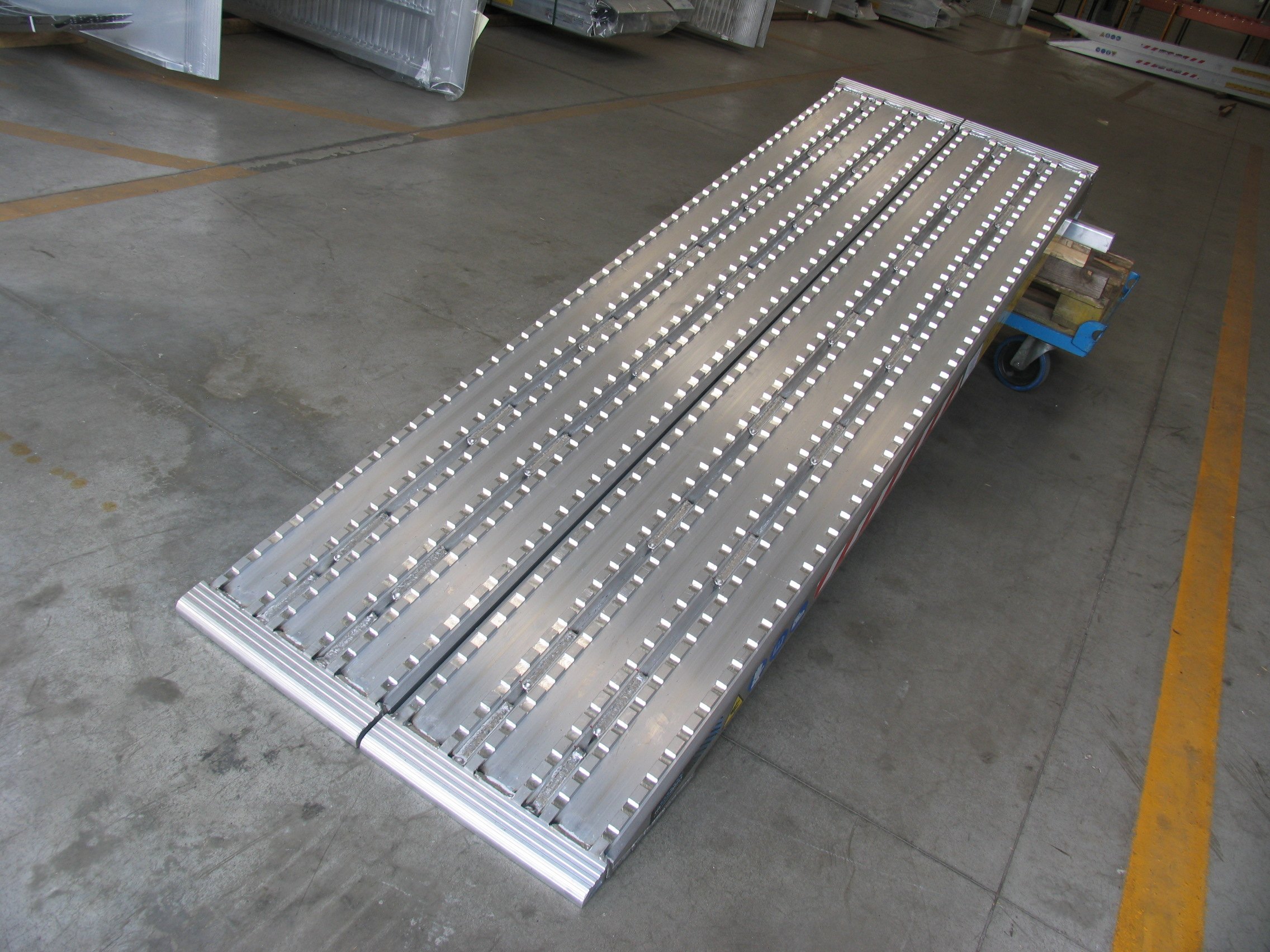

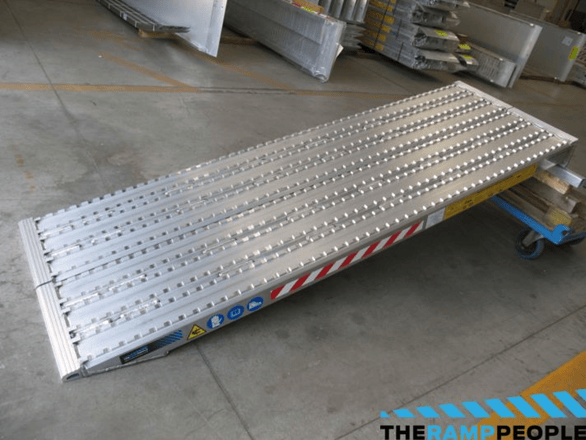

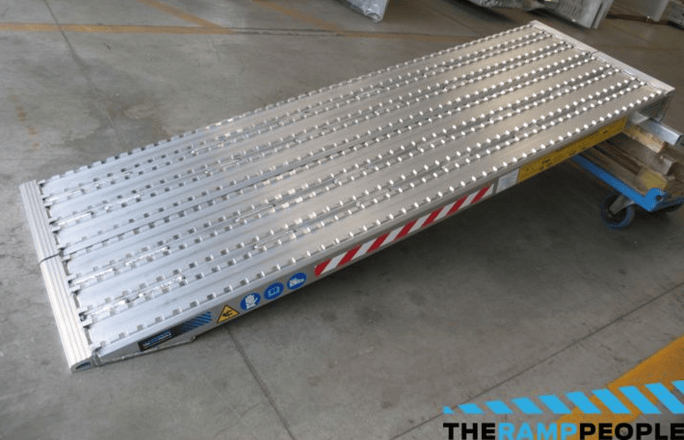

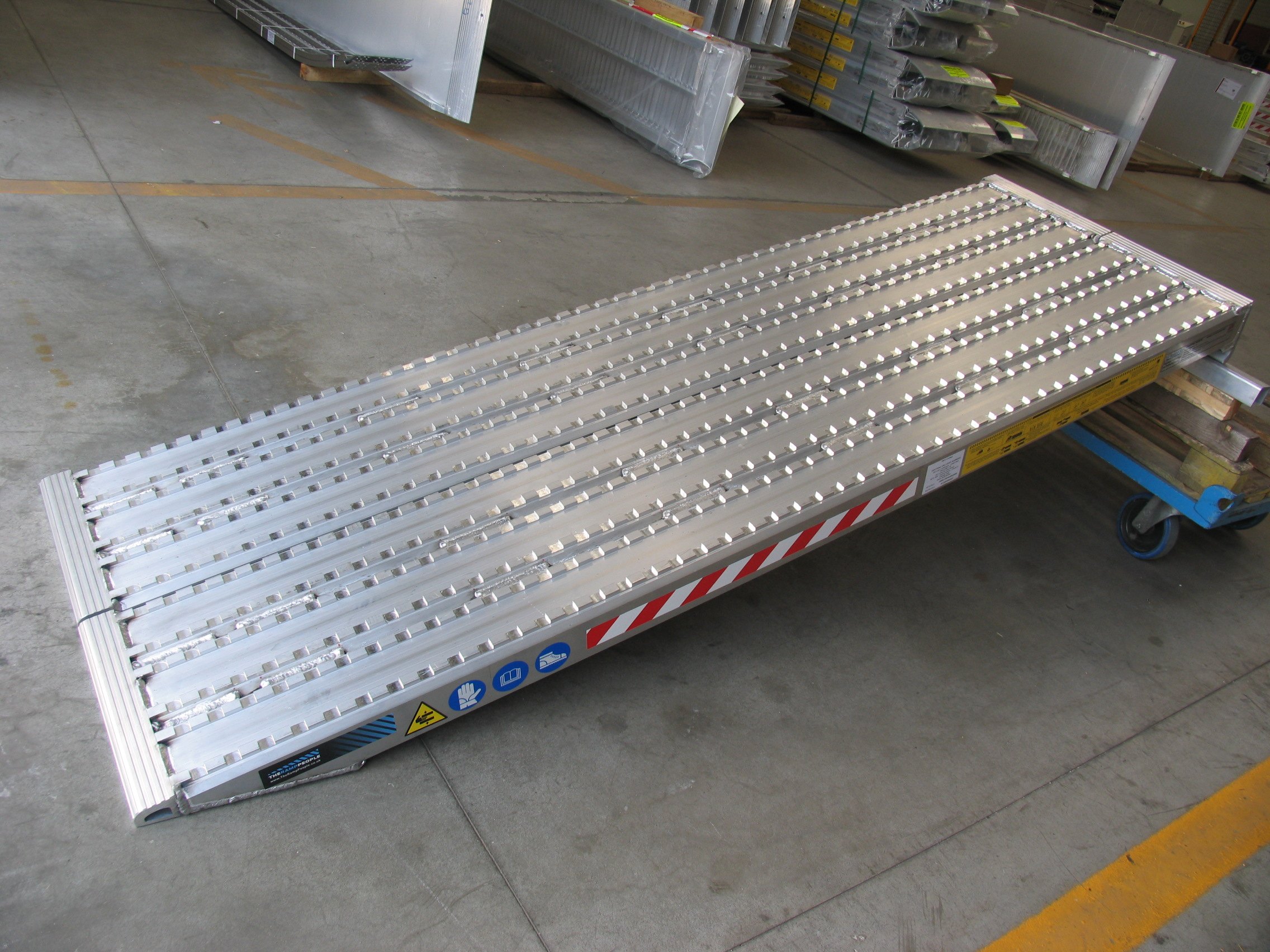

Heavy Duty Loading Ramps for Steel Tracks (3000mm x 450mm x 26,200kg)


3000mm long, 450mm wide and a profile height of 130mm. This ramp includes a maximum capacity of 26,200kg, and is ideal for use as a plant ramp, digger ramp and for tele-handlers.

Contact our customer services team for custom built orders.

Price and capacity stated is for the PAIR.

Aluminium Ramps for Plant & Machinery FAQs

  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • One Year Warranty

Our heaviest duty ramps, designed to carry steel tracked vehicles and equipment. The Ramp Factory range of steel tracked ramps' core profile thickness is 130mm. Available 450mm wide, these ramps feature no external welds and offer a capacity of up to 26,200kg. They are ideal for use as industrial plant ramps and as heavy duty as commercial ramps.

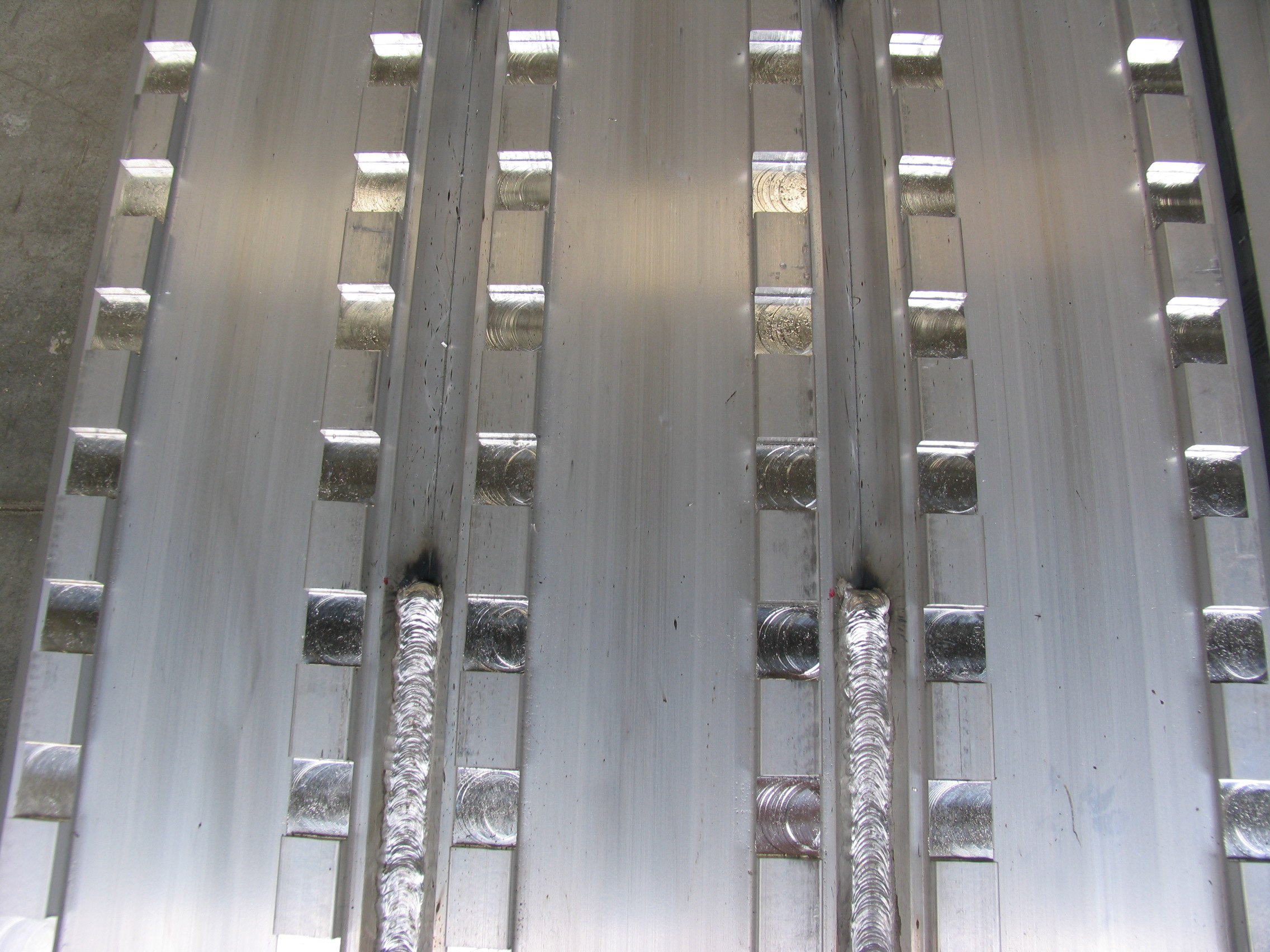

  • Flat top with no external welds
  • On capacities over 20,000kg only Bottom Hook Connection or Tube Connection possible
  • Custom load heights available
  • Quotes for bespoke ramps can be supplied on request
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Fully TUV certified

TUV Certification Image

Usage Guidelines and Safety Information for these ramps can be found here

SKU TRP13045/30
Capacity (kg) 26,200
Height of Ramps Profile (mm) 130
Length (mm) 3000
Max Load Height (mm) 900
Min. Load Height (mm) 750
Weight (kg) 170
Weight per Ramp (kg) 85
Width (mm) 450
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Capacity Wheelbase 1500mm (kg) 13,300
Capacity Wheelbase 1750mm (kg) 17,500
Capacity Wheelbase 2000mm (kg) 26,200
