Heavy Duty Cable Protectors - Now offering 1, 2, 3, and 5 Channels!
A 1 channel option has now been added to Ramp Factory's popular heavy duty cable protector, bringing the range to 1, 2, 3, and 5 channels. Having multiple channel options provides flexibility to accommodate different cable management needs. It allows users to protect various quantities and sizes of cables, ensuring safety and organization in diverse environments. Additionally, it helps prevent tripping hazards and cable damage, improving overall efficiency and safety. For example, in a busy construction site, having multiple channel options allows workers to safely route power cables, communication lines, and hoses without causing obstructions or safety risks. This ensures that operations can run smoothly while maintaining a safe work environment.
Designed for vehicle and pedestrian traffic, The Ramp Factory's heavy-duty cable protectors/cable ramps/cable covers can handle loads up to 12,000kg. These interlocking cable protectors/cable ramps/cable covers are suitable for indoor and outdoor use, come in high visibility black and yellow colors, and have a chequered antislip surface. Whether it's an outdoor festival or an indoor warehouse, these cable protectors provide robust protection against cable wear and tear. Their versatility ensures they can be deployed in various settings, enhancing safety and efficiency regardless of the environment. This adaptability makes them an invaluable asset for any organization looking to manage cables effectively.

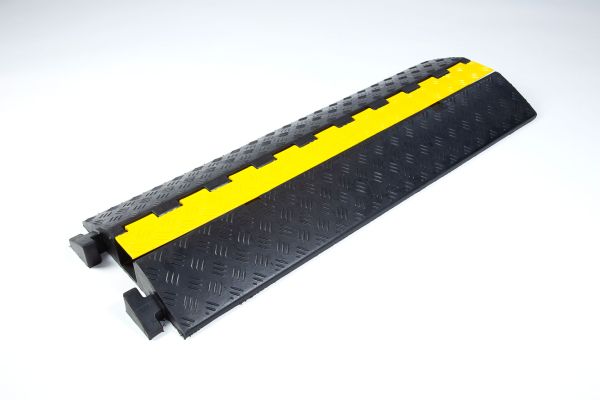

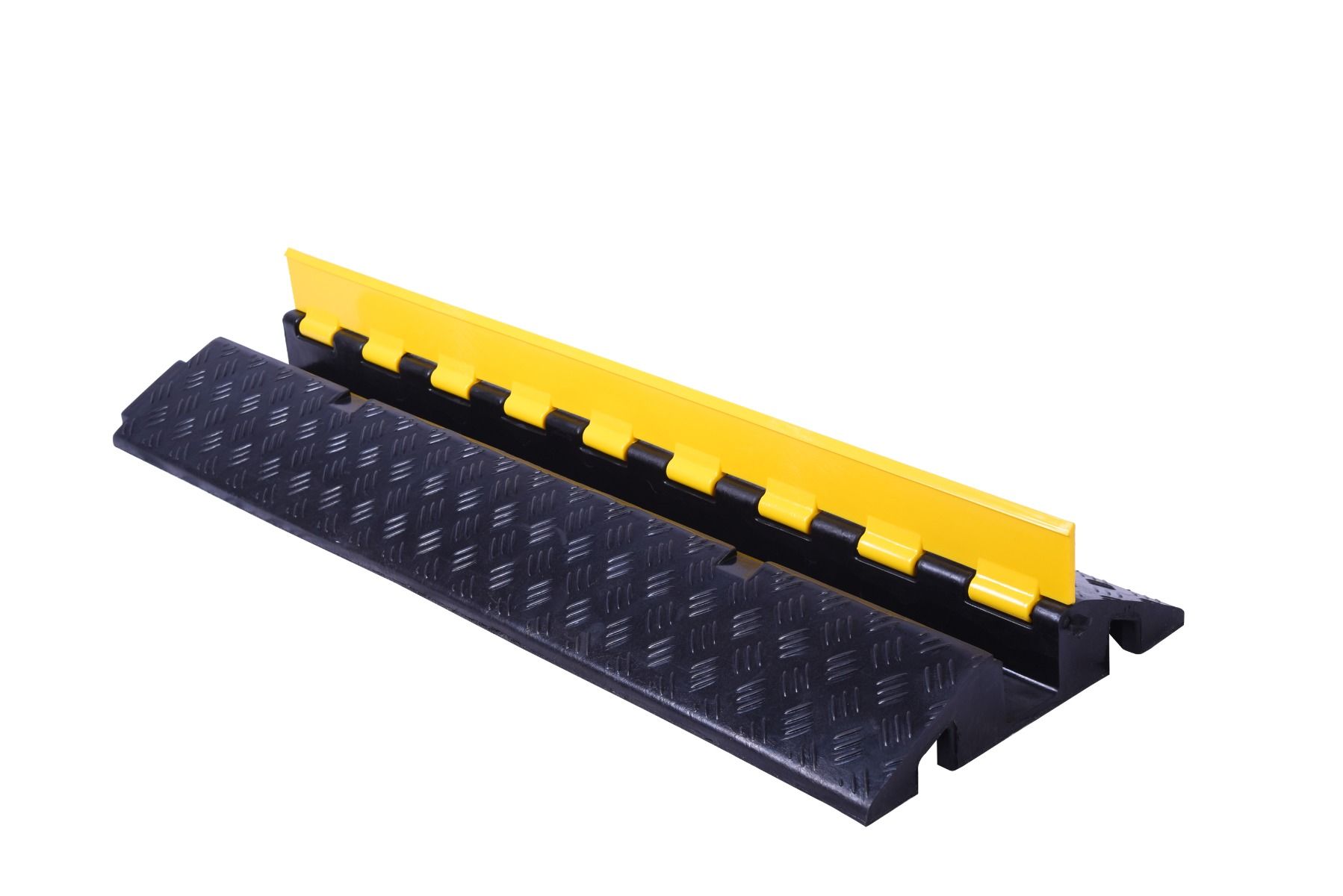

1 Channel - TRP-CP-11
- Length 900mm
- Width 320mm
- Height 65mm
- Number of channels 1
- Channel size 50mm x 50mm
- Maximum cable/hose diameter 50mm
- Capacity 12,000kg
- Capacity per tyre 6,000kg
- Weight 8.5kg
2 Channel - TRP-CP7M
- Length 900mm
- Width 610mm
- Height 105mm
- Number of channels: 2
- Channel size 90mm x 85mm
- Maximum cable/hose diameter 85mm
- Capacity 10,000kg
- Capacity per tyre 5,000kg
- Weight 28.5kg

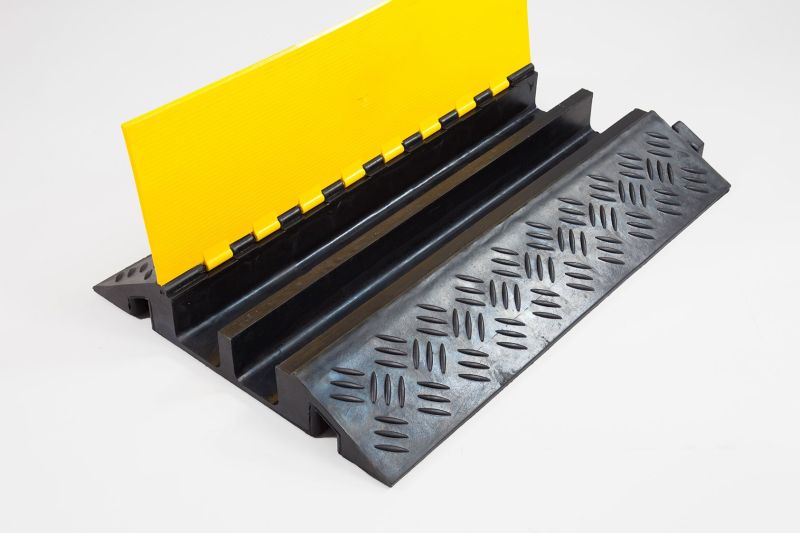

3 Channel - TRP-BPCP4M
- Length 880mm
- Width 500mm
- Height 75mm
- Number of channels 3
- Channel size 64mm x 54mm
- Maximum cable/hose diameter 54mm
- Capacity 12,000kg
- Capacity per tyre 6,000kg
- Weight 11kg
5 Channel - TRP-BPCP2S
- Length 900mm
- Width 500mm
- Height 50mm
- Number of channels: 5
- Channel size 31mm x 44mm
- Maximum cable/hose diameter 31mm
- Capacity 12,000kg
- Capacity per tyre 6,000kg
- Weight 8.6kg
