Cable Protector TRP-CP7M (2 Channels)

SKU
TRP-CP7M
£90.00 £75.00
In Stock

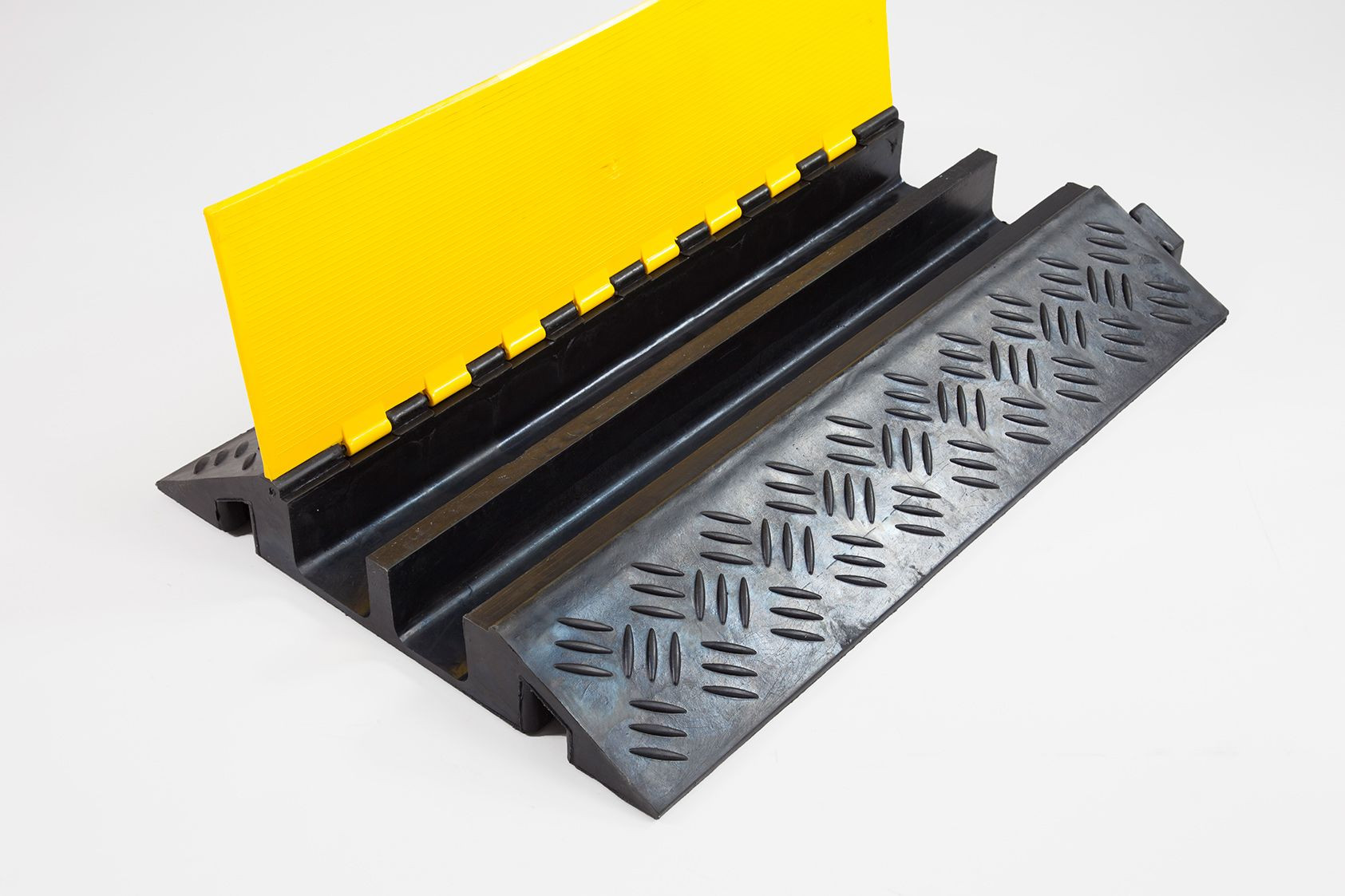

The Ramp Factory's Heavy duty 2 channel cable protector is designed to protect cables up to 90mm x 585mm. With a hinged lid design, simply flip open and insert cables. The interlocking to allow you to cover your required length.

Capacity (kg) 10,000
Length (mm) 900
Width (mm) 610
Height (mm) 105
Channel Size (mm) 90 x 85
Number of Channels 2
Description
The Ramp People range of interlocking cable protector speed bumps.

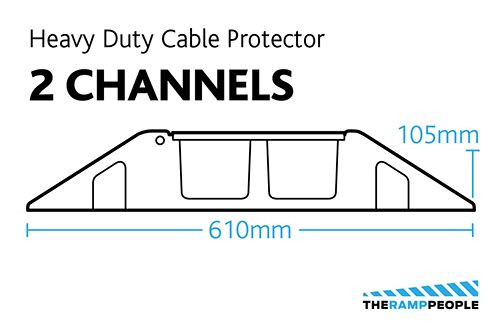

  • Sizes: 105mm x 900mm x 610mm.
  • Made from 100% recycled rubber
  • Featuring 2 Channels
  • 10000kg capacity Per Axle
  • Contrasting yellow and black body
  • Max speed 5mph
These are designed to be crossed at a max speed of 5mph and Max weight should not exceed 5450kg per tyre.
Please note, when specifying the required cable protector, we recommend selecting the lowest possible height to ensure maximum clearance for the greatest number of vehicles.

All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.

Video
Details
SKU TRP-CP7M
Capacity (kg) 10000
Height (mm) 105
Internal Width (mm) Maximum cable/hose diameter 82.55mm
Length (mm) 900
Weight (kg) 28.5
Width (mm) 610
One Year Warranty Yes
Bulk Prices Available Yes
Easy to Fit Yes
High Visability Yes
Leave Outside Yes
Channel Width (mm) 90
Channel Size (mm) 90 x 85
Channel Height (mm) 85
Max Cable/ Hose Diameter (mm) 82,55
No. Channels 2
Capacity per Axle (kg) 10,000
Operating Temperature (deg. F) -40°F up to 131°F
Durometer A A77
Elongation At Break 160%
Tensile Strength 5 MPa
Speedlimit (mph) 5
