Aluminium Loading Ramps Extra Wide (4000x510)
Aluminium loading ramps from The Ramp Factory are ideal for loading plant machinery, vehicles and professional loads.
| Length (mm) | 4000 |
| Width (mm) | 510 |
| Max. Load Height (mm) | 1200 |
| Min. Load Height (mm) | 1050 |
| Weight Per Ramp (kg) | 56 |
| Profile Height (mm) | 160 |
| Minimum Track Width (mm) | 200 |
| Maximum Track Width (mm) | 430 |
| Capacity (kg) | 6320 |
Capacity and price is for the PAIR.

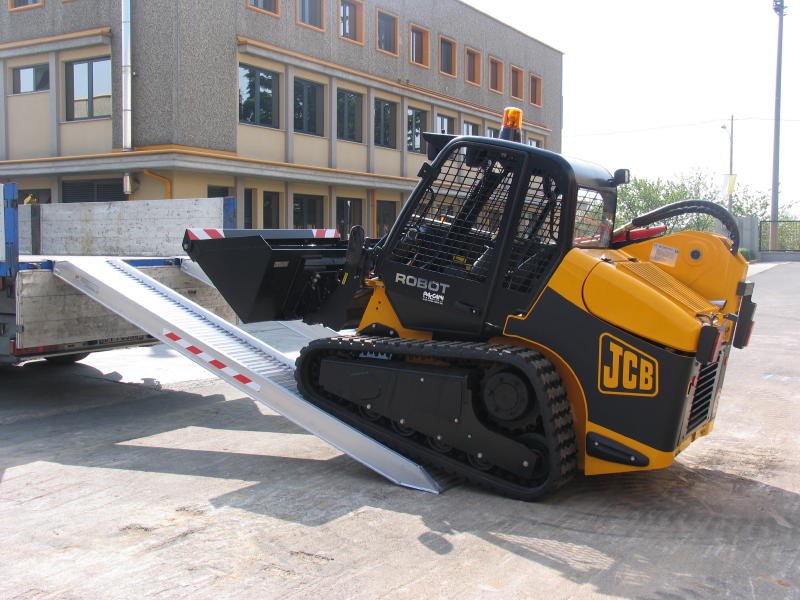

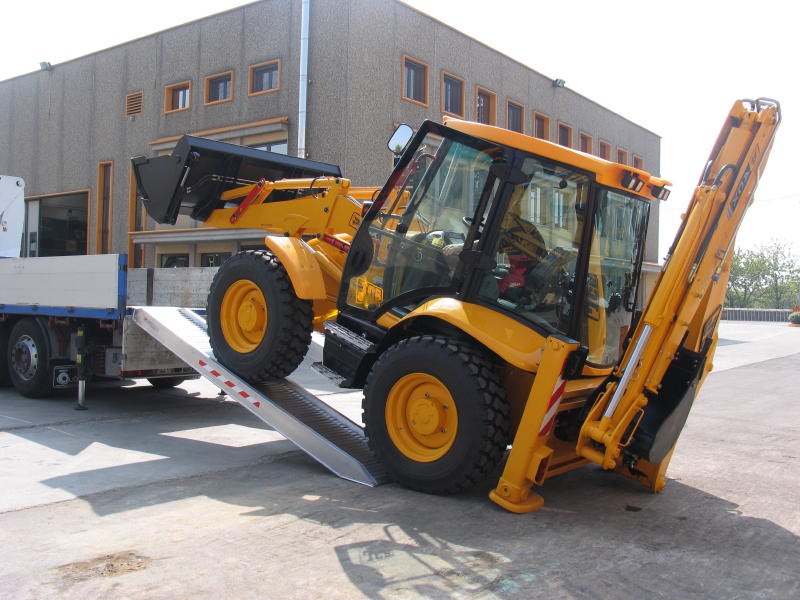

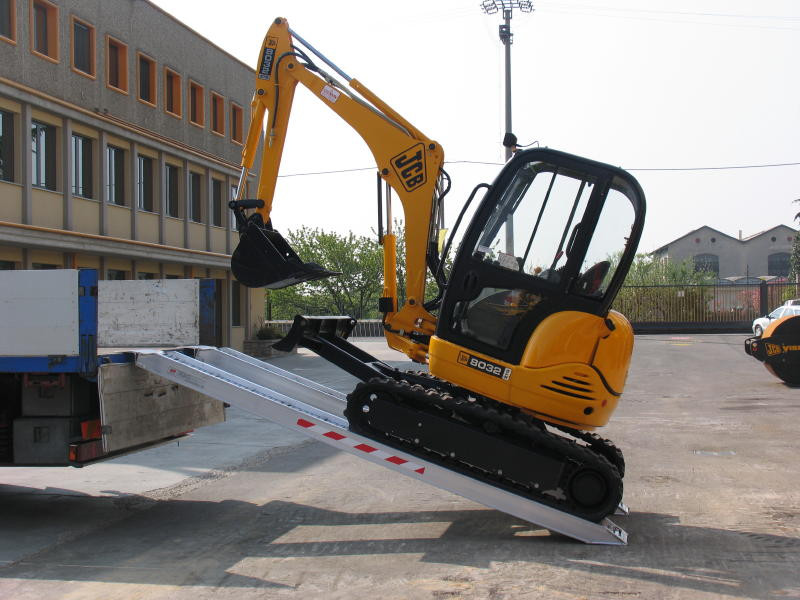

The TRP160 Series has a core profile thickness of 160mm and a width of 510mm. They feature a capacity of up to 9000kg and are ideally suited for use with rubber tracked excavators, as plant ramps, digger ramps and for tele-handlers.
On the TRP160 series the minimum width of tracks/wheels is 200mm. The maximum width of the tracks/wheels is 430mm.
- These ramps are available both with and without edges. You can also have one raised edge. The default is however without edges
- Four different connection options available, however the default connection is the rest on connection
- Custom load heights available
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
- Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
- Quotes for bespoke ramps can be supplied on request
- Please note, the stated maximum weight capacities are only valid for vehicles where the weight is equally distributed – for vehicles where this is not the case, please contact us directly for assistance.
- Fully TÜV certified
Usage guidelines and safety information for our full vehicle ramp range can be found here.
| SKU | TRP160/40L |
|---|---|
| Default Connection | Rest On Connection |
| Capacity (kg) | 6320 |
| Height of Ramps Profile (mm) | 160 |
| Length (mm) | 4000 |
| Max Load Height (mm) | 1200 |
| Min. Load Height (mm) | 1050 |
| Weight per Ramp (kg) | 56 |
| Weight Per Pair (kg) | 112 |
| Width (mm) | 510 |
| Minimum Track Width (mm) | 200 |
| Maximum Track Width (mm) | 430 |
| One Year Warranty | Yes |
| Connection Options Available | Yes |
| Customisable | Yes |
| Easy to Fit | Yes |
| European Made | Yes |
| Not Solid Wheels | Yes |
| Capacity Wheelbase 1000mm (kg) | 4210 |
| Capacity Wheelbase 1500mm (kg) | 5060 |
| Capacity Wheelbase 2000mm (kg) | 6320 |
Ramp Length & Load Height
This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.
Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.
Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).
For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load height x 3.3, gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.
For loading vehicles with Low ground clearance and Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle)
Capacity & Wheelbase Info
What is the wheelbase? - Wheelbase is the distance between the front and the back wheels.
Our loading ramps are usually safety tested and certified for three different length wheelbases. This is because the length of the wheelbase effects the spread of the weight applied to the ramps. The smaller the wheel base the more focused the load & therefore the less capacity the ramps can take.
The same applies with the width of the tyre or track which is why we list a ‘minimum track width’ within each product specification. We recommend reading the safety information supplied with the ramps before use to be sure the set supplied are suitable for your application.
Usage Guidelines and Safety Information for these ramps can be found here.
Ramp Capacity, Length & Load Height
This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.
Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.
Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).
For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load height x 3.3, gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.
Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase.
For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.
For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.
