Professional Loading Ramps (4000mm)

SKU
TRP60/40
£1,074.00 £895.00
Built to Order

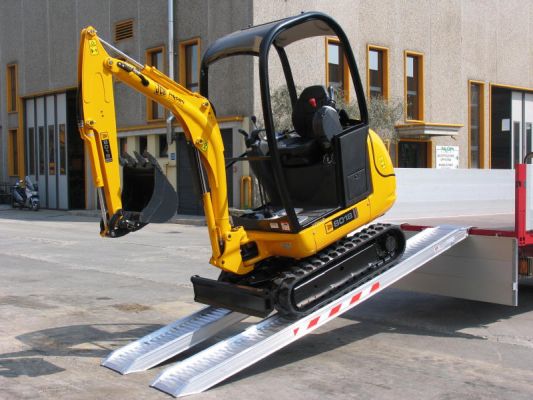

The Ramp factory's loading ramps are ideal for small plant machinery. If you require a shorter length, The Ramp Factory offer 1500mm, 2000mm, 2500mm, 3000mm and 3500mm.

Grip surface provides incredible traction - please ensure your tyres have sufficient tread to avoid damage.

Length (mm) 4000
Width (mm) 315
Max. Load Height (mm) 1200
Min. Load Height (mm) 1050
Weight Per Ramp (kg) 27
Profile Height (mm) 70
Capacity (kg) 1200

Aluminium Ramps for Plant & Machinery FAQs

Description

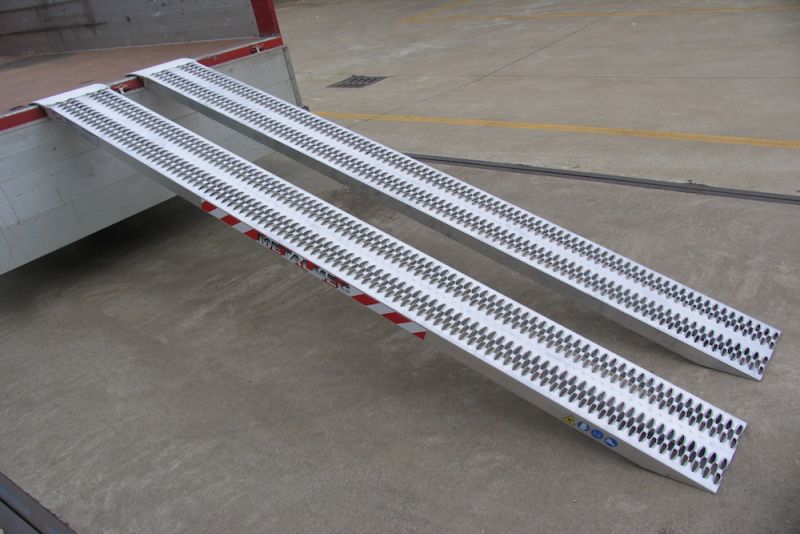

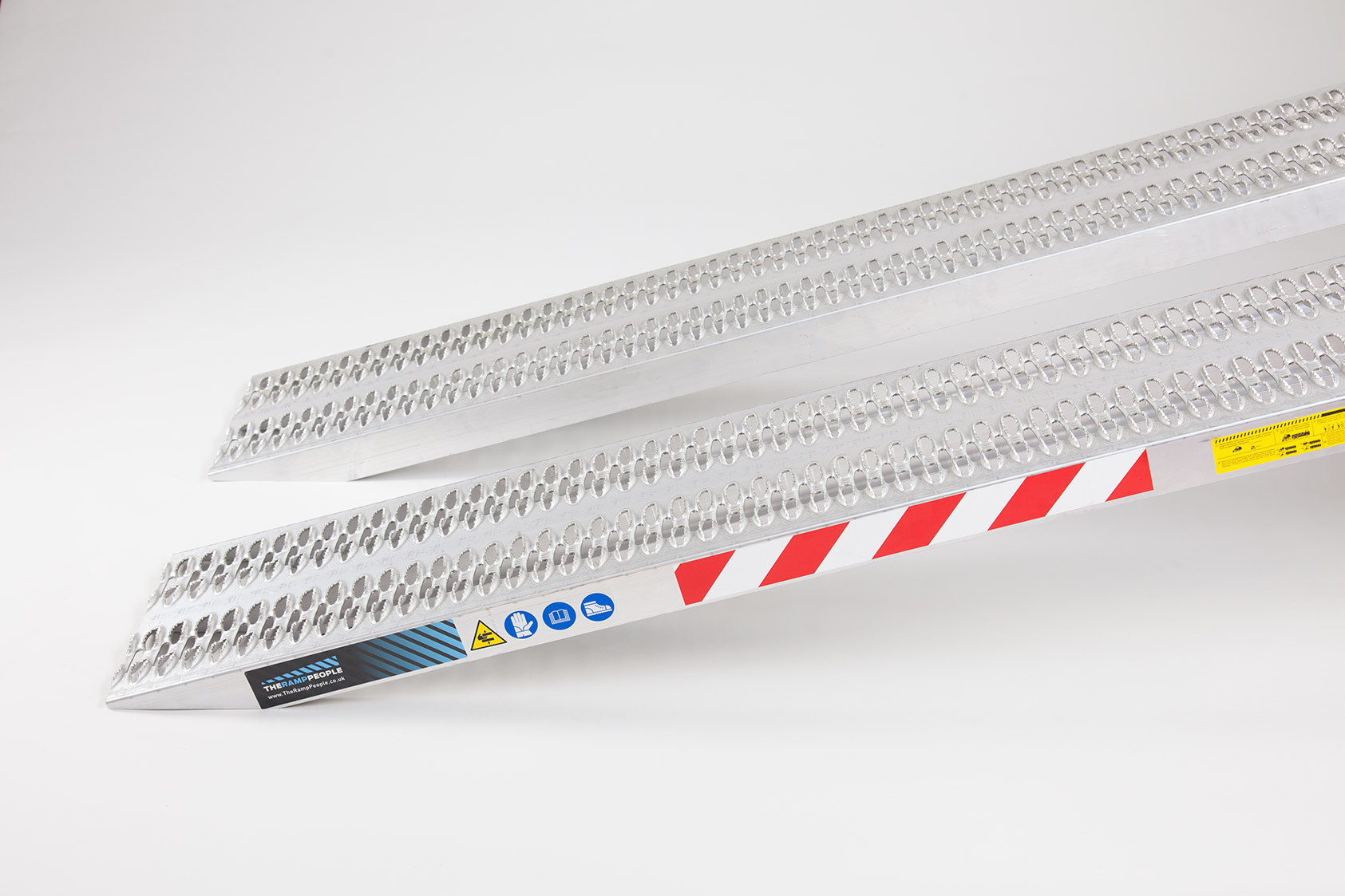

Sabretooth Non Folding Ramps

Professional Non-Folding Loading Ramps feature:

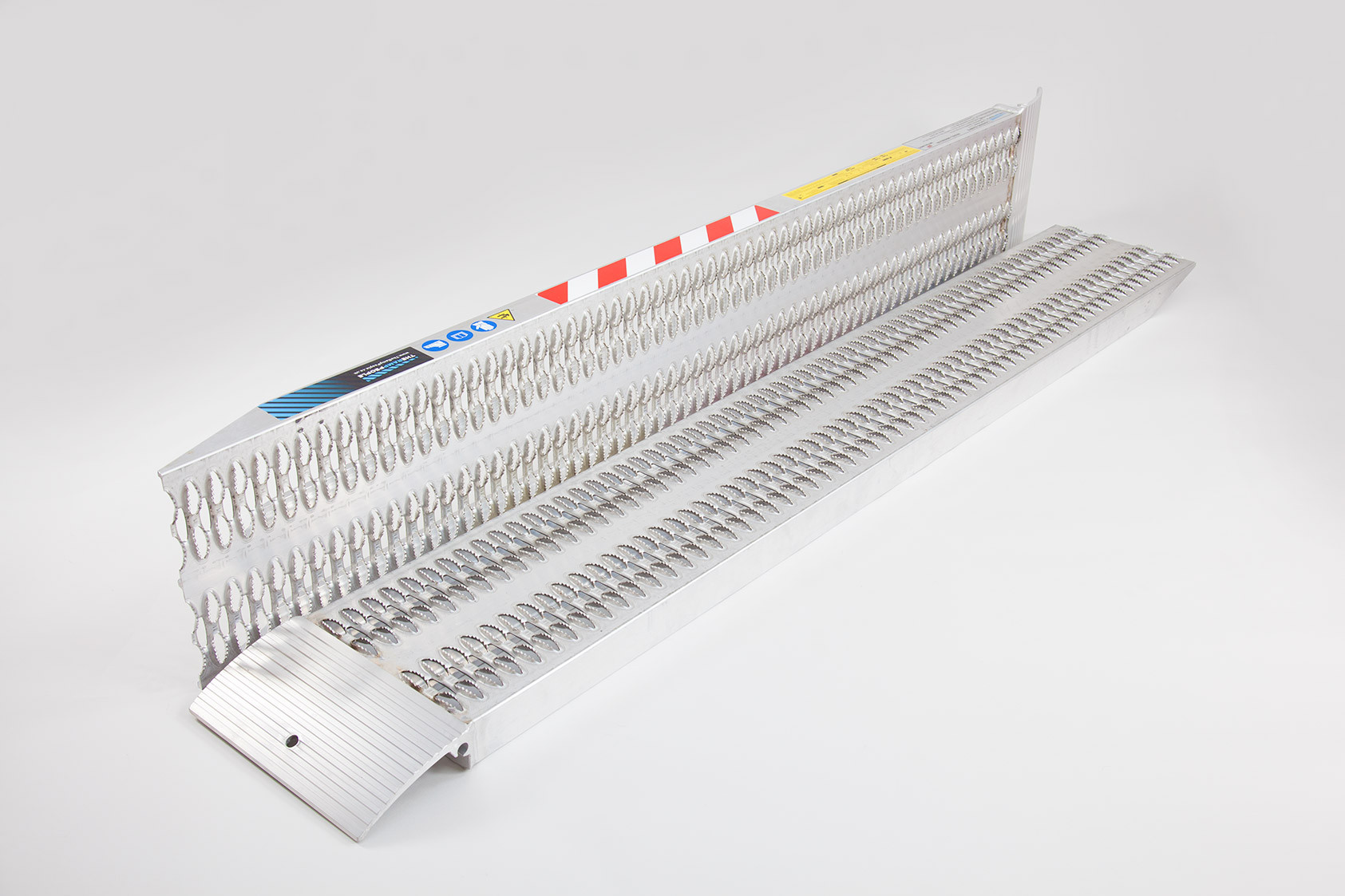

  • Single piece ramp design, featuring zero welding

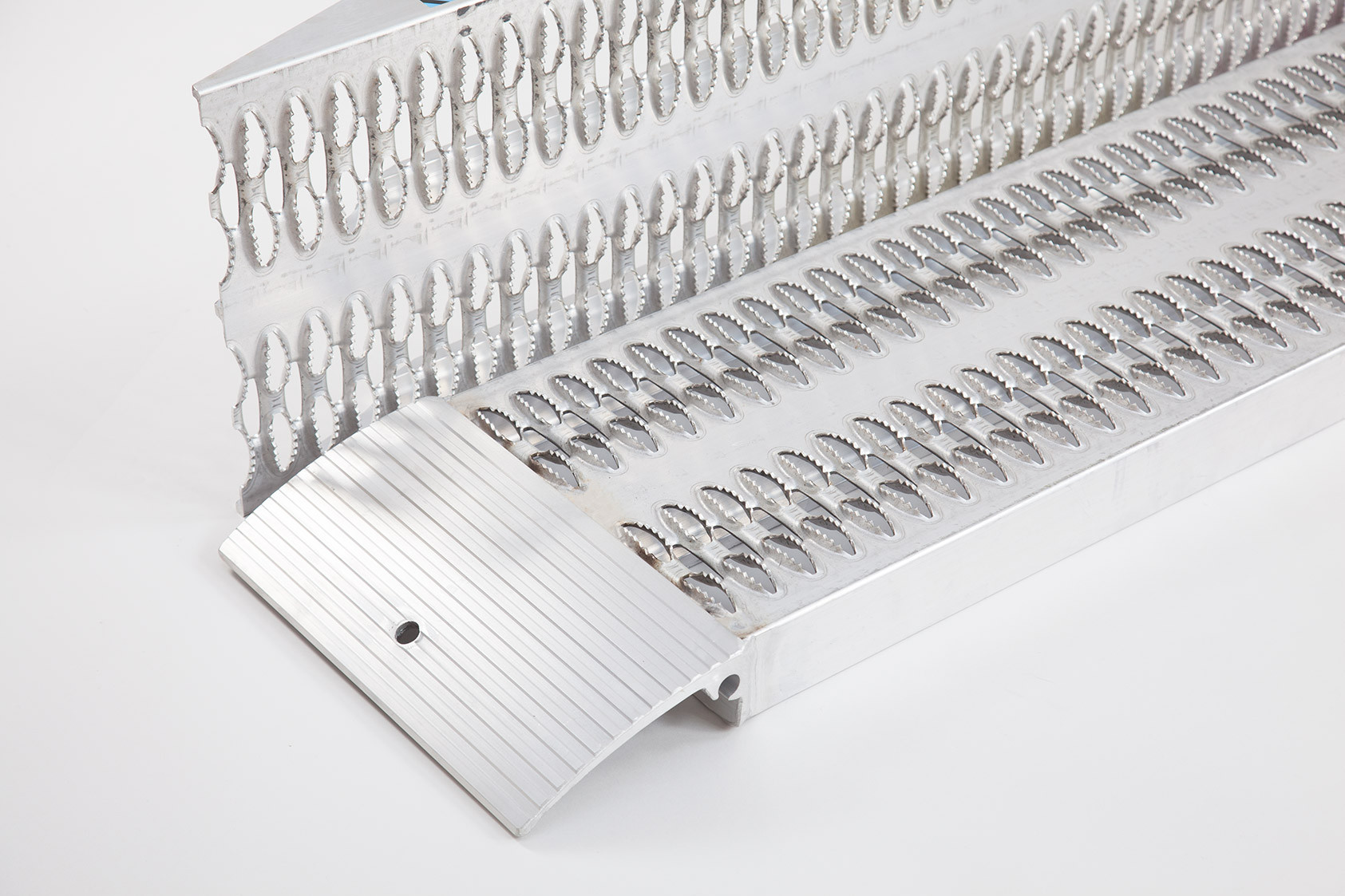

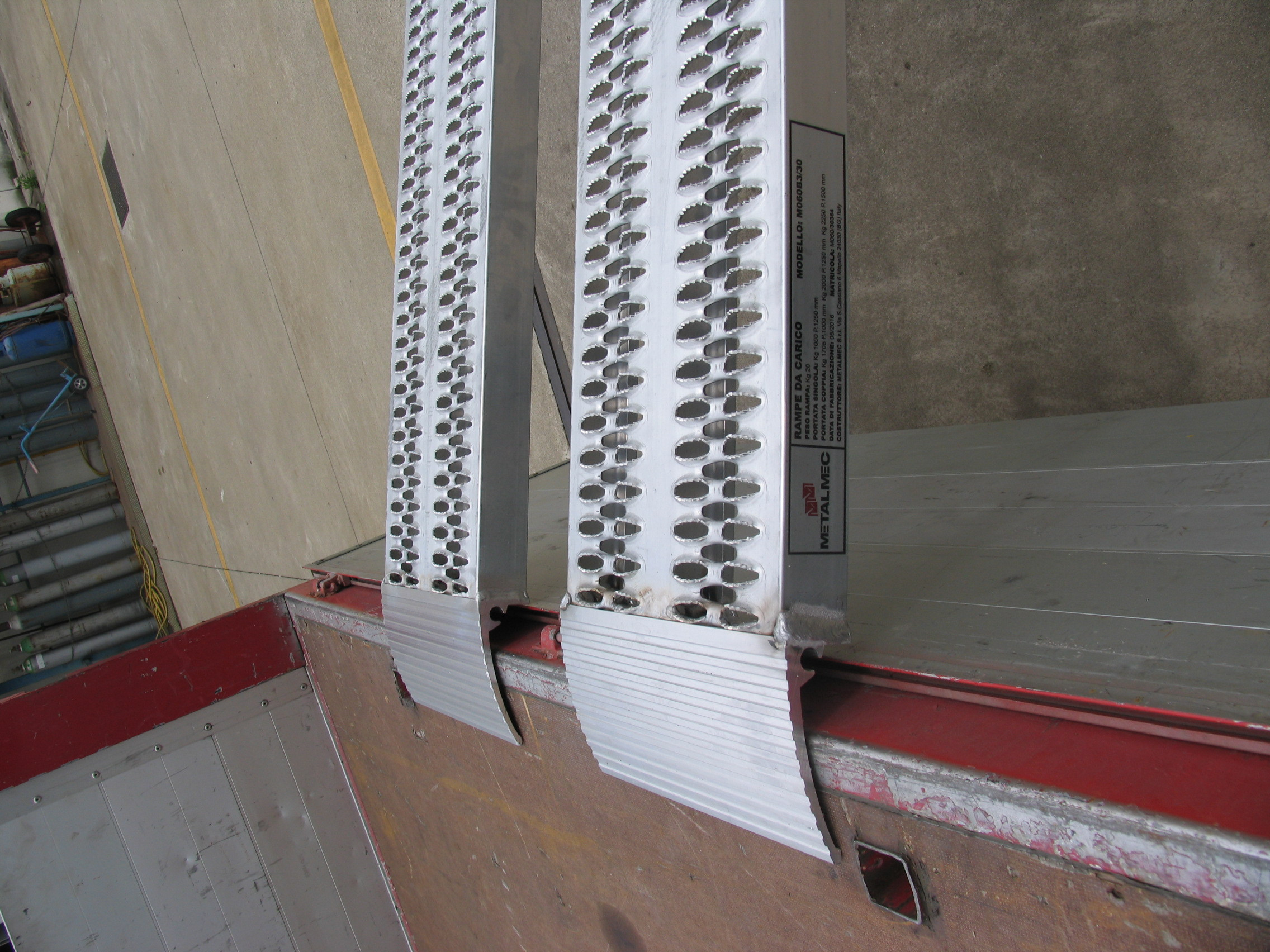

  • Four different connection options available, however the default connection is the rest on connection

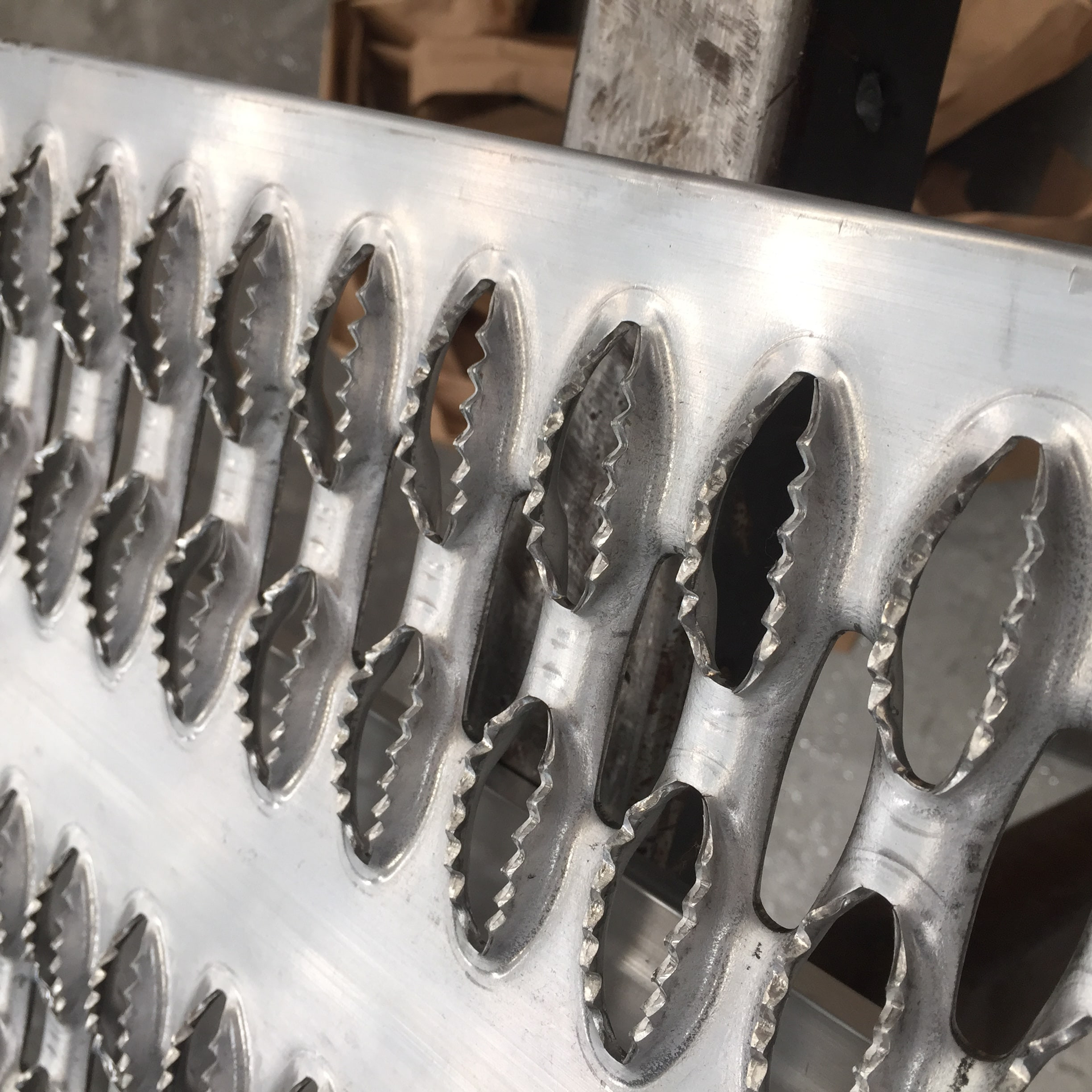

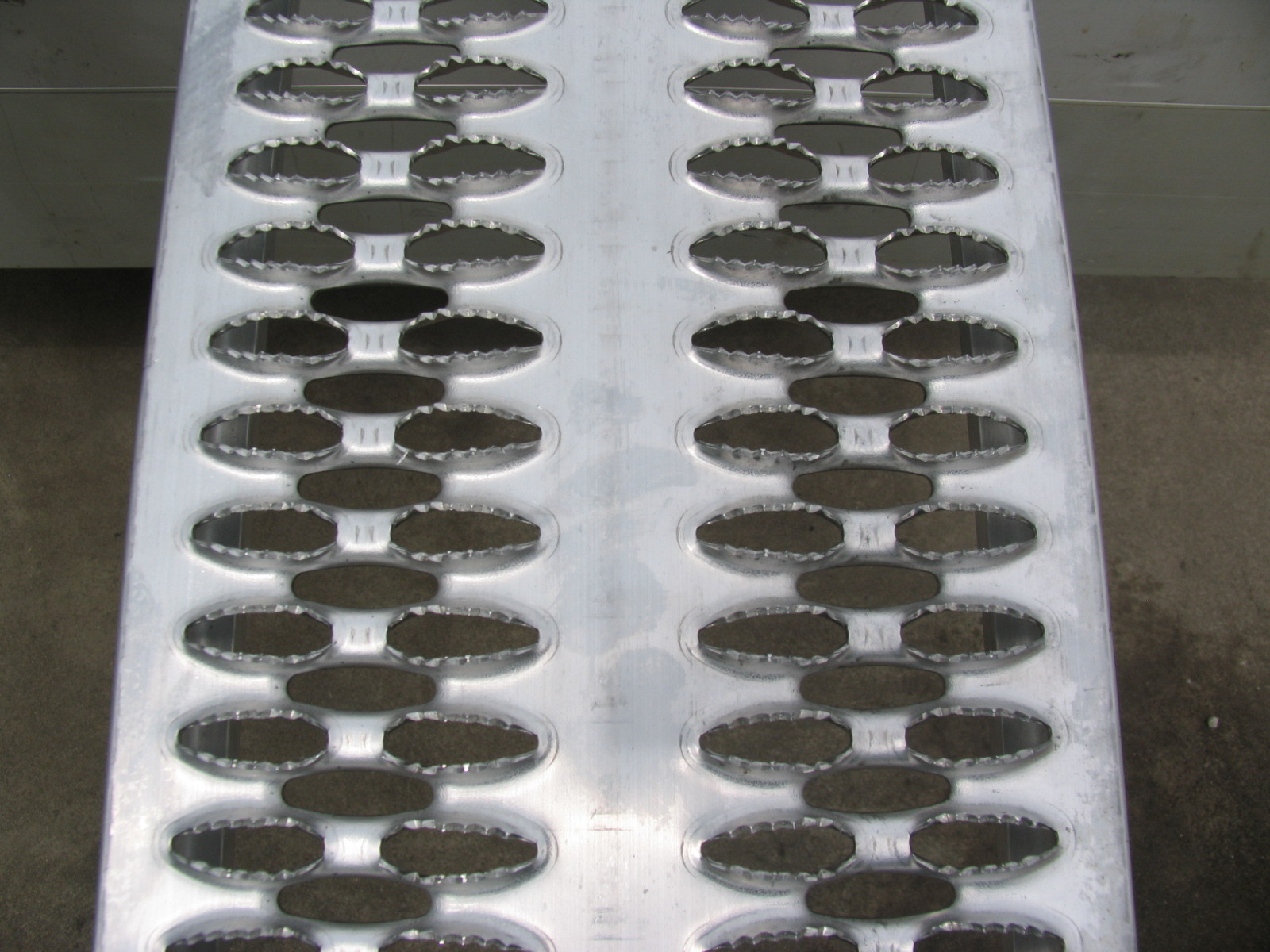

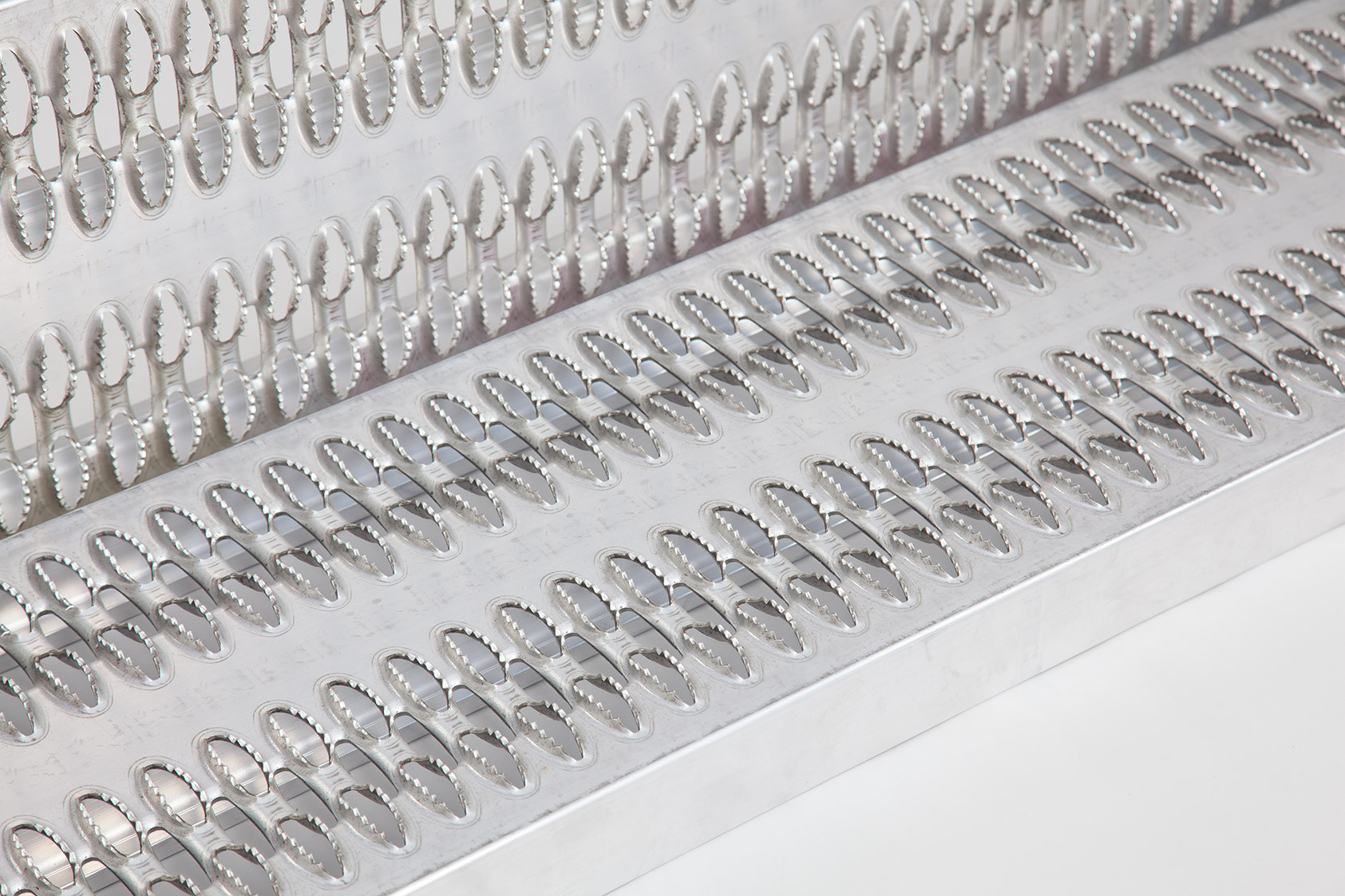

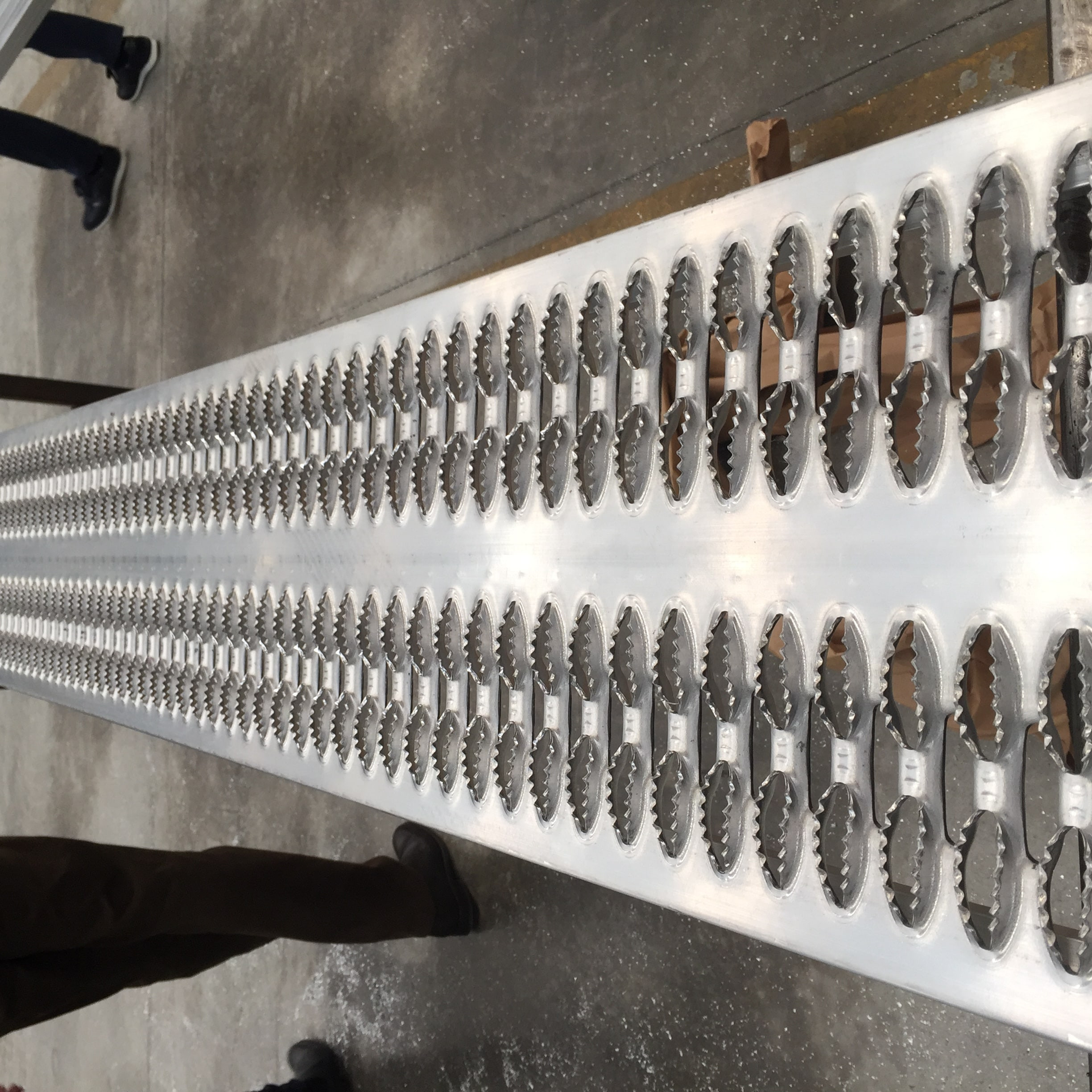

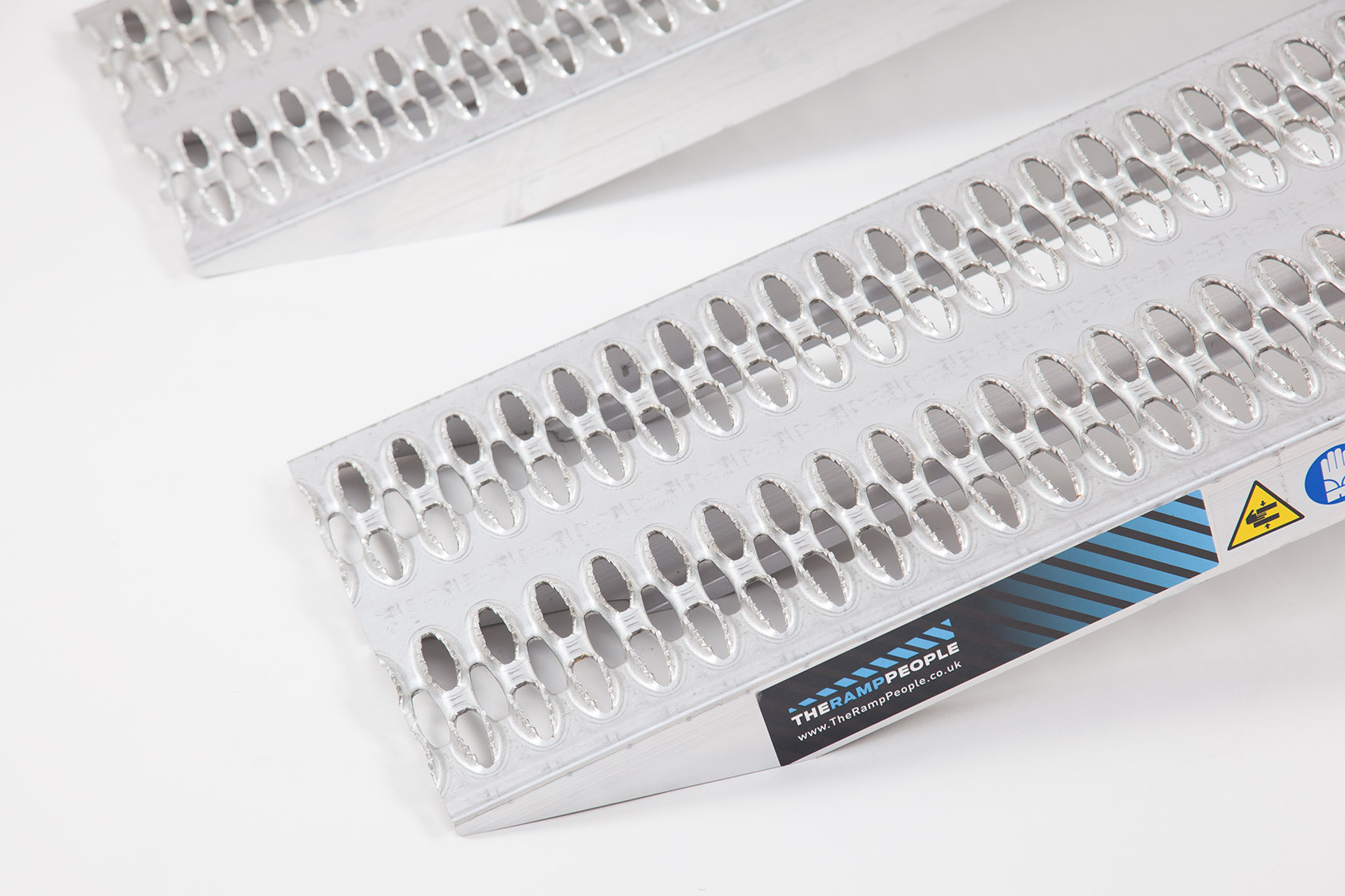

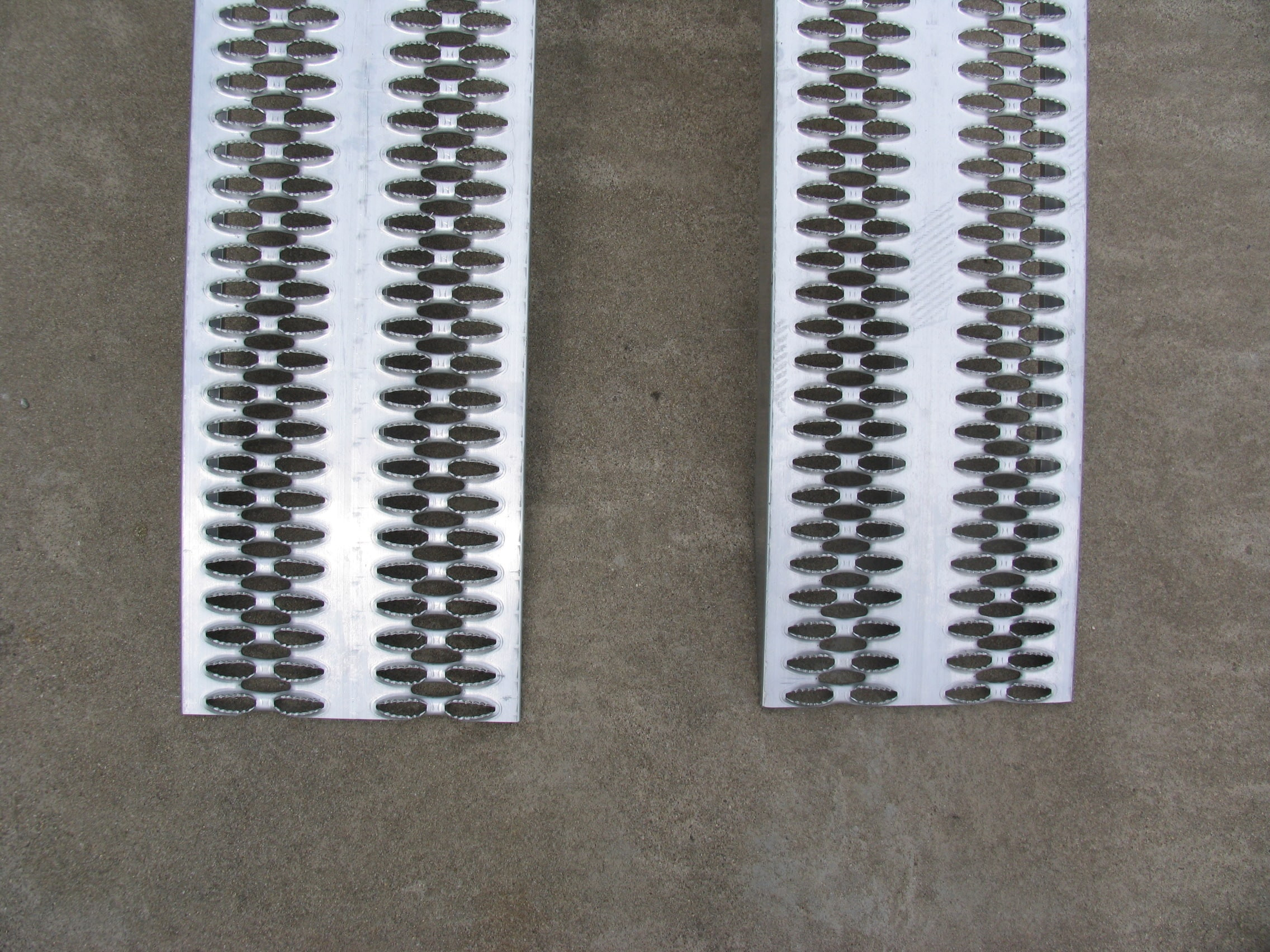

  • The large holes allow dirt to drop, ensuring optimal grip
  • Height of the ramp Profile: 70mm
  • Strong whilst remaining relatively small

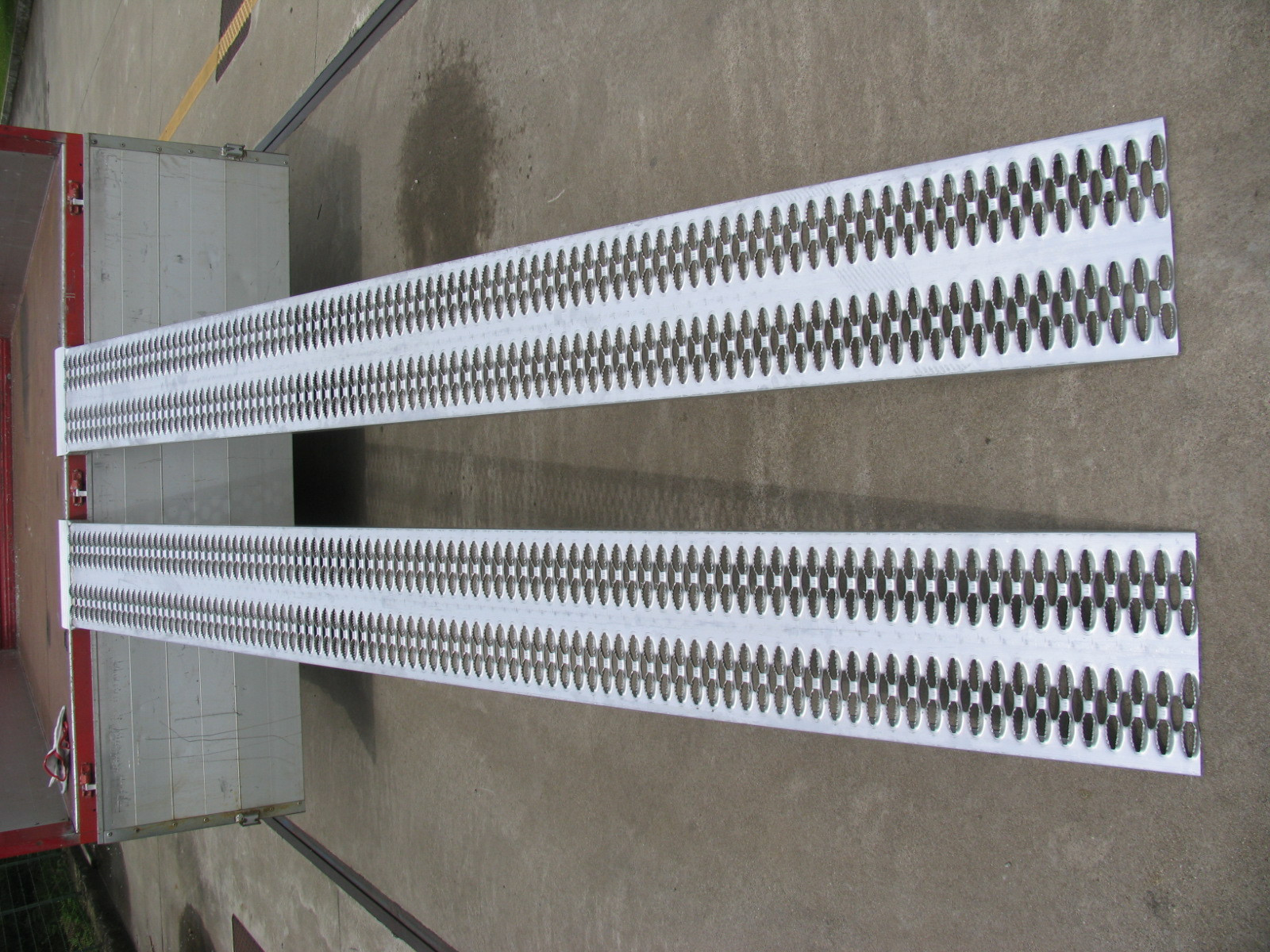

  • Ramps lie flat for easy storage when not being used
  • Capacity up to 1,200kg with a wheelbase of 1500mm
  • Width available: 315mm
  • Manufactured from lightweight aircraft grade aluminium (type 6005A)
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Lightweight for easy handling
  • R13 slip resistance, DGUV 108-003
  • Tested to 200% loading capacity
  • European manufactured

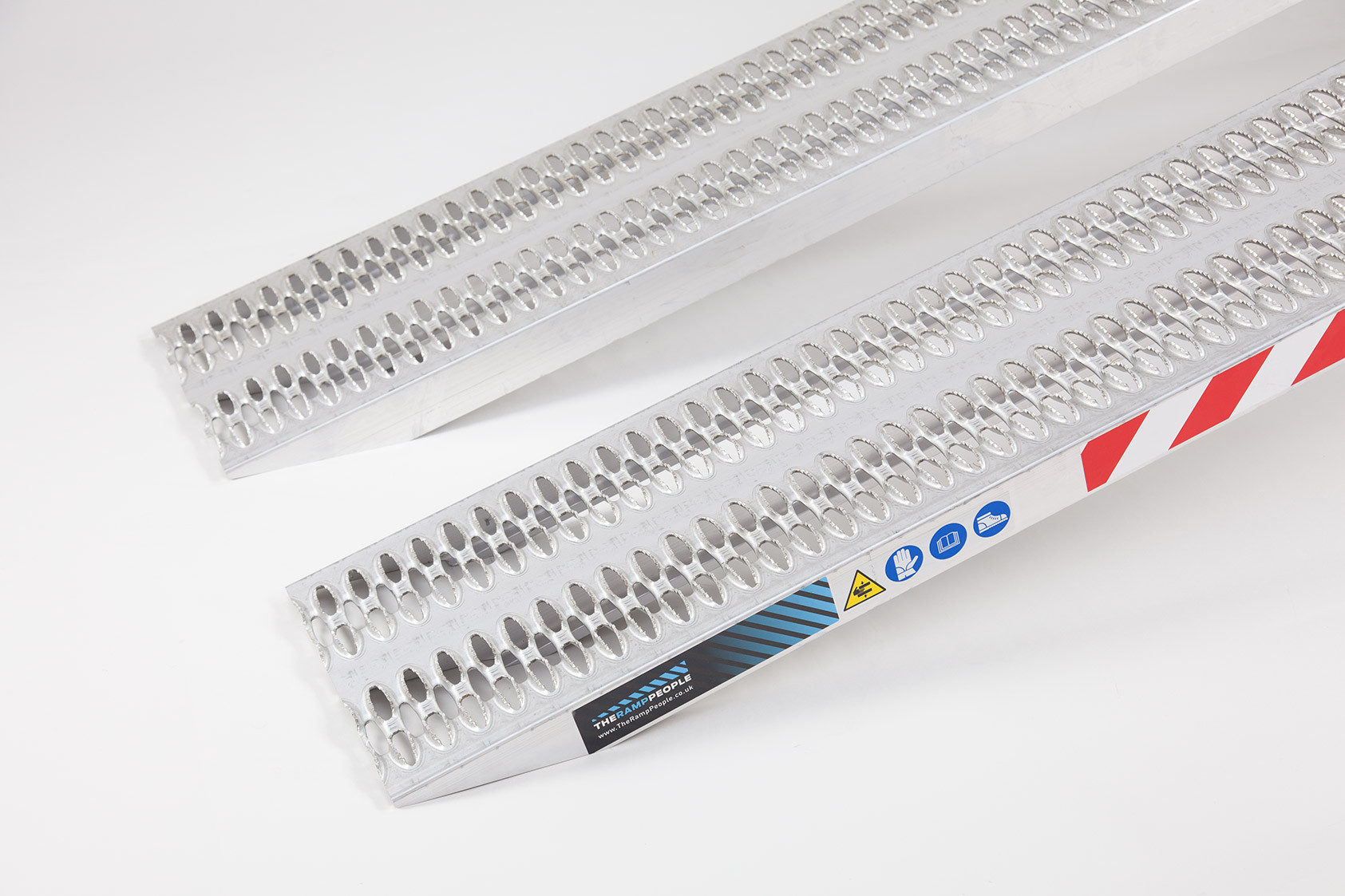

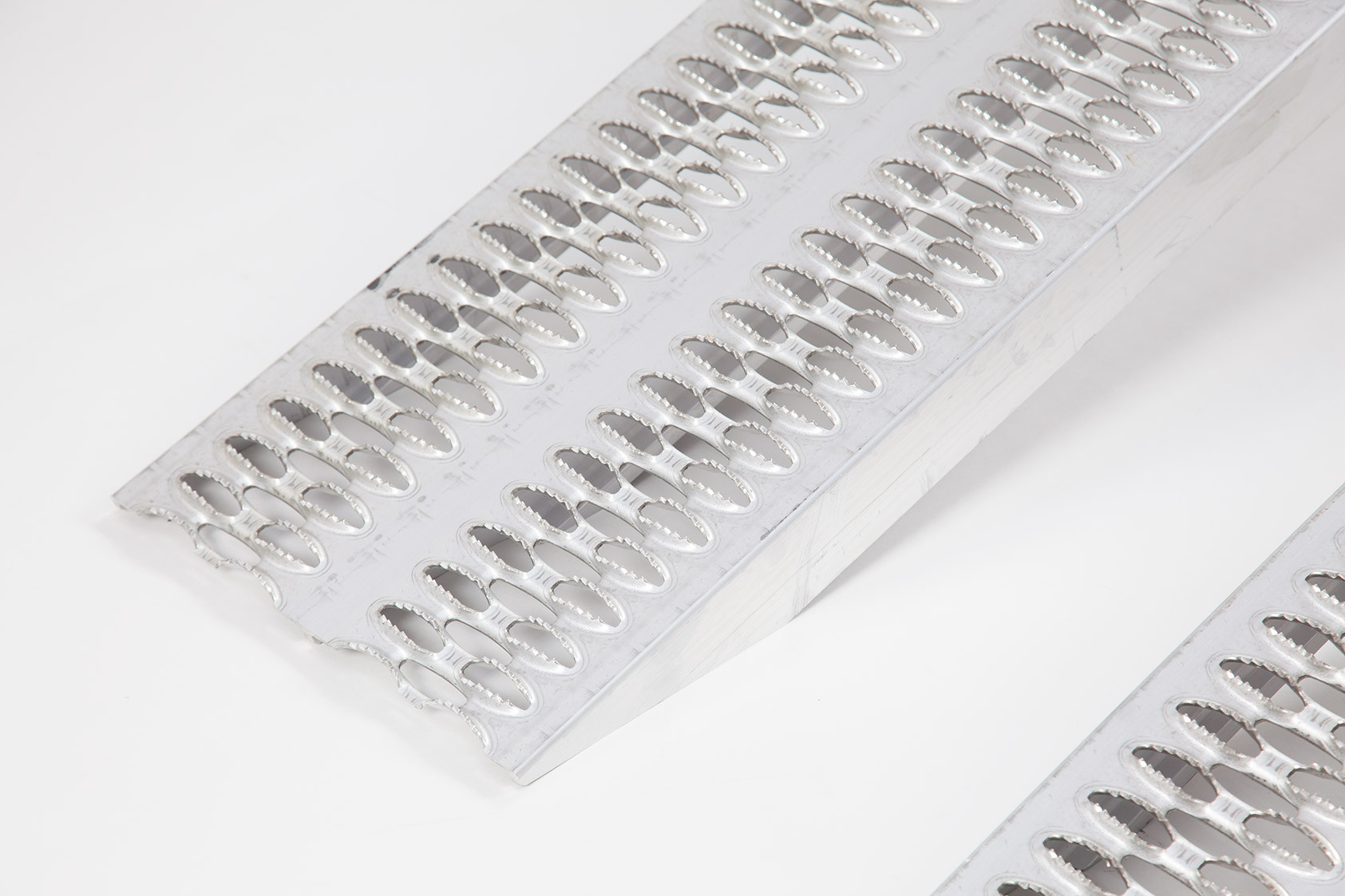

  • Angled foot, this allows for smooth access onto the ramp when using wheeled vehicles
  • Flat-top/no edge design gives greater flexibility of use
  • Quotes for customised ramps are available
  • TUV Certified
  • Use gloves and take extra care when handling these ramps due to the ramp surface
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

Price and capacity stated is for the PAIR.

TUV Certification Image



Usage guidelines and safety information for our full vehicle ramp range can be found here.


Video

Details
SKU TRP60/40
Capacity (kg) 1200
Height of Ramps Profile (mm) 70
Length (mm) 4000
Max Load Height (mm) 1200
Min. Load Height (mm) 1050
Weight per Ramp (kg) 27
Weight Per Pair (kg) 54
Width (mm) 315
Minimum Track Width (mm) 150
Maximum Track Width (mm) 295
One Year Warranty Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Capacity Wheelbase 1000mm (kg) 1000
Capacity Wheelbase 1250mm (kg) 1100
Capacity Wheelbase 1500mm (kg) 1200
