Aluminium Loading Ramps (4000x300)

SKU
TRP65/40
£978.00 £815.00
Built to Order

Aluminium loading ramps from The Ramp Factory are ideal for loading plant machinery, vehicles and professional loads.

Length (mm) 4000
Width (mm) 300
Max. Load Height (mm) 1200
Min. Load Height (mm) 1050
Weight Per Ramp (kg) 20.5
Profile Height (mm) 65
Minimum Track Width (mm) 150
Maximum Track Width (mm) 220
Capacity (kg) 800

Capacity and price is for the PAIR.

Aluminium Ramps for Plant & Machinery FAQs

Description

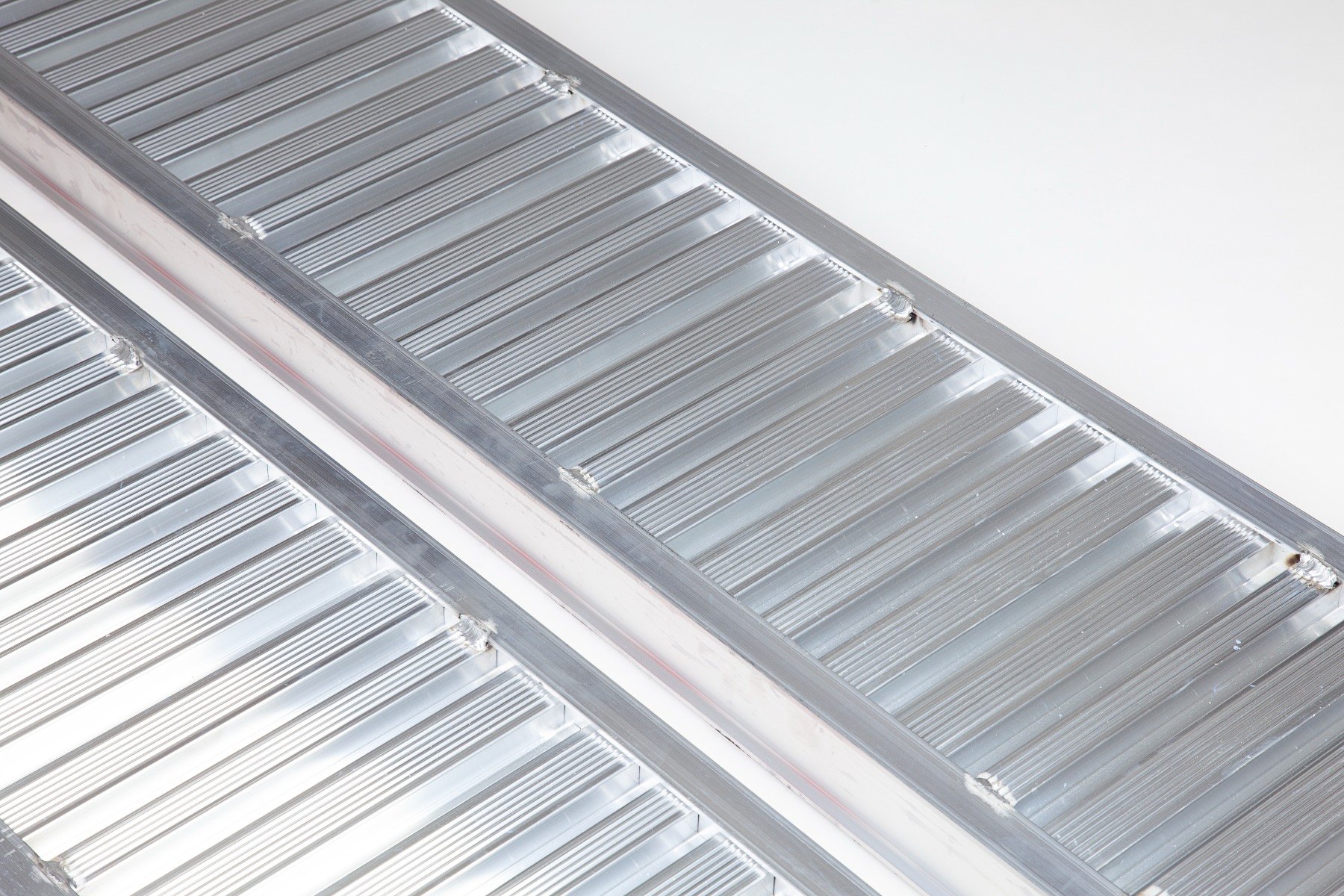

The TRP65 Series has a core profile thickness of 65mm and a width of 300mm. On the TRP65 Series the minimum width of tracks/wheels is 150mm.

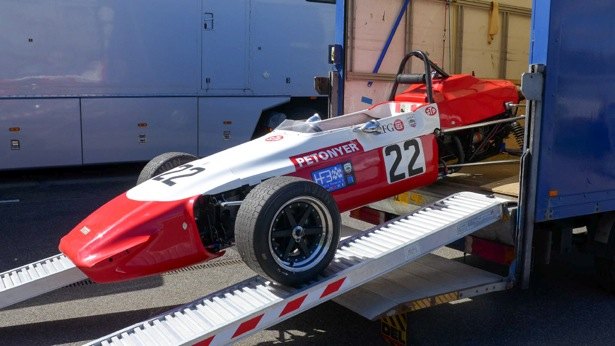

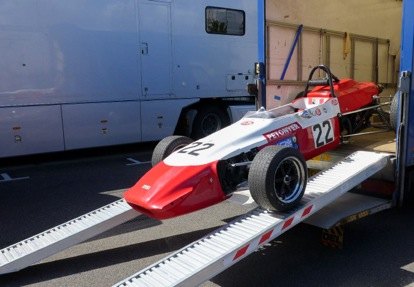

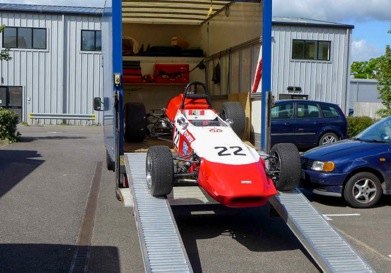

They feature a capacity of up to 800kg and are ideal for use as car ramps or lightweight plant ramps.

Designed for a maximum gradient of 30%

  • These ramps are available both with and without edges, the default is however without edges
  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Quotes for bespoke ramps can be supplied on request
  • Please note, the stated maximum weight capacities are only valid for vehicles where the weight is equally distributed – for vehicles where this is not the case, please contact us directly for assistance.
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Fully TÜV certified

TUV Certification Image



Usage guidelines and safety information for our full vehicle ramp range can be found here.


Details
SKUTRP65/40
Product Safety GPSRpopup_gpsr_importer
Default ConnectionRest On Connection
Capacity (kg)800
Height of Ramps Profile (mm)65
Length (mm)4000
Max Load Height (mm)1200
Min. Load Height (mm)1050
Weight per Ramp (kg)20,5
Weight Per Pair (kg) 41
Width (mm)300
Minimum Track Width (mm)150
Maximum Track Width (mm)220
One Year WarrantyYes
Connection Options AvailableYes
CustomisableYes
Easy to FitYes
European MadeYes
Not Solid WheelsYes
Capacity Wheelbase 1000mm (kg)660
Capacity Wheelbase 1250mm (kg)720
Capacity Wheelbase 1500mm (kg)800
