Aluminium Loading Ramps (4000x500)

SKU
TRP65/40L
£1,194.00 £995.00
Built to order / 4-6 weeks

Buy Now, Pay Later for business with... Mondu

T&Cs apply. Learn more

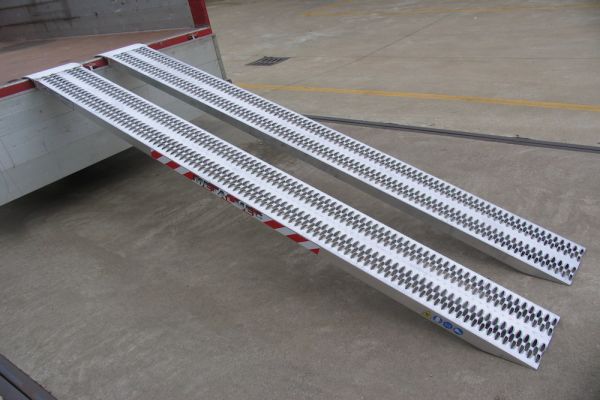

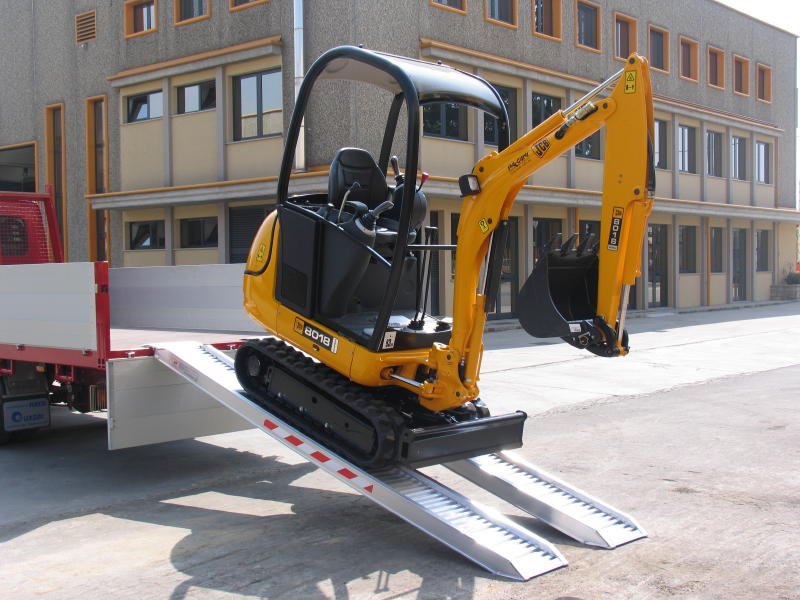

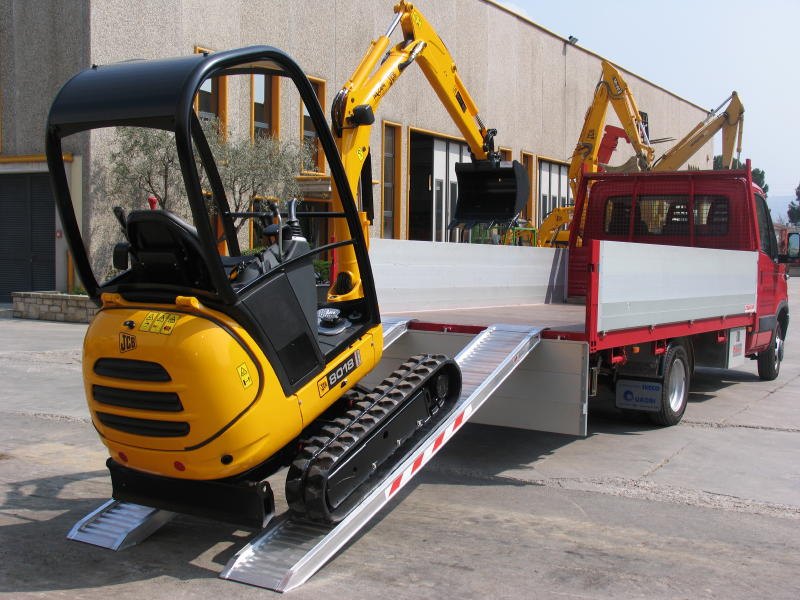

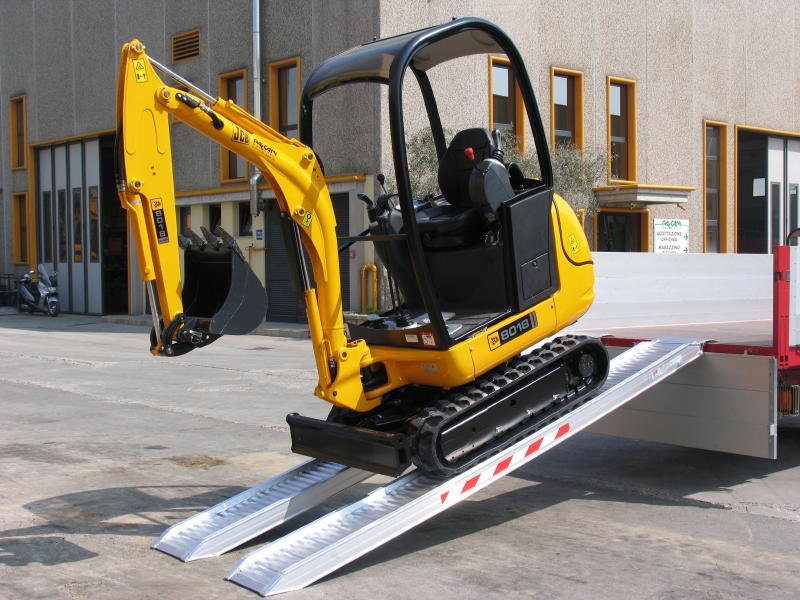

Aluminium loading ramps from The Ramp Factory are ideal for loading plant machinery, vehicles and professional loads.

Length (mm) 4000
Width (mm) 500
Max. Load Height (mm) 1200
Min. Load Height (mm) 1050
Weight Per Ramp (kg) 28
Profile Height (mm) 70
Minimum Track Width (mm) 300
Maximum Track Width (mm) 420
Capacity (kg) 800

Capacity and price is for the PAIR.

Aluminium Ramps for Plant & Machinery FAQs

Description

The TRP65L Series has a core profile thickness of 65mm and a width of 500mm. On the TRP65L Series the minimum width of tracks/wheels is 300mm.

They feature a capacity of up to 800kg and are ideal for use as car ramps or lightweight plant ramps.

Designed for a maximum gradient of 30%

  • These ramps are available both with and without edges, the default is however without edges
  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Quotes for bespoke ramps can be supplied on request
  • Please note, the stated maximum weight capacities are only valid for vehicles where the weight is equally distributed – for vehicles where this is not the case, please contact us directly for assistance.
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Fully TÜV certified

TUV Certification Image



Usage guidelines and safety information for our full vehicle ramp range can be found here.

Product Questions
I wish to load machinery onto a vehicle, which length of Aluminium Loading Ramps should I purchase?
You will need to measure the vertical height from the ground to where the ramp will rest on your van or trailer, this is your 'load height'. All of our ramps state the minimum and maximum recommended load height. If you are loading vehicles with low ground clearance you may need a custom solution, please contact our team for advice.
I am interested in the Aluminium Loading Ramps. How do I request an alternative connection option?
As standard, our heavy duty loading ramps are provided with a rest on connection with a pre-drilled hole which are perfect for flat-bed vehicles and tipper trucks. If you require an alternative connection option, such as a hook connection, please contact our team following your purchase.
How do The Ramp Factory's Aluminium Loading Ramps stay in place during loading?
The loading ramps have a curved rest on connection with a pre-drilled hole to allow you to secure the ramps to your vehicle. The base of the ramps is cut at an angle based on the load height to ensure they remain securely on the ground during loading. The ramp angle and weight of the ramps also ensures that the ramps remain in place. Alternative connection options are available.
I require a pair of Aluminium Loading Ramps. Will the default rest on connection be suitable for my vehicle?
The rest on connection can be seen in the product images. This connection is normally recommended for flat-bed vehicles or tipper trucks. For beaver tail vehicles a hook connection is recommended. Please view the link to our connection options for more details or contact our team for advice.
Can The Ramp Factory's Aluminium Loading Ramps be customised?
Yes the ramps can be customised to your requirements. Customisations include alternative ramp lengths and widths or cutting the ramp for a lower load height to provide a smooth gradient. We can also provide edges on the ramps and carry handles. The lead time on custom solutions is generally 4-6 weeks.
Details
SKUTRP65/40L
Default ConnectionRest On Connection
Capacity (kg)800
Height of Ramps Profile (mm)65
Length (mm)4000
Max Load Height (mm)1200
Min. Load Height (mm)1050
Weight per Ramp (kg)28
Weight Per Pair (kg) 56
Width (mm)500
Minimum Track Width (mm)300
Maximum Track Width (mm)420
One Year WarrantyYes
Connection Options AvailableYes
CustomisableYes
Easy to FitYes
European MadeYes
Not Solid WheelsYes
Capacity Wheelbase 1000mm (kg)660
Capacity Wheelbase 1250mm (kg)720
Capacity Wheelbase 1500mm (kg)800
