Aluminium Channel Ramps

SKU
TRP50/Channel

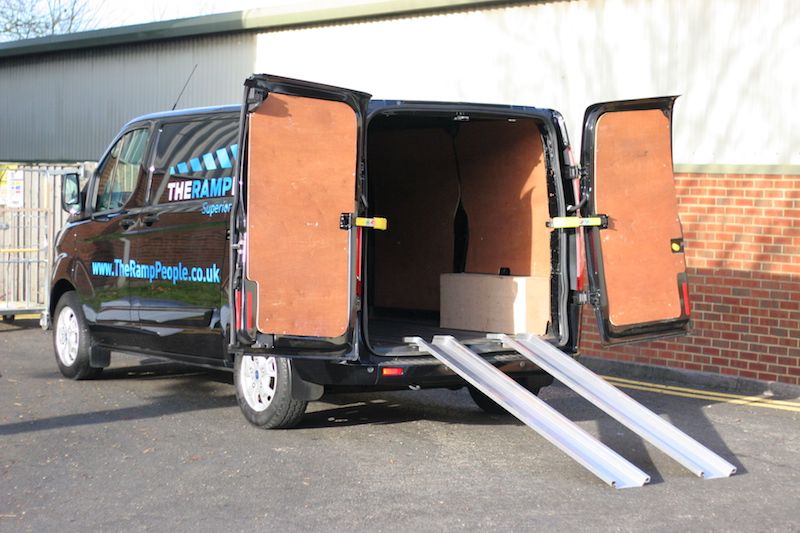

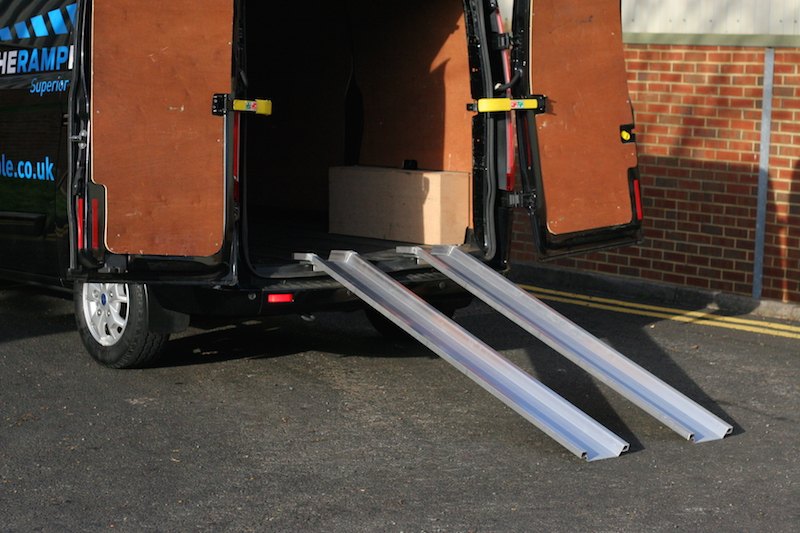

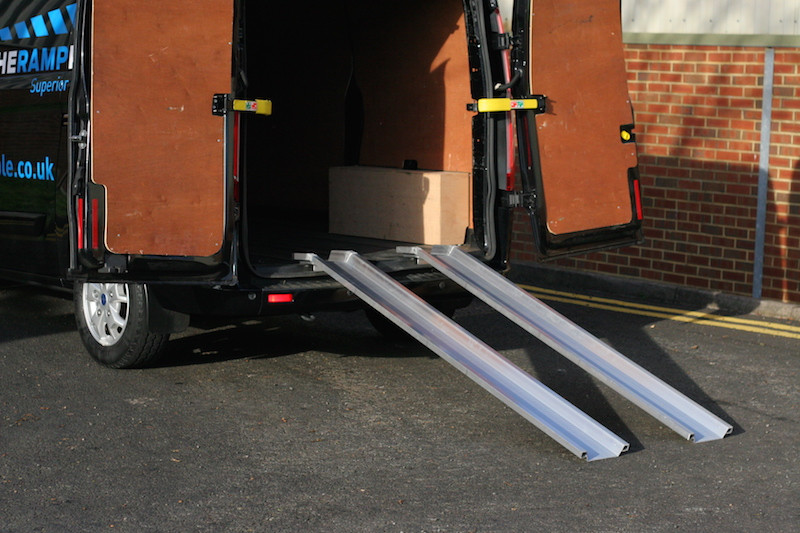

The Ramp Factory's aluminium Channel Ramp are available in lengths ranging from 1000mm to 3500mm. The ramps can be used in a variety of industrial settings as well as for personal use with a maximum weight capacity of 485 pounds. The ramps are designed with safety in mind, with an anti-slip surface for added grip, and are scratch and corrosion resistant. With a simple hook on rest on connection, installation is quick and easy.

Price is per PAIR.

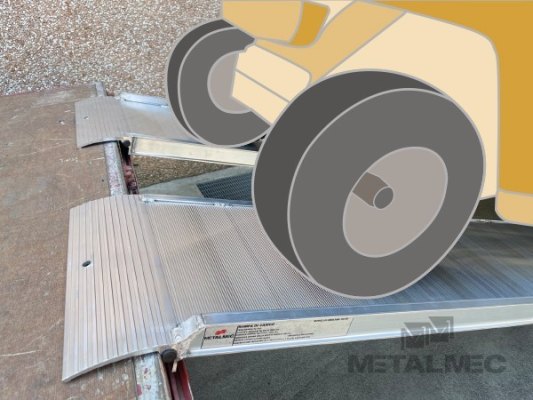

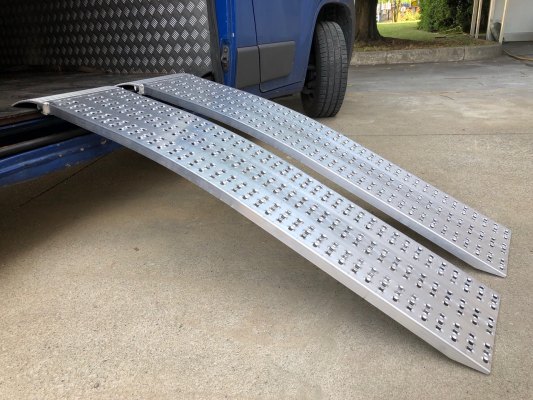

The Ramp Factory have the answer to all your loading needs. Look no further than the heavy duty ramps, in widths of 750mm or 975mm. Alternatively, The Ramp Factory offer foldable van ramps with a capacity of up to 1000kg.

From £324.00 £270.00
In Stock
Only %1 left

Aluminium Ramps for Plant & Machinery FAQs

Description

Aluminium Channel Ramps from 1000 mm to 3500mm Long

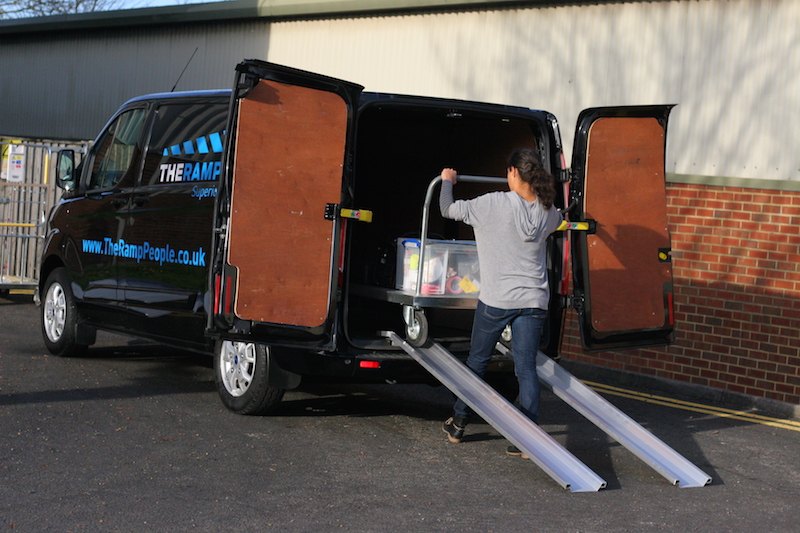

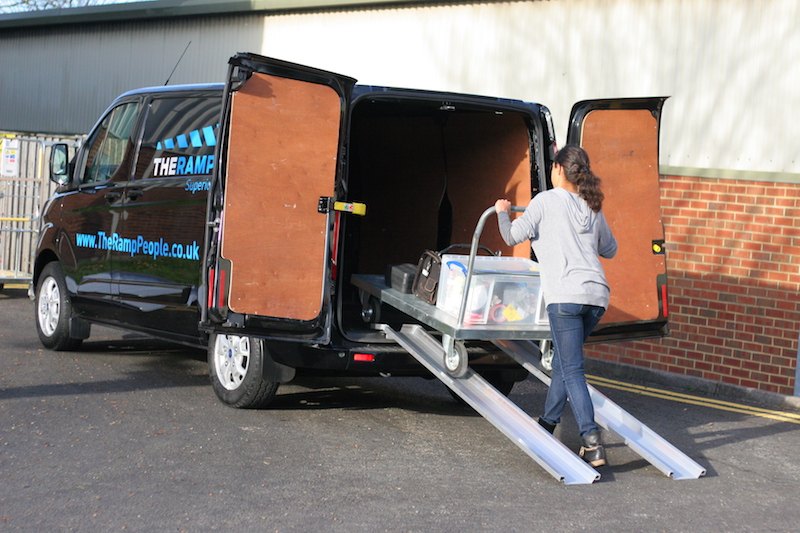

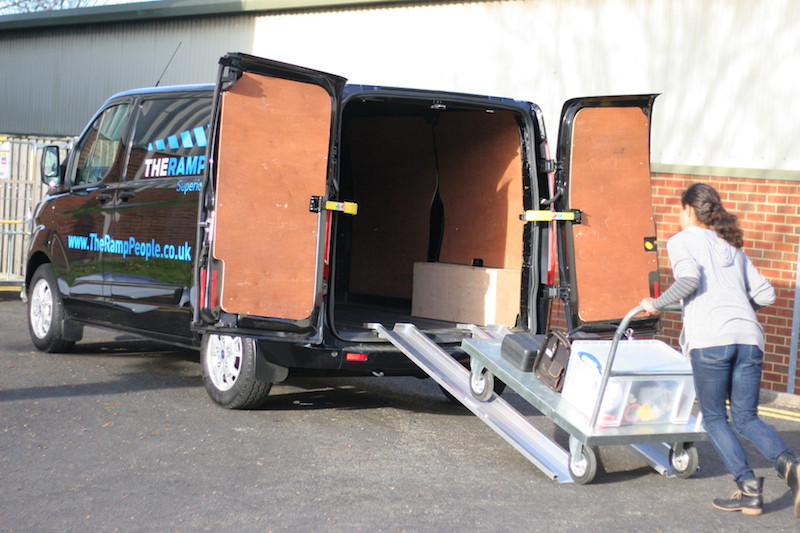

The TRP50 core profile thickness is 50mm and feature a capacity of up to 1500kg. These channel ramps or cable ramps are ideally suited for safely loading and unloading large spools of electrical wire or plastic piping or even when using sack barrows.

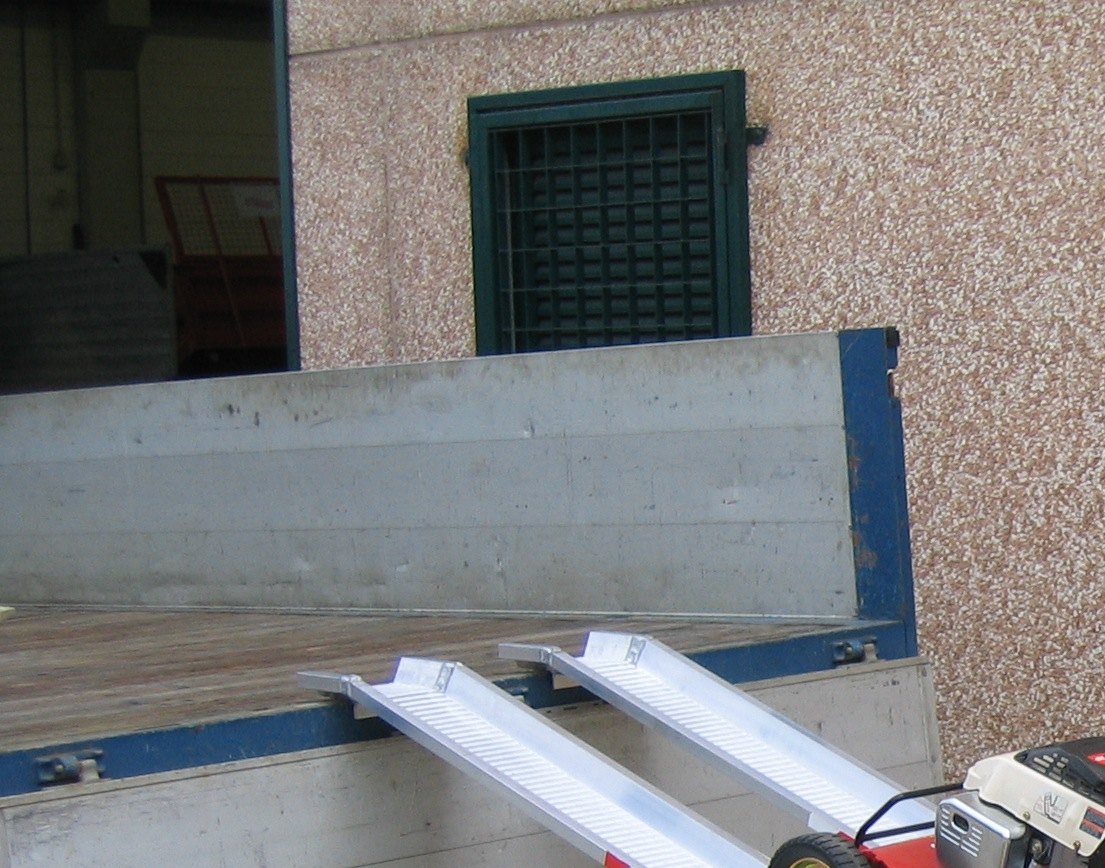

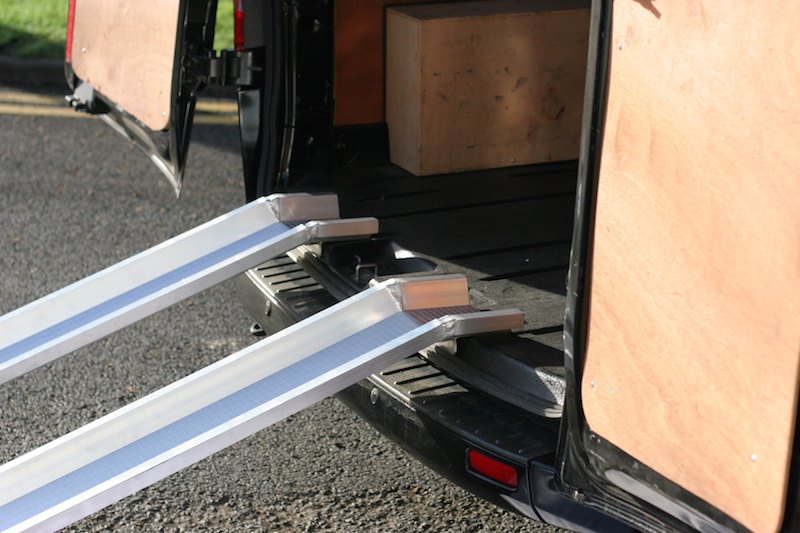

    • Rest on connection: to fit just rest on and start loading
    • Extended connection terminal bridges most bumpers, crash bars and tow bars
    • No vehicle modification required
    • Manufactured from lightweight aluminium (type 6005A)
    • Lightweight for easy handling
    • Up to 1500kg fully TUV certified loading capacity
    • Virtually zero flex on heavy loads prevents vehicle damage
    • Edges on each side of the ramp to prevent accidentally wheeling off
    • Bespoke ramps built to any length

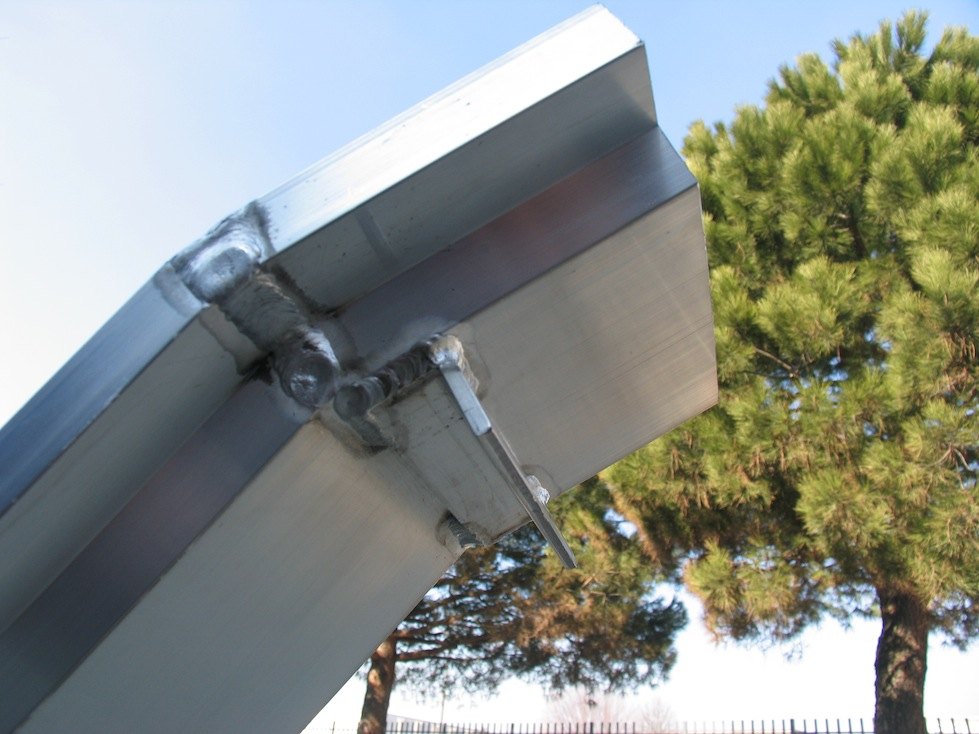

    • Folding versions available on request
    • Multi-section channel ramps with bayonet fitting available on request
    • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

Aluminium Channel Ramps Range

1000mm TRP50/10

  • Length (mm): 1000
  • Height of Raised Edges (mm): 45
  • Max Load Height (mm): 300
  • Min Load Height (mm): 150
  • External Width (mm): 246
  • Internal Width (mm): 155
  • Weight per pair (kg): 9
  • Weight per ramp (kg): 4.5
  • Capacity (kg): 1500

1500mm TRP50/15

  • Length (mm): 1500
  • Height of Raised Edges (mm): 45
  • Max Load Height (mm): 450
  • Min Load Height (mm): 300
  • External Width (mm): 246
  • Internal Width (mm): 155
  • Weight per pair (kg): 13
  • Weight per ramp (kg): 6.5
  • Capacity (kg): 1500

2000mm TRP50/20

  • Length (mm): 2000
  • Height of Raised Edges (mm): 45
  • Max Load Height (mm): 600
  • Min Load Height (mm): 450
  • External Width (mm): 246
  • Internal Width (mm): 155
  • Weight per pair (kg): 17
  • Weight per ramp (kg): 8.5
  • Capacity (kg): 1479

2500mm TRP50/25

  • Length (mm): 2500
  • Height of Raised Edges (mm): 45
  • Max Load Height (mm): 750
  • Min Load Height (mm): 600
  • External Width (mm): 246
  • Internal Width (mm): 155
  • Weight per pair (kg): 20
  • Weight per ramp (kg): 10
  • Capacity (kg): 887

3000mm TRP50/30

  • Length (mm): 3000
  • Height of Raised Edges (mm): 45
  • Max Load Height (mm): 900
  • Min Load Height (mm): 750
  • External Width (mm): 246
  • Internal Width (mm): 155
  • Weight per pair (kg): 24
  • Weight per ramp (kg): 12
  • Capacity (kg): 628

3500mm TRP50/35

  • Length (mm): 3500
  • Height of Raised Edges (mm): 45
  • Max Load Height (mm): 1050
  • Min Load Height (mm): 900
  • External Width (mm): 246
  • Internal Width (mm): 155
  • Weight per pair (kg): 28
  • Weight per ramp (kg): 14
  • Capacity (kg): 485

Video

Details
SKU TRP50/Channel
Capacity (kg) 1500-485
Height of Raised Side (mm) 45
Length (mm) 1000-3500
Max Load Height (mm) 300-1050
Total Width (mm) 246
Weight per Ramp (kg) 4.5 - 14
Weight Per Pair (kg) 9 - 28
One Year Warranty Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
