2000kg Capacity Viper Van Ramp

SKU

TRP-Viper2000

The Ramp Factory's Single Piece Aluminium Loading Ramp is 1000mm wide, with a capacity from 2000kg, available in lengths 1800mm, 2000mm, 2400mm and 2600mm, 3000mm and 3600mm.

Ramp lengths listed includes the rest on connection.

The Ramp Factory have the answer to all your loading needs. Look no further than the industrial channel ramps, economy van ramps, foldable van ramps or the premium van ramp which have a capacity of up to 1000kg.

From £1,062.00 £885.00

Built to Order

Only %1 left

Truck and Van Ramps FAQ's

Description

TRP Viper Premium Heavy Duty Van Ramp Features include:

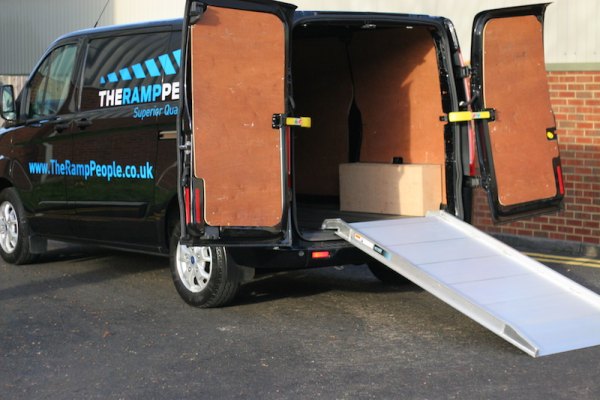

Rest on connection: to fit just rest on your van and start loading (hook connection also available)

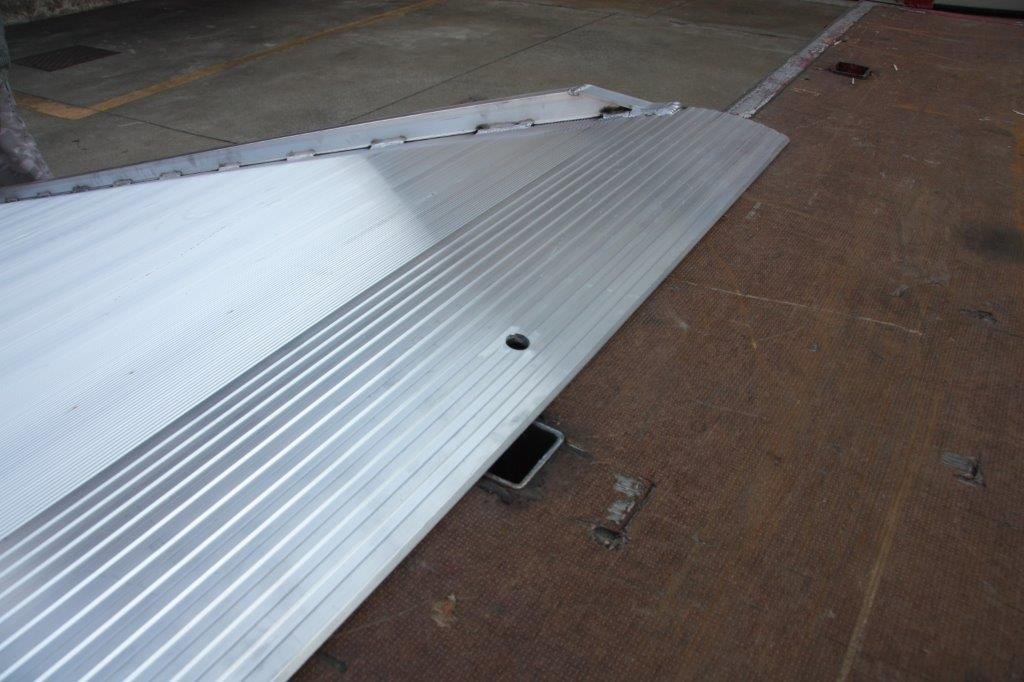

Extended connection terminal bridges most bumpers, crash bars and tow bars
Optimised ramp weight ensures the ramp stays connected to the van
No vehicle modification required

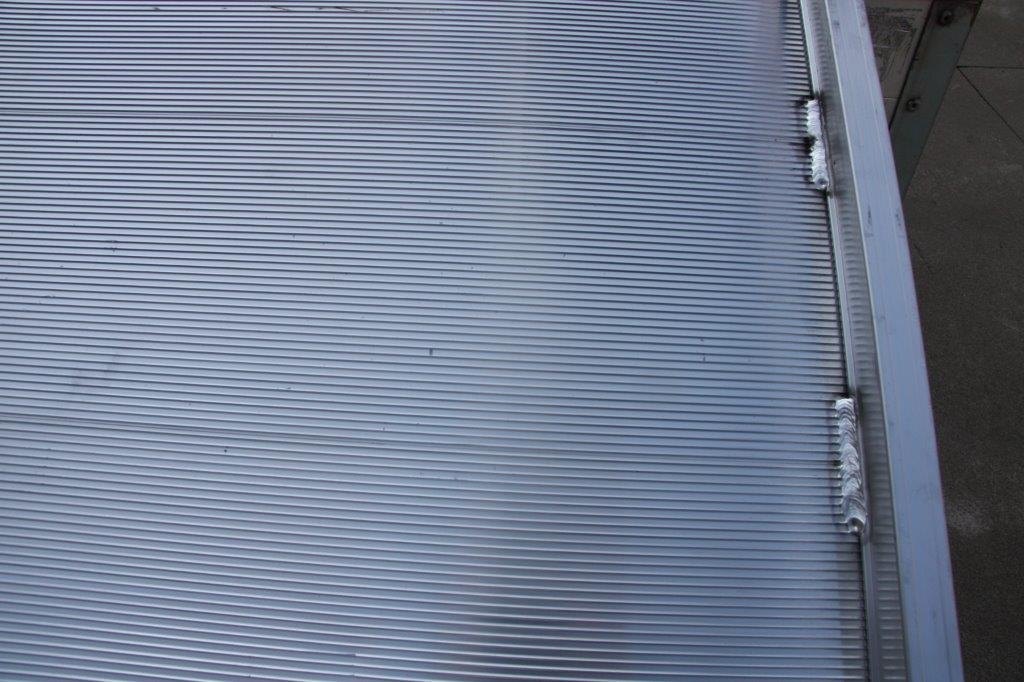

Robot welded for solid, strong and durable construction
Lightweight aluminium (type 6005A) for easy handling
Fully TUV Certified to 2000kg capacity as standard
Tested to 200% loading capacity
Four different connection options available, however the default connection is the rest on connection

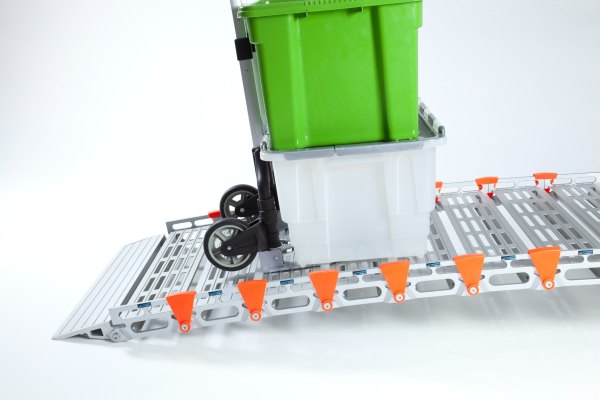

Angled foot which allows for smooth access onto the van ramp when using casters or wheels
Edges on each side of the ramp to prevent accidentally wheeling off (ramps without edges also available)
Lengths from 1800mm to 5000mm available
Bespoke van ramps built to any length or width
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

Viper Premium Heavy Duty Van Ramp 1000mm wide x 2000kg Capacity

1800mm TRP1800/1000P

Length (mm): 1785
Height of Raised Edges (mm): 29
Max Load Height (mm): 540
Min Load Height (mm): 390
External Width (mm): 1000
Internal Width (mm): 940
Weight per ramp (kg): 34
Capacity (kg): 2000
Ramp Profile Height (mm):115

2000mm TRP2000/1000P

Length (mm): 1985
Height of Raised Edges (mm): 29
Max Load Height (mm): 600
Min Load Height (mm): 450
External Width (mm): 1000
Internal Width (mm): 940
Weight per ramp (kg): 38
Capacity (kg): 2000
Ramp Profile Height (mm):115

2400mm TRP2400/1000P

Length (mm): 2385
Height of Raised Edges (mm): 30
Max Load Height (mm): 720
Min Load Height (mm): 570
External Width (mm): 1000
Internal Width (mm): 940
Weight per ramp (kg): 47
Capacity (kg): 2000
Ramp Profile Height (mm):125

2600mm TRP2600/1000P

Length (mm): 2585
Height of Raised Edges (mm): 30
Max Load Height (mm): 780
Min Load Height (mm): 630
External Width (mm): 1000
Internal Width (mm): 940
Weight per ramp (kg): 51
Capacity (kg): 2000
Ramp Profile Height (mm):125

3000mm TRP3000/1000P

Length (mm): 2985
Height of Raised Edges (mm): 31
Max Load Height (mm): 900
Min Load Height (mm): 750
External Width (mm): 1000
Internal Width (mm): 940
Weight per ramp (kg): 60
Capacity (kg): 2000
Ramp Profile Height (mm):140

3600mm TRP3600/1000P

Length (mm): 3577
Height of Raised Edges (mm): 42
Max Load Height (mm): 1050
Min Load Height (mm): 900
External Width (mm): 1000
Internal Width (mm): 940
Weight per ramp (kg): 74
Capacity (kg): 2000
Ramp Profile Height (mm):150

TUV Certification Image

Usage Guidelines and Safety Information for these ramps can be found here.

Details

SKU	TRP-Viper2000

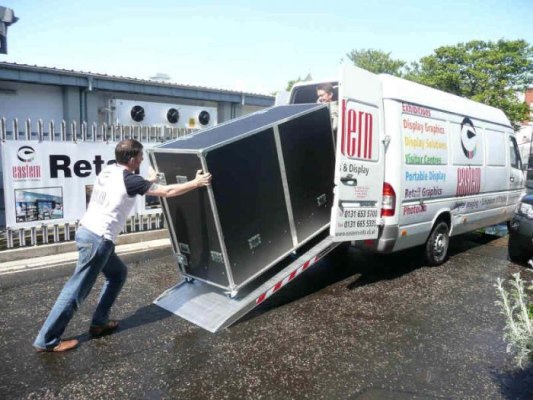

Suitable for Flight Cases	YES
Default Connection	Rest On Connection
Capacity (kg)	2000
Height of Ramps Profile (mm)	115-150
Internal Track Width (mm)	940
Length (mm)	1800-3600
Max Load Height (mm)	1050
Min. Load Height (mm)	450
Weight (kg)	34-74
Width (mm)	1000
One Year Warranty	Yes
Connection Options Available	Yes
Customisable	Yes
Easy to Fit	Yes
European Made	Yes
Not Solid Wheels	Yes

Print/Save Datasheet

Ramp Length & Load Height Information

Ramp Capacity, Length & Load Height

This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.

Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.

Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).

For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load height x 3.3, gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.

Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase. For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.

For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.

Further information can be seen in this blog article here
