Viper Folding Van Ramp

SKU

TRP-Viper750F

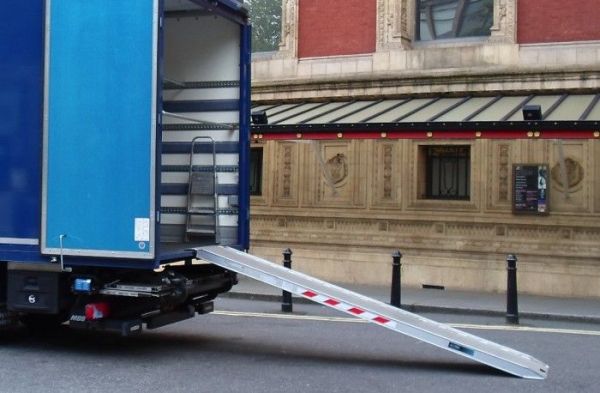

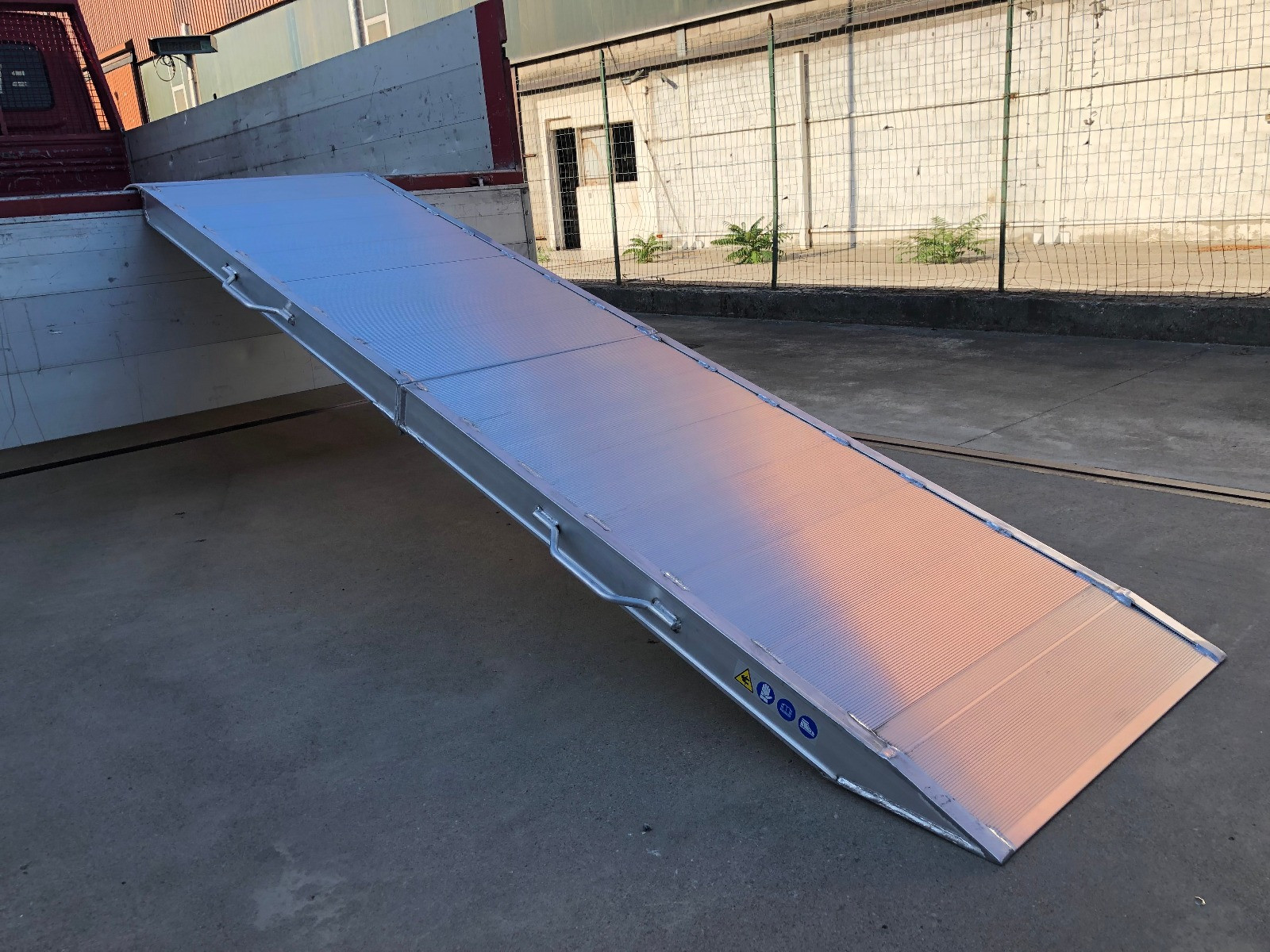

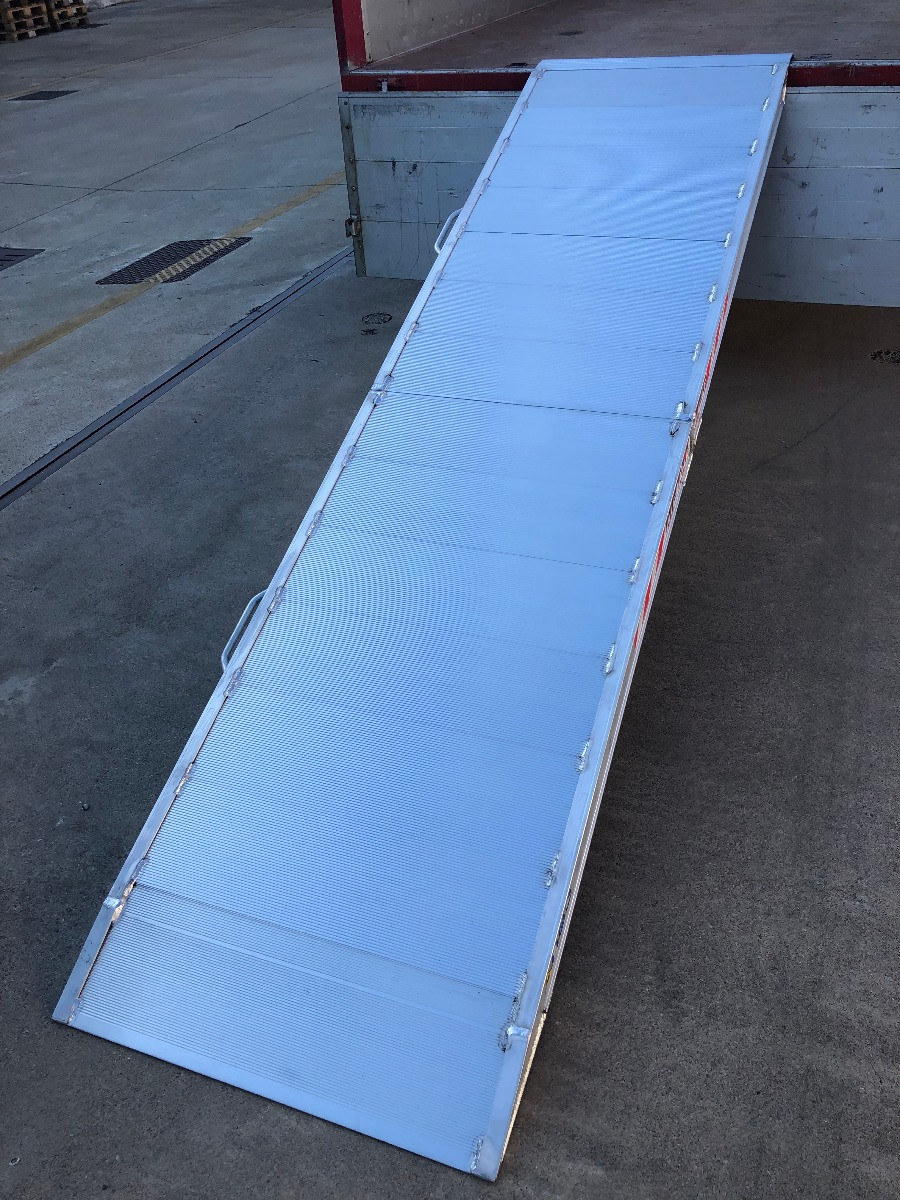

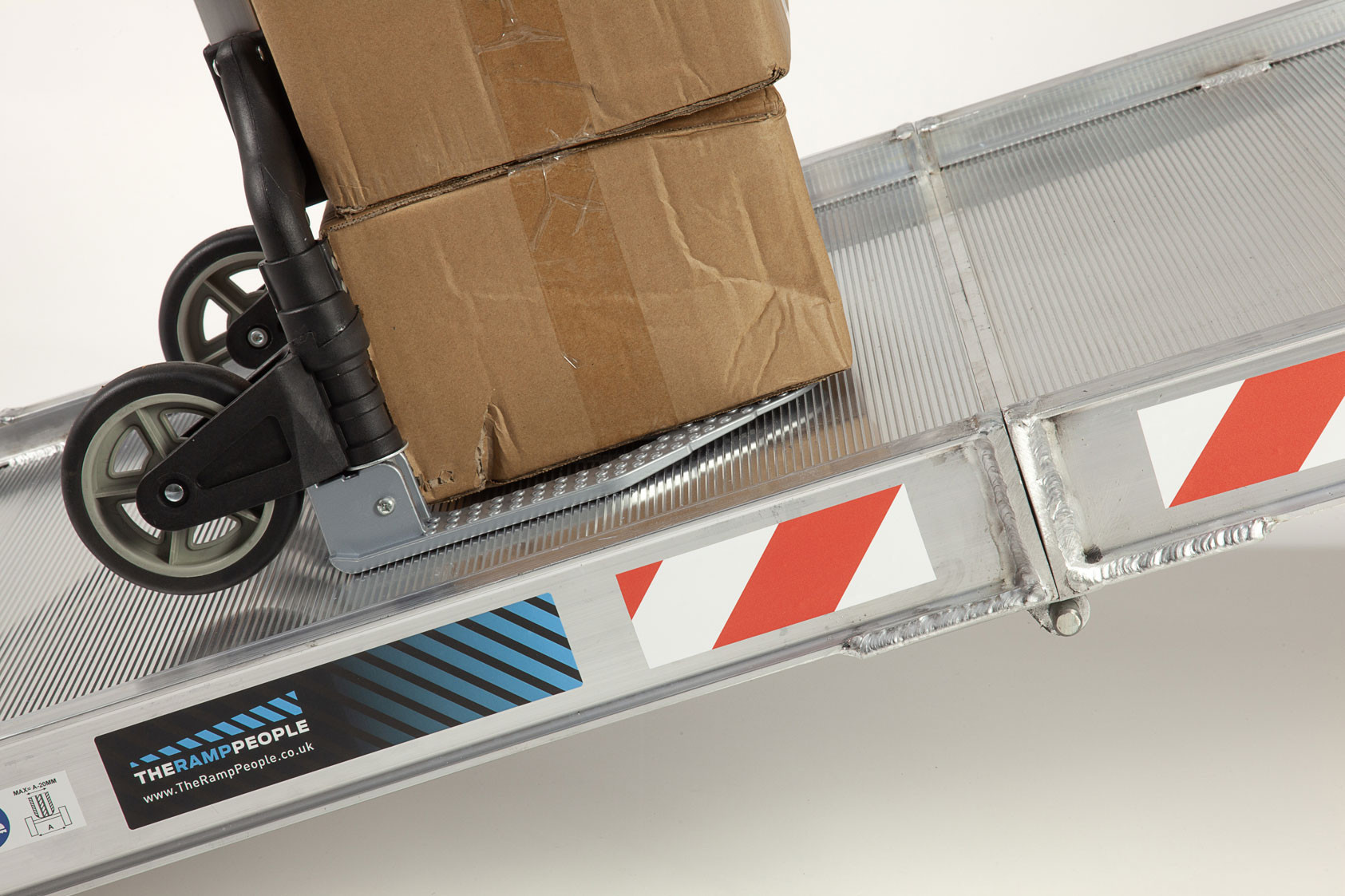

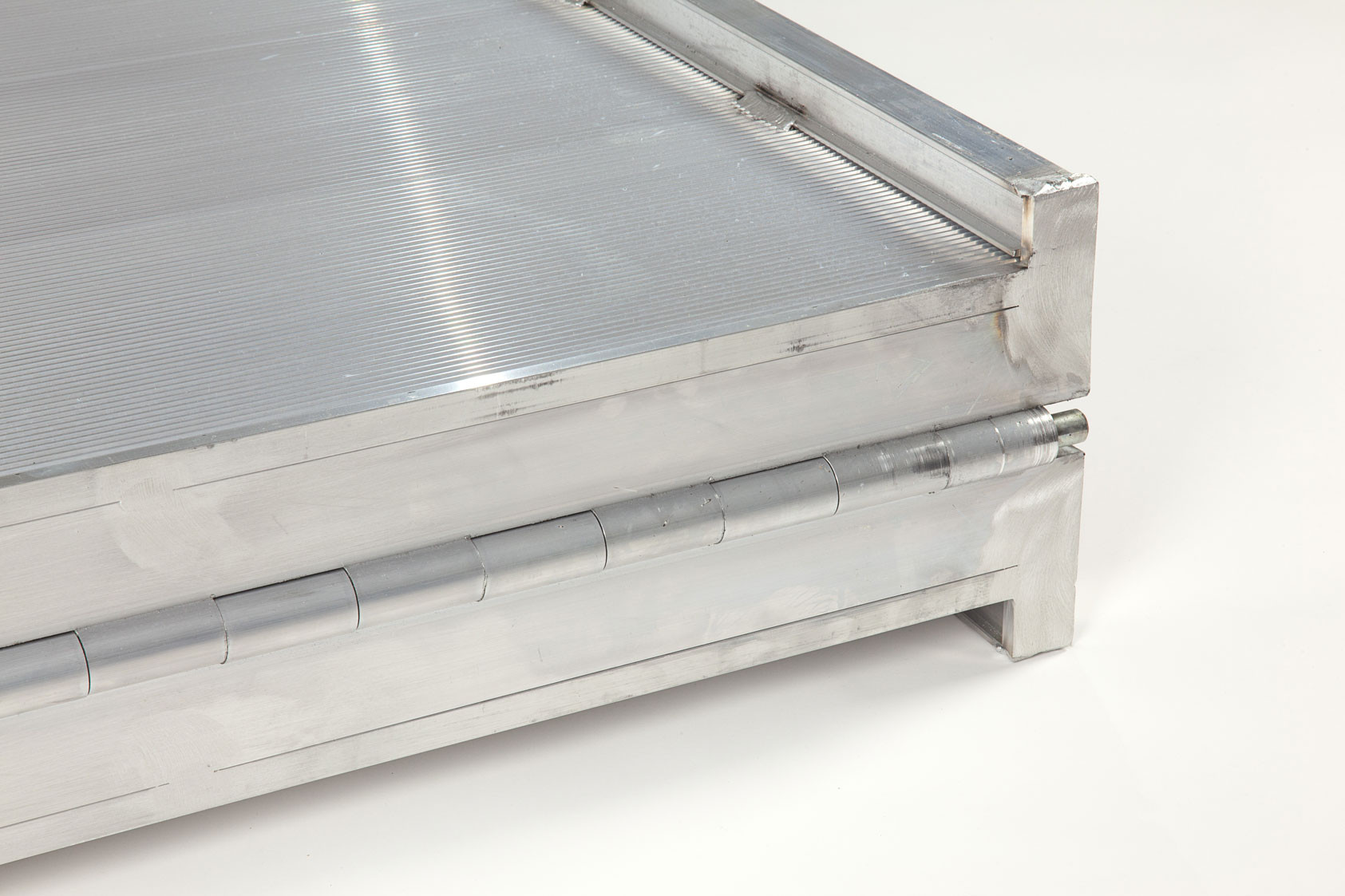

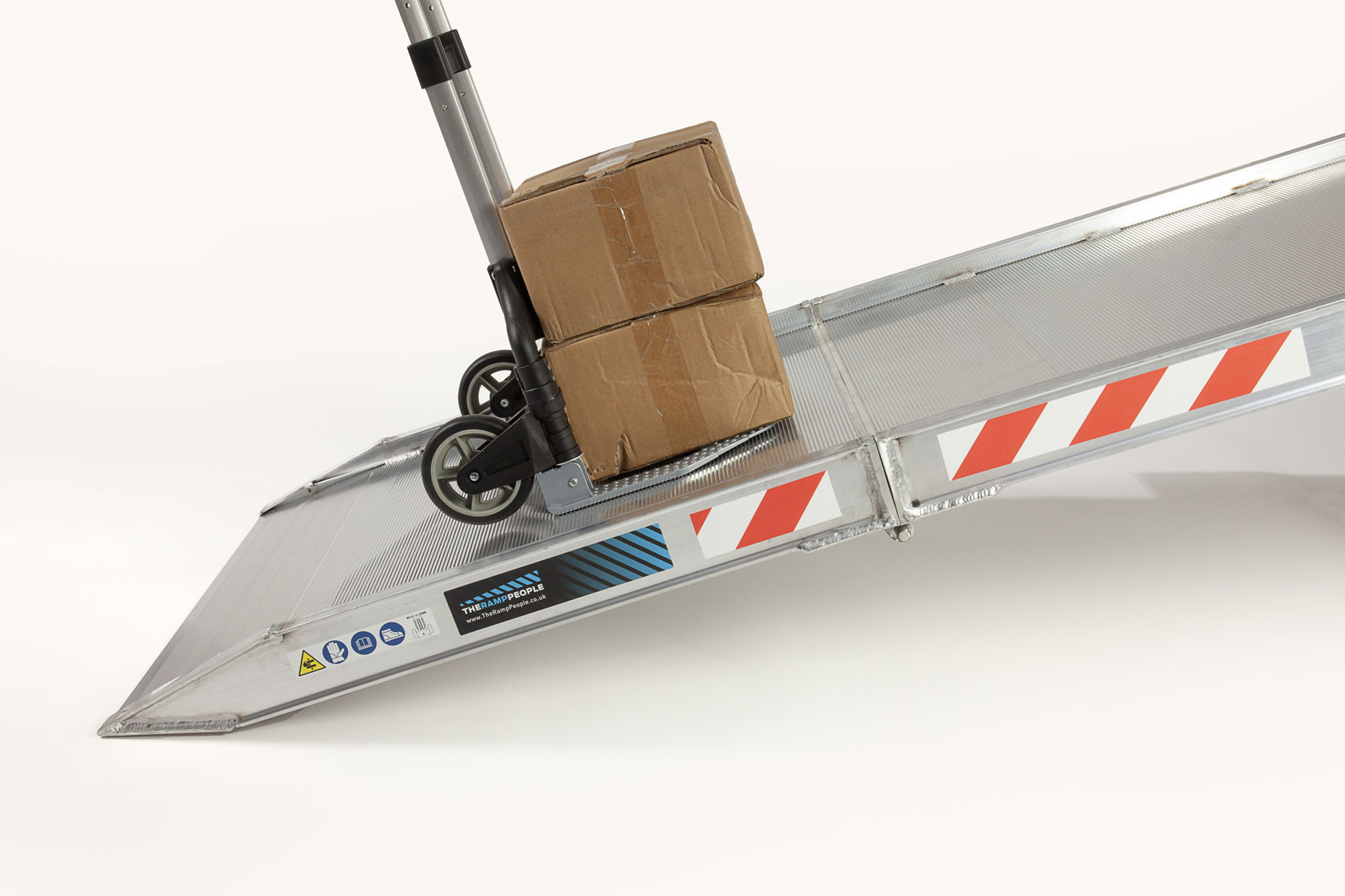

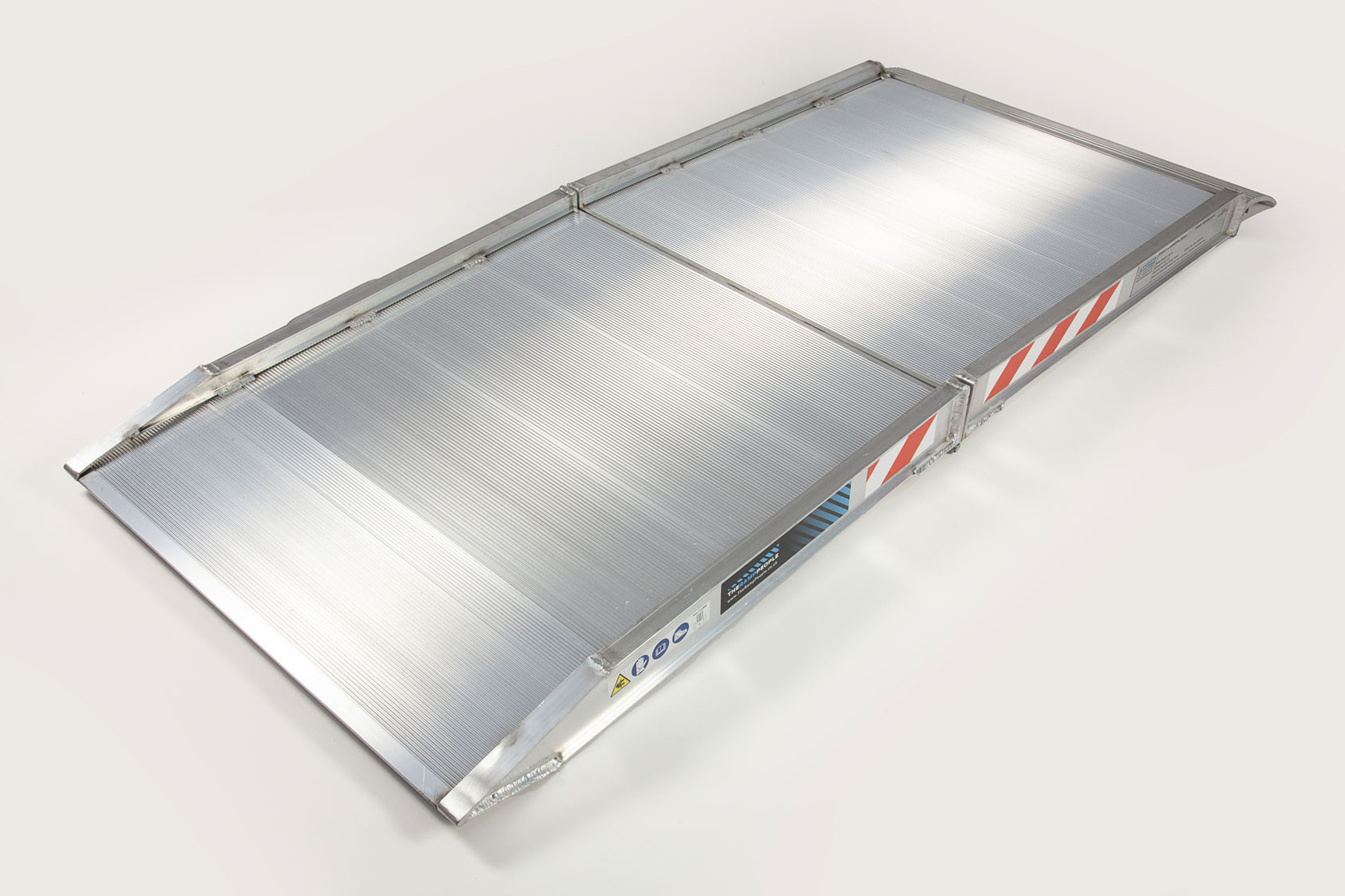

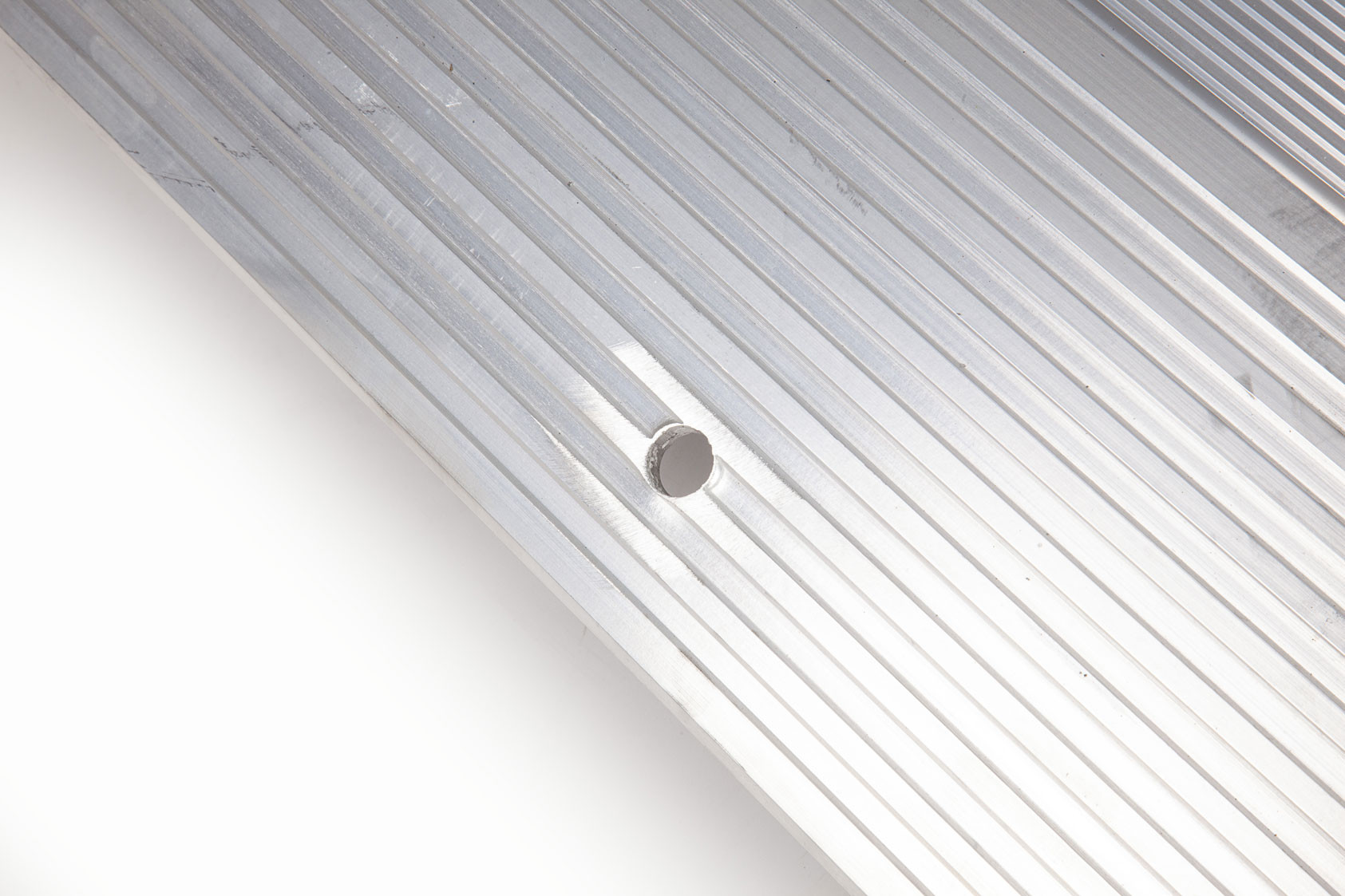

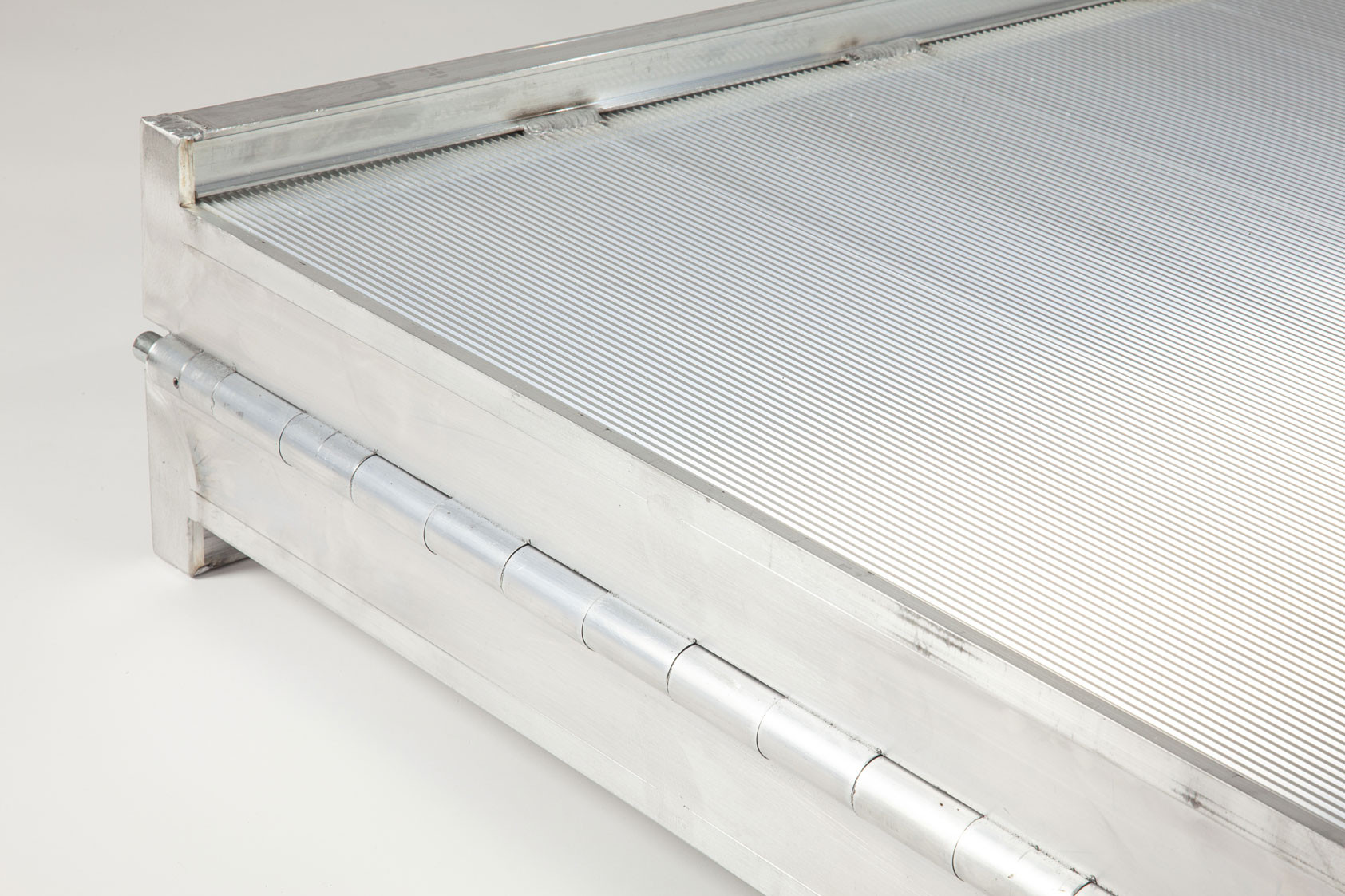

The Ramp Factory's Folding Viper Heavy Duty Van Ramp is a single aluminium ramp 750mm wide or 1000mm. The ramp has a capacity of up to 1000kg and is available in lengths from 1800mm - 3000mm. The Folding Viper Ramp has a unique folding design that allows for easy transportation and storage. The ramp also features a non-slip grip surface to ensure safety and stability.

The Ramp Factory have the answer to all your loading needs. Look no further than the economy loading ramps, in widths of 750mm or 975mm. For narrower loading spaces, The Ramp Factory offers channel ramps.

From £1,074.00 £895.00

In Stock

Only %1 left

Truck and Van Ramps FAQ's

Description

Viper Premium Heavy Duty Folding Van Ramp 750mm wide

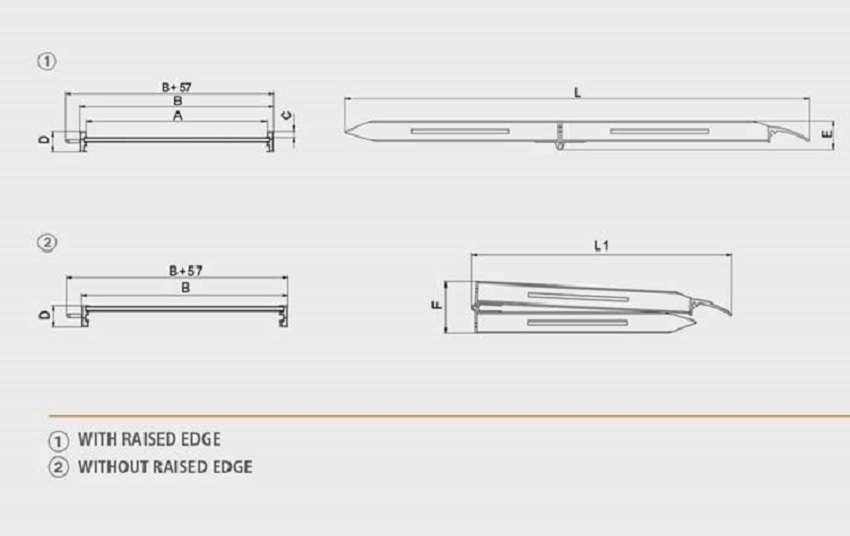

Dimensions

Viper Premium Heavy Duty Folding Van Ramp 750mm wide / 1000mm wide

1800mm TRP1800/750F

Length (mm): 1800
Folded Length (mm): 986
Height of Raised Edges (mm): 29
Max Load Height (mm): 540
Min Load Height (mm): 390
External Width (mm): 750 / 1000
Internal Width (mm): 690 / 940
Weight per ramp (kg): 31/ 39
Capacity (kg): 1000
Height of ramp profile (mm): 85

2000mm TRP2000/750F

Length (mm): 2000
Folded Length (mm): 1051
Height of Raised Edges (mm): 29
Max Load Height (mm): 600
Min Load Height (mm): 450
External Width (mm): 750 / 1000
Internal Width (mm): 690 / 940
Weight per ramp (kg): 33 / 42
Capacity (kg): 1000
Height of ramp profile (mm): 85

2400mm TRP2400/750F

Length (mm): 2400
Folded Length (mm): 1251
Height of Raised Edges (mm): 29
Max Load Height (mm): 720
Min Load Height (mm): 570
External Width (mm): 750 / 1000
Internal Width (mm): 690 / 940
Weight per ramp (kg): 38 / 48
Capacity (kg): 800
Height of ramp profile (mm): 85

2600mm TRP2600/750F

Length (mm): 2600
Folded Length (mm):1386
Height of Raised Edges (mm): 29
Max Load Height (mm): 780
Min Load Height (mm): 630
External Width (mm): 750 / 1000
Internal Width (mm): 690 / 940
Weight per ramp (kg): 40 / 50
Capacity (kg): 700
Height of ramp profile (mm): 85

3000mm TRP3000/750F

Length (mm): 3000
Folded Length (mm):1586
Height of Raised Edges (mm): 29
Max Load Height (mm): 900
Min Load Height (mm): 750
External Width (mm): 750 / 1000
Internal Width (mm): 690 / 940
Weight per ramp (kg): 45 / 57
Capacity (kg): 500
Ramp Profile Height (mm):100

Aluminium Loading Heavy Duty Folding Van Ramp.

Available in the lengths of 1800mm, 2000mm, 2400mm, 2600mm and 3000mm, with a capacity of up to 1000kg and a width of 750mm. These ramps are ideally suited for flight cases.

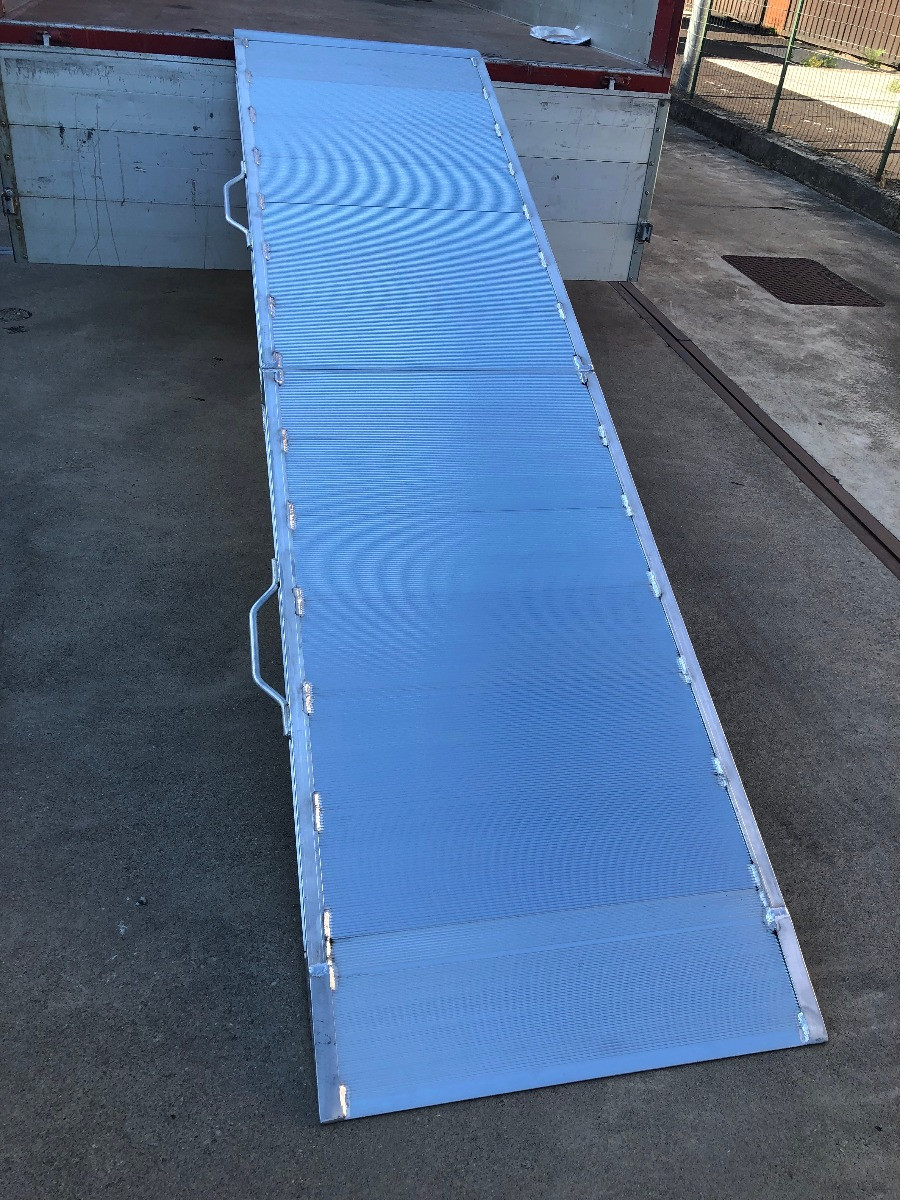

Rest on connection: to fit just rest on and start loading
No vehicle or van modification required

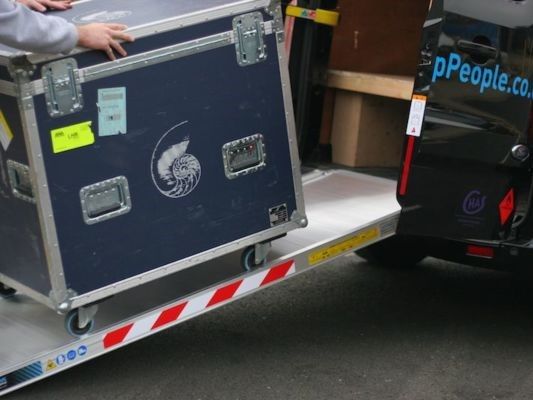

Perfect for flight cases
Entry onto ramp slightly smoother than our economy version.

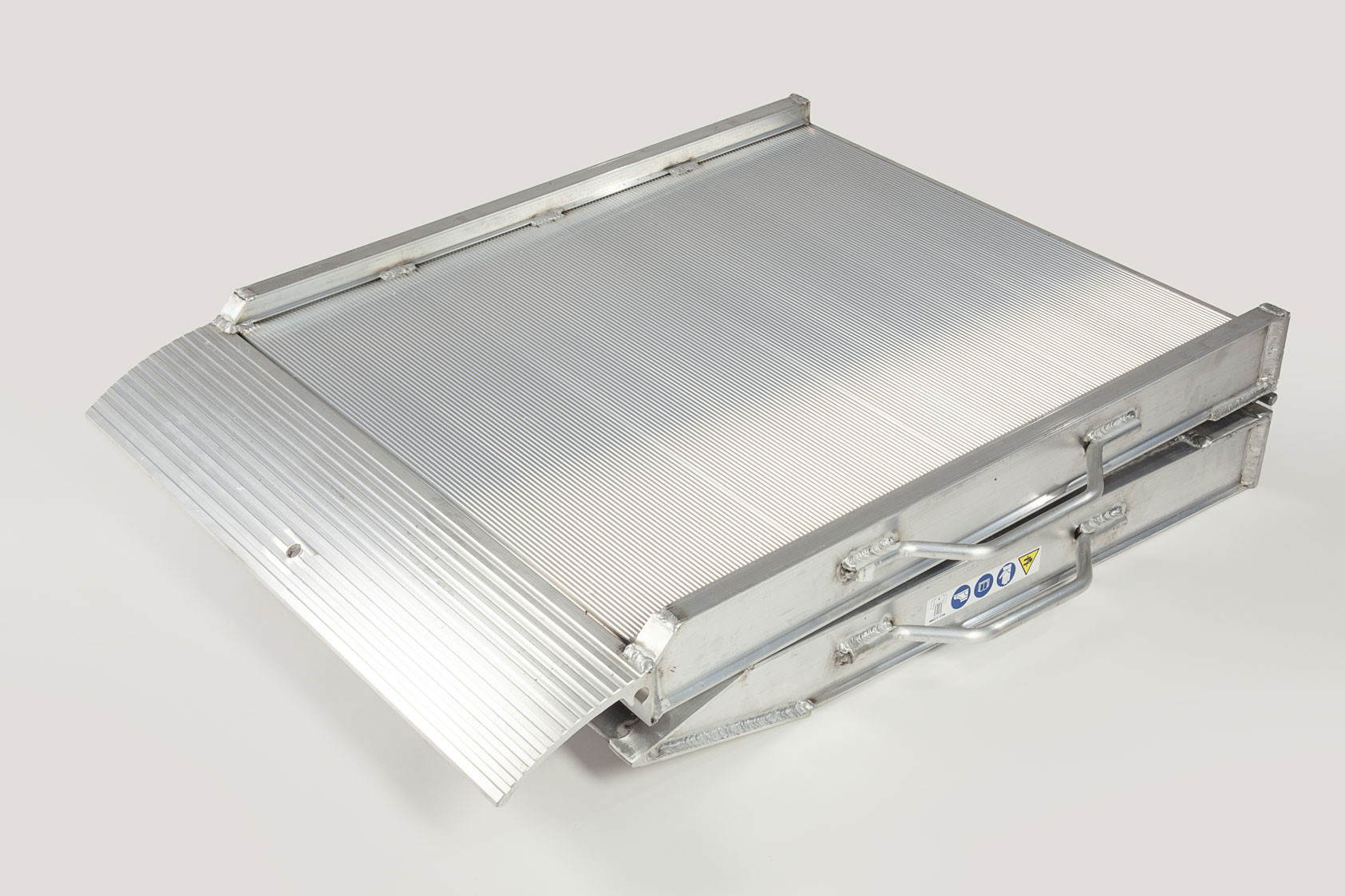

Lies flat for easy storage when not being used
Manufactured from lightweight aluminium (type 6005A)

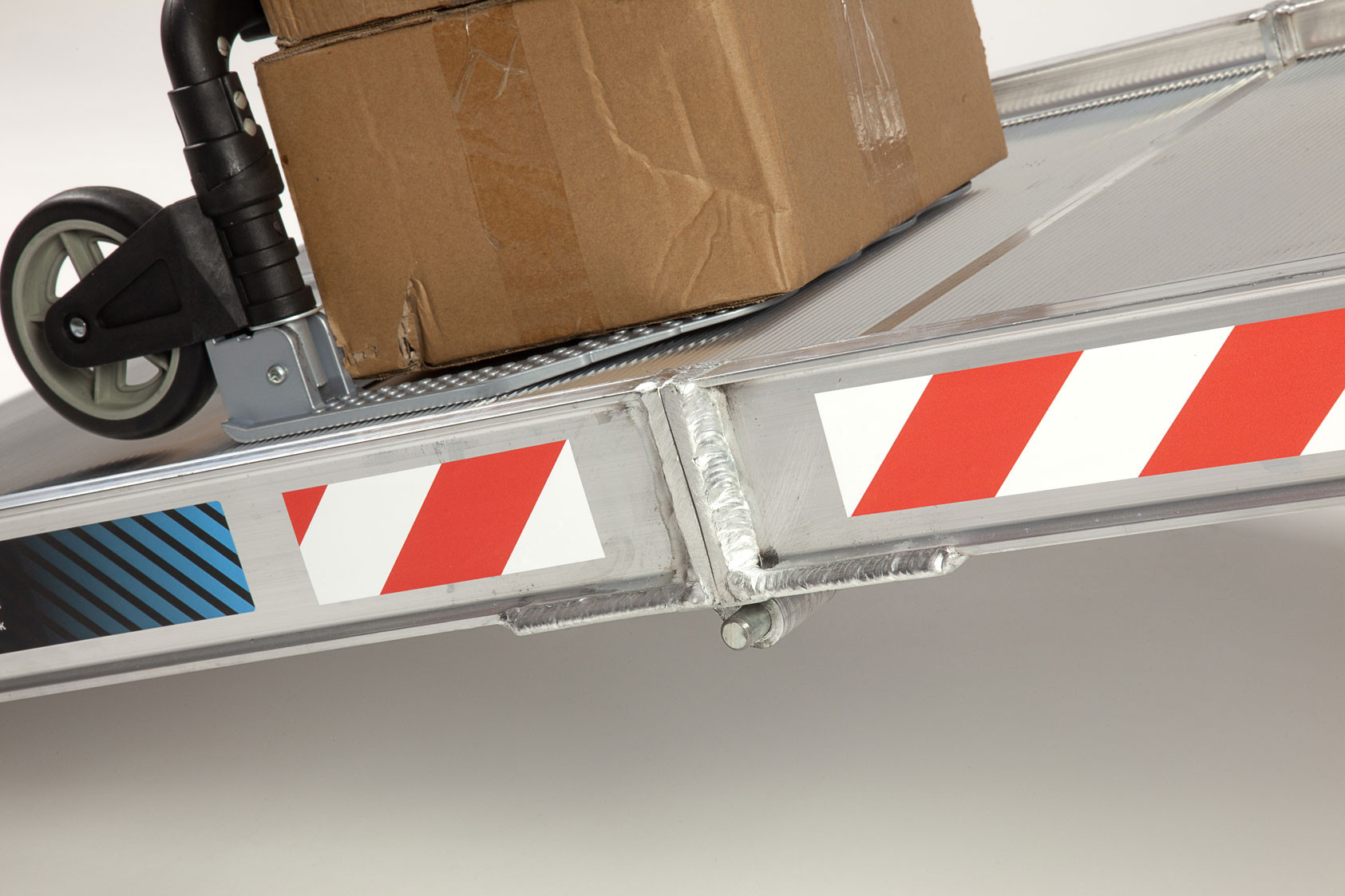

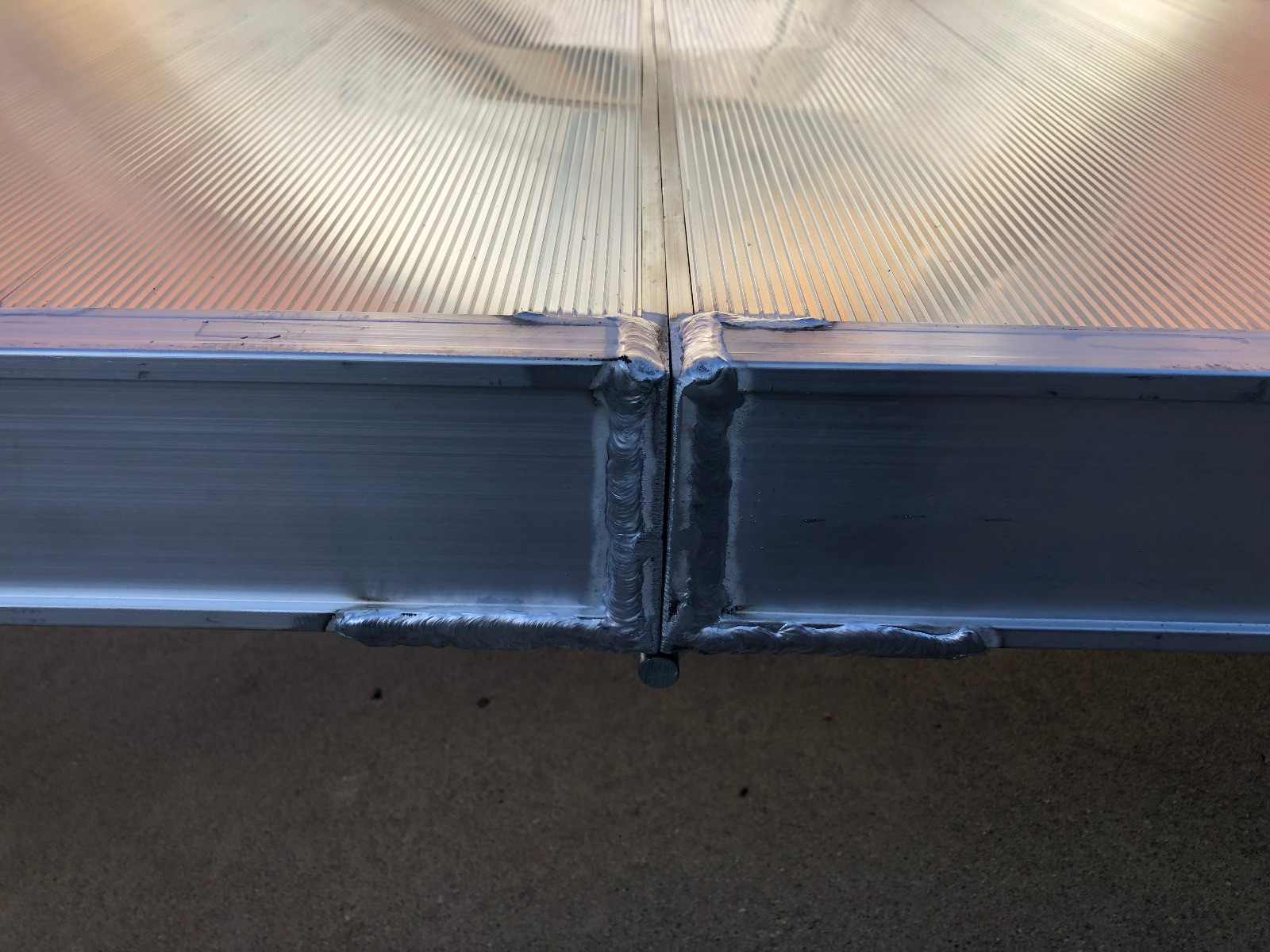

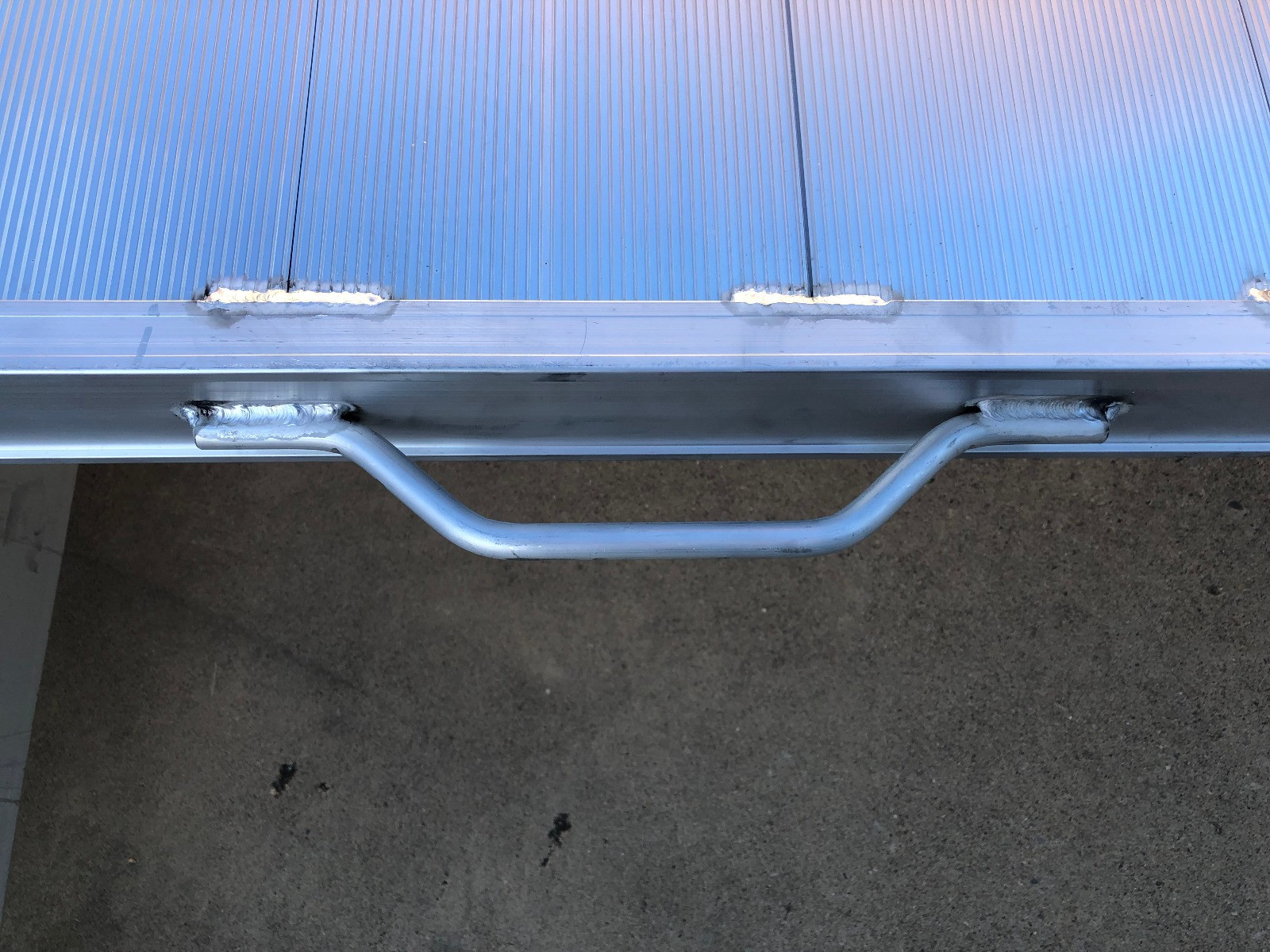

Robot welded for solid, strong and durable construction

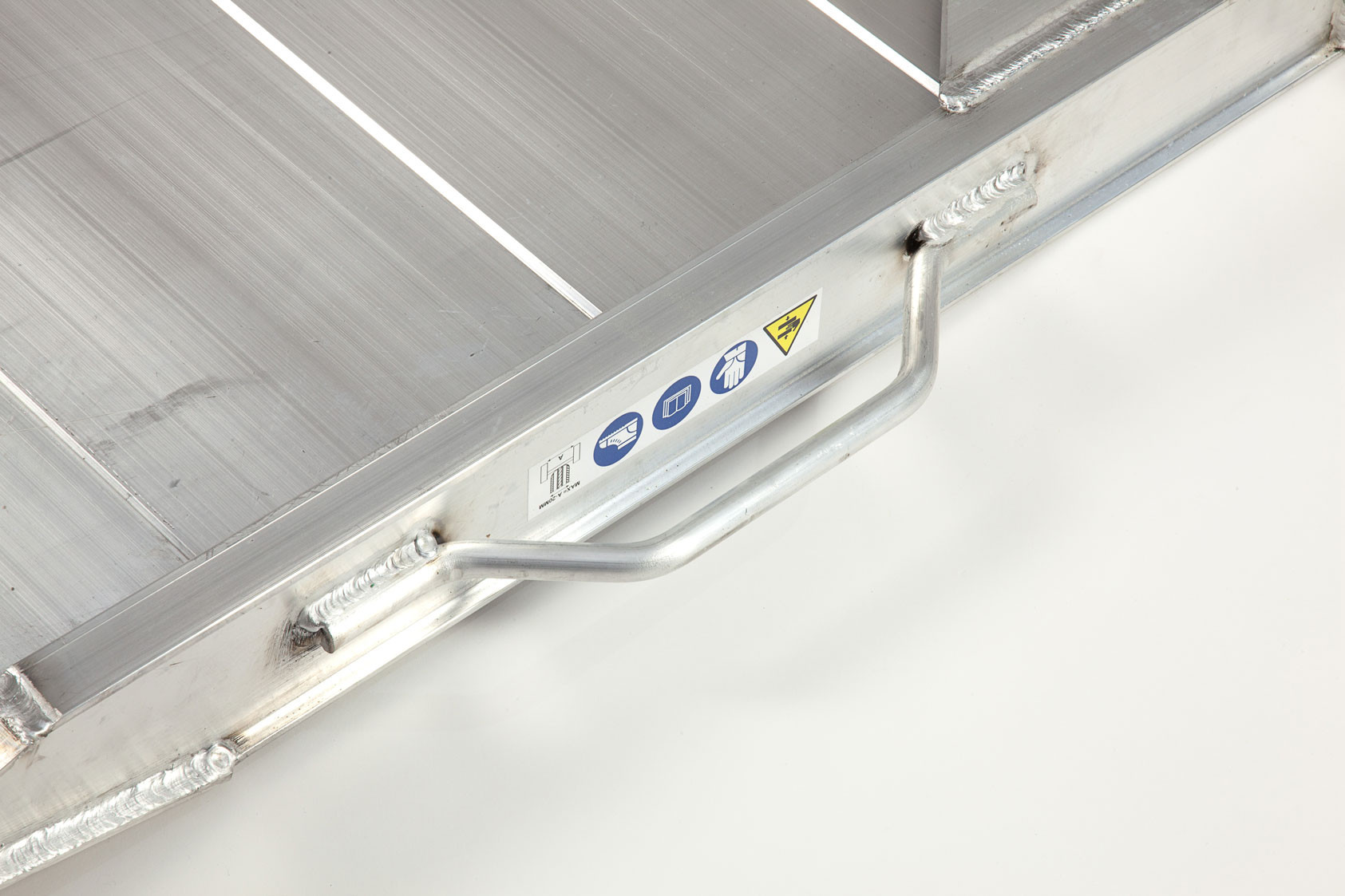

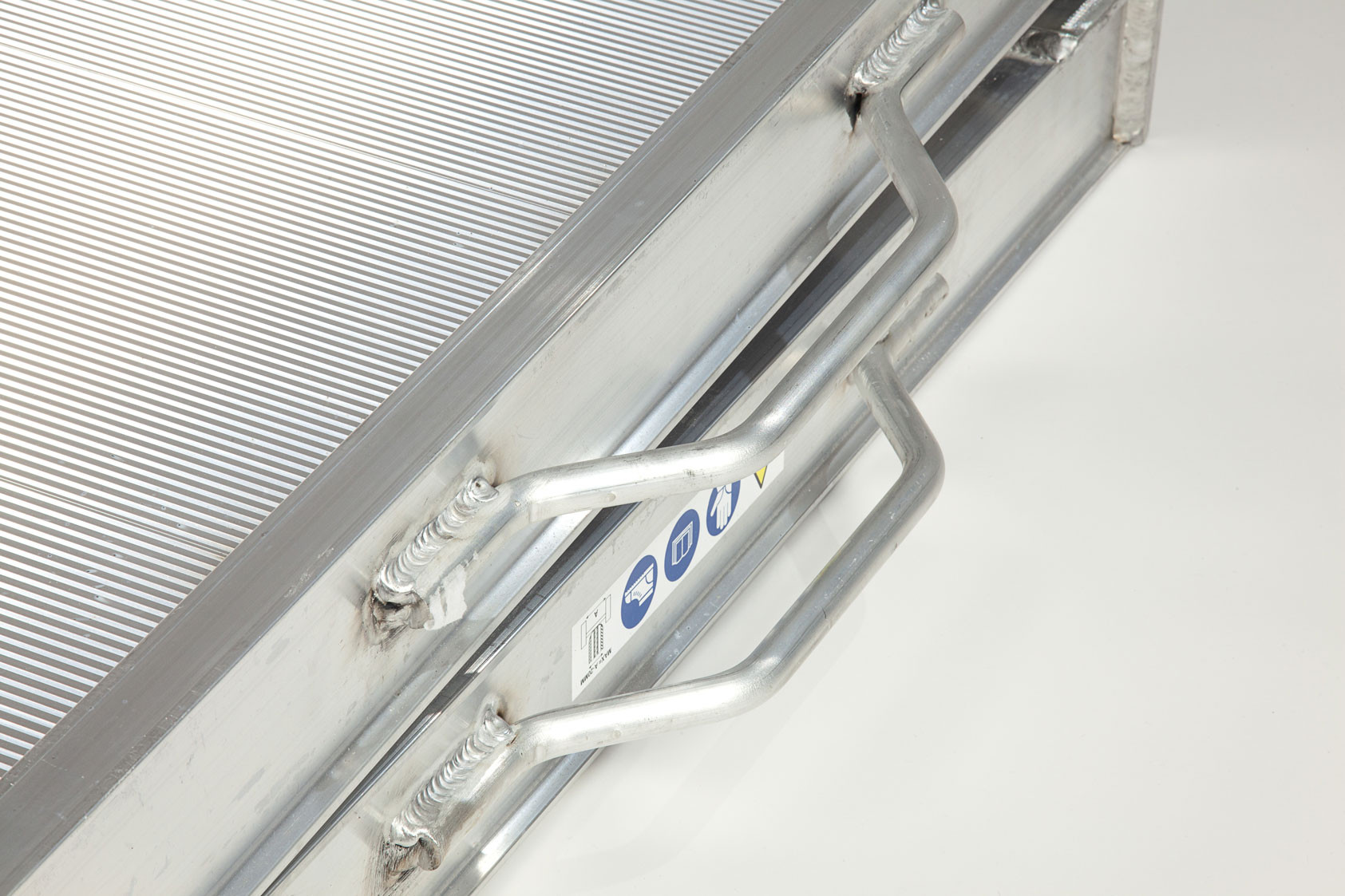

Lightweight for easy handling
Fully TUV Certified to 1000kg capacity as standard

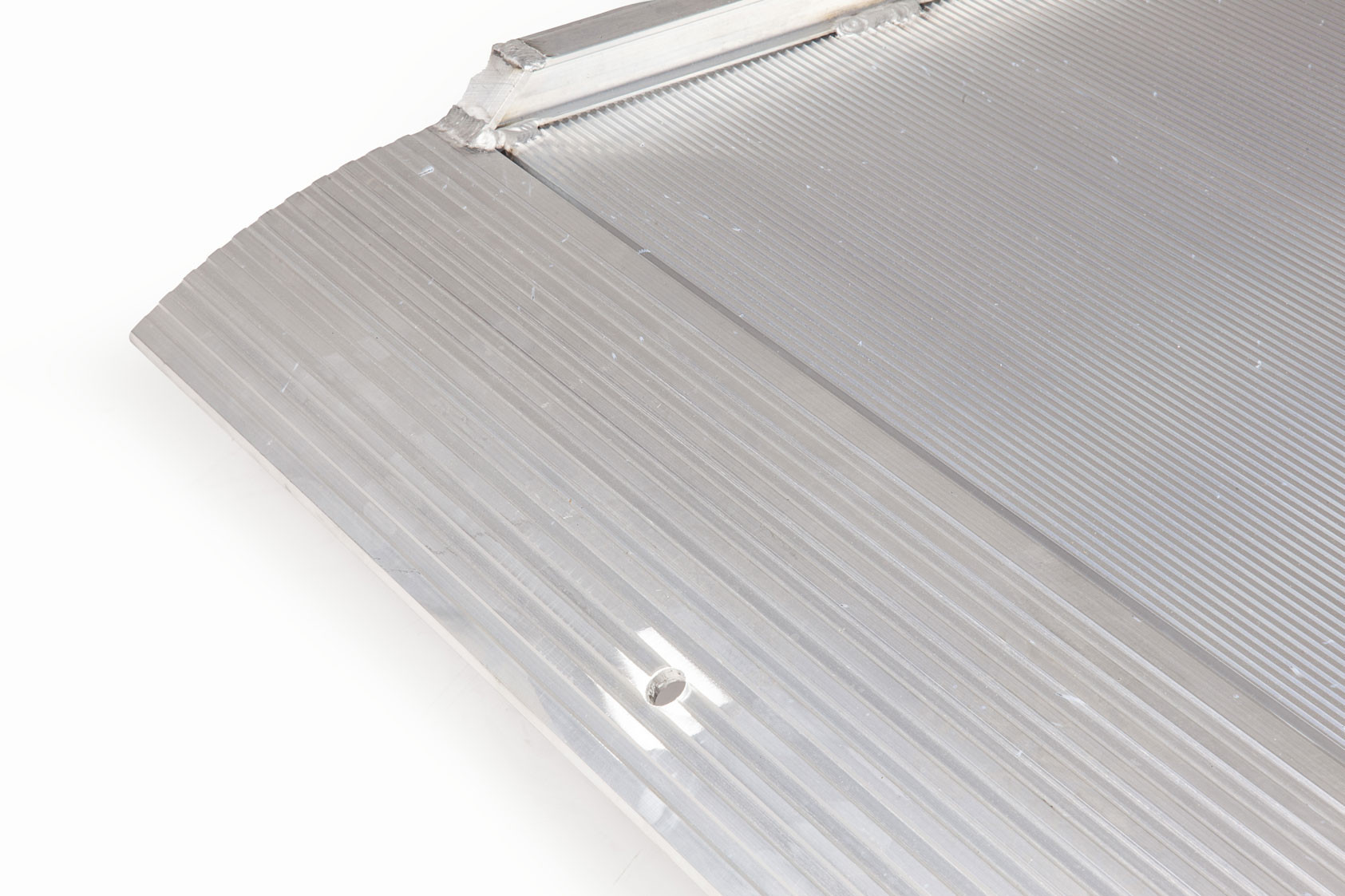

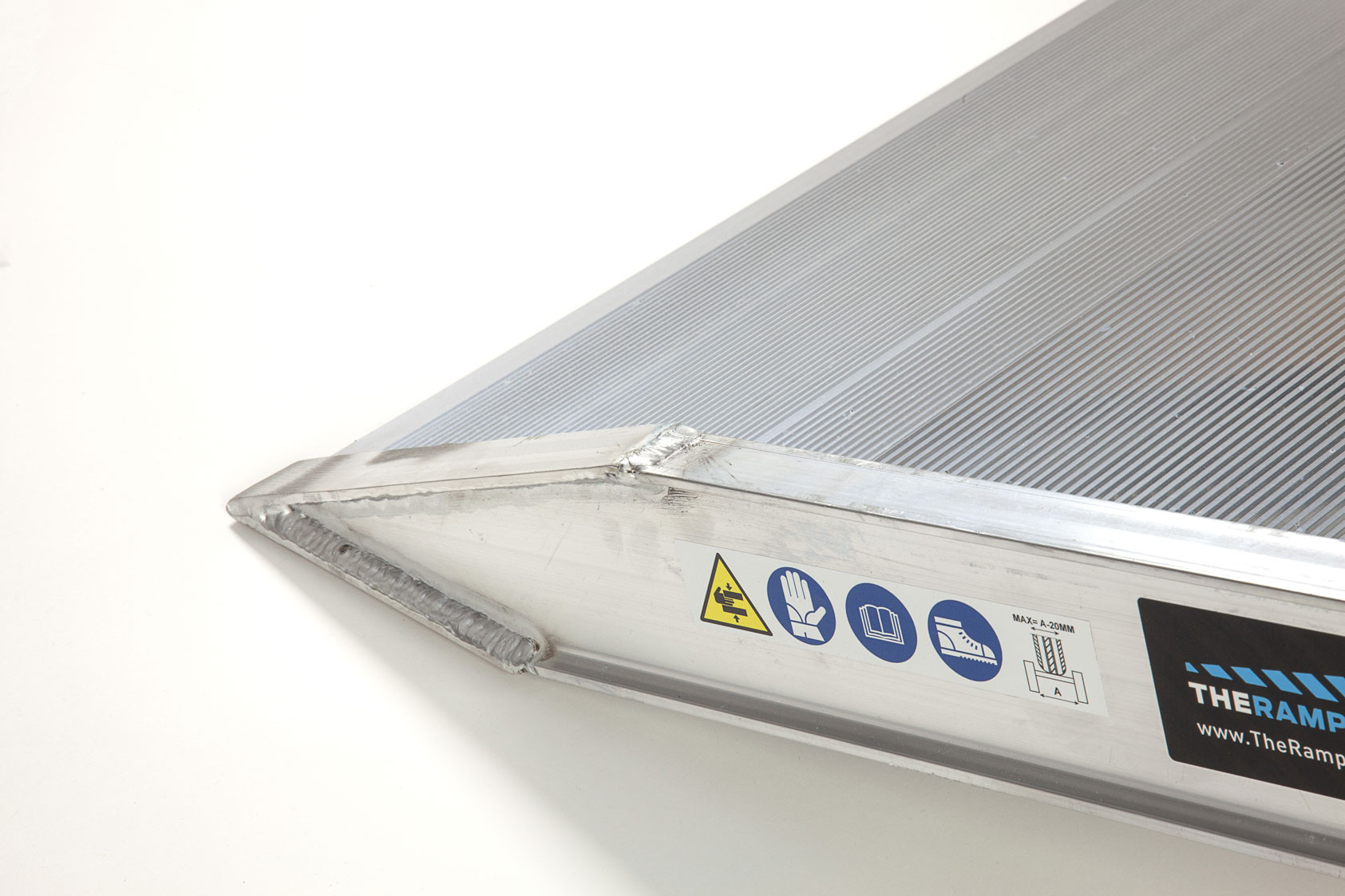

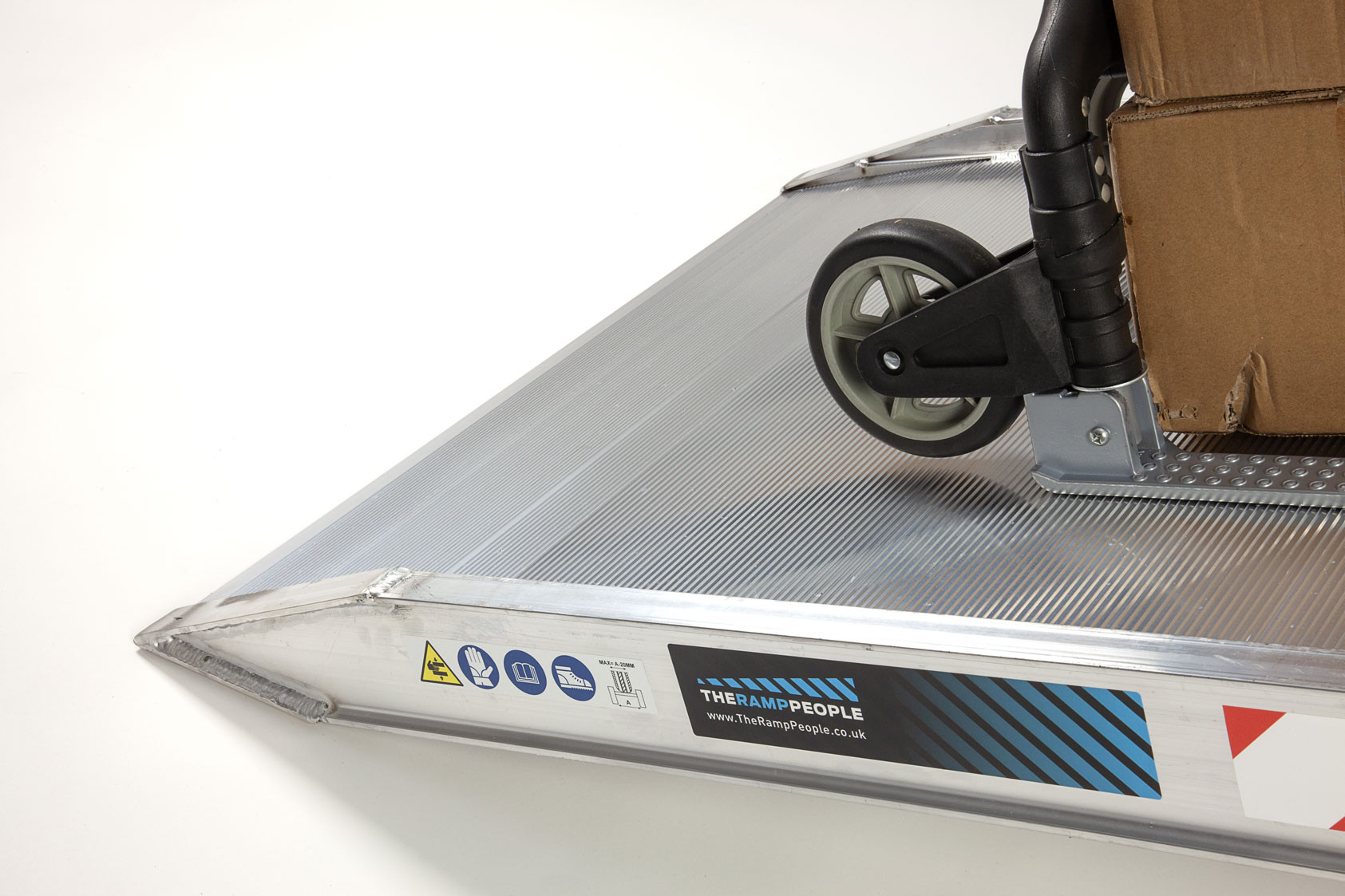

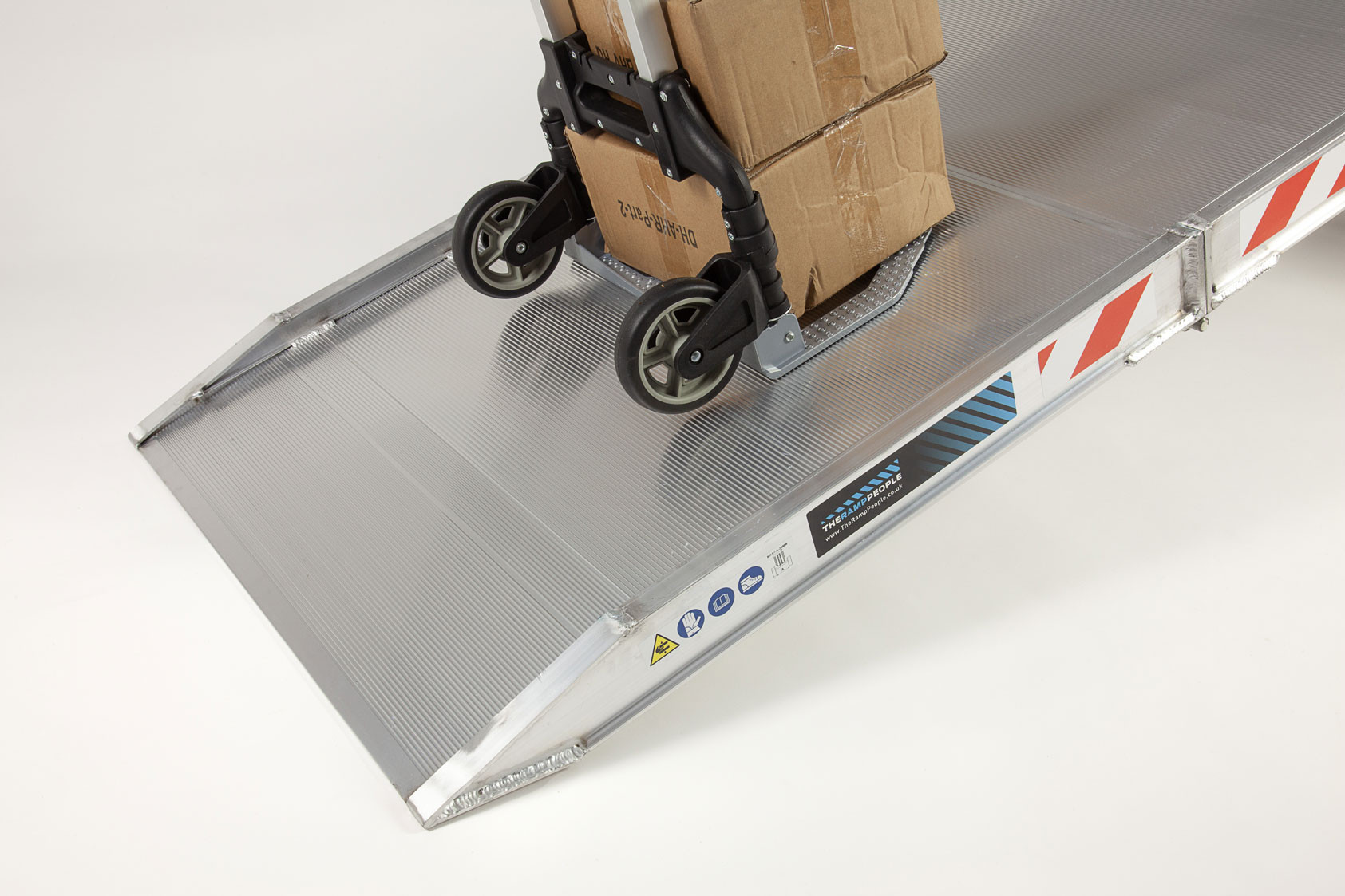

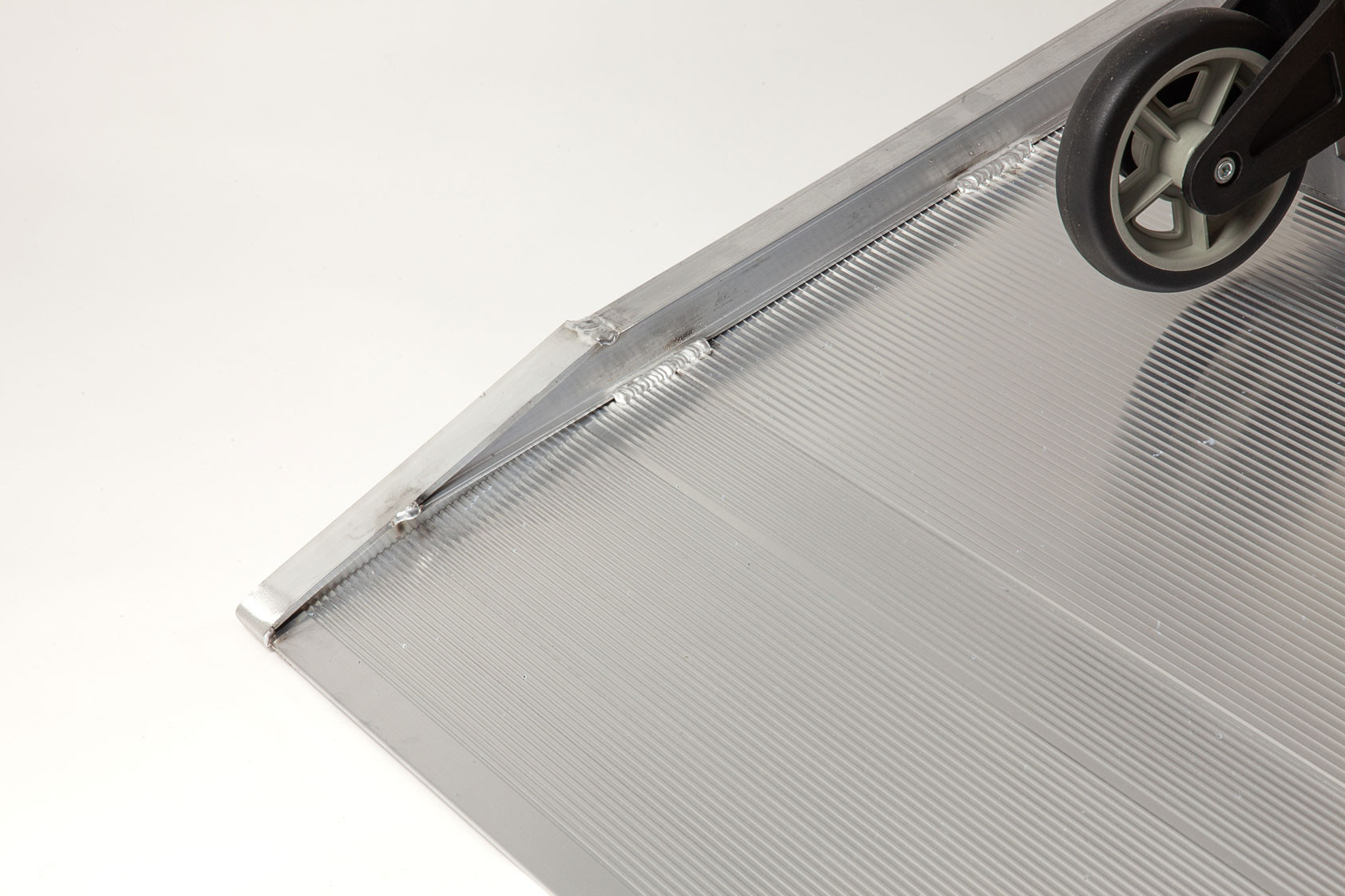

Angled foot, this allows for smooth access onto the van ramp when using casters or wheels
Edges on each side of the van ramp to prevent accidentally wheeling off
Ramps without edges are also available
Optimised ramp weight ensures the ramp stays connected to the van
Four different connection options available, however the default connection is the rest on connection

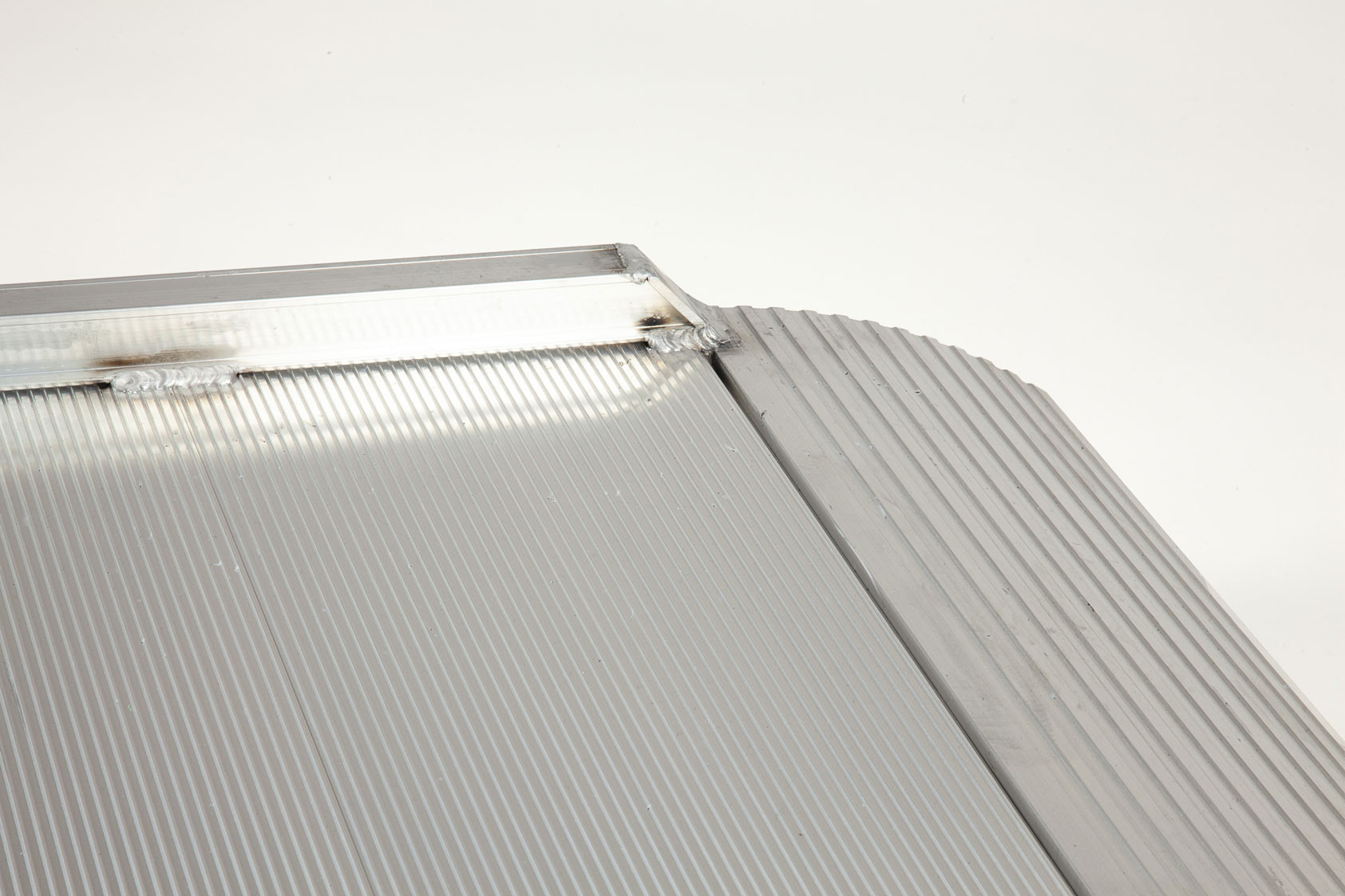

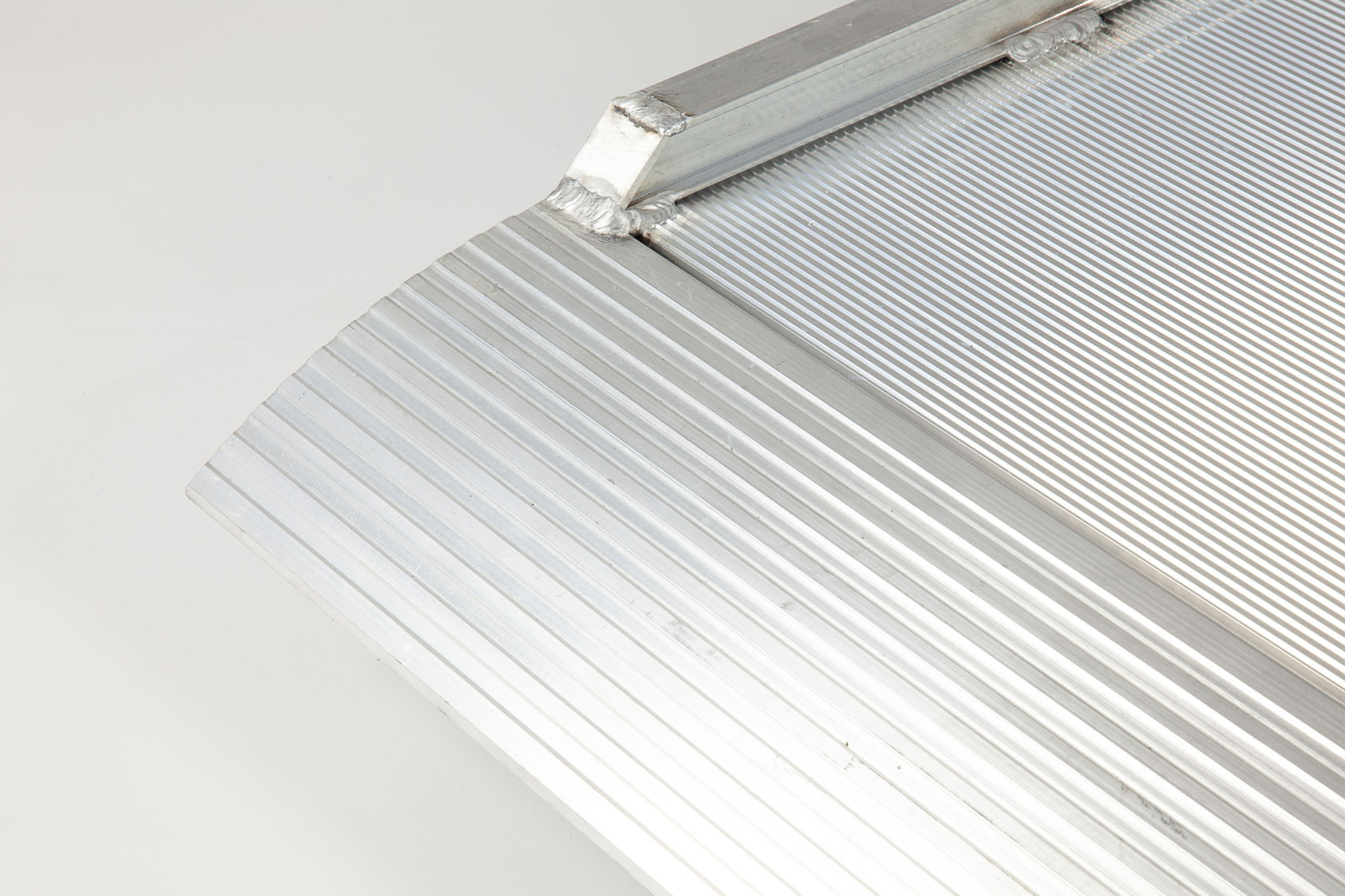

Extended connection terminal bridges most bumpers, crash bars and tow bars
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

TUV Certification Image

Usage Guidelines and Safety Information for these ramps can be found here.

Details

SKU	TRP-Viper750F
Default Connection	Rest On Connection
Capacity (kg)	500-1000
Folded Length (mm)	986-1586
Height of Raised Side (mm)	29
Internal Width (mm)	690 - 940
Length (mm)	1800-3000
Max Load Height (mm)	540-900
Weight per Ramp (kg)	31 - 57
Width (mm)	750 - 1000
One Year Warranty	Yes
Connection Options Available	Yes
Customisable	Yes
Easy to Fit	Yes
European Made	Yes
Not Solid Wheels	Yes
External Width (mm)	750

Print/Save Datasheet

Ramp Length & Load Height Information

Ramp Capacity, Length & Load Height

This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.

Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.

Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).

For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load height x 3.3, gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.

Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase. For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.

For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.

Further information can be seen in this blog article here
