RollAble Loading Ramp, 785mm Wide

SKU
TRP-RollAbleVan760
From £378.00 £315.00
Built to order / 2-3 working days
Only %1 left

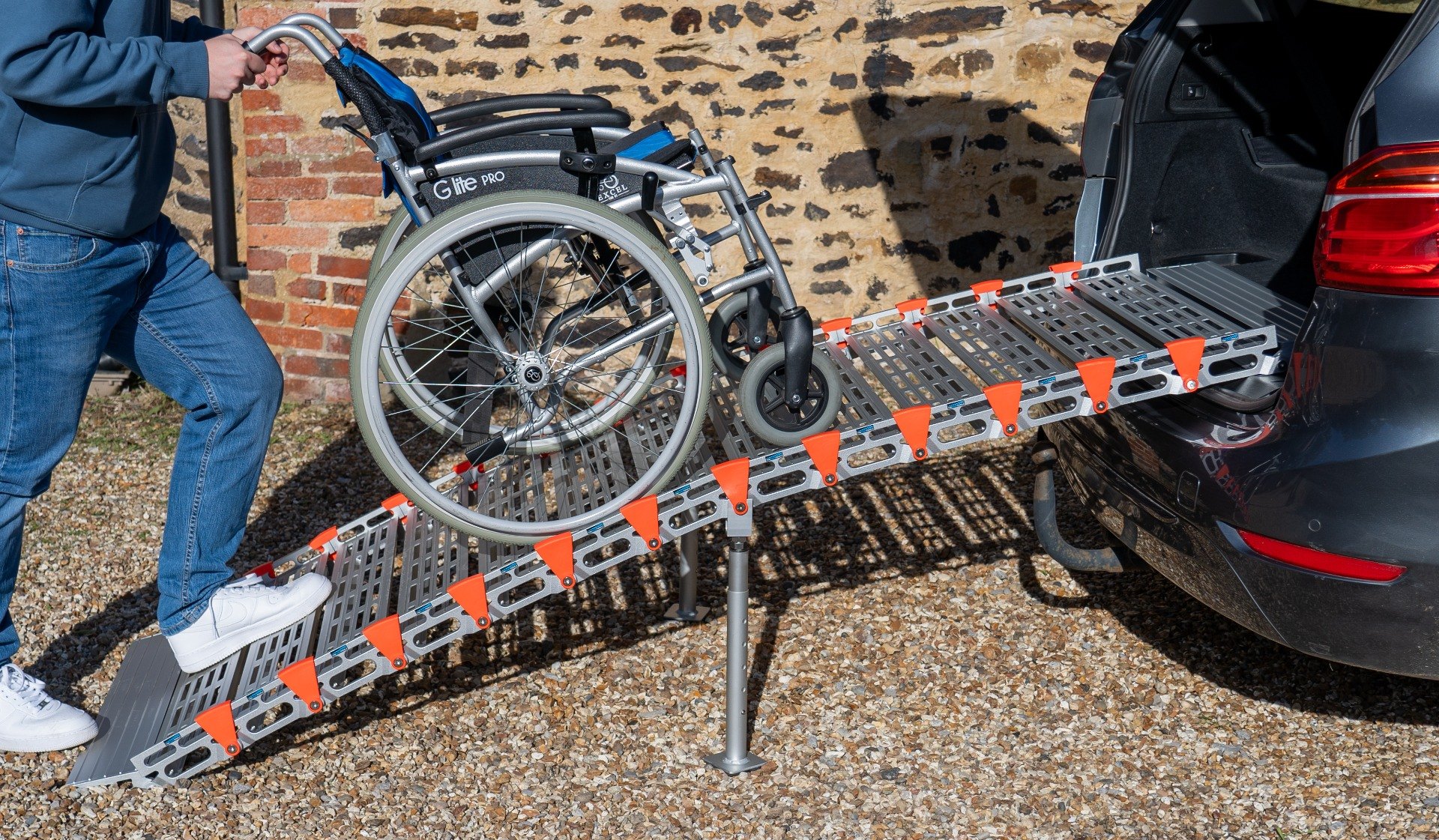

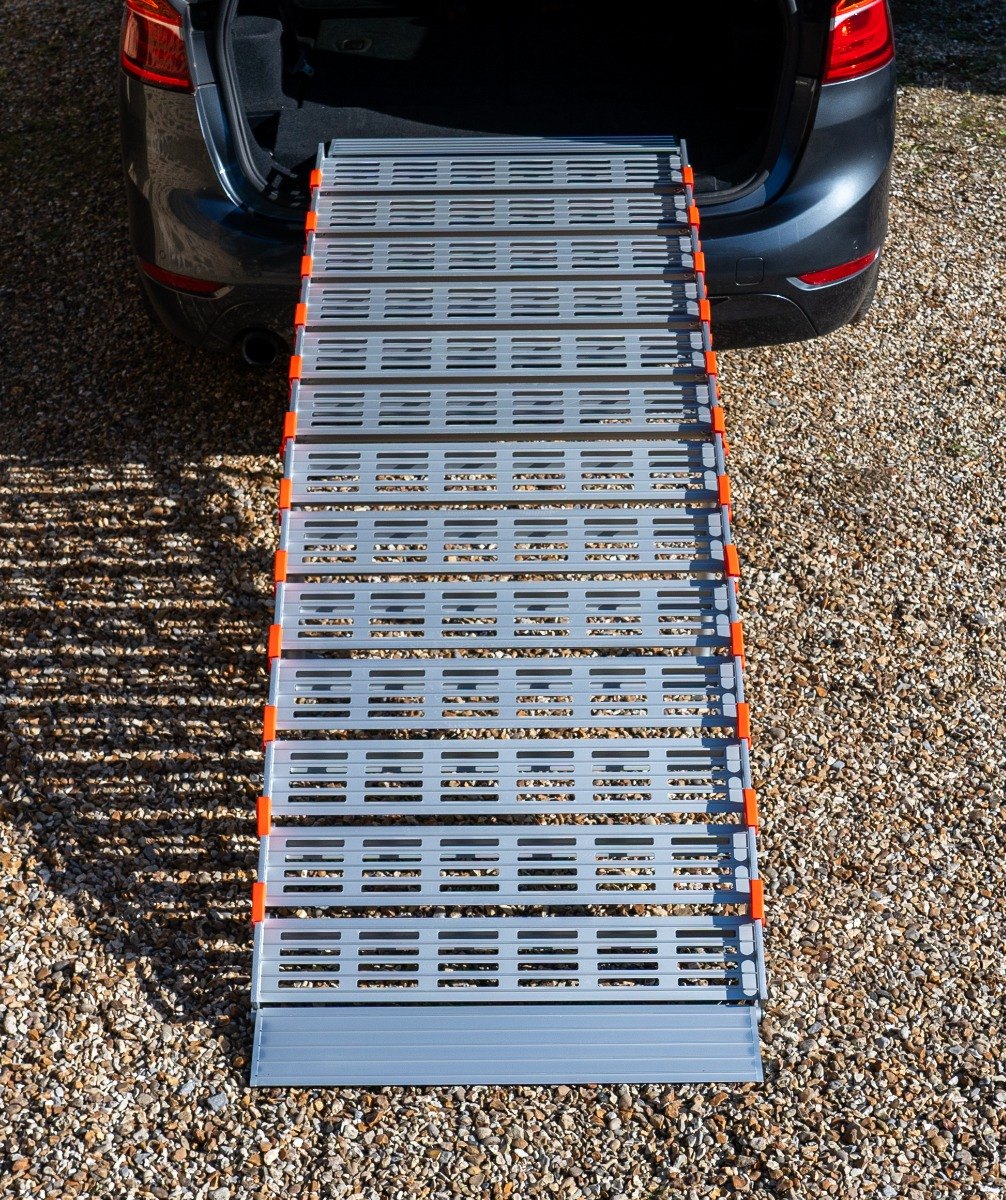

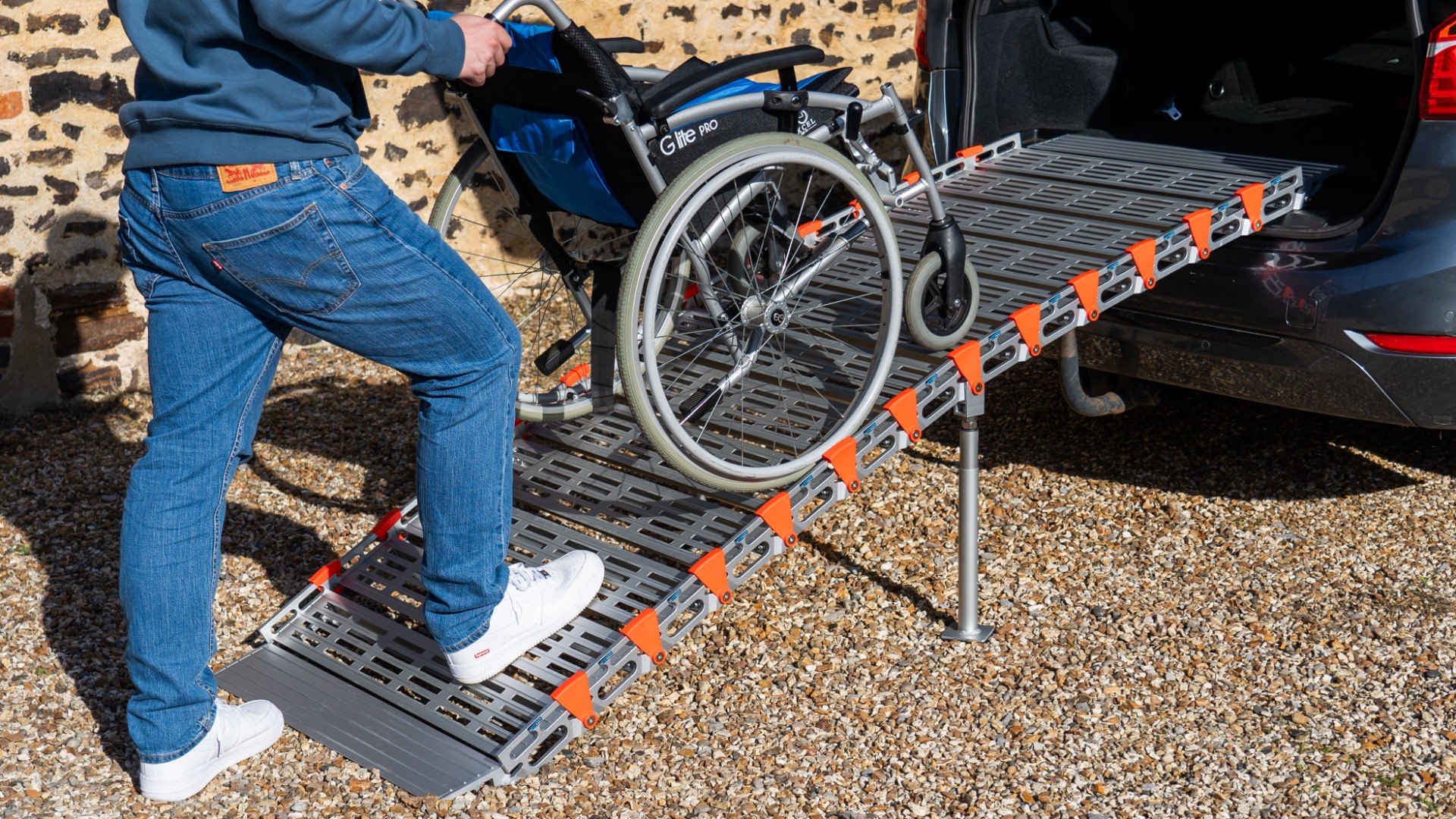

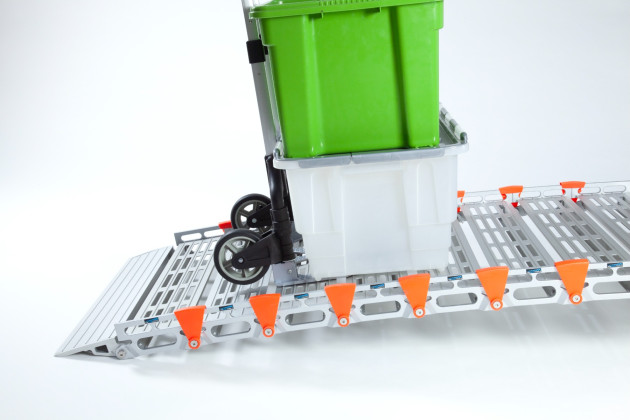

This 78.5cm wide RollAble Loading Ramp can be used both for commercial and private purposes. Featuring a capacity of 453kg, the aluminium loading ramp can be used for a variety of purposes including loading equipment, ATVs and motorbikes into vans, over steps and over kerbs.

The portable ramp can be rolled for storage and transportation. Where required sections can be removed or added to reduce or increase the ramp length.

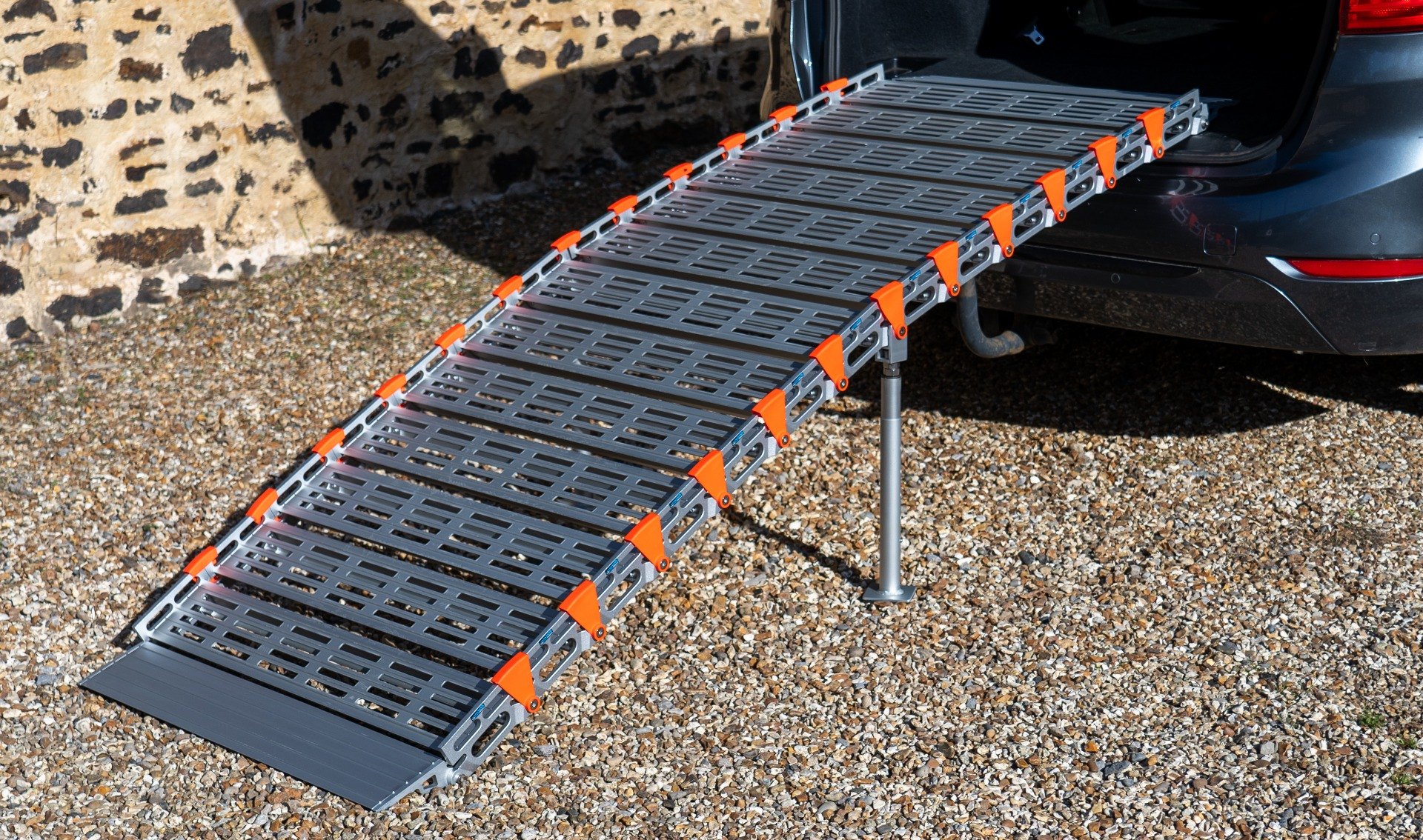

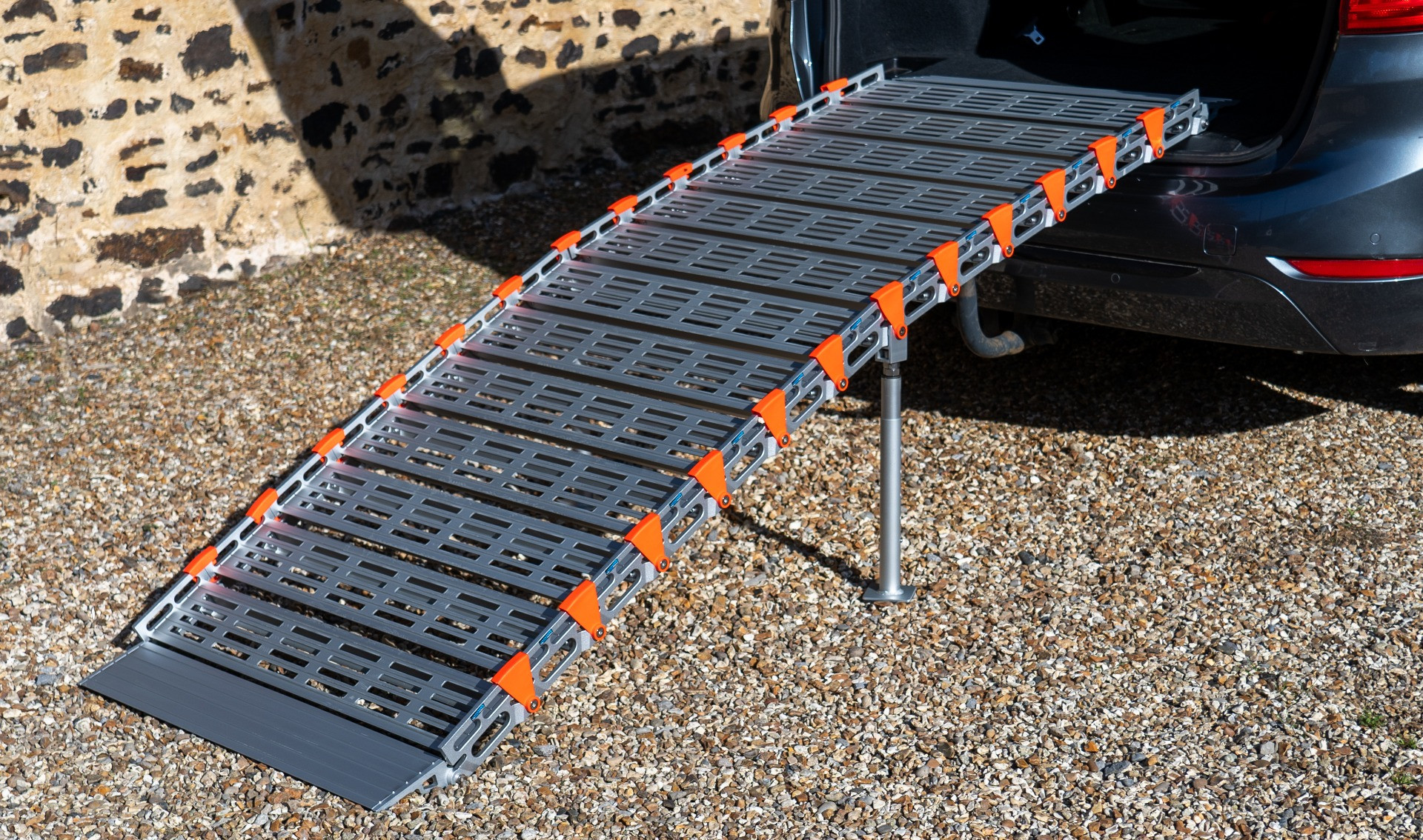

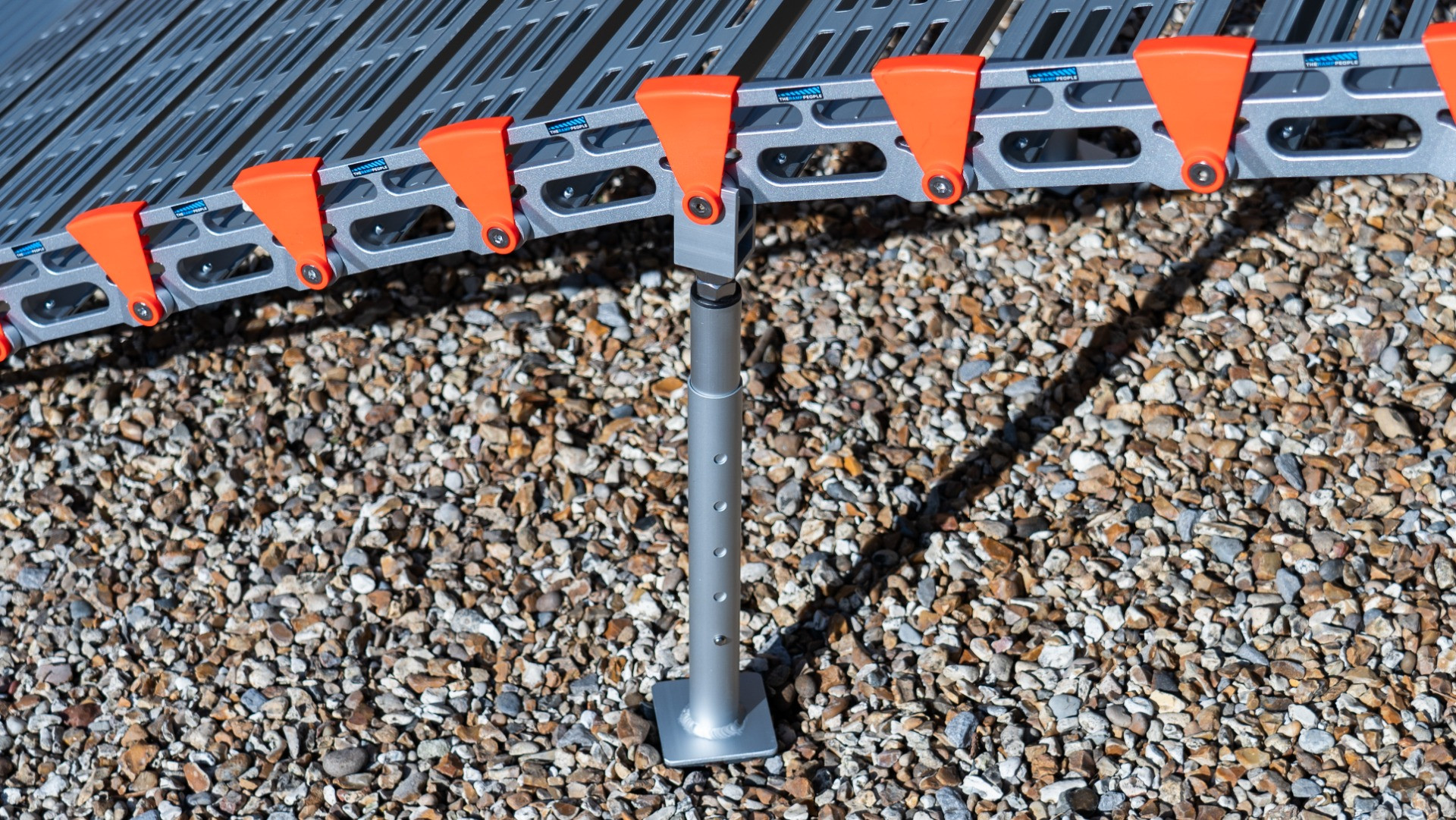

Adjustable support stands are included with ramps which are 2.4m or longer.

RollAble Ramps can be built at any length, please contact us if you need the ramps to be 16ft or longer.

Description

RollAble Ramp Logo

RollAble Ramp Features Include:

  • Constructed using high-tensile aluminium
  • RollAble Ramp is lightweight, flexible and highly portable

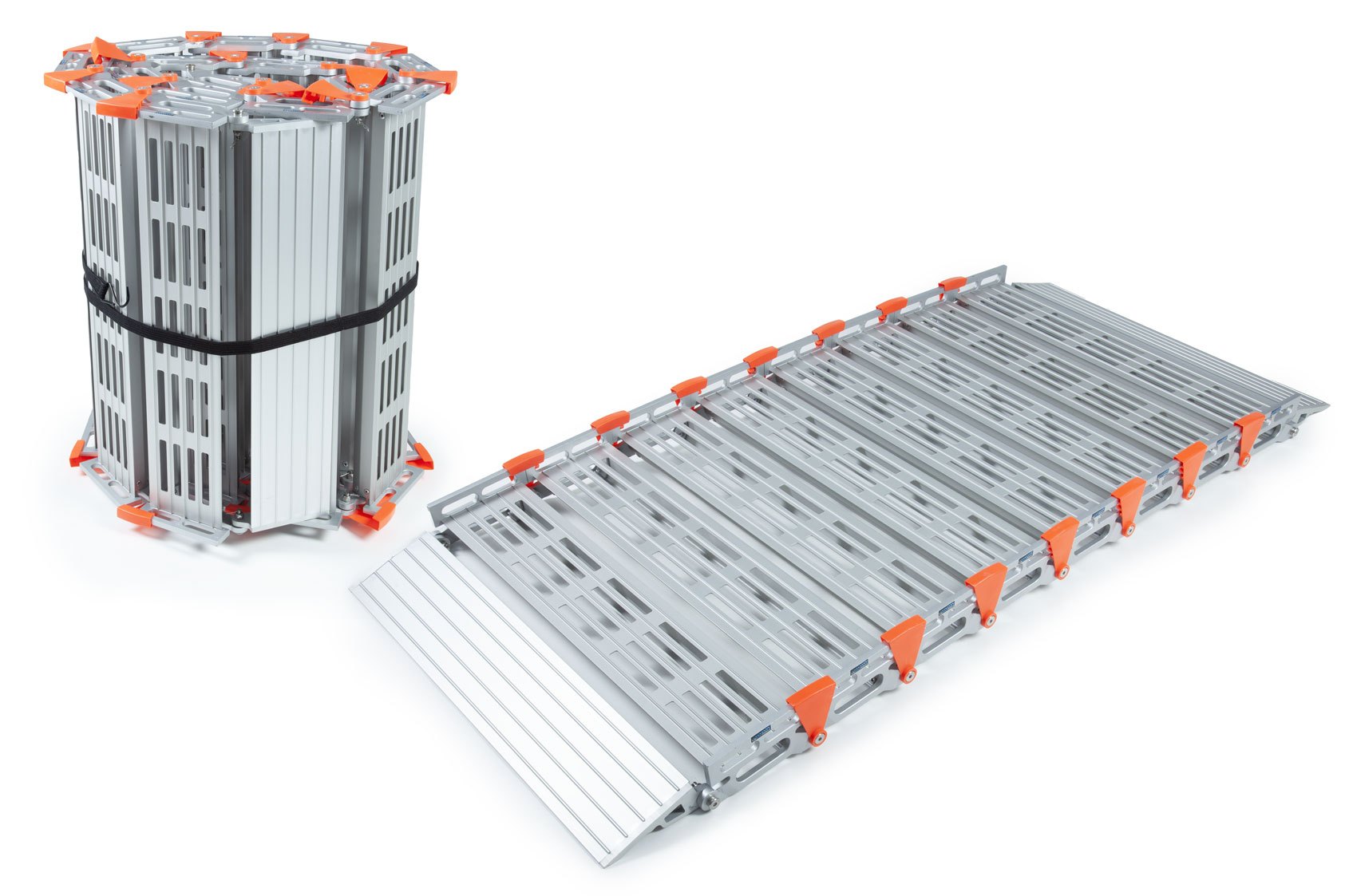

  • Roll Up Design for easy storage and transport, provided with a black safety strap
  • Lengths from 91cm to any length available

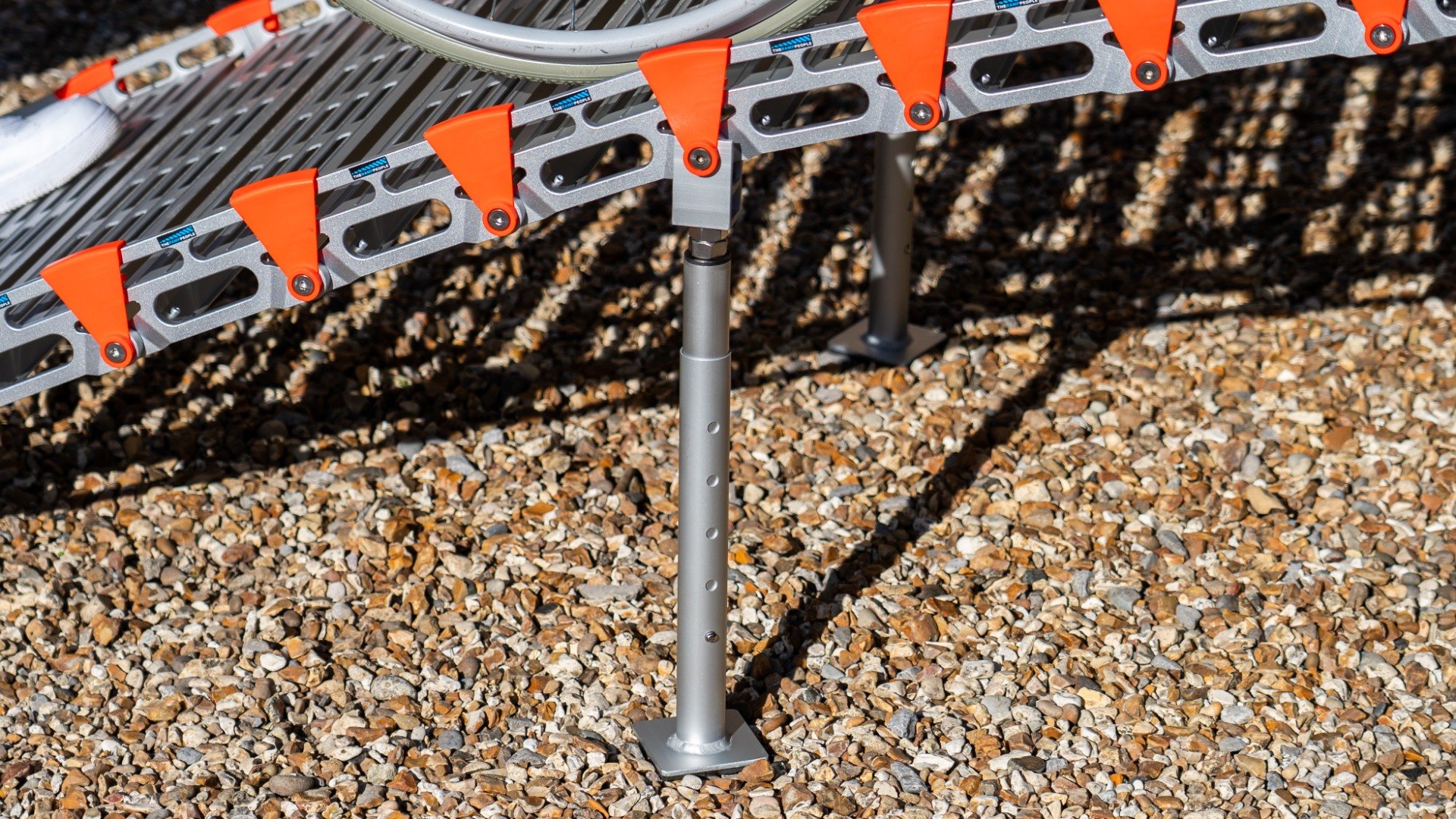

  • Lengths of 8ft / 2.4m and longer are provided with adjustable extra supports which are to be fitted by the customer on arrival
  • 453kg capacity
  • No installation is required, simply rest the ramp onto the step, kerb or van and start loading

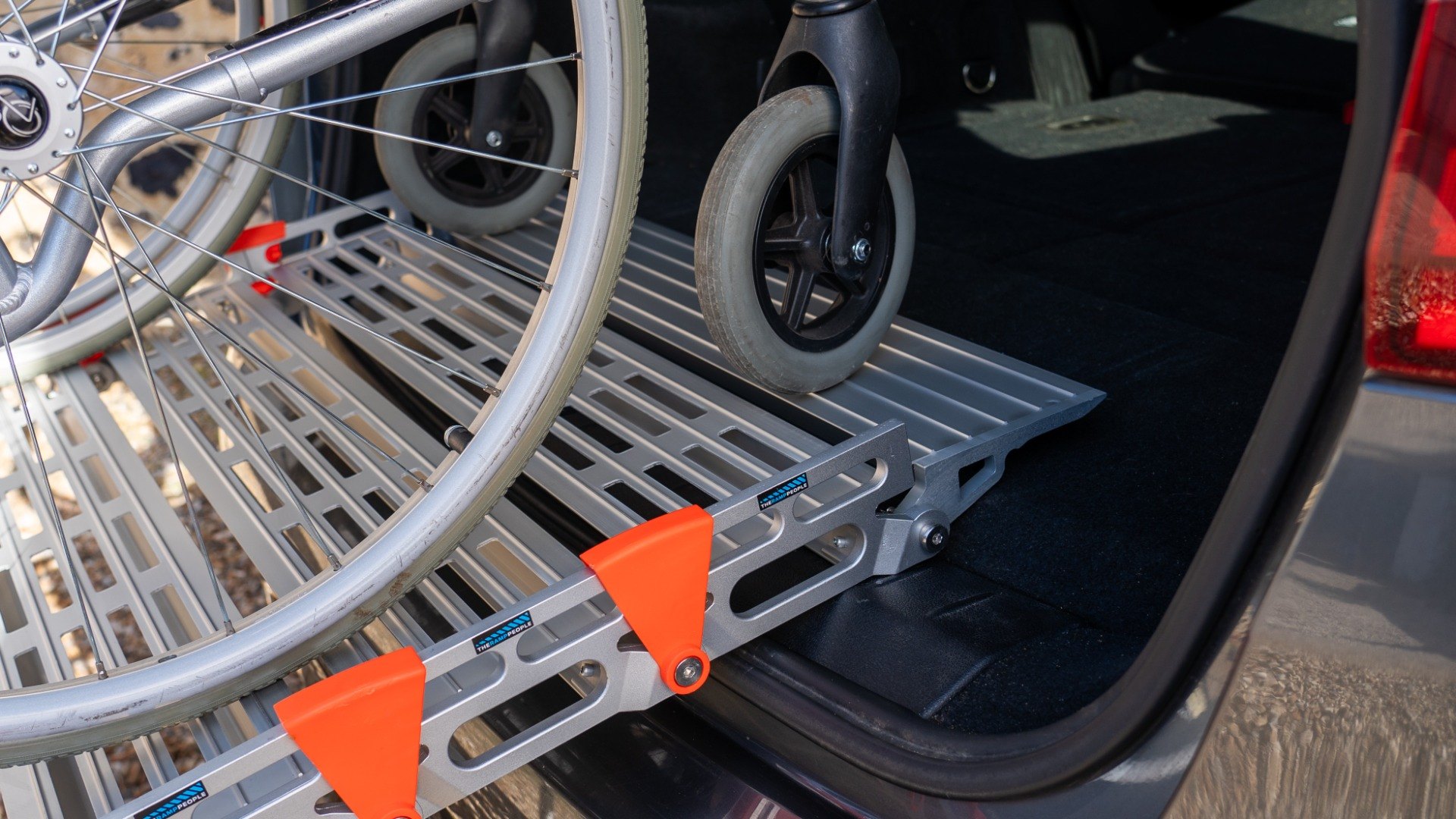

  • Suitable for overcoming steps, kerbs and gaining access to vehicles
  • 785mm external width, 740mm internal width

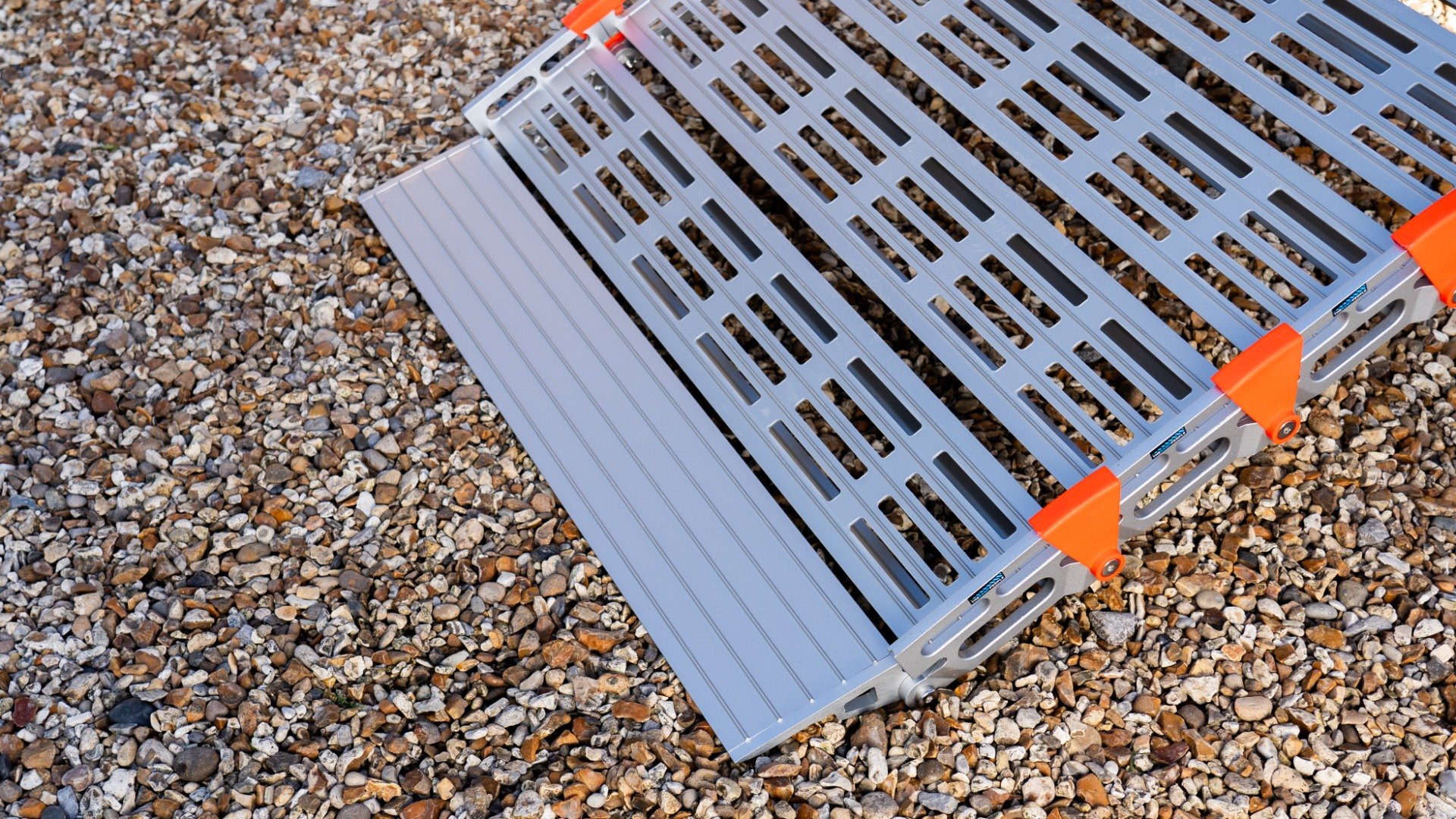

  • Smooth access onto the wheelchair ramp

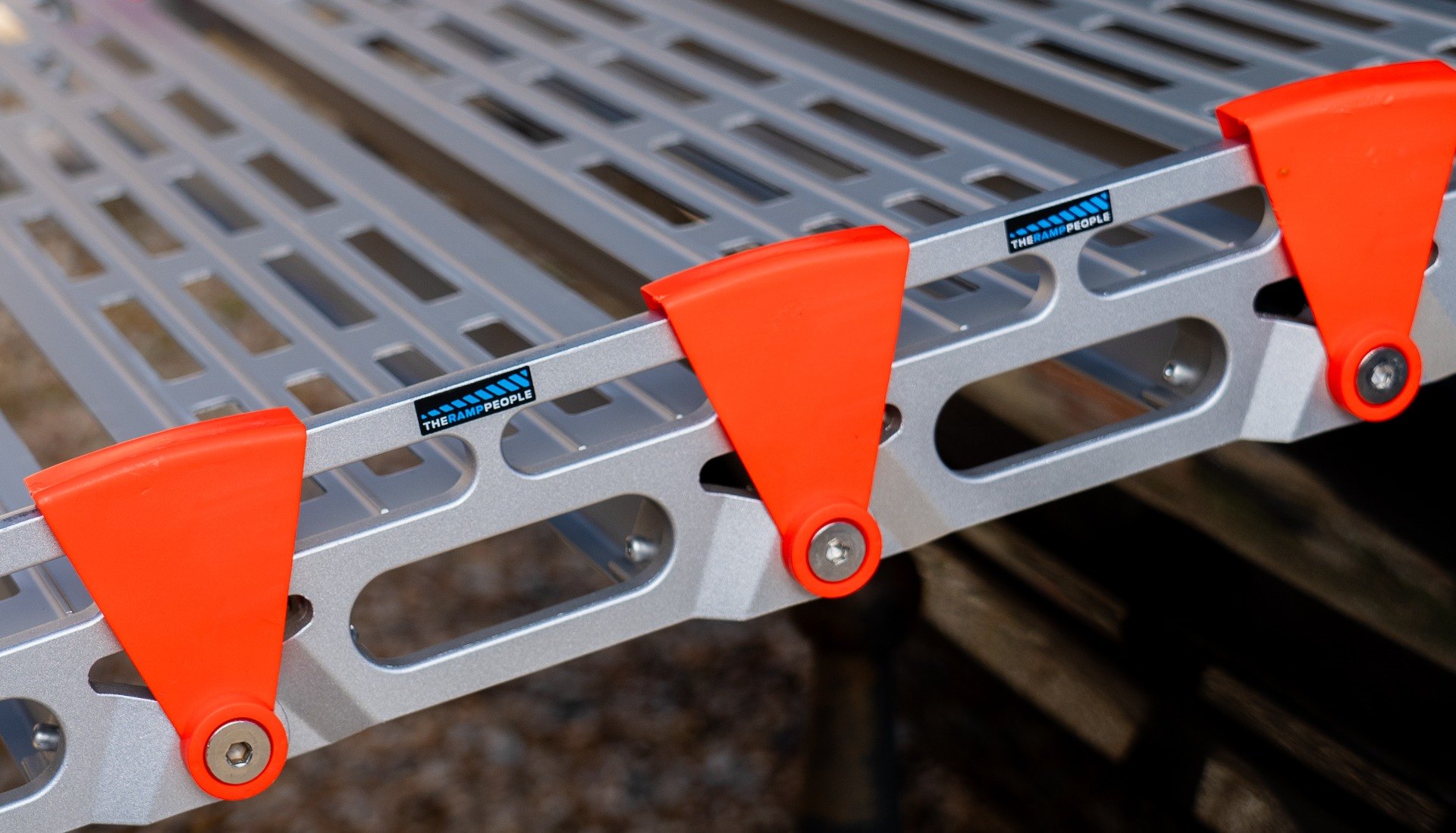

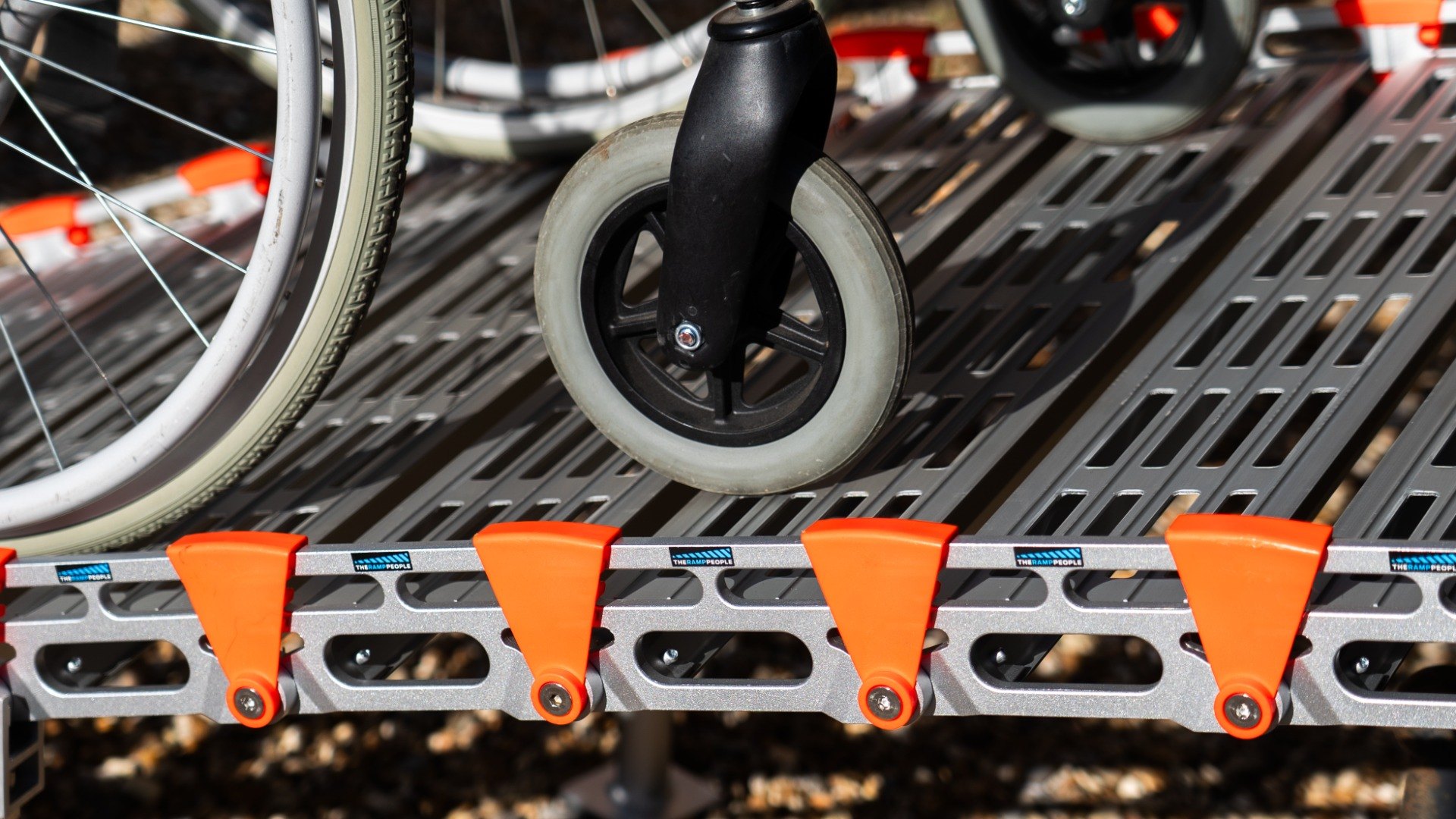

  • 30mm edges on each side of the ramp to prevent accidentally wheeling off
  • The safety edges are cut out to also act as handles to allow the ramp to easily be moved as required
  • Lightweight for easy handling and compliance with Health & Safety Guidelines
  • Add/remove sections to amend the ramp length as required, provided with a spanner and Allen key
  • CE marked

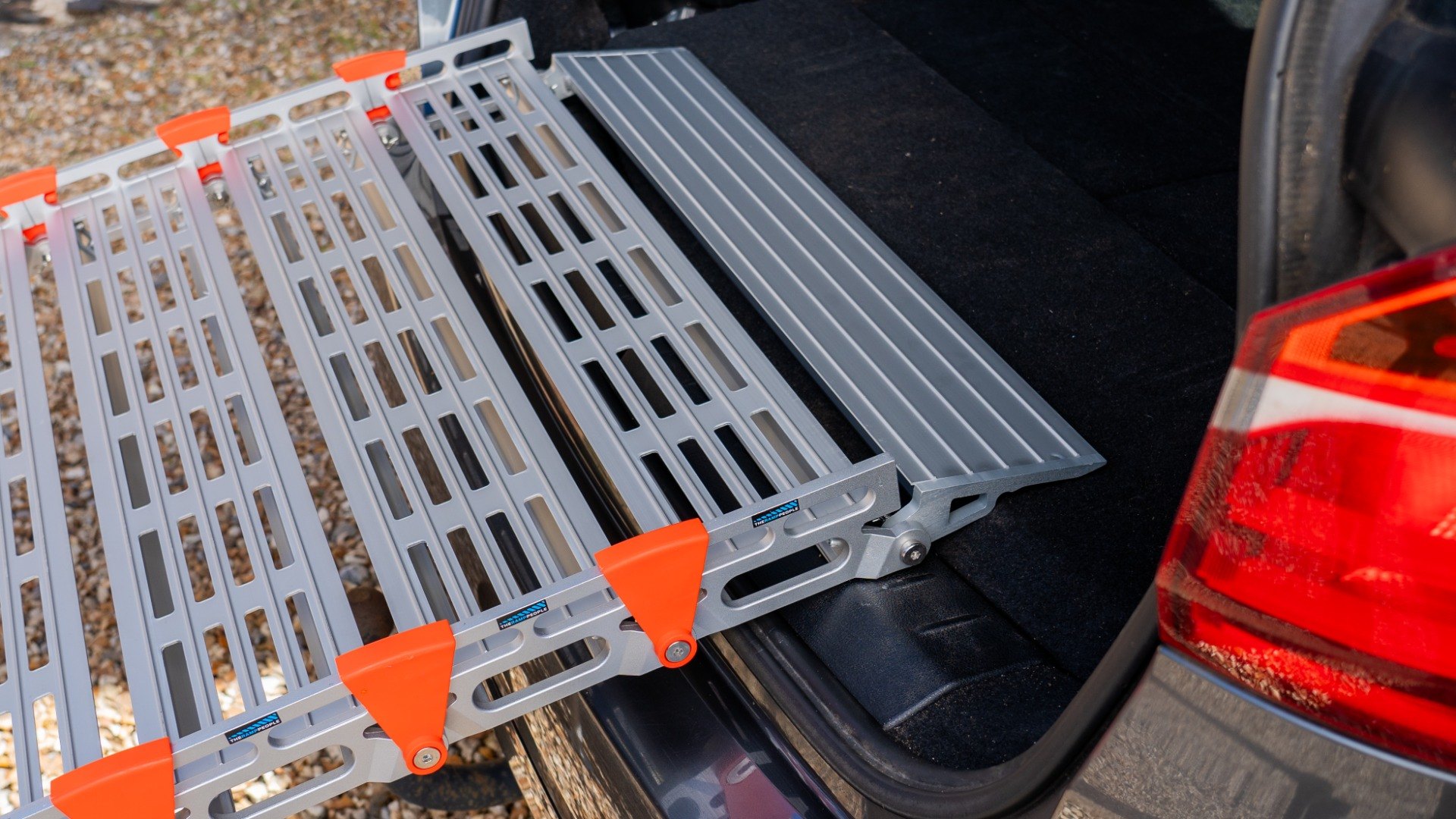

  • Please note the length of the rest on connection is larger on this ramp than other ramps (circa 28cm), the maximum load height is therefore lower than those of other loading ramps
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Not suitable for solid wheels
  • Not suitable for rubber wheels with a diameter of under 20cm
  • Please note some lengths are sent on a pallet with delivery to the kerbside only, if this is not suitable for you please let us know when ordering
  • Please note, this product is built to order so non-returnable/refundable

The RollAble Ramp user guide can be found here.

RollAble-Ramp, 785mm wide

91cm / 3ft

  • Length 914mm
  • Weight 9kg
  • Capacity 453kg
  • Rolled Diameter 355mm
  • Max. load height 184mm

121cm / 4ft

  • Length 1219mm
  • Weight 11.5kg
  • Capacity 453kg
  • Rolled Diameter 406mm
  • Max. load height 273mm

152cm / 5ft

  • Length 1524mm
  • Weight 14.5kg
  • Capacity 453kg
  • Rolled Diameter 457mm
  • Max. load height 367mm

182cm / 6ft

  • Length 1828mm
  • Weight 17.5kg
  • Capacity 453kg
  • Rolled Diameter 508mm
  • Max. load height 458mm

213cm / 7ft

  • Length 2133mm
  • Weight 22kg
  • Capacity 453kg
  • Rolled Diameter 558mm
  • Max. load height 550mm

243cm / 8ft

  • Length 2438mm
  • Weight 24.5kg
  • Capacity 453kg
  • Rolled Diameter 609mm
  • Max. load height 642mm

274cm / 9ft

  • Length 2743mm
  • Weight 27kg
  • Capacity 453kg
  • Rolled Diameter 660mm
  • Max. load height 733mm

304cm / 10ft

  • Length 3048mm
  • Weight 30kg
  • Capacity 453kg
  • Rolled Diameter 711mm
  • Max. load height 825mm

335cm / 11ft

  • Length 3352mm
  • Weight 33kg
  • Capacity 453kg
  • Rolled Diameter 762mm
  • Max. load height 916mm
  • Support Stands: Included

365cm / 12ft

  • Length 3657mm
  • Weight 36kg
  • Capacity 453kg
  • Rolled Diameter 812mm
  • Max. load height 1006mm
  • Support Stands: Included

396cm / 13ft

  • Length 3962mm
  • Weight 38.5kg
  • Capacity 453kg
  • Rolled Diameter 863mm
  • Max. load height 1099mm
  • Support Stands: Included

426cm / 14ft

  • Length 4267mm
  • Weight 43kg
  • Capacity 453kg
  • Rolled Diameter 914mm
  • Max. load height 1191mm
  • Support Stands: Included

457cm / 15ft

  • Length 4572mm
  • Weight 46kg
  • Capacity 453kg
  • Rolled Diameter 965mm
  • Max. load height 1282mm
  • Support Stands: Included

Video
Details
SKUTRP-RollAbleVan760
Capacity (kg)453
Edge Height (mm)30
Height (mm)75
Max Load Height (mm)1282
Weight (kg)9-45
Width (mm)760
One Year WarrantyYes
CustomisableYes
Easy to FitYes
High VisabilityYes
Not Solid WheelsYes
Leave OutsideYes
