Aluminium Loading Ramps (2500x400x7000kg)
2500mm length, 400mm width and a profile height of 140mm . These ramps include a maximum capacity of 7000kg, ideal for loading plant machinery and vehicles. These ramps are made from aluminium, which makes them exceptionally thin and lightweight. Please note these ramps require a min/max track or tyre width of 200mm/320mm.Capacity and price is for the PAIR.

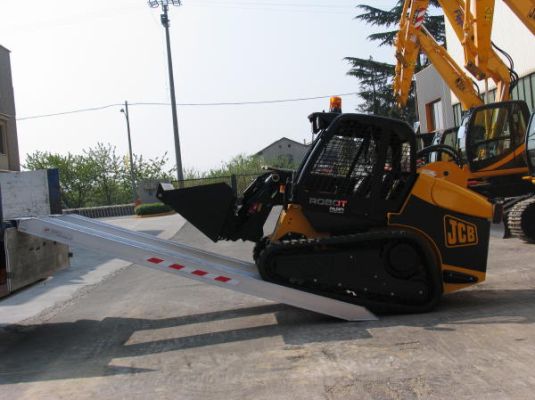

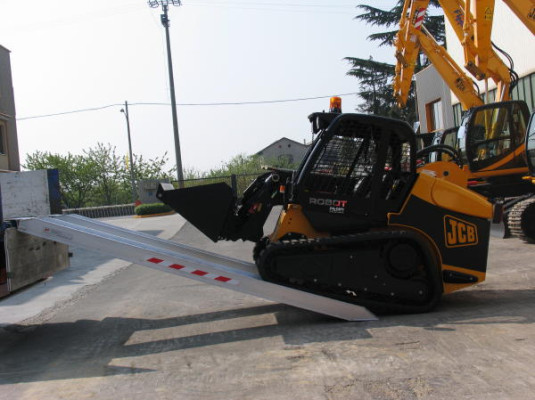

Some of our best selling medium to heavy duty plant ramp, the TRP140 Series has a core profile thickness of 140mm. The TRP140 Series has a width of 400mm, feature a capacity of up to 7000kg and are ideal for use as plant ramps, for digger ramps and for tele-handlers.
On the TRP140 series the minimum width of tracks/wheels is 200mm. These Ramps are not designed for use over a 30% gradient.
- These ramps are available both with and without edges. The default is however without edges
- Four different connection options available, however the default connection is the rest on connection
- Custom load heights available
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
- Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
- Fully TÜV certified
- Quotes for bespoke ramps can be supplied on request
Usage Guidelines and Safety Information for these ramps can be found here.
|Default Connection||Rest On Connection|
|Height of Ramps Profile (mm)||140|
|Max Load Height (mm)||750|
|Min. Load Height (mm)||600|
|Weight per Ramp (kg)||27.5|
|Weight Per Pair (kg)||55|
|Minimum Track Width (mm)||200|
|Maximum Track Width (mm)||320|
|One Year Warranty||Yes|
|Connection Options Available||Yes|
|Easy to Fit||Yes|
|Not Solid Wheels||Yes|
|Capacity Wheelbase 1000mm (kg)||5540|
|Capacity Wheelbase 1500mm (kg)||7000|
|Capacity Wheelbase 2000mm (kg)||7000|
