Aluminium Loading Ramps (3000x360)

SKU
TRP126/30

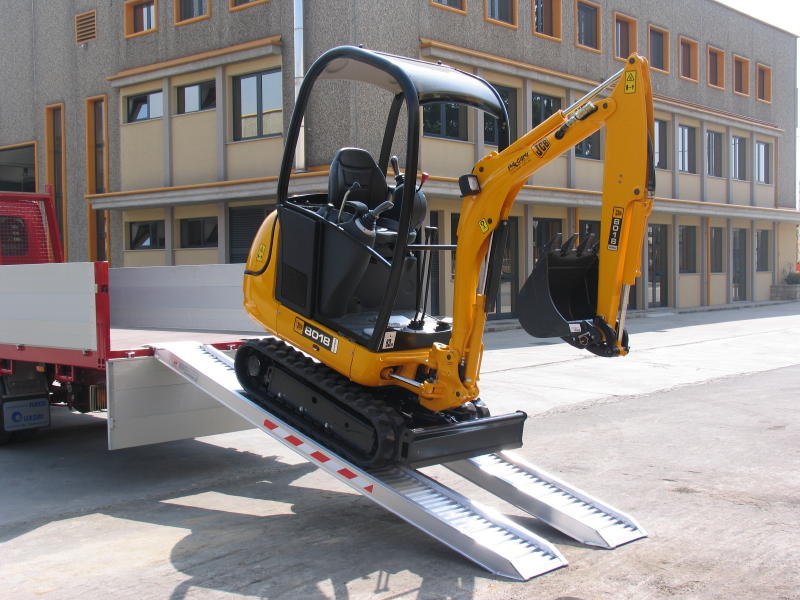

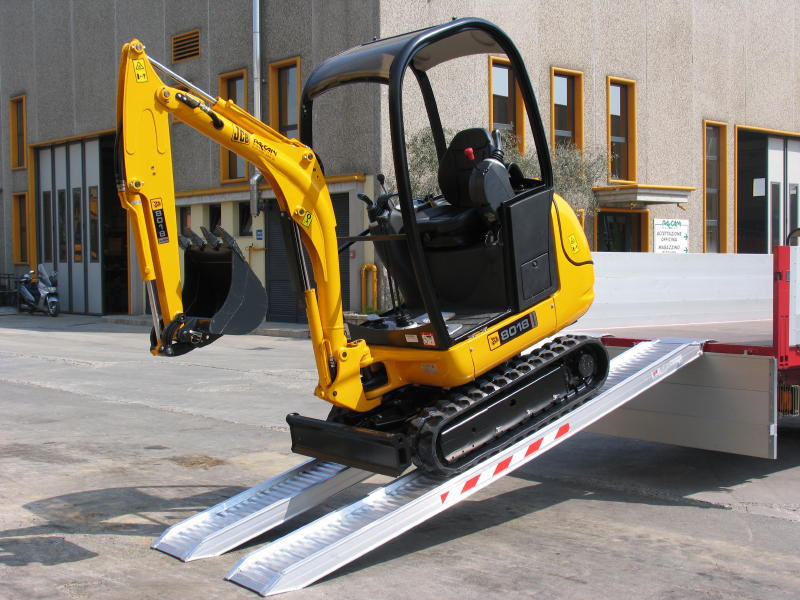

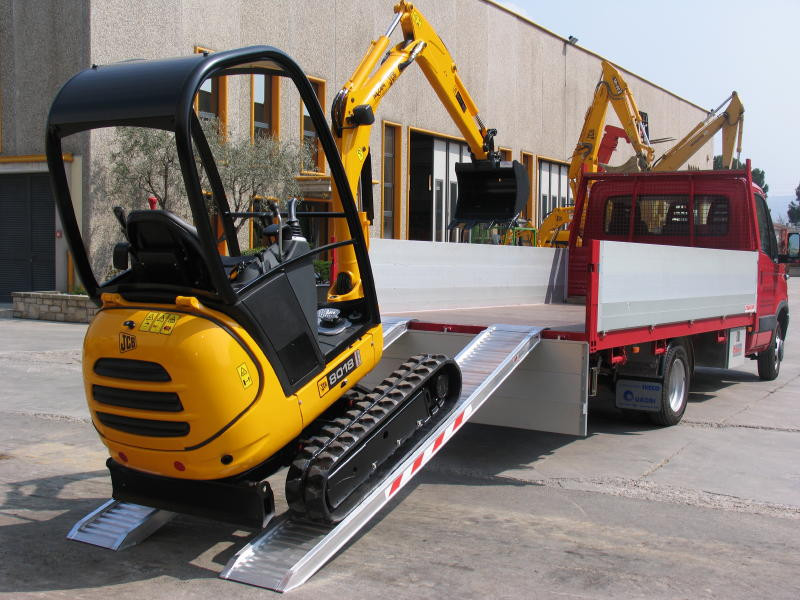

Aluminium loading ramps from The Ramp Factory are ideal for loading plant machinery, vehicles and professional loads.

Length (mm) 3000
Width (mm) 360
Max. Load Height (mm) 900
Min. Load Height (mm) 750
Weight Per Ramp (kg) 26
Profile Height (mm) 125
Minimum Track Width (mm) 200
Maximum Track Width (mm) 280
Capacity (kg) 6000

Capacity and price is for the PAIR.

£1,146.00 £955.00
In Stock

Aluminium Ramps for Plant & Machinery FAQs

Description

One of our best selling plant ramps, the TRP126 has a core profile thickness of 125mm. Their width is 360mm. They feature a capacity of up to 6000kg and are ideal for use as plant ramps and mini digger ramps.

On the TRP126 Series the minimum width of tracks/wheels is 200mm and these ramps are not designed for use over 30% gradient

  • These ramps are available both with and without edges. The default is however without edges
  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Quotes for bespoke ramps can be supplied on request
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Please note, the stated maximum weight capacities are only valid for vehicles where the weight is equally distributed – for vehicles where this is not the case, please contact us directly for assistance.
  • Fully TÜV certified

TUV Certification Image

Usage guidelines and safety information for our full vehicle ramp range can be found here.


Details
SKU TRP126/30
Default Connection Rest On Connection
Capacity (kg) 6000
Height of Ramps Profile (mm) 125
Length (mm) 3000
Max Load Height (mm) 900
Min. Load Height (mm) 750
Weight per Ramp (kg) 26
Weight Per Pair (kg) 52
Width (mm) 360
Minimum Track Width (mm) 200
Maximum Track Width (mm) 280
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 3435
Capacity Wheelbase 1500mm (kg) 4580
Capacity Wheelbase 2000mm (kg) 6000
