Aluminium Loading Ramps (3000x500x1330kg)

£990.00 £825.00
Built to Order
Ask A Question
Aluminium Loading Ramps (3000x500x1330kg)

SKU
TRP65/30L

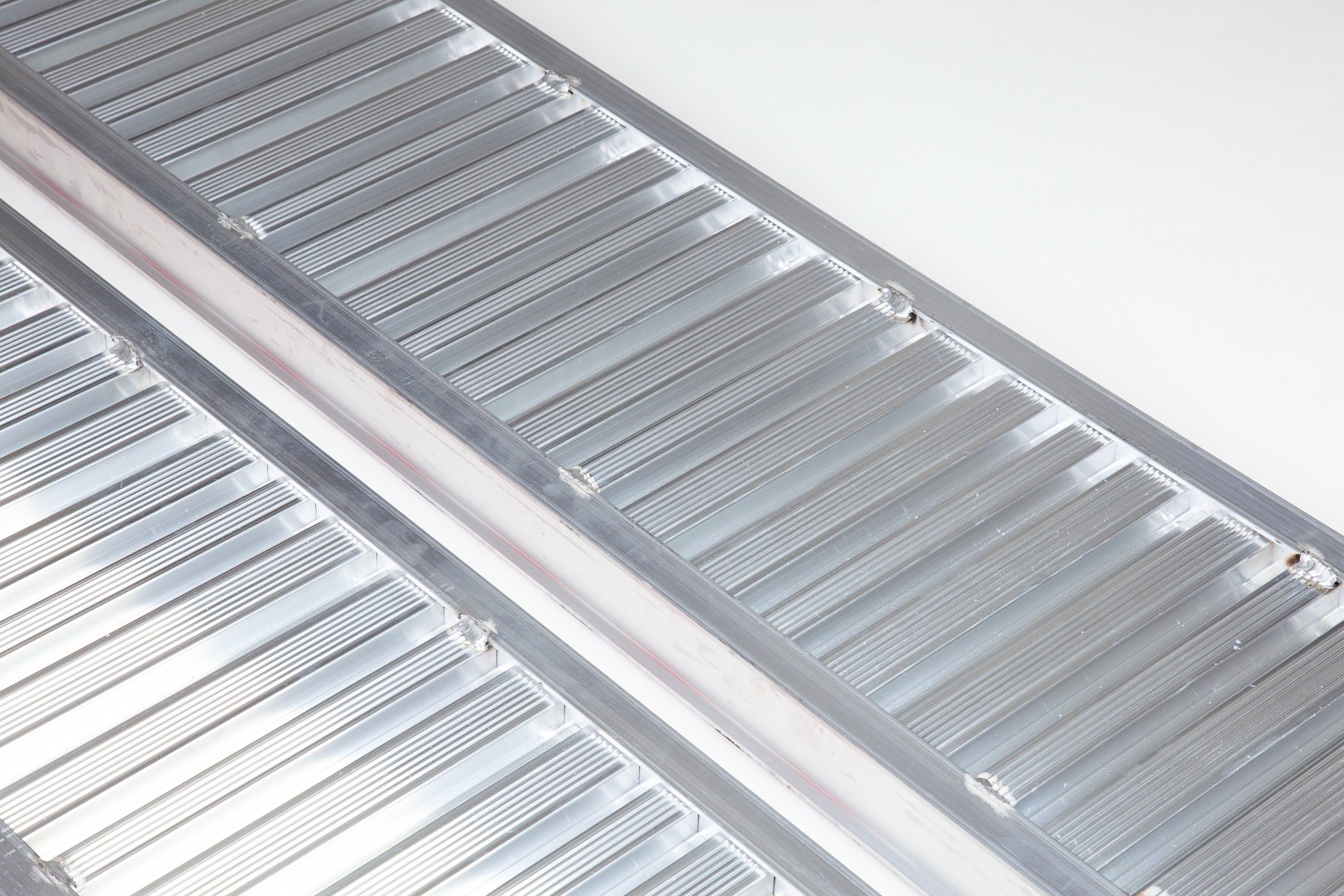

3000mm length, 500mm width and a profile height of 65mm . These ramps include a maximum capacity of 1330kg, ideal for loading plant machinery and vehicles. These ramps are made from aluminium, which makes them exceptionally thin and lightweight. Please note these ramps require a min/max track or tyre width of 300mm/420mm.

Capacity and price is for the PAIR.

Aluminium Ramps for Plant & Machinery FAQs

  • Connection Options
  • Customisable
  • Easy to Fit
  • European Made
  • Not for Solid Wheels
  • One Year Warranty
Description

The TRP65L Series has a core profile thickness of 65mm and a width of 500mm. On the TRP65L Series the minimum width of tracks/wheels is 300mm.

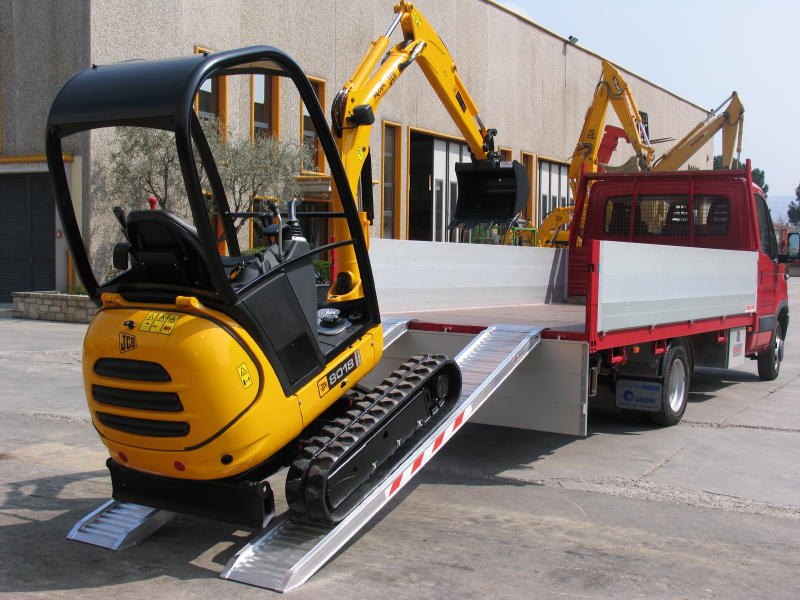

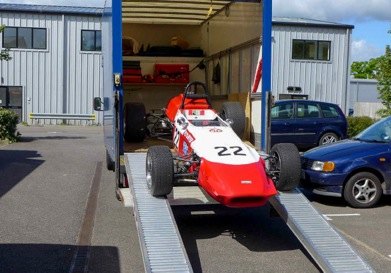

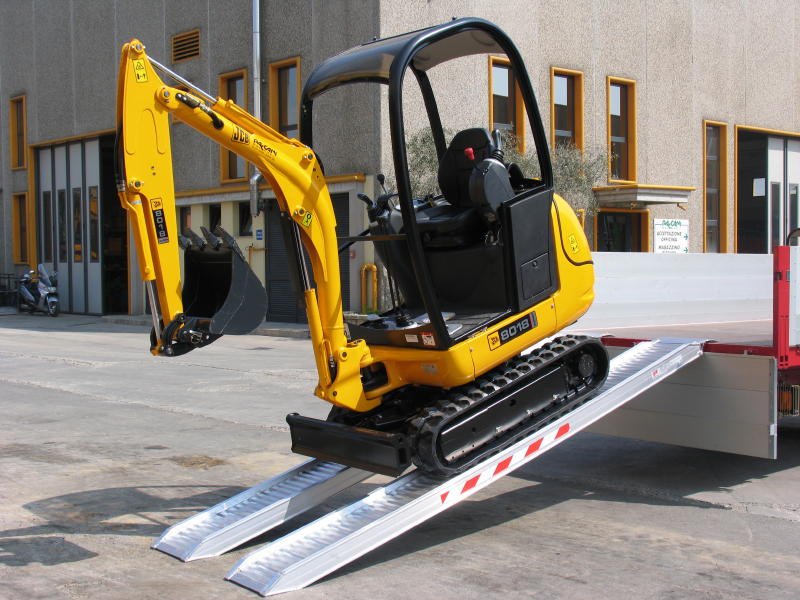

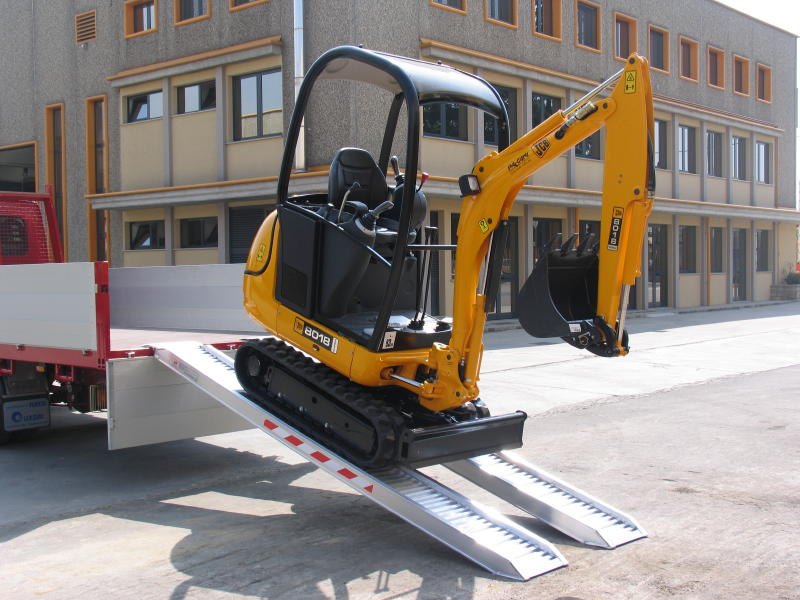

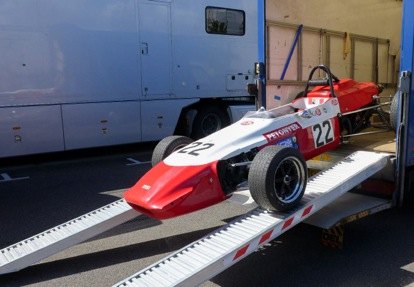

They feature a capacity of up to 1330kg and are ideal for use as car ramps or lightweight plant ramps.

Designed for a maximum gradient of 30%

  • These ramps are available both with and without edges, the default is however without edges
  • Four different connection options available, however the default connection is the rest on connection
  • Custom load heights available
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Quotes for bespoke ramps can be supplied on request
  • Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
  • Fully TÜV certified

TUV Certification Image



Usage guidelines and safety information for our full vehicle ramp range can be found here.

Details
SKU TRP65/30L
Default Connection Rest On Connection
Capacity (kg) 1330
Height of Ramps Profile (mm) 65
Length (mm) 3000
Max Load Height (mm) 900
Min. Load Height (mm) 750
Weight per Ramp (kg) 21,5
Weight Per Pair (kg) 43
Width (mm) 500
Minimum Track Width (mm) 300
Maximum Track Width (mm) 420
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Not Solid Wheels Yes
Capacity Wheelbase 1000mm (kg) 1000
Capacity Wheelbase 1250mm (kg) 1140
Capacity Wheelbase 1500mm (kg) 1330
