Aluminium Loading Ramps (4000x580x10620kg)

SKU

TRP201/40

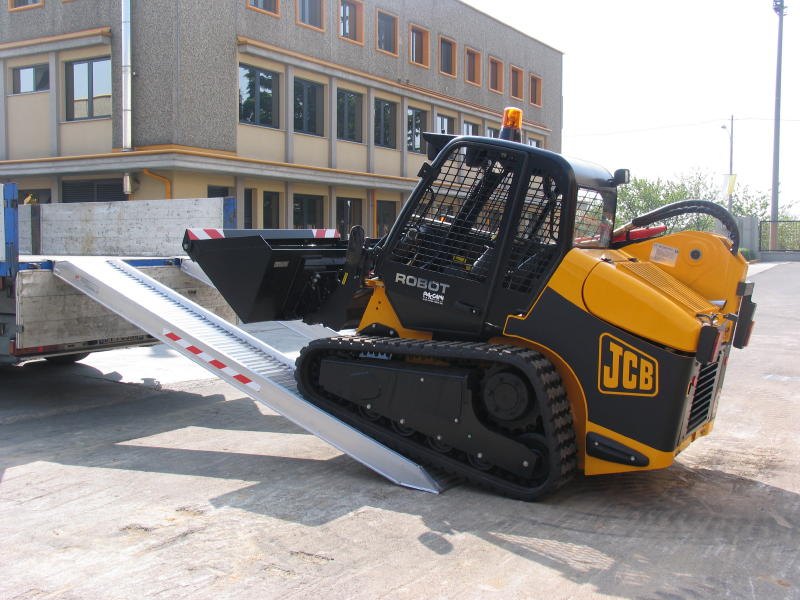

580mm wide x 4000mm long, with a 200mm profile thickness. Featuring a maximum capacity of 10,620kg, this is one of our heaviest duty ramps and is ideal for use as an industrial plant ramp or heavy duty commercial ramp. Please note the minimum track width is 300mm. Custom built sizes are available on request. Price and capacity stated is for the PAIR.

£2,724.00 £2,270.00

Built to Order

Aluminium Ramps for Plant & Machinery FAQs

Description

The TRP201 Series core profile thickness is 200mm.
At 580mm these ramps are over half a metre wide, feature a capacity of up to 10620kg and are ideal for use as industrial plant ramps and as heavy duty commercial ramps.

On the TRP201 series the minimum width of tracks/wheels is 300mm.

These ramps are available both with and without edges. The default is however without edges
Four different connection options
Custom load heights available
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
Not suitable for solid wheels found on road surfacing machines - for this type of machinery please see the industrial ramps for steel tracks
Quotes for bespoke ramps can be supplied on request
Fully TÜV certified

TUV Certification Image

Usage guidelines and safety information for our full vehicle ramp range can be found here.

Details

SKU	TRP201/40
Capacity (kg)	10620
Height of Ramps Profile (mm)	200
Length (mm)	4000
Max Load Height (mm)	1200
Min. Load Height (mm)	1050
Weight per Ramp (kg)	80.5
Weight Per Pair (kg)	161
Width (mm)	580
Minimum Track Width (mm)	300
Maximum Track Width (mm)	480
One Year Warranty	Yes
Connection Options Available	Yes
Customisable	Yes
Easy to Fit	Yes
European Made	Yes
Not Solid Wheels	Yes
Capacity Wheelbase 1000mm (kg)	7080
Capacity Wheelbase 1500mm (kg)	8500
Capacity Wheelbase 2000mm (kg)	10620

Print/Save Datasheet

Ramp Length & Load Height Information

Ramp Capacity, Length & Load Height

This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.

Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.

Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).

For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load height x 3.3, gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.

Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase. For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.

For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.

Further information can be seen in this blog article here
