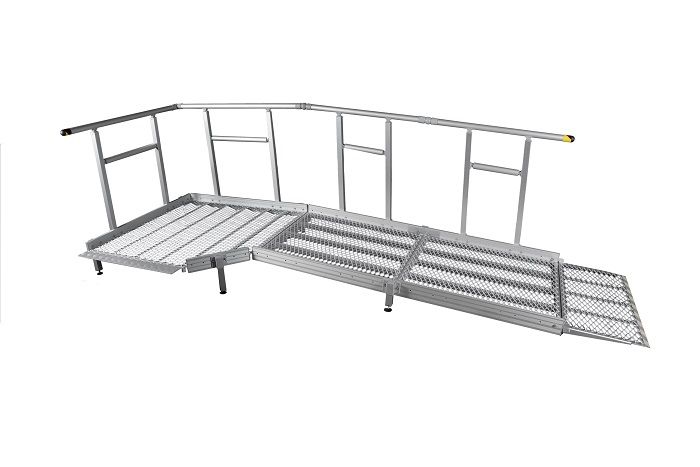

Aluminium Modular Ramp Kit with Platform and Handrails - 1300mm x 1000mm ramp section

SKU
TRP-FMS130-1000H
£4,392.00 £3,660.00
Built to Order

Our Aluminium Modular Ramp Kit is provided in a length of 1000mm. The usable width is 1300mm and the ramp includes a 400kg capacity. The European produced ramp, which is suitable for manual wheelchairs and electric wheelchairs, includes a mesh anti-slip surface and double handrails.

The advised gradient will be 1:15, although the ramp system can be set on a maximum gradient of 1:10.

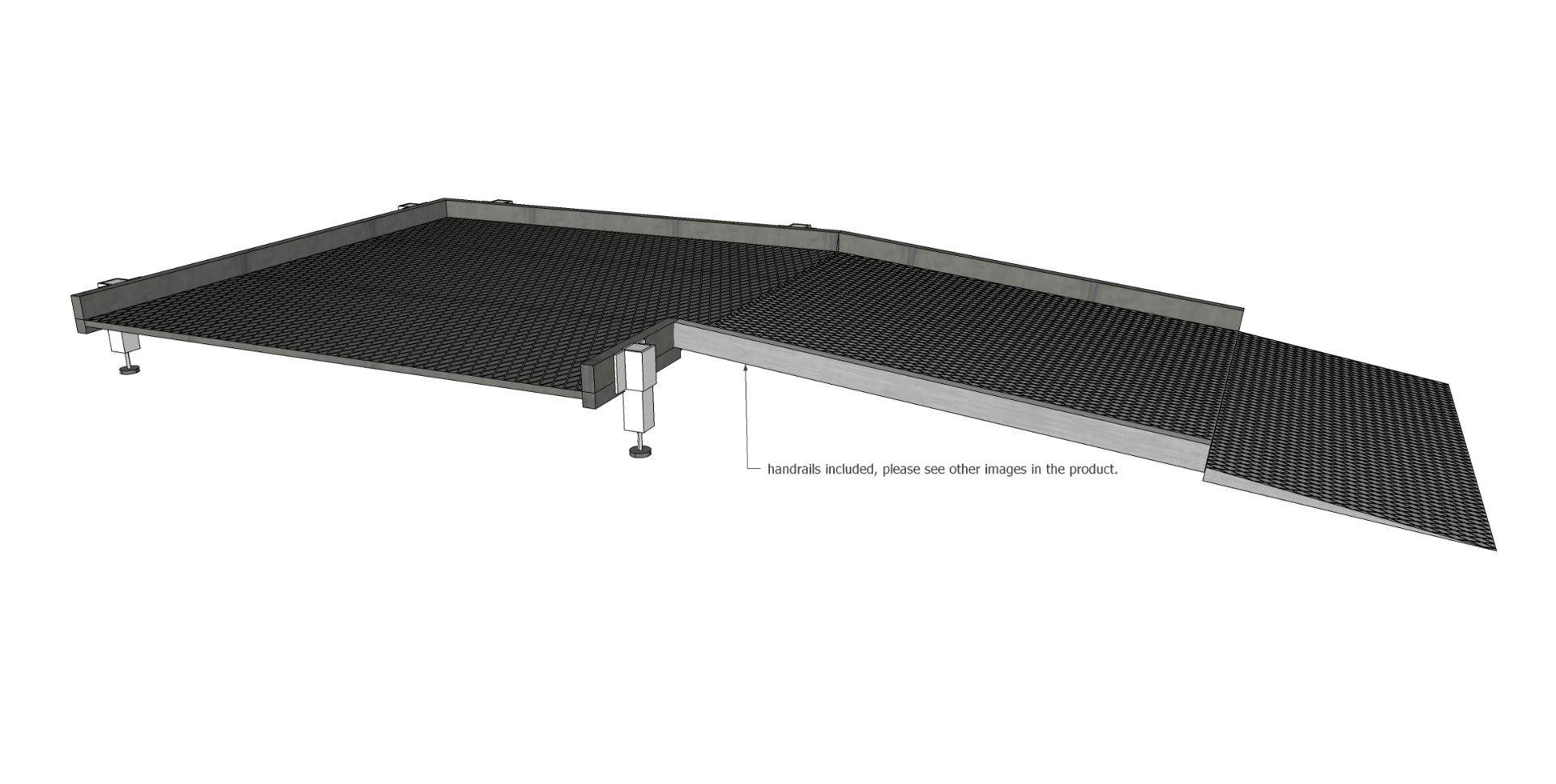

Handrails included, please see other images in the product. Upon purchase, please confirm left or right turn after door.

Modular Wheelchair Ramps FAQ's

Description

Modular Wheelchair Ramp Systems - Legal Compliance

These systems are designed to be both portable and semi-permanent/temporary - therefore they do not need to comply with building regulations (Part M or Part K). If you require your system to be compliant please contact our team as this is something we can provide but the specification would need to be altered.

Modular Whelechair Ramp Kit, 1000mm long, 1300mm wide, with double-height handrails and a  mesh anti-slip surface.

Kit includes:

  • Lead In Ramp: 1300mm wide x 450mm long
  • Ramp Section: 1000mm long x 1300mm wide
  • Platform : 1500mm x 1500mm
  • Handrails: double horizontal handrials included
  • Connection to step/threshold: 1500mm wide x 200mm long; can be ordered cut to size if required. The necessary door measurements can be found here.
  • All pictures shown are for illustration purposes only. The actual product may vary due to product enhancement
  • Made in Europe
  • Suitable for manual wheelchairs, electric wheelchairs, scooters and walkers

Not available for Northern Ireland.

All instructions and a video for assembling the system can be found here.


Details
SKU TRP-FMS130-1000H
Capacity (kg) 400
Internal Width (mm) 1300
Length (mm) 1000
Total Width (mm) 1390
Three Year Warranty Yes
Customisable Yes
Easy to Fit Yes
Electric Wheelchair Yes
European Made Yes
Fixings Included Yes
Manual Wheelchair Yes
Mobility Scooter Friendly Yes
Leave Outside Yes
