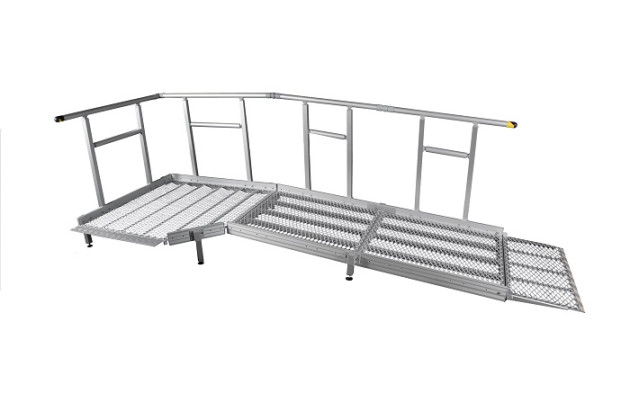

Aluminium Modular Ramp Kit with Platform and Handrails -1300mm x 2500mm ramp section

SKU
TRP-FMS130-2500H
£6,156.00 £5,130.00
Built to Order

Modular Ramp System, 2500mm long ramp section, 1300mm ramp usable width, with double height handrails and mesh anti-slip surface.

Advised gradient will be 1:15, although the ramp system can be set on a maximum gradient of 1:10

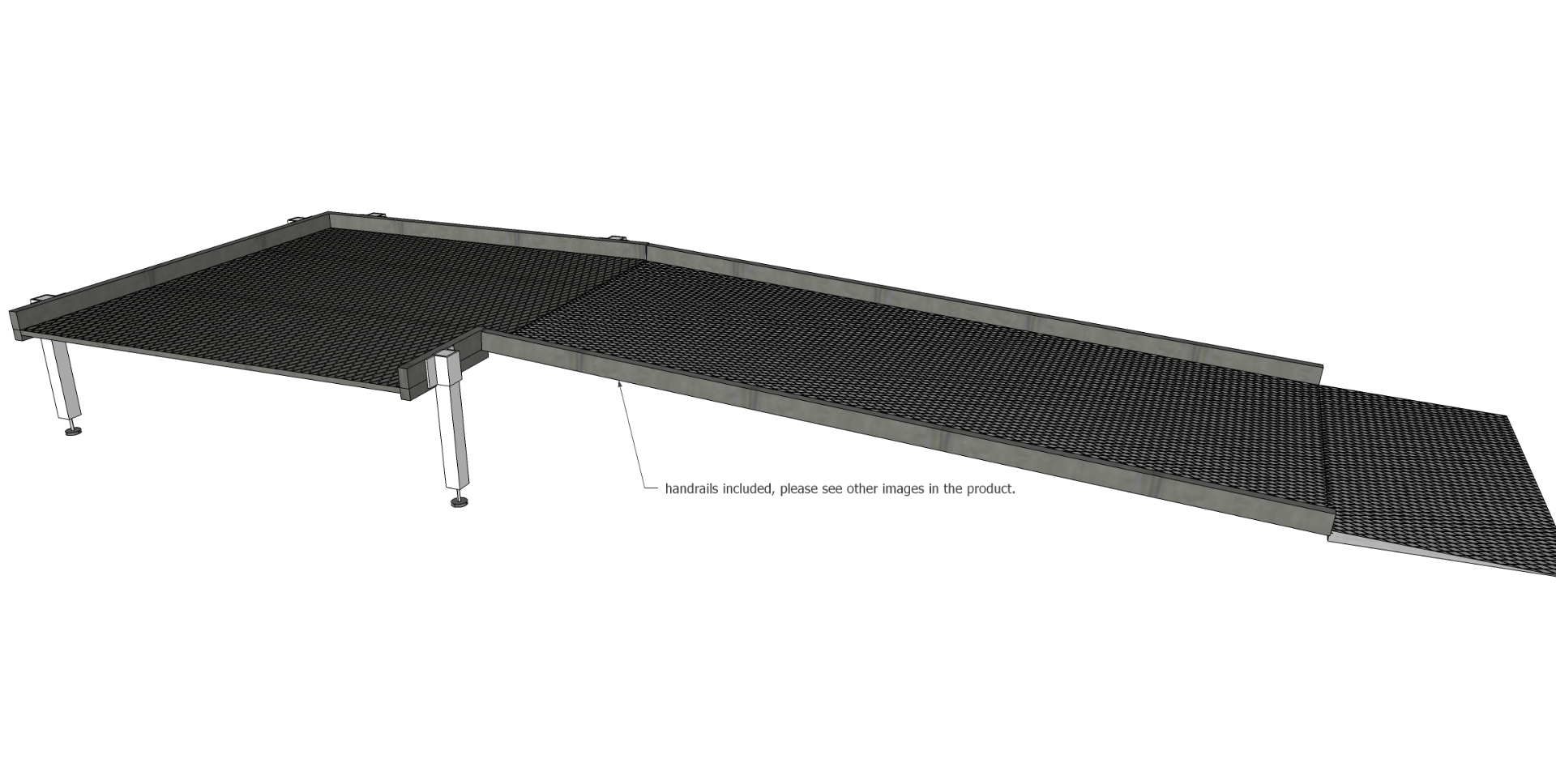

Handrails included, please see other images in the product. Upon purchase, please confirm left or right turn after door.

Modular Wheelchair Ramps FAQ's

Description

Modular Wheelchair Ramp Systems - Legal Compliance

These systems are designed to be both portable and semi-permanent/temporary - therefore they do not need to comply with building regulations (Part M or Part K) - if you require your system to be compliant please get in contact as this something we can provide but the specification would need to be altered.

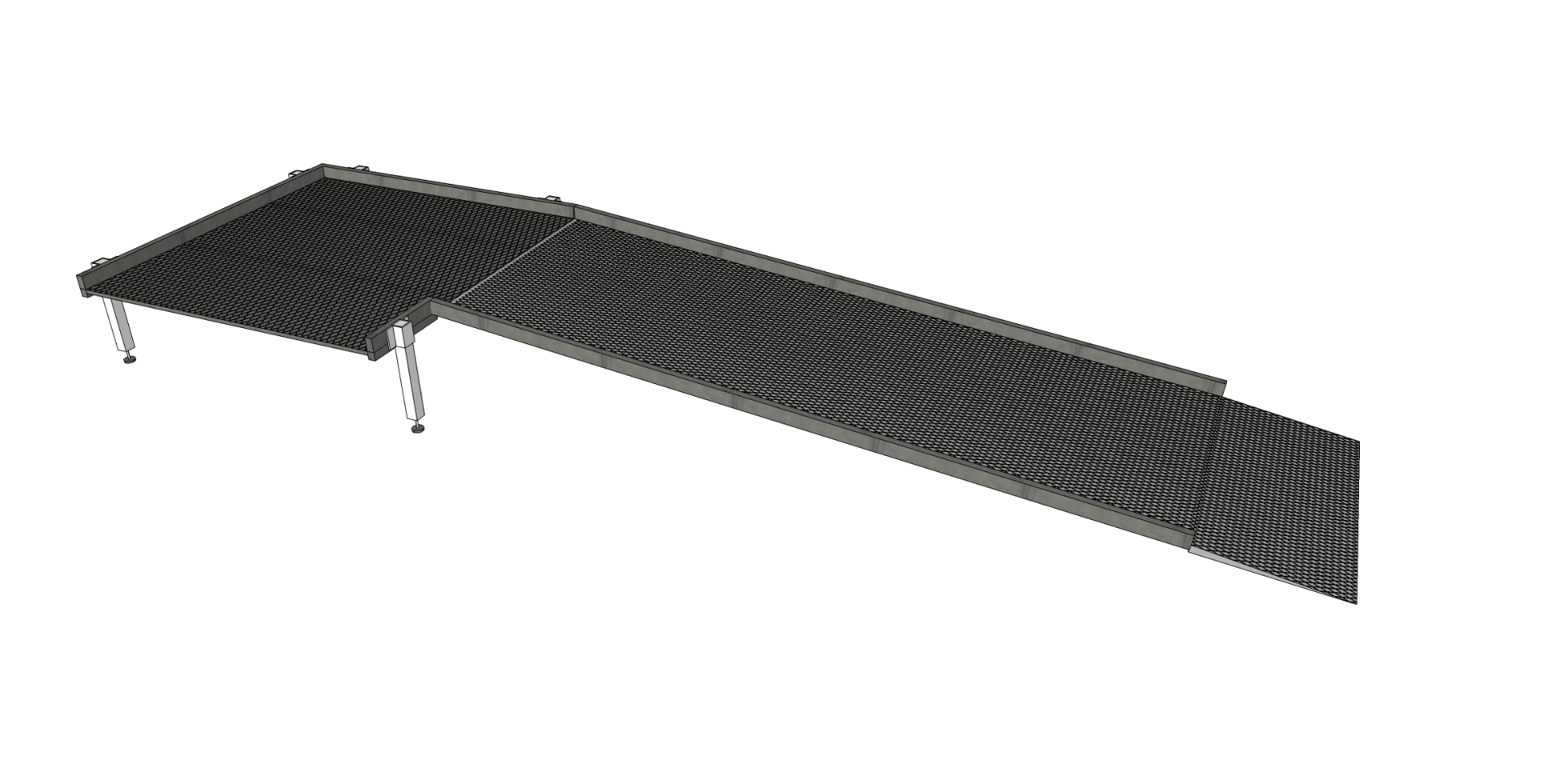

Modular Ramp Kit, 2500mm long, 1300mm wide, with double height handrails and mesh anti-slip surface.

Kit includes:

  • Lead In Ramp: 1300mm wide x 450mm long
  • Ramp Section: 2500mm long x 1300mm wide
  • Platform : 1500mm x 1500mm
  • Handrails: double horizontal handrials included
  • Connection to step/threshold: 1500mm wide x 200mm long; can be ordered cut to size if required. The necessary door measurements can be found here.
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

Not available for Northern Ireland.

All instructions and a video for assembling the system can be found here.


Details
SKUTRP-FMS130-2500H
Product Safety GPSRpopup_gpsr_importer
Capacity (kg)400
Internal Width (mm)1300
Length (mm)2500
Total Width (mm)1390
Three Year WarrantyYes
CustomisableYes
Easy to FitYes
Electric Wheelchair Yes
European MadeYes
Fixings IncludedYes
Manual WheelchairYes
Mobility Scooter FriendlyYes
Leave OutsideYes
