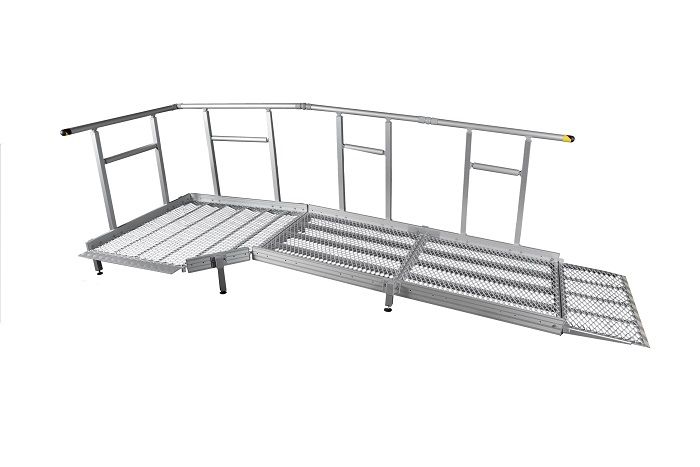

Aluminium Modular Ramp Kit with Platform and Handrails - 900mm x 4000mm ramp section

SKU
TRP-FMS90-4000H

Modular Ramp System, 4000mm long ramp section, 900mm ramp usable width, with double height handrails and mesh anti-slip surface.

Advised gradient will be 1:15, although the ramp system can be set on a maximum gradient of 1:10

Handrails included, please see other images in the product. Upon purchase, please confirm left or right turn after door.

£5,628.00 £4,690.00
Built to Order

Modular Wheelchair Ramps FAQ's

Description

Modular Wheelchair Ramp Systems - Legal Compliance

These systems are designed to be both portable and semi-permanent/temporary - therefore they do not need to comply with building regulations (Part M or Part K) - if you require your system to be compliant please get in contact as this something we can provide but the specification would need to be altered.

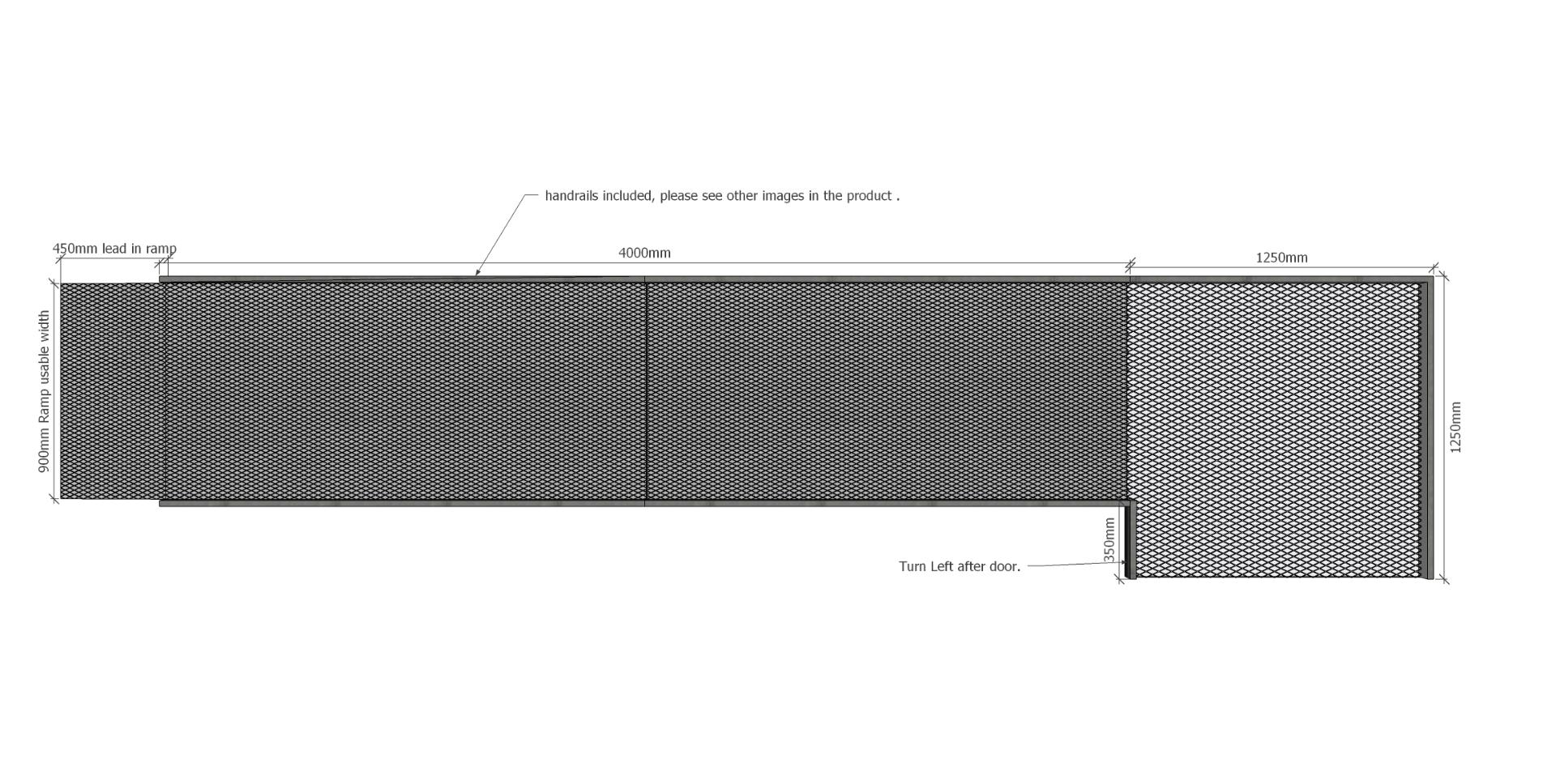

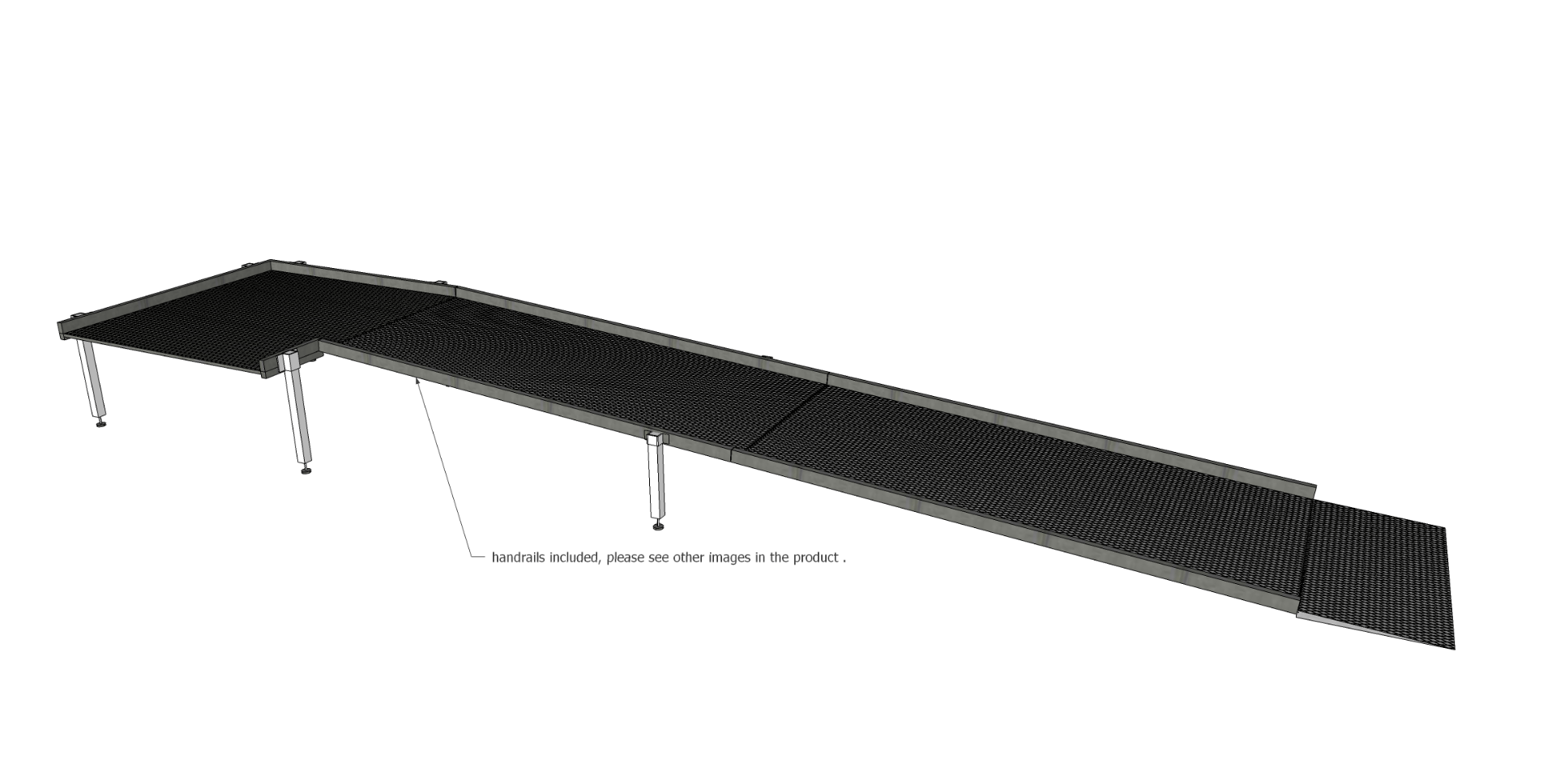

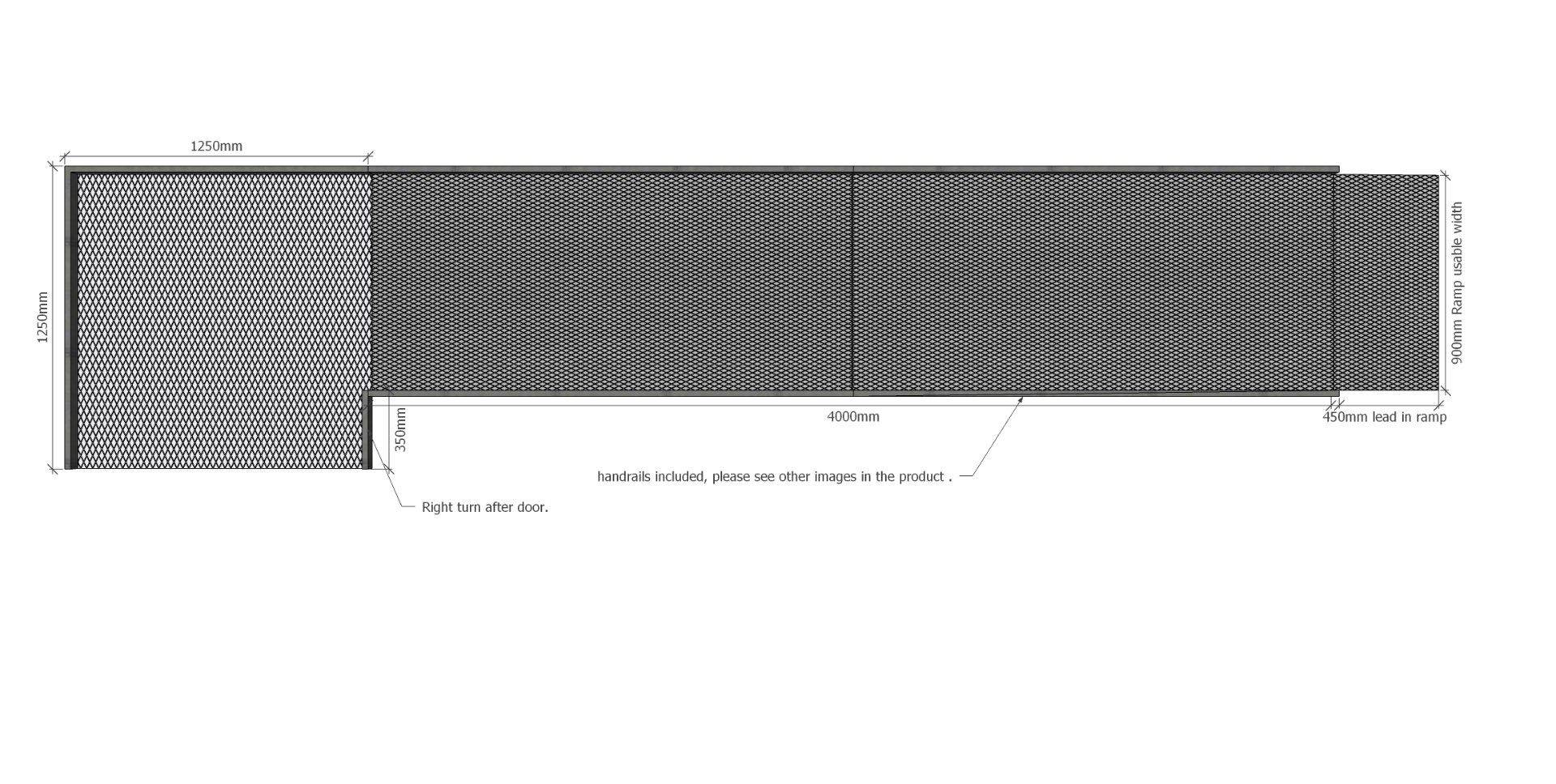

Modular Ramp Kit, 4000mm long, 900mm wide, with double height handrails and mesh anti-slip surface.

Kit includes:

  • Lead In Ramp: 900mm wide x 450mm long
  • Ramp Section: 4000mm long x 900mm wide
  • Platform : 1250mm x 1250mm
  • Handrails: double horizontal handrails included
  • Connection to step/threshold: 900mm wide x 200mm long; can be ordered cut to size if required. The necessary door measurements can be found here.
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

Not available for Northern Ireland.

All instructions and a video for assembling the system can be found here.


Details
SKU TRP-FMS90-4000H
Capacity (kg) 400
Internal Width (mm) 900
Two Year Warranty Yes
Three Year Warranty Yes
Customisable Yes
Easy to Fit Yes
Electric Wheelchair Yes
European Made Yes
Fixings Included Yes
Manual Wheelchair Yes
Mobility Scooter Friendly Yes
Leave Outside Yes
