Aluminium Modular Ramp Kit with Platform, Without Handrails - 1300mm x 1000mm ramp section

SKU
TRP-FMS130-1000NH
£3,564.00 £2,970.00
Built to Order

Buy Now, Pay Later for business with... Mondu

T&Cs apply. Learn more

Modular Ramp System, 1000mm long ramp section, 1300mm ramp usable width and mesh anti-slip surface. This disabled access ramp is made in Europe and includes a 3 year warranty.

Advised gradient will be 1:15, although the ramp system can be set on a maximum gradient of 1:10

Handrails NOT included. Upon purchase, please confirm left or right turn after door.

Modular Wheelchair Ramps FAQ's

Description

Modular Wheelchair Ramp Systems - Legal Compliance

These systems are designed to be both portable and semi-permanent/temporary - therefore they do not need to comply with building regulations (Part M or Part K) - if you require your system to be compliant please get in contact as this something we can provide but the specification would need to be altered.

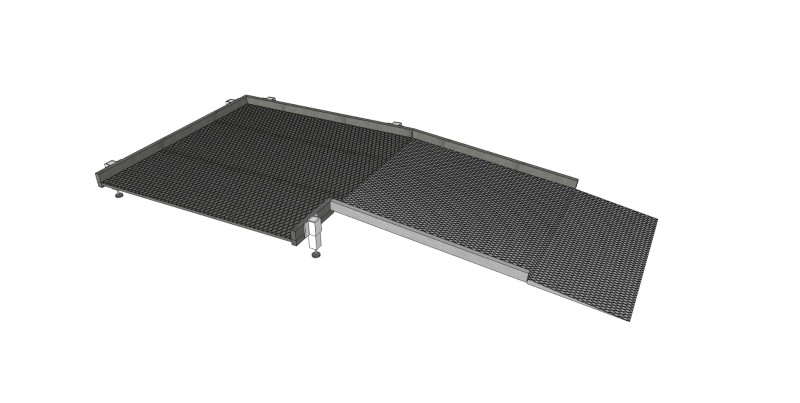

Modular Ramp Kit, 1000mm long, 1300mm wide, with no handrails and mesh anti-slip surface.

Kit includes:

  • Lead In Ramp: 1300mm wide x 450mm long
  • Ramp Section: 1000mm long x 900mm wide
  • Platform : 1250mm x 1250mm
  • Handrails: handrials not included
  • Connection to step/threshold: 900mm wide x 200mm long; can be ordered cut to size if required. The necessary door measurements can be found here.
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

Not available for Northern Ireland.

All instructions and a video for assembling the system can be found here.


Details
SKUTRP-FMS130-1000NH
Capacity (kg)400
Internal Width (mm)1300
Length (mm)1000
Three Year WarrantyYes
CustomisableYes
Easy to FitYes
Electric Wheelchair Yes
European MadeYes
Fixings IncludedYes
Manual WheelchairYes
Mobility Scooter FriendlyYes
Leave OutsideYes

Which wheelchair ramp length? Use our ramp length calculator! Learn more
