500mm Wide Aluminium Loading Ramps

SKU

TRP-MPCL

The Ramp Factory's pair of Aluminium Van Loading Ramps are 500mm wide with a 440mm usable width. No installation required, simply rest on the back of your vehicle and start loading.

Price is for the pair

Available in the lengths 1600mm, 1800mm, 2000mm, 2400mm, 2600mm, 3000mm, 3600mm and 4000mm.

Ramp lengths listed includes the rest on connection.

From £954.00 £795.00

In Stock - Limited Availability

Only %1 left

Truck and Van Ramps FAQ's

Description

Aluminium Van Loading Ramps.

Available in the lengths 1600mm, 1800mm, 2000mm, 2400mm, 2600mm, 3000mm, 3600mm and 4000mm with varying capacities and a width of 500mm. These ramps are ideally suited for flight cases and are available in pairs.

Rest on connection: to fit just rest on and start loading
No vehicle or van modification required
Perfect for flight cases
Entry onto ramp slightly smoother than our economy version
Lies flat for easy storage when not being used
Manufactured from lightweight aluminium (type 6005A)
Robot welded for solid, strong and durable construction
Lightweight for easy handling
Fully TUV Certified
Angled foot, this allows for smooth access onto the van ramp when using casters or wheels

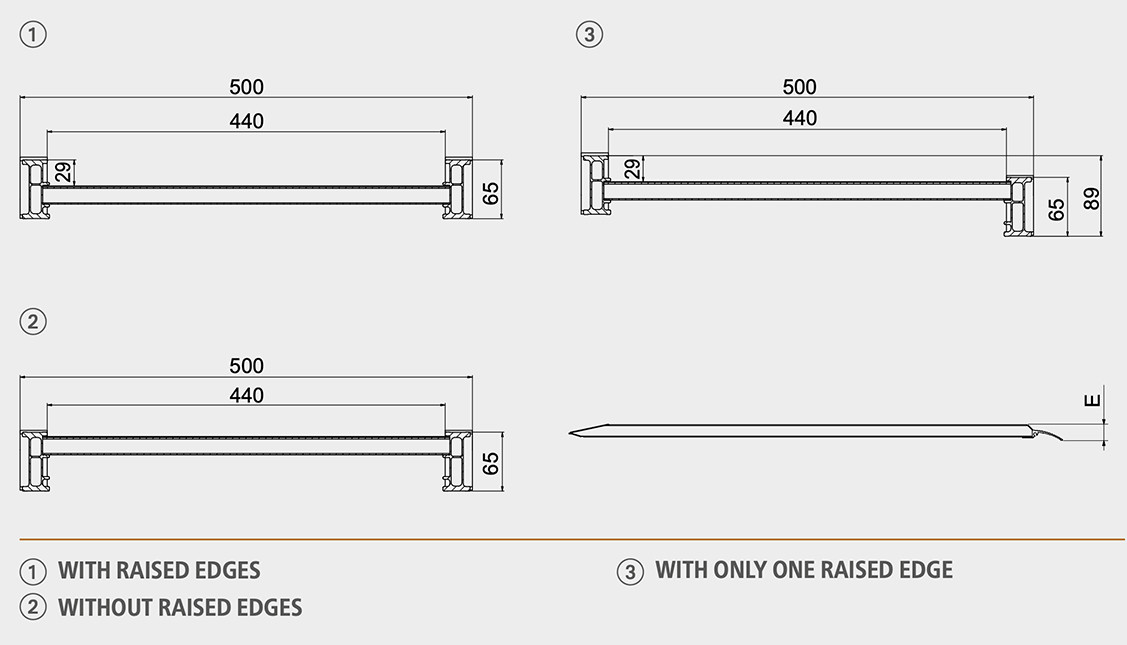

Edges on each side of the van ramp to prevent accidentally wheeling off
Available without edges or with one raised edge
View our wider van ramps here
Optimised ramp weight ensures the ramp stays connected to the van
Four different connection options available. Please note the default connection is the rest on connection as shown in the images, please contact us for alternative connection options including a hook connection.
Extended connection terminal bridges most bumpers, crash bars and tow bars
All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement

Aluminium Van Loading Ramps 500mm wide

Pair 1600mm TRP-MPCL/16P

Length (mm): 1600
Height of Raised Edges (mm): 29
Max Load Height (mm): 480
Min Load Height (mm): 330
External Width (mm): 500
Internal Width (mm): 440
Weight per ramp (kg): 14.5
Capacity (kg): 3000
Height of ramp profile (mm): 65

Pair 1800mm TRP-MPCL/18P

Length (mm): 1800
Height of Raised Edges (mm): 29
Max Load Height (mm): 540
Min Load Height (mm): 390
External Width (mm): 500
Internal Width (mm): 440
Weight per ramp (kg): 16
Capacity (kg): 2000
Height of ramp profile (mm): 65

Pair 2000mm TRP-MPCL/20P

Length (mm): 2000
Height of Raised Edges (mm): 29
Max Load Height (mm): 600
Min Load Height (mm): 450
External Width (mm): 500
Internal Width (mm): 440
Weight per ramp (kg): 17.5
Capacity (kg): 2000
Height of ramp profile (mm): 65

Pair 2400mm TRP-MPCL/24P

Length (mm): 2400
Height of Raised Edges (mm): 29
Max Load Height (mm): 720
Min Load Height (mm): 570
External Width (mm): 500
Internal Width (mm): 440
Weight per ramp (kg): 21
Capacity (kg): 1300
Height of ramp profile (mm): 65

Pair 2600mm TRP-MPCL/26P

Length (mm): 2600
Height of Raised Edges (mm): 29
Max Load Height (mm): 780
Min Load Height (mm): 630
External Width (mm): 500
Internal Width (mm): 440
Weight per ramp (kg): 22.5
Capacity (kg): 1300
Height of ramp profile (mm): 65

Pair 3000mm TRP-MPCL/30P

Length (mm): 3000
Height of Raised Edges (mm): 29
Max Load Height (mm): 900
Min Load Height (mm): 750
External Width (mm): 500
Internal Width (mm): 440
Weight per ramp (kg): 25.5
Capacity (kg): 1000
Ramp Profile Height (mm): 65

Pair 3600mm TRP-MPCL/36P

Length (mm): 3600
Height of Raised Edges (mm): 29
Max Load Height (mm): 1050
Min Load Height (mm): 900
External Width (mm): 500
Internal Width (mm): 440
Weight per ramp (kg): 30.5
Capacity (kg): 800
Ramp Profile Height (mm): 65

Pair 4000mm TRP-MPCL/40P

Length (mm): 4000
Height of Raised Edges (mm): 29
Max Load Height (mm): 1200
Min Load Height (mm): 1050
External Width (mm): 500
Internal Width (mm): 440
Weight per ramp (kg): 33.5
Capacity (kg): 660
Ramp Profile Height (mm): 65

TUV Certification Image

Usage Guidelines and Safety Information for these ramps can be found here.

Details

SKU	TRP-MPCL
Default Connection	Rest On Connection
Capacity (kg)	330 - 1500
Height of Raised Side (mm)	29
Height of Ramps Profile (mm)	65
Internal Width (mm)	440
Length (mm)	1600 - 4000
Max Load Height (mm)	480 - 1200
Total Width (mm)	500
Weight Per Pair (kg)	14.5 - 67
Minimum Track Width (mm)	100
Maximum Track Width (mm)	420
One Year Warranty	Yes
Connection Options Available	Yes
Customisable	Yes
Easy to Fit	Yes
European Made	Yes
Not Solid Wheels	Yes

Print/Save Datasheet

Ramp Length & Load Height Information

Ramp Capacity, Length & Load Height

This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.

Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.

Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).

For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load height x 3.3, gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.

Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase. For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.

For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.
