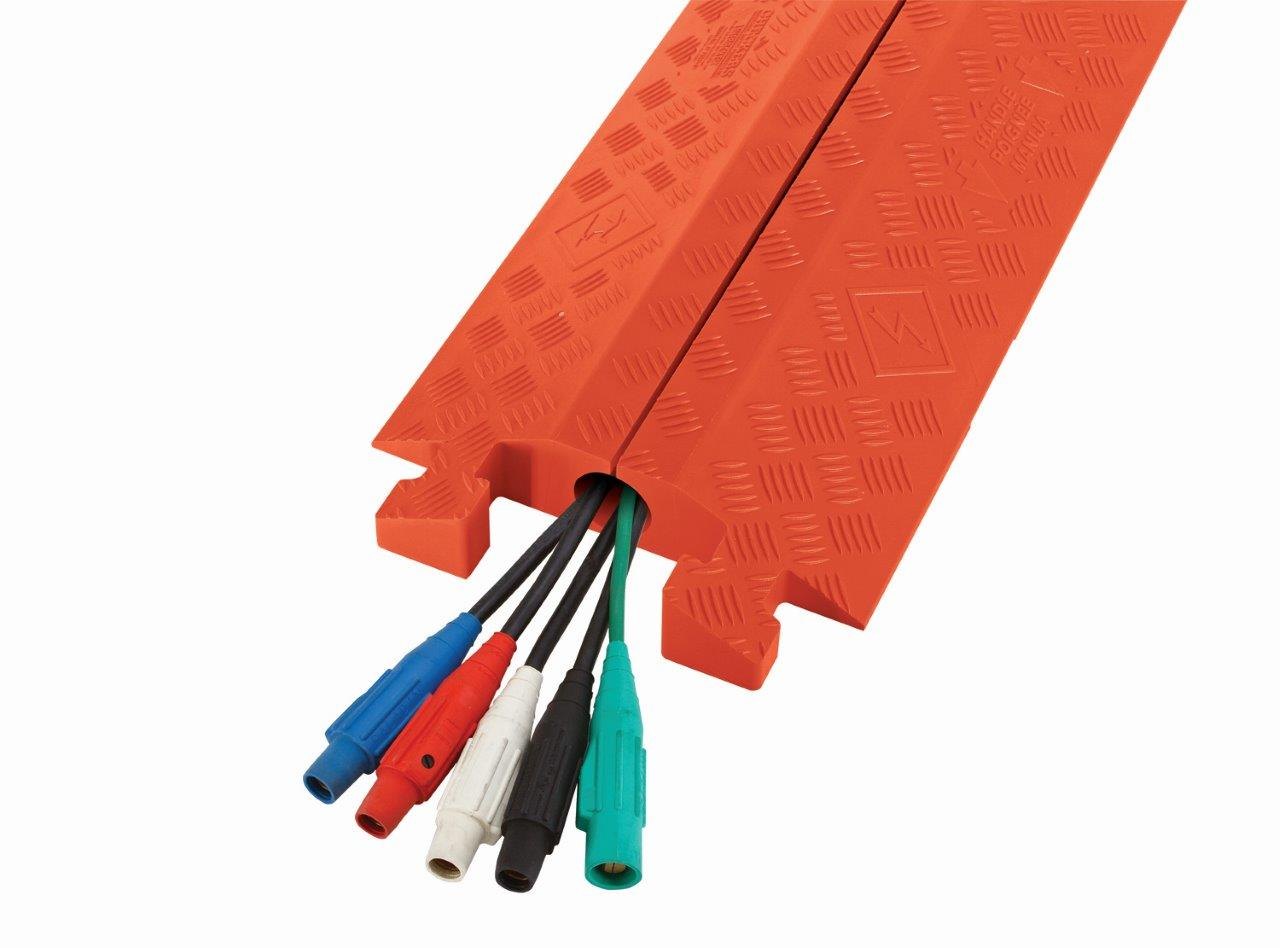

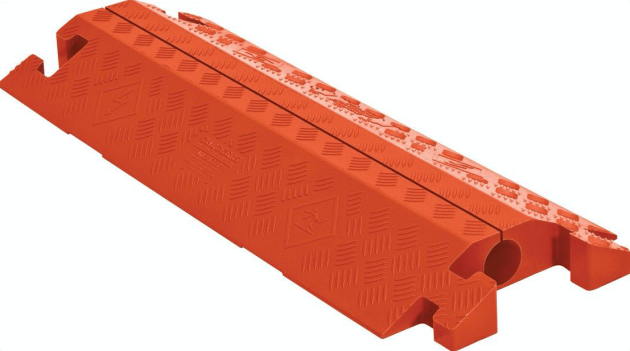

Checkers LineBacker 1 Channel Split Top in Orange (2.25")

SKU
TRP-CP1X225-GP-O
£210.00 £175.00
Built to Order

The Ramp Factorys Checkers Linebacker 1 Channel Split Top offers a quick solution to protect minimal runs of cable and hose lines.

Capacity (kg) 10614
Channel Size (mm) 57.2
Height (mm) 76.2
Width (mm) 361.9
Length (mm) 914.4
Description
Cable Protectors Linebacker

Built from all-weather polyurethane, the Linebacker 1-Channel Split Top Cable Protector is a quick, effective means of protecting single runs of cable or hose lines. With a lightweight, modular interlocking design and the capacity to extend to any length via patented T-Connectors, these protectors are suitable for both medium-duty, high load bearing operations and lighter, general-purpose use. This split top models load cables and hoses from the top, completely surrounding the cable or hose for protection.

  • Protects cables and hoses up to 2.25" outside dia.
  • Patented T-Connectors to extend to any length
  • Split Top model
  • All-weather polyurethane construction
  • Modular interlocking design is lightweight and easy to transport, setup, disassemble, and store
  • Quick solution to protect single runs of cable and hose lines
  • Modular interlocking design is lightweight and easy to transport, setup, disassemble and store

Details
SKUTRP-CP1X225-GP-O
Capacity (kg)10614
Height (mm)76.2
Length (mm)914.4
Weight (kg)8.6
Width (mm)361.9
One Year WarrantyYes
Easy to FitYes
Leave OutsideYes
Cable Protector ColorOrange
Channel Width (mm)57.2
Channel Size (mm)57.2 x 57.2
Max Cable/ Hose Diameter (mm)57.2
No. Channels1
Capacity per Axle (kg)7712
Capacity per Tyre (kg)3856
Operating Temperature (deg. F)70
Speedlimit (mph)5
