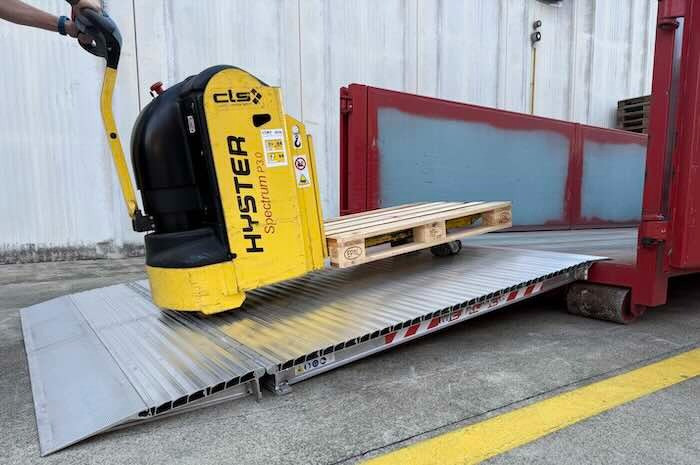

Electric pallet truck driving up container ramp
Forklift driving up aluminium container ramp Electric pallet truck driving up container ramp Forklift moving ramp Full width container ramp Rest on connection
  • Customisable
  • European Made
  • Two Year Warranty

Heavy Duty Hinged Container Ramp 2000mm Wide x 7500kg Capacity

SKU
TRP-SHLI7/60
£5,400.00 £4,500.00
Built to order / 5-7 weeks

Buy Now, Pay Later for business with... Mondu

T&Cs apply. Learn more

Offering a 7,500kg capacity, the aluminium container ramp is ideal for loading forklifts, pallet trucks and plant machinery in and out of ground-level shipping containers. The ramp offers a unique hinged design to allow it to be used at a variety of load heights between 6cm - 30cm. The smooth gradient allows the ramp to be used by low clearance vehicles whilst the 2m width provides a safe loading experience.



Container Ramps FAQ's

Description
  • 7500kg capacity, heavy-duty design ideal for forklifts and plant machinery
  • 2m wide, perfect for covering the full container width and ensuring safe loading
  • Hinged design for loading at a variety of heights from 60mm - 300mm
  • No edge design, ideal for low clearance vehicles
  • Smooth gradient for ease of loading
  • Standard head connection which lays directly on the container, note the connection must rest on at least 100mm of the loading area
  • Secure during loading with the carabiner clip with steel chain
  • Move when required using a forklift or similar
  • High traction surface for optimum grip
  • Designed for loading pallet trucks, forklifts and plant machinery with rubber wheels or rubber tracks - not for solid wheels
  • The foot of the ramp folds onto the main ramp for transportation
  • Manufactured from aluminium
  • Made in Italy
Video
Specifications
SKUTRP-SHLI7/60
Capacity (kg)7500
Height (mm)105
Length (mm)2559
Max Load Height (mm)300
Min. Load Height (mm)60
Stored Dimensions (mm)1984 x 2000 x 207
Weight (kg)161
Width (mm)2000
Two Year WarrantyYes
CustomisableYes
European MadeYes
Colour OptionWhite
