Modular Kit with Platform and Balustrade Handrails (1500mm x 3800mm long)

SKU
TRP-MS1500-3800B
£6,180.00 £5,150.00
Built to Order
Modular Ramp System, 3800mm long, 1500mm wide, internal width 1276mm, with balustrade handrails, platform and mesh anti-slip surface.

Modular Wheelchair Ramps FAQ's

Description

Modular Wheelchair Ramp Systems - Legal Compliance

These systems are designed to be both portable and temporary - therefore they do not need to comply with building regulations (Part M or Part K) - if you require your system to be compliant please get in contact as this something we can provide but the specification would need to be altered.

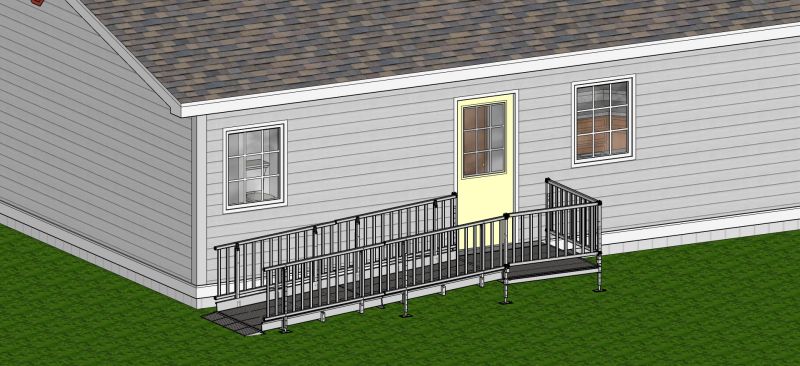

Modular Ramp Kit, 3800mm long, 1500mm wide, with double height handrails and mesh anti-slip surface.

Kit includes:

  • Lead In Ramp:300mm x 1300mm long
  • Ramp Module incl. Double Height Handrails: 3800mm long x 1500mm wide
  • Platform incl. 2x Double Height Handrails: 1500mm x 1500mm
  • Connection to step/threshold: 220mm deep x 1500mm long; can be ordered cut to size if required. The necessary door measurements can be found here.
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement



All instructions and a video for assembling the system can be found here.


Details
SKUTRP-MS1500-3800B
Product Safety GPSRpopup_gpsr_importer
Capacity (kg)200kg / sq. meter
Kerb Height (mm)100
Length (mm)5640
Platform Length (mm)1500
Supplied with FixingsYes
SurfaceMesh Surface
Total Width (mm)1500
Two Year WarrantyYes
CustomisableYes
Easy to FitYes
Electric Wheelchair Yes
European MadeYes
Fixings IncludedYes
Manual WheelchairYes
Mobility Scooter FriendlyYes
Leave OutsideYes
Usable Width (mm)1276
