Modular Ramp Component 1500mm x 2310mm (Balustrade handrails)

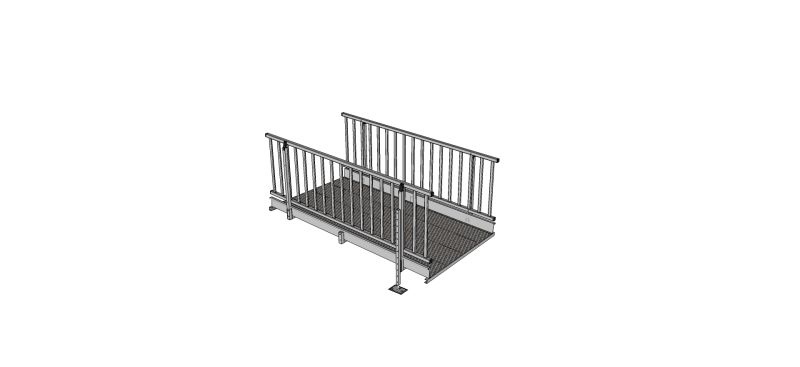

Modular Ramp System, 2310mm long, 1500mm wide, with balustrade handrails and mesh anti-slip surface.
All instructions and a video for assembling the system can be found here
These systems are both designed to be portable and temporary - therefore they do not need to comply with building regulations (Part M or Part K) - if you require your system to be compliant please get in contact as this something we can provide but the specification need to be altered.
When configuring a modular ramp solution please mix and match the ramp modules, platforms, connection plate and handrail endings as required. All connections are included. Connection plates, platforms and handrail endings are only optional. Please note that delivery normally on a tailgate is to kerbside only - UK wide installation is available - please contact us for more information.
| SKU | TRP837423 |
|---|---|
| Capacity (kg) | 200kg / sq. meter |
| Internal Width (mm) | 1276 |
| Length (mm) | 2310 |
| Max Load Height (mm) | 960 |
| Surface | Expanded Mesh |
| Width (mm) | 1500 |
| Two Year Warranty | Yes |
| Bolt Down | Yes |
| Customisable | Yes |
| Easy to Fit | Yes |
| Electric Wheelchair | Yes |
| European Made | Yes |
| Fixings Included | Yes |
| Manual Wheelchair | Yes |
| Mobility Scooter Friendly | Yes |
| Leave Outside | Yes |
Certain goods and services for disabled people are zero-rated for VAT, including mobility aids, as long as the customer is eligible and the goods are for domestic or personal use. All of our wheelchair ramps classify as mobility aids and therefore those eligible can purchase these VAT exempt.
Who is eligible?
VAT relief is available for individuals with chronic illnesses and or disabilities. The wheelchair ramp must be for exclusive use by the disabled individual. VAT relief is also available to registered UK charities.
Who is not eligible?
Businesses are not eligible for VAT relief. VAT relief is also not available where the ramp is being purchased for a group of people to use, except for charities. In addition, those with temporary incapacities, such as broken bones, are required to pay the VAT.
How do I claim my VAT back?
At the checkout stage, prior to entering payment details, there is a VAT exemption box. Simply enter the full name of the person the ramp is for and their disability, or the charity name and number, and tick to confirm it is correct. The VAT will then automatically be removed from your purchase.
If you are in any doubt as to whether you are eligible to receive goods or services zero-rated for VAT, please contact our team, consult Notice 701/7 VAT Relief for Disabled People or contact the National Advice Service on 0845 010 9000.
Modular Ramp Length & Load Height & Delivery
It is crucial for you to know your load height. This guide should help you gauge how long a ramp you require. If you are still not sure, please call us on 01372 478960.
Load Height: This is the vertical measurement from the ground to where you rest the ramp onto.
For Modular Wheelchair Systems:
Minimum recommended gradient: 1 : 12
For e.g. for a 1 ft load height you'll need a 12 ft long ramp.
Delivery:
Will occur to kerbside on a pallet, unassembled and will require a signature. Please make sure that the pallet is not damaged and all parts are present before sign for the delivery.
Which wheelchair ramp length? Use our ramp length calculator! Learn more
