1m modular wheelchair ramp with double handrails

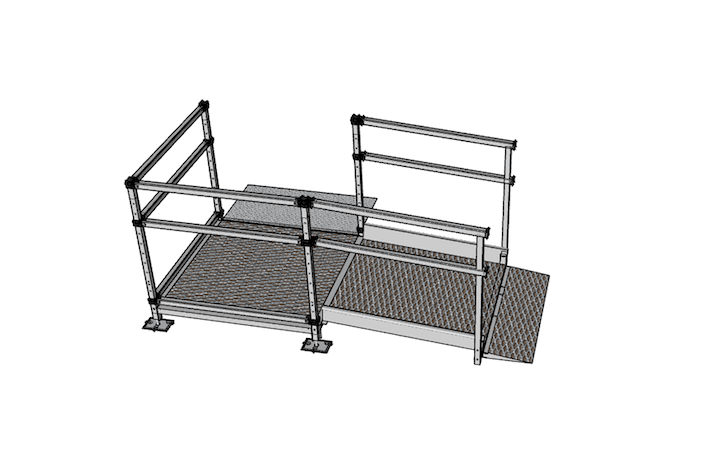

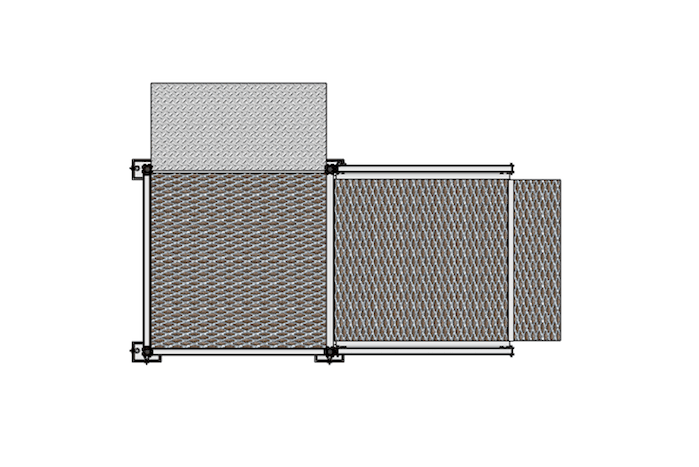

1m modular wheelchair ramp with double handrails Technical drawing of the 1m modular wheelchair ramp with double handrails Modular ramp in front of home Modular ramp in front of home view from above Modular ramp in front of home side view Modular ramp in front of home with handrails and platform Modular ramp in front of home with double handrails and anti-slip surface
  • Customisable
  • Easy to Fit
  • Electric Wheelchair
  • European Made
  • Fixings Included
  • Manual Wheelchair
  • Mobility Scooter
  • Two Year Warranty
  • Leave Outside

Modular Wheelchair Ramp Kit with Platform and Double Handrails (1080mm x 1000mm)

SKU
TRP-HA-MS1100-1000
£2,586.00 £2,155.00
Built to order / 2-4 weeks

Qualifies for VAT Relief

Once an item is added to the basket, our VAT relief form will appear and VAT Relief can be declared.

VAT relief is available on this product for people with chronic illnesses, disabilities and registered charities.

If your exemption is not declared, or you are not eligible for VAT relief, we are required to charge the standard rate of VAT. In the UK this is 20%.

If you have any questions, or require additional assistance with VAT relief, please contact our friendly team on 01372 569051.

For more on VAT relief, click here

Buy Now, Pay Later for business with... Mondu

T&Cs apply. Learn more

Easily and safely overcome door thresholds and low steps with this 1-meter modular access ramp. Built to a smooth gradient and offering a smooth transition on and off of the ramp, it is perfect for wheelchair users, mobility scooters and those using walking aids.

Produced in Sweden, the ramp features a durable, weather-resistant DIN 51130 anti-slip surface. The built-in turning platform lets users safely exit a property and turn left or right before descending the ramp, perfect for areas where there is not space for a straight ramp.

Modular Wheelchair Ramps FAQ's

Description
  • Expanded metal mesh surface with a DIN 51130 anti-slip rating
  • Suitable for pedestrians, wheelchairs, mobility scooters and walkers
  • Produced from durable steel, 200kg capacity
  • Suitable for use in all weathers including when wet or icy, the quiet expanded mesh allows water to quickly drain through the ramp surface
  • Integrated safety edges
  • Double handrails for additional stability and security
  • Turning platform to allow users to easily take a left or right turn onto the ramp
  • Hot-dip galvanised design for a virtually maintenance-free ramp
  • Modular design, unassemble when required, for example if you wish to undertake home renovations or move property
  • Suitable for use in homes, schools, businesses, offices and more
  • Meets the TIL2 requirements, inspected and verified by a TIL2-certified expert based on standards and usability for individuals with reduced mobility
  • Manufactured in accordance to ISO 9001 and 14001
  • Meets requirements Eurocodes, the European Standards relating to the design of buildings, civil engineering works and construction products
  • Manufactured in Sweden
  • Comprehensive two year warranty

These systems are designed to be both portable and temporary; therefore they do not need to comply with building regulations (Part M or Part K) - if you require your system to be compliant, please get in contact as this something we can provide but the specification would need to be altered.

Recommended to be used at a 1:12 gradient; however, they can be built to a maximum of a 1:10 gradient when required.

Modular Ramp Kit, 1000mm long, 1080mm wide, with double height handrails and mesh anti-slip surface.

The 1m kit includes:

  • Lead In Ramp: 300mm deep x 960mm long
  • Ramp Module incl. Double Height Handrails: 1000mm long x 1080mm wide (usable width 920mm)
  • Platform incl. 2x Double Height Handrails: 1080mm wide x 1080mm long
  • Connection to step/threshold: 500mm deep x 960mm long; can be ordered cut to size if required. The necessary door measurements can be found here

Assembly is required.

We have a dedicated modular team available to provide advice around modular wheelchair ramps. Please email pictures and measurements of your area to our team for recommendations or a custom quote if required. Examples of customisations include: adding steps to the side of the ramp, an additional platform, U-shaped handrails at the end of the ramp, contrast markers for those with impaired vision, longer ramp lengths, alternative ground connections and more.



Product Questions
I am interested in purchasing a Modular Wheelchair Ramp, how to identify the most suitable kit for my property?
Our dedicated modular team are available to provide guidance and quotes. Please email our team photos and measurements of the area, including the height you are going up and the width of the doorway. Please also confirm if the door opens inwards or outwards.
Do The Ramp Factory supply and install Modular Wheelchair Ramps?
As an online business, we only supply ramps, we do not install them. Installation can generally be undertaken by a handyman or builder, we recommend at least two people are available to assemble the kit. The installation time does vary depending on the kit size.
Do The Ramp Factory offer customised Modular Wheelchair Ramp Kits?
Yes, as the kits are modular, they can be customised to your requirements, for example to include additional turning platforms. For a custom solution, please email our team details of requirements including photos and measurements of the area.
Specifications
SKUTRP-HA-MS1100-1000
Capacity (kg)200kg / sq. meter
Internal Width (mm)920
Length (mm)1000
Max Load Height (mm)130
Min. Load Height (mm)120
Platform Length (mm)1080
Platform Width (mm)1080
Connection to Step/Threshold (mm)500 deep x 960 long
Lead In Ramp (mm)300 deep x 960 wide
Handrail Height (mm) 900
Total Width (mm)1080
Weight (kg)80
Two Year WarrantyYes
CustomisableYes
Easy to FitYes
Electric Wheelchair Yes
European MadeYes
Fixings IncludedYes
Manual WheelchairYes
Mobility Scooter FriendlyYes
Leave OutsideYes
