Modular wheelchair ramp with handrails
Modular wheelchair ramp with handrails Modular wheelchair ramp with handrails 4m 3.5m wheelchair ramp infront of home 3.5m access ramp 3.5m ramp with handrails 3.5m modular ramps
  • Customisable
  • Easy to Fit
  • Electric Wheelchair
  • European Made
  • Fixings Included
  • Manual Wheelchair
  • Mobility Scooter
  • Two Year Warranty
  • Leave Outside

Modular Wheelchair Ramp Kit with Platform and Double Handrails (1080mm x 3500mm)

SKU
TRP-HA-MS1100-3500
£3,912.00 £3,260.00
Built to order / 2-4 weeks

Qualifies for VAT Relief

Once an item is added to the basket, our VAT relief form will appear and VAT Relief can be declared.

VAT relief is available on this product for people with chronic illnesses, disabilities and registered charities.

If your exemption is not declared, or you are not eligible for VAT relief, we are required to charge the standard rate of VAT. In the UK this is 20%.

If you have any questions, or require additional assistance with VAT relief, please contact our friendly team on 01372 569051.

For more on VAT relief, click here

Buy Now, Pay Later for business with... Mondu

T&Cs apply. Learn more

Easily navigate steps and door thresholds with our robust steel modular ramp kit, designed for both residential and commercial use. Supplied with double handrails for maximum safety, this modular ramp system offers a secure, semi-permanent access solution that can remain in place for months or years, depending on your requirements.

Ideal for a wide range of mobility needs, the ramp can be disassembled and relocated as needed, perfect during building works or when moving property. Built from durable steel, it’s a reliable choice for improving accessibility without requiring permanent structural changes.

Here at The Ramp Factory we have a dedicated modular team on hand to ensure you find the right ramp for your property, contact us for tailored advice.

Modular Wheelchair Ramps FAQ's

Description
  • Expanded metal mesh surface with a DIN 51130 anti-slip rating
  • Suitable for pedestrians, wheelchairs, mobility scooters and walkers
  • Produced from durable steel, 200kg capacity
  • Suitable for use in all weathers including when wet or icy, the quiet expanded mesh allows water to quickly drain through the ramp surface
  • Integrated safety edges
  • Double handrails for additional stability and security
  • Turning platform to allow users to easily take a left or right turn onto the ramp
  • Hot-dip galvanised design for a virtually maintenance-free ramp
  • Suitable for use in homes, schools, businesses, offices and more
  • Meets the TIL2 requirements, inspected and verified by a TIL2-certified expert based on standards and usability for individuals with reduced mobility
  • Manufactured in accordance to ISO 9001 and 14001
  • Meets requirements Eurocodes, the European Standards relating to the design of buildings, civil engineering works and construction products
  • Manufactured in Sweden
  • Comprehensive two year warranty

These systems are designed to be both portable and temporary; therefore they do not need to comply with building regulations (Part M or Part K) - if you require your system to be compliant, please get in contact as this something we can provide but the specification would need to be altered.

Recommended to be used at a 1:12 gradient; however they can be built to a maximum of a 1:10 gradient when required.

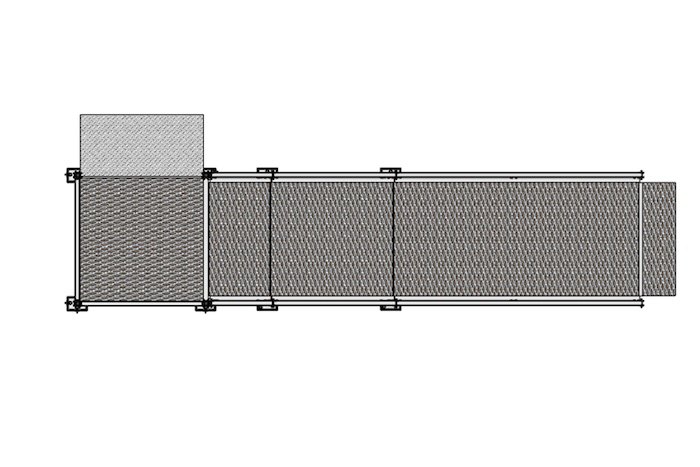

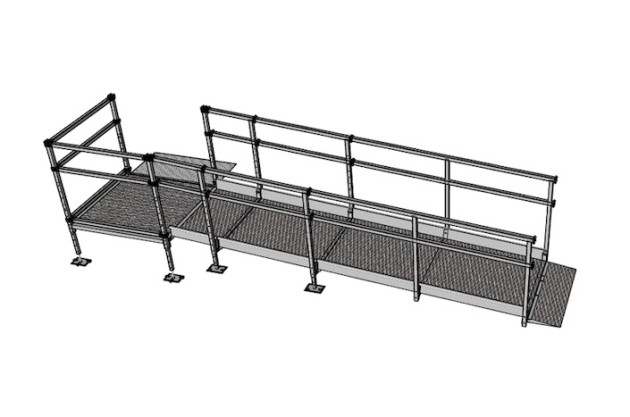

The 3.5m Modular Ramp Kit includes:

  • Lead In Ramp: 300mm deep x 960mm long
  • Ramp Module incl. Double Height Handrails: 3500mm long x 1080mm wide (usable width 920mm)
  • Platform incl. 2x Double Height Handrails: 1080mm wide x 1080mm long
  • Connection to step/threshold: 500mm deep x 960mm long; can be ordered cut to size if required. The necessary door measurements can be found here

Assembly is required.

We have a dedicated modular team available to provide advice around modular wheelchair ramps. Please email pictures and measurements of your area to our team for recommendations or a custom quote if required. Examples of customisations include: adding steps to the side of the ramp, an additional platform, U-shaped handrails at the end of the ramp, contrast markers for those with impaired vision, longer ramp lengths, alternative ground connections and more.



Product Questions
Do The Ramp Factory's Modular Wheelchair Ramps comply with building regulations?
Our Modular Wheelchair Ramps are designed as temporary semi-permanent access solutions so do not need to comply to building regulations. If you require a compliant solution, please contact our team so we can pass on your requirements to our partner company who provide compliant solutions.
I am interested in purchasing a Modular Wheelchair Ramp, how to identify the most suitable kit for my property?
Our dedicated modular team are available to provide guidance and quotes. Please email our team photos and measurements of the area, including the height you are going up and the width of the doorway. Please also confirm if the door opens inwards or outwards.
Do The Ramp Factory supply and install Modular Wheelchair Ramps?
As an online business, we only supply ramps, we do not install them. Installation can generally be undertaken by a handyman or builder, we recommend at least two people are available to assemble the kit. The installation time does vary depending on the kit size.
Do The Ramp Factory offer customised Modular Wheelchair Ramp Kits?
Yes, as the kits are modular, they can be customised to your requirements, for example to include additional turning platforms. For a custom solution, please email our team details of requirements including photos and measurements of the area.
Do The Ramp Factory install wheelchair ramps?
As an online business, we only supply wheelchair ramps we do not install ramps. All of our modular wheelchair ramps are provided with instructions and can be assembled by a competent builder or DIY'er. Installation of the modular wheelchair ramps can usually be undertaken by two people.
Specifications
SKUTRP-HA-MS1100-3500
Capacity (kg)200kg / sq. meter
Internal Width (mm)920
Length (mm)3500
Max Load Height (mm)350
Min. Load Height (mm)120
Platform Length (mm)1080
Platform Width (mm)1080
Connection to Step/Threshold (mm)500mm deep x 960mm long
Lead In Ramp (mm)300mm deep x 960mm wide
Handrail Height (mm) 900
Total Width (mm)1080
Weight (kg)158.7
Two Year WarrantyYes
CustomisableYes
Easy to FitYes
Electric Wheelchair Yes
European MadeYes
Fixings IncludedYes
Manual WheelchairYes
Mobility Scooter FriendlyYes
Leave OutsideYes

Which wheelchair ramp length? Use our ramp length calculator! Learn more
