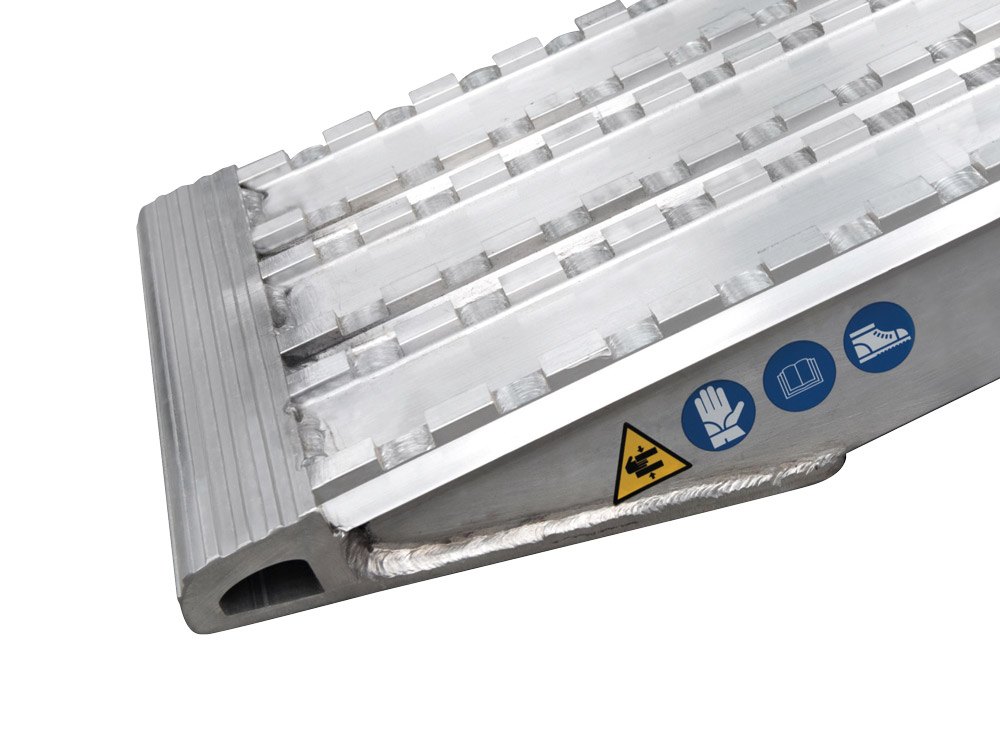

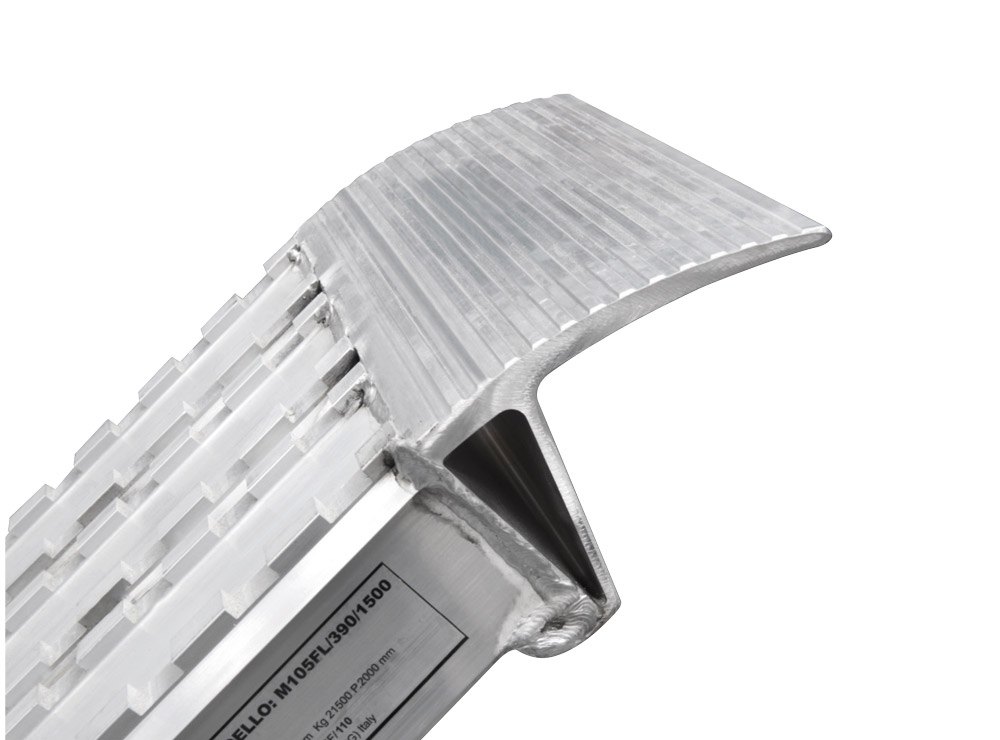

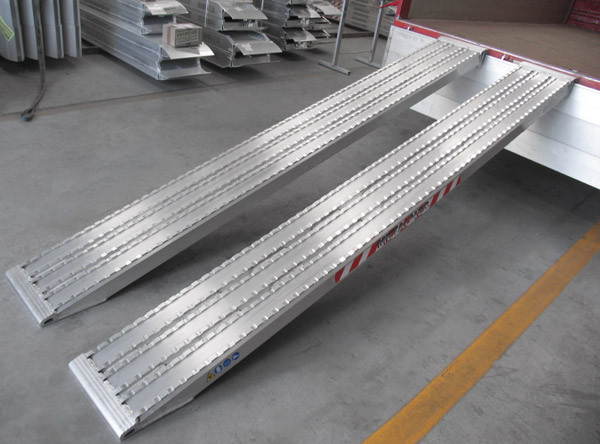

Milled Surface Aluminium Professional Loading Ramps (3.5m Long)

£2,880.00 £2,400.00
Built to Order

The Ramp Factory's Industrial Aluminium Ramps are European made and TUV certified and are ideal for use as a plant ramp, digger ramp and for tele-handlers.

Length (mm) 3500
Width (mm) 390
Min to Max Load Height (mm) 900-1050
Capacity (kg) 9,145

Contact our customer services team for custom built orders.

Price and capacity stated is for the PAIR.

Aluminium Ramps for Plant & Machinery FAQs


Our heaviest duty ramps, designed to carry steel tracked vehicles and equipment. The Ramp Factory range of steel tracked ramps' core profile thickness is 105mm. Available 390mm wide, these ramps feature no external welds and offer a capacity of up to 21,500kg. They are ideal for use as industrial plant ramps and as heavy duty as commercial ramps.

  • Flat top with no external welds
  • On capacities over 20,000kg only Bottom Hook Connection or Tube Connection possible
  • Custom load heights available
  • Quotes for bespoke ramps can be supplied on request
  • Special 25/30 surface available on request, suitable for when using rubber tracked and steel tracked machinery
  • Please note, the stated maximum weight capacities are only valid for vehicles where the weight is equally distributed – for vehicles where this is not the case, please contact us directly for assistance.
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Fully TUV certified

TUV Certification Image

Usage guidelines and safety information for our full vehicle ramp range can be found here.

SKU TRP-105F/390/3500
Default Connection Rest On Connection
Capacity (kg) 9145
Height of Ramp Profile (mm) 105
Length (mm) 3500
Max Load Height (mm) 1050
Min. Load Height (mm) 900
Weight per Ramp (kg) 60.5
Weight Per Pair (kg) 121
Width (mm) 390
One Year Warranty Yes
Connection Options Available Yes
Customisable Yes
Easy to Fit Yes
European Made Yes
Capacity Wheelbase 1000mm (kg) 5485
Capacity Wheelbase 1500mm (kg) 6860
Capacity Wheelbase 2000mm (kg) 9145
