Milled Surface Aluminium Professional Loading Ramps (4m Long)

SKU
TRP-105F/520/4000
£3,672.00 £3,060.00
Built to order / 4-6 weeks

Buy Now, Pay Later for business with... Mondu

T&Cs apply. Learn more

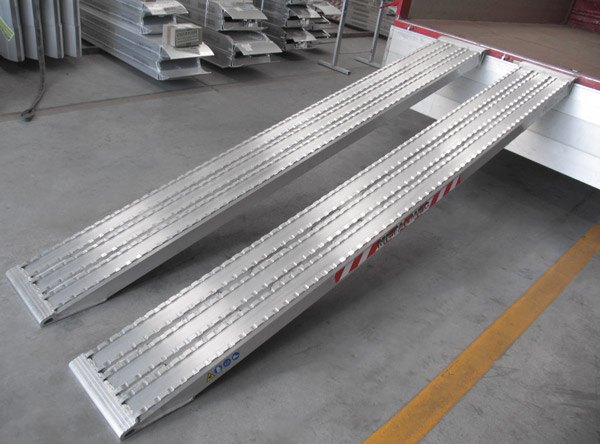

The Ramp Factory's Industrial Aluminium Ramps are European made and TUV certified and are ideal for use as a plant ramp, digger ramp and for tele-handlers.

Length (mm) 4000
Width (mm) 520
Min to Max Load Height (mm) 1050-1200
Capacity (kg) 9,145

Contact our customer services team for custom built orders.

Price and capacity stated is for the PAIR.

Aluminium Ramps for Plant & Machinery FAQs

Description

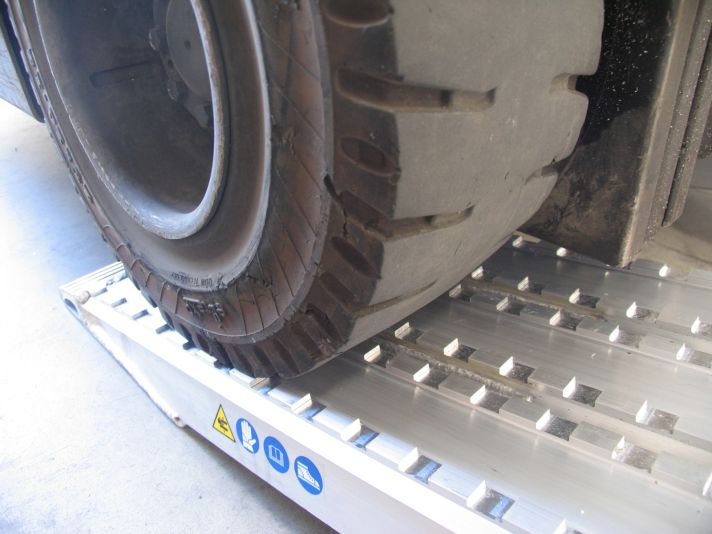

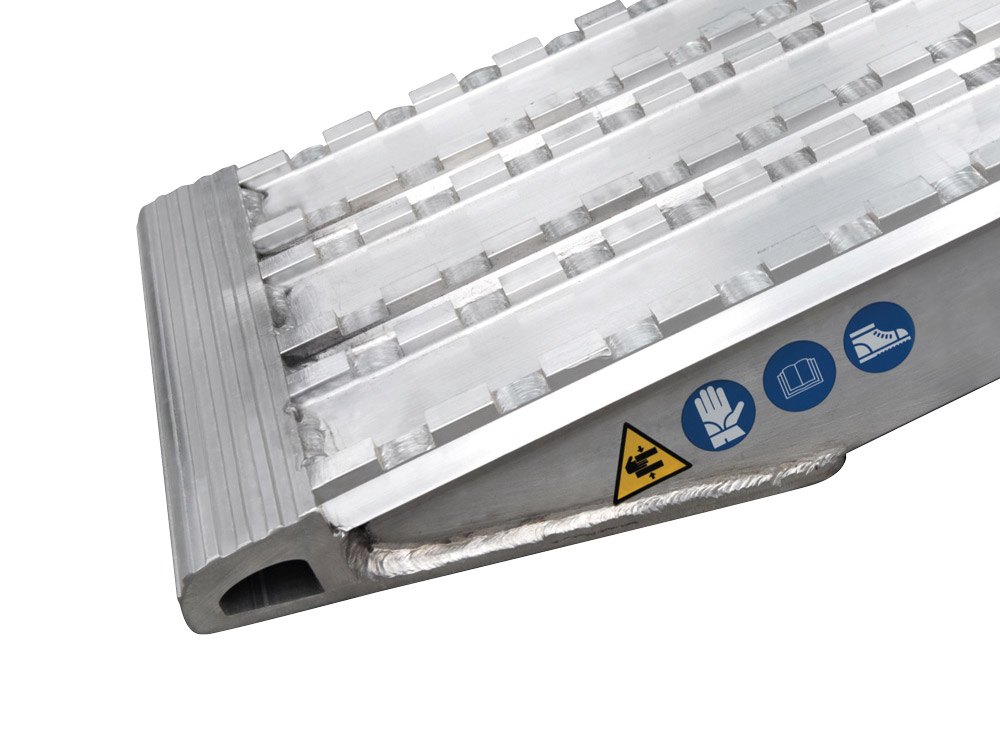

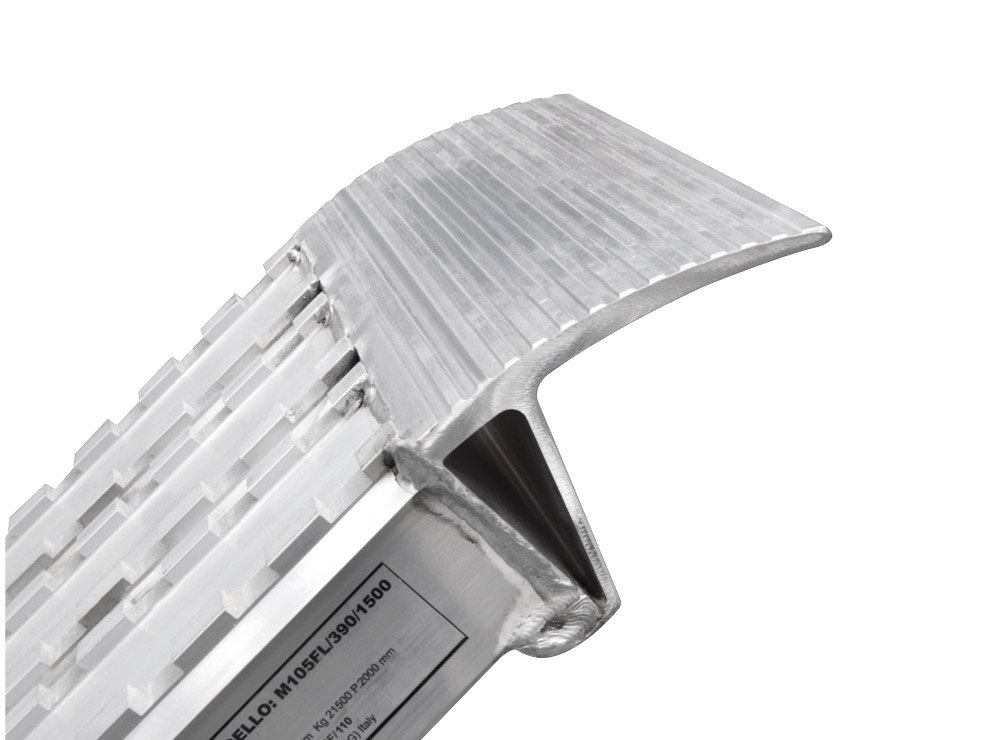

Our heaviest duty ramps, designed to carry steel tracked vehicles and equipment. The Ramp Factory range of steel tracked ramps' core profile thickness is 105mm. Available 520mm wide, these ramps feature no external welds and offer a capacity of up to 29,000kg. They are ideal for use as industrial plant ramps and as heavy duty as commercial ramps.

  • Flat top with no external welds
  • On capacities over 20,000kg only Bottom Hook Connection or Tube Connection possible
  • Custom load heights available
  • Quotes for bespoke ramps can be supplied on request
  • Special 25/30 surface available on request, suitable for when using rubber tracked and steel tracked machinery
  • Please note, the stated maximum weight capacities are only valid for vehicles where the weight is equally distributed – for vehicles where this is not the case, please contact us directly for assistance.
  • All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
  • Fully TUV certified

TUV Certification Image

Usage guidelines and safety information for our full vehicle ramp range can be foundhere.


Details
SKUTRP-105F/520/4000
Default ConnectionRest On Connection
Capacity (kg)9145
Height of Ramp Profile (mm)105
Length (mm)4000
Max Load Height (mm)1200
Min. Load Height (mm)1050
Weight per Ramp (kg)91.5
Weight Per Pair (kg) 183
Width (mm)520
One Year WarrantyYes
Connection Options AvailableYes
CustomisableYes
Easy to FitYes
European MadeYes
Capacity Wheelbase 1000mm (kg)6095
Capacity Wheelbase 1500mm (kg)7315
Capacity Wheelbase 2000mm (kg)9145
