Pallet Truck Ramp 1000mm Wide x 1000kg Capacity
The Ramp Factory's single piece heavy duty loading ramp 1000mm wide x 1000kg capacity is perfect for manual pallet truck loading into a container or over kerbs. Provided in lengths of 1800mm, 2000mm and 2400mm.
We recommend you check the ramp length creates a suitable gradient/incline for your requirements before ordering as this can vary.
The Ramp Factory also offer aluminium container ramps, yard ramps and pallet truck ramps, so we are sure to offer a product to meet your loading needs.
Aluminium Pallet Truck Loading Ramp feature:
Available in the lengths 1800mm, 2000mm and 2400mm. The ramps have a capacity of 1000kg and are provided in a width of 1000mm. Those ramps are ideally suited for pallet trucks.
- Rest on connection: to fit just rest on and start loading
- Cut for a maximum load height of 400mm

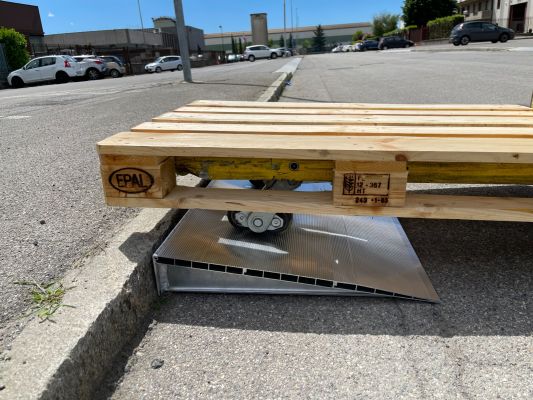

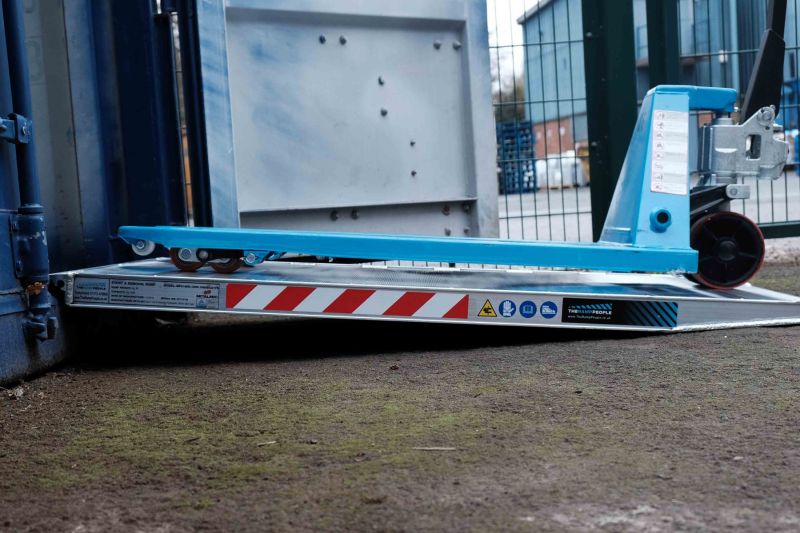

- Perfect for loading pallets with a pallet truck into a container or over kerbs
- Lies flat for easy storage when not being used
- Manufactured from lightweight aluminium (type 6005A)
- Robot welded for solid, strong and durable construction
- Lightweight for easy handling
- Fully TUV Certified to 1000kg capacity as standard
- Angled foot, this allows for smooth access onto the ramp when using casters or wheels
- No edges for easier handling on the ramp
- All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement
Pallet Truck Ramp
TRP1800CON - 1800mm
- Length 1800mm
- Width 1000mm
- Weight 34kg
- Capacity 1000kg
- Max. load height 400mm
- Min. load height 150mm
TRP2000CON - 2000mm
- Length 2000mm
- Width 1000mm
- Weight 37kg
- Capacity 1000kg
- Max. load height 400mm
- Min. load height 150mm
TRP2400CON - 2400mm
- Length 2400mm
- Width 1000mm
- Weight 45kg
- Capacity 1000kg
- Max. load height 400mm
- Min. load height 150mm
SKU | TRP-CON |
---|---|
Default Connection | Rest On Connection |
Capacity (kg) | 1000 |
Height (mm) | 70 |
Length (mm) | 1800 - 2400 |
Max Load Height (mm) | 400 |
Min. Load Height (mm) | 150 |
Weight (kg) | 34 - 45 |
Width (mm) | 1000 |
One Year Warranty | Yes |
Connection Options Available | Yes |
Customisable | Yes |
Easy to Fit | Yes |
European Made | Yes |
Ramp Capacity, Length & Load Height
This guide should help you gauge how long a ramp you require, so if you're in any doubt read the details below. If you still have questions after reading, feel free to give us a call. The crucial thing to know is your load height.
Load Height: this is the vertical measurement from the ground to where you rest the ramp onto.
Guide to the maximum load height is shown in the product description/table, please note the minimum Load Height will be 5% below the maximum height stated on the ramp, to calculate use (maximum load height - 5% = minimum load height).
For vehicle ramps EU guidelines recommend that no ramps with a gradient greater than 30% or 1:3.3 should be used. Essentially the load height x 3.3, gives you your ramp length. Furthermore no TUV Certified Ramp is designed to exceed this gradient. Going over this gradient is can cause accident, injury or death and may invalidate the warranty.
Please check the wheelbase measurement of the machine you are loading is suitable for the capacity the ramp can take based on the wheelbase measurement advised. To check your wheelbase, look at the vehicle from side view, the distance between the centre of front wheel and rear wheel (rim centre) is your wheelbase.
For machines with an unbalanced weight distribution such as, scissors lifts, paving machinery, steel tracked machinery and machines with low ground clearance we would advise you contact us first, so we can check and advise on the most suitable solution.
For loading cars and other vehicles with either a) Low ground clearance b) Front and/or Rear overhang a gentler gradient is recommended (this will vary depending upon the vehicle). Please also note that most forklifts and pallet trucks are not built to be used on slopes. Please check the manual for the gradient information.
Further information can be seen in this blog article here
Which wheelchair ramp length? Use our ramp length calculator! Learn more
