Easy to Fit
One Year Warranty

Ramp kit 1100mm x 1900mm (Balustrade handrails)

SKU

TRP835419

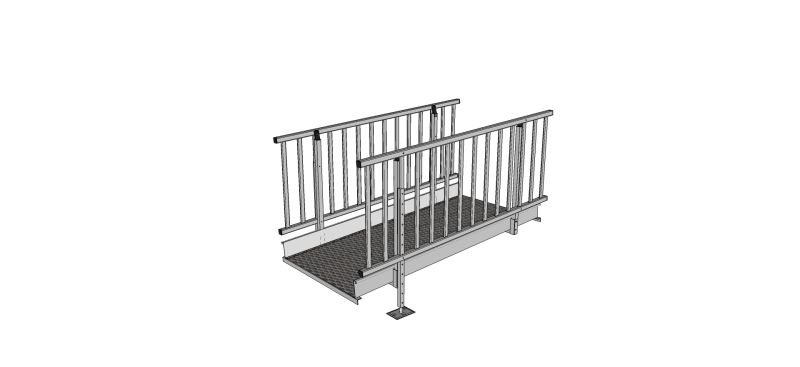

Modular Ramp System, 1100mm wide, internal width 877mm, 1900mm long, with balustrade handrails and mesh anti-slip surface.

£1,602.00 £1,335.00

Built to Order

Description

Modular Ramp Component, 1100mm wide, internal width 877mm, 1900mm long, with balustrade handrails and mesh anti-slip surface.

All instructions and a video for assembling the system can be found here

These systems are both designed to be portable and temporary - therefore they do not need to comply with building regulations (Part M or Part K) - if you require your system to be compliant please get in contact as this something we can provide but the specification need to be altered.

When configuring a modular ramp solution please mix and match the ramp modules, platforms, connection plate and handrail endings as required. All connections are included. Connection plates, platforms and handrail endings are only optional. Please note that delivery normally on a tailgate is to kerbside only - UK wide installation is available - please contact us for more information.

Details

SKU	TRP835419
Capacity (kg)	200kg / sq. meter
Internal Width (mm)	877
Length (mm)	1900
Surface	Expanded Mesh
One Year Warranty	Yes
Easy to Fit	Yes

Print/Save Datasheet

Ramp Length & Load Height Information

Modular Ramp Length & Load Height & Delivery

It is crucial for you to know your load height. This guide should help you gauge how long a ramp you require. If you are still not sure, please call us on 01372 478960.

Load Height: This is the vertical measurement from the ground to where you rest the ramp onto.

For Modular Wheelchair Systems:

Minimum recommended gradient: 1 : 12
For e.g. for a 1 ft load height you'll need a 12 ft long ramp.

Delivery:

Will occur to kerbside on a pallet, unassembled and will require a signature. Please make sure that the pallet is not damaged and all parts are present before sign for the delivery.
