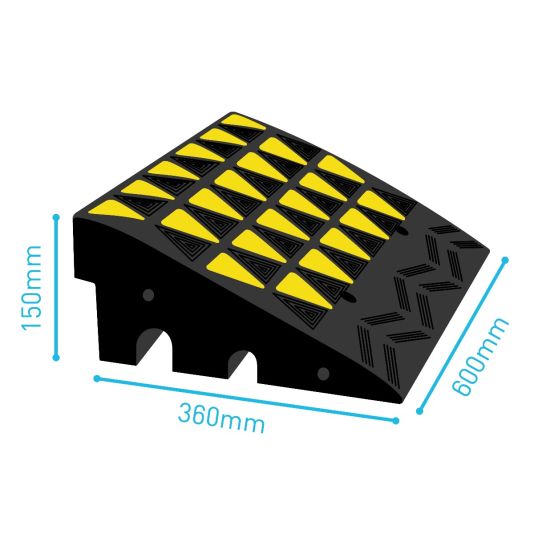

150mm Kerb Ramp dimensions

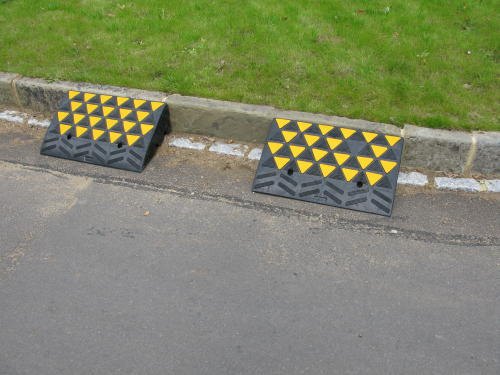

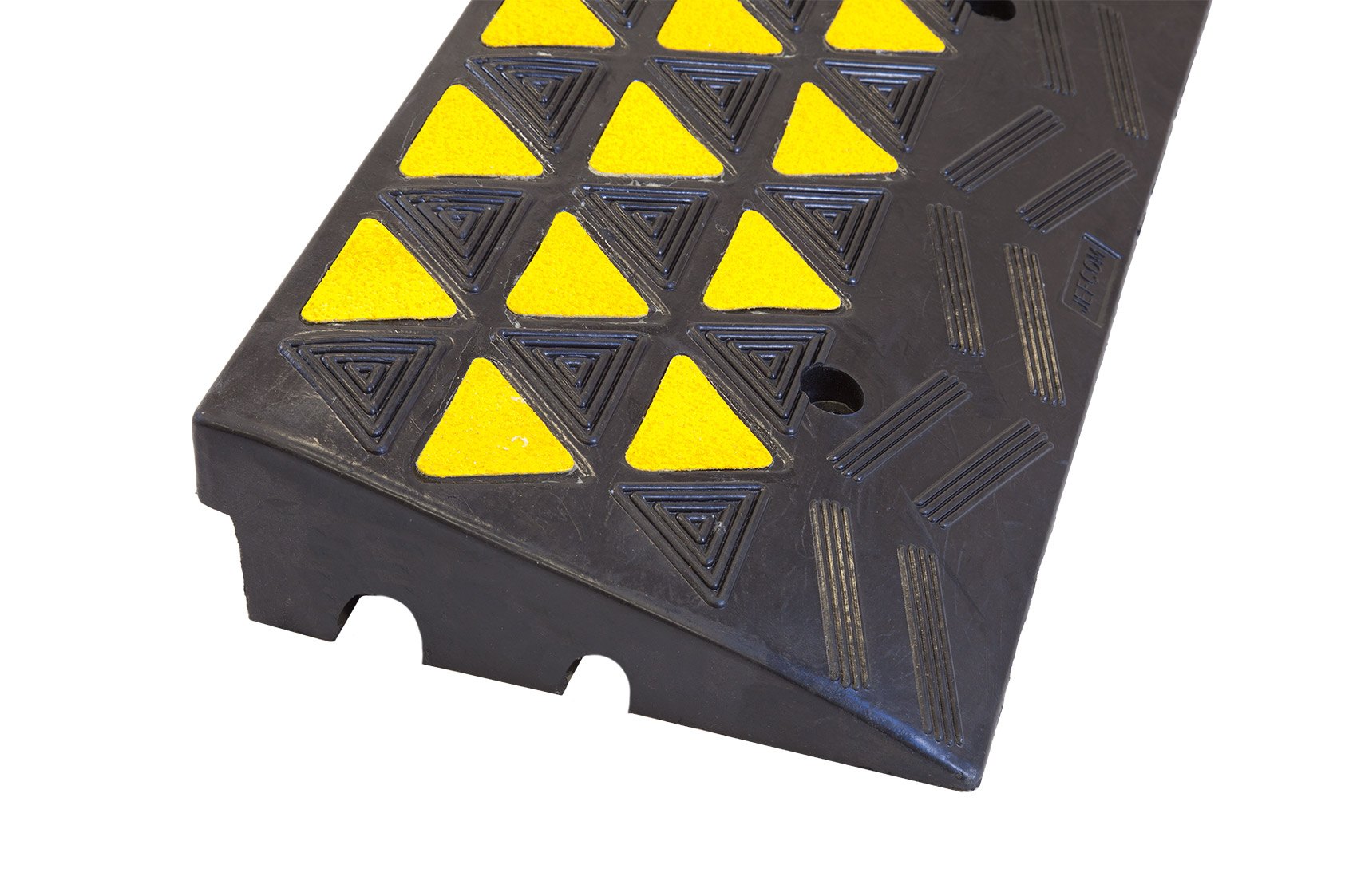

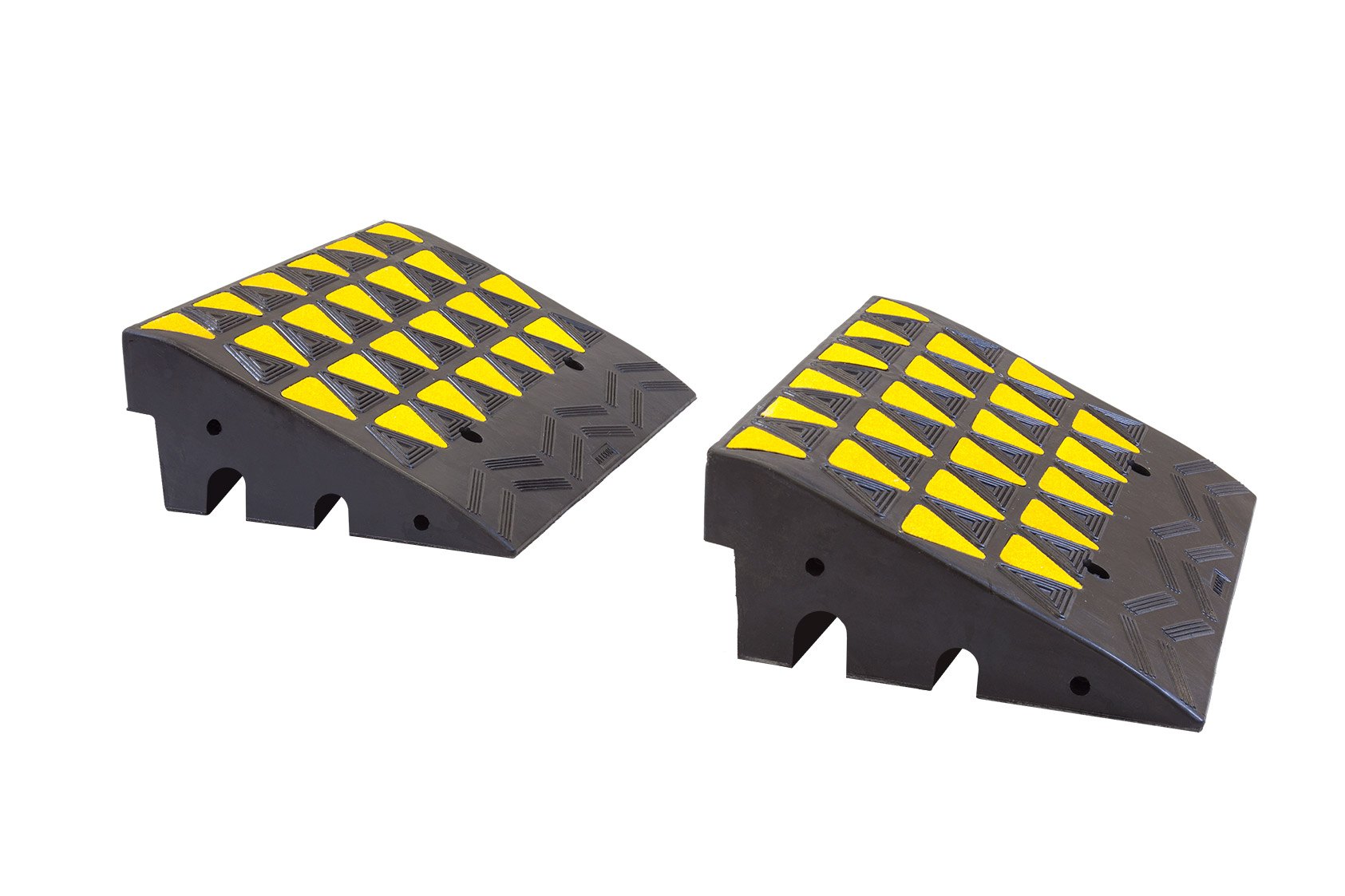

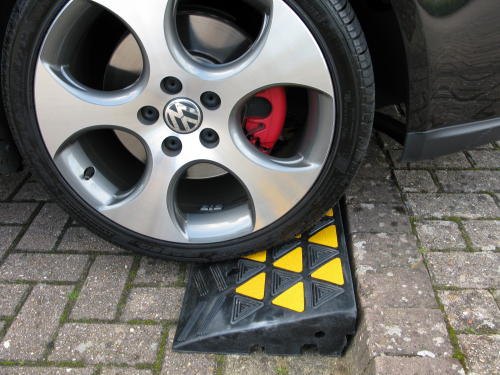

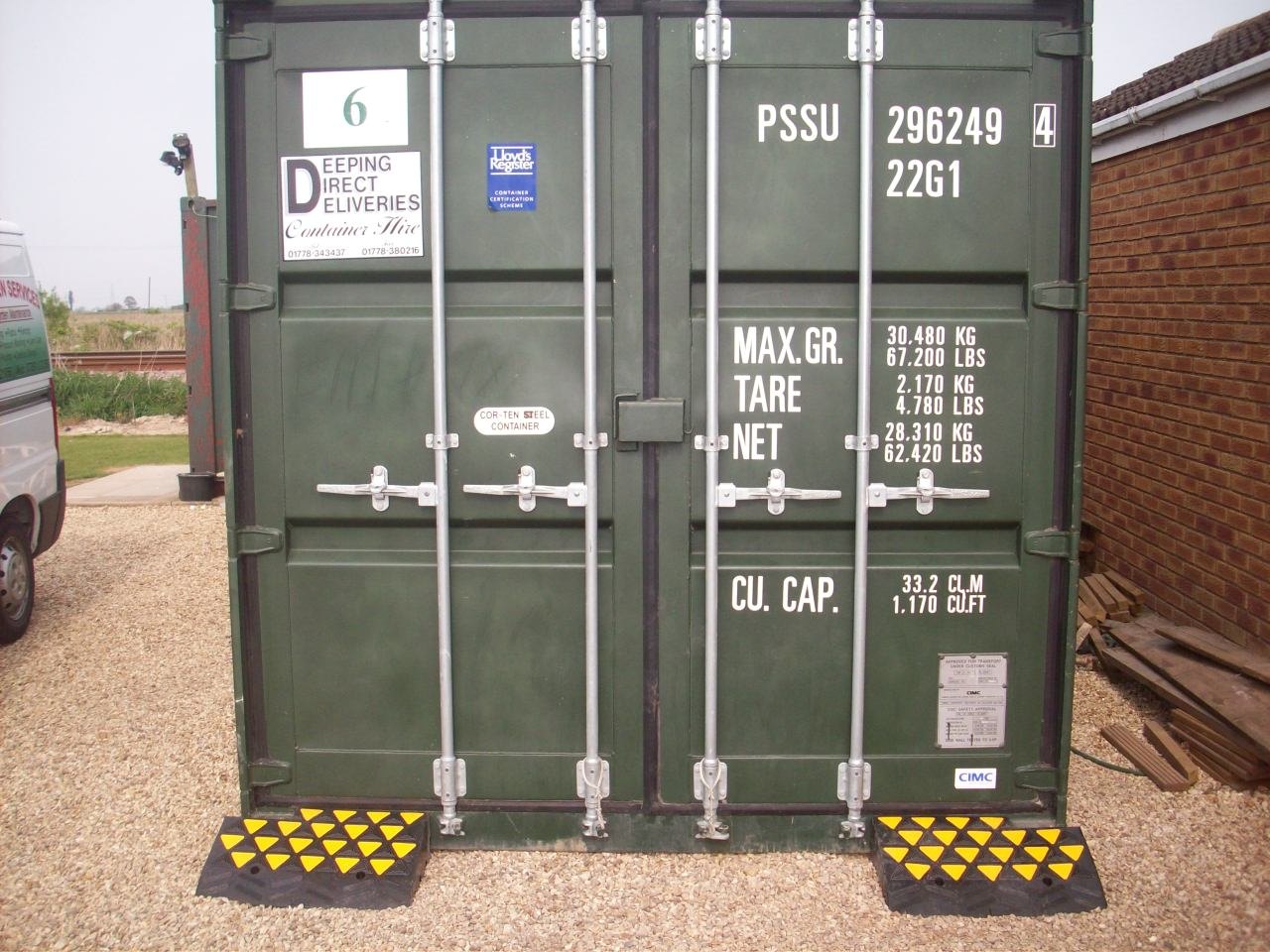

150mm Kerb Ramp dimensions Kerb ramp unique points Pair of 150mm kerb ramps Fixing point End cap Kerb ramp in place Single kerb ramp Kerb ramp to access a container Kerb ramp kit Kerb ramp kit, 2 single ramps plus 2 end caps Pair of kerb ramps in place Kerb ramp dimensions Kerb ramp end cap 150mm end cap Pair of end caps Kerb ramps Rubber Kerb Ramp 150mm Rubber Kerb Ramp 150mm
  • Bolt Down
  • Easy to Fit
  • Fixings Included
  • High Visability
  • One Year Warranty
  • Leave Outside

Rubber Kerb Ramp 150mm

SKU
TRP2MConf
As low as £61.20 £51.00
Built to Order (RD)

Saturday Delivery ‐ AVAILABLE

Buy Now, Pay Later for business with... Mondu

T&Cs apply. Learn more

Heavy duty rubber kerb ramps provided with fixings. Each single ramp is 150mm x 600mm x 360mm with a 40,000kg capacity.

Description

Heavy Duty Kerb Ramps are a cost effective and convenient way to allow cars, vehicles and trolleys to mount kerb easily. Suits most applications including; warehouses, industrial plants, private motorists, public buildings etc.

  • Quickly deployed
  • All rubber construction
  • Load Capacity is 30,000kg
  • Channels for cables and hoses
  • Embedded Light Reflectors as standard on all middle sections
  • Non-slip textured surface
  • Universal fixings for Tarmac or concrete are included
  • 2 Channels: Channel 1: 33mm x 26.2mm  Channel 2: 28.1 x 23.6mm

Rubber Kerb Ramp 150mm

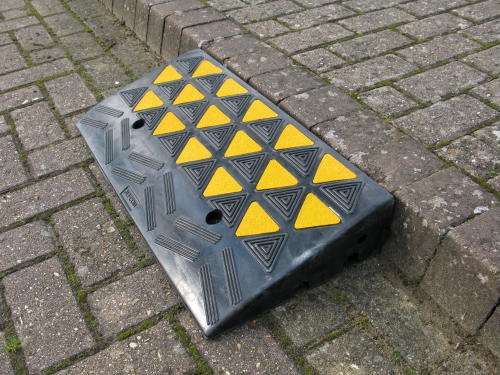

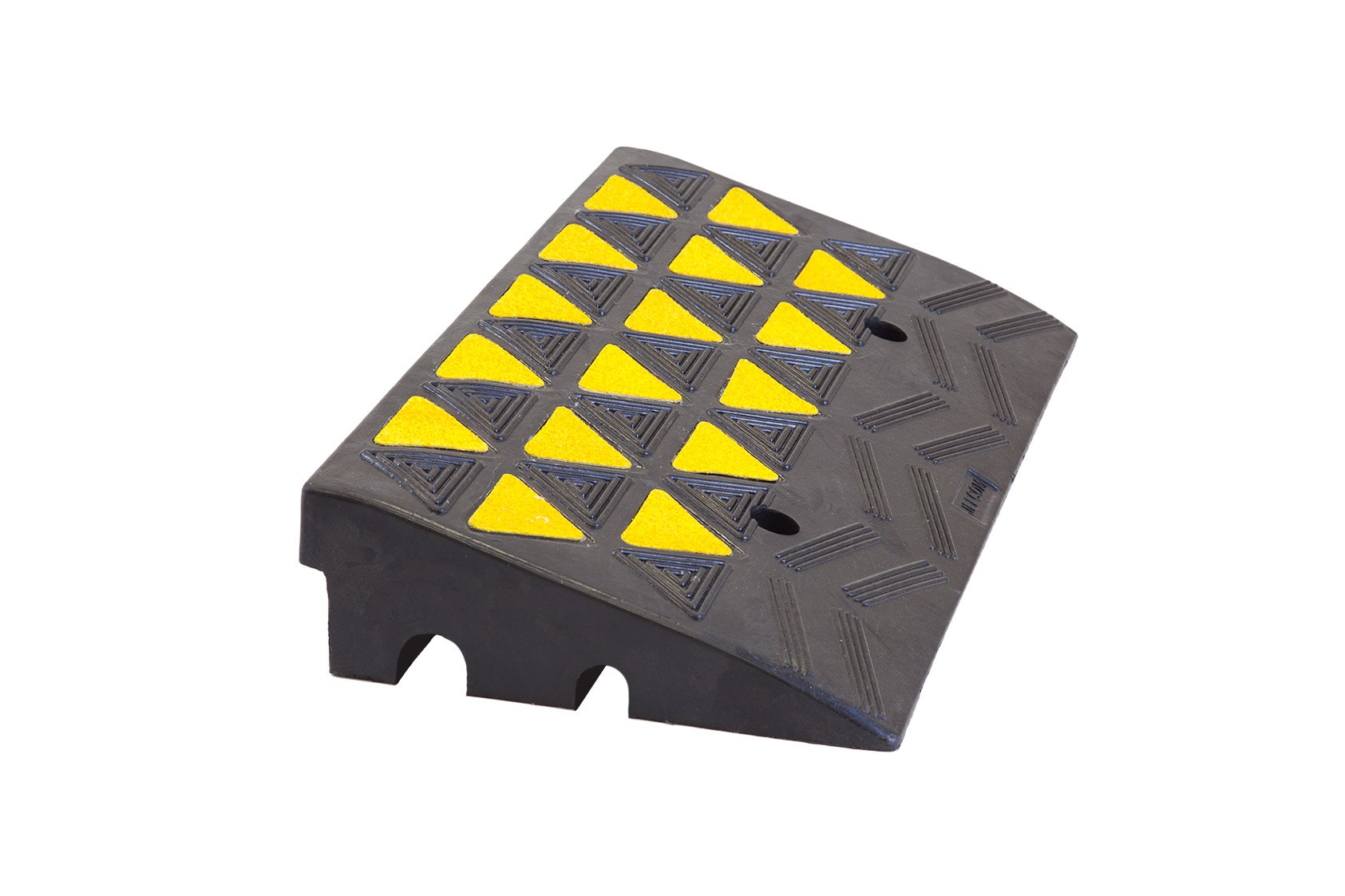

Single Kerb Ramp

  • Length: 360mm
  • Width: 600mm
  • Height: 150mm
  • Weight: 16.10kg
  • Capacity: 40,000kg
  • Number of ramps: One

Pair of Rubber Kerb Ramps

  • Length: 360mm
  • Width: 1200mm
  • Height: 150mm
  • Weight: 32.20kg
  • Capacity: 40,000kg
  • Number of ramps: Two

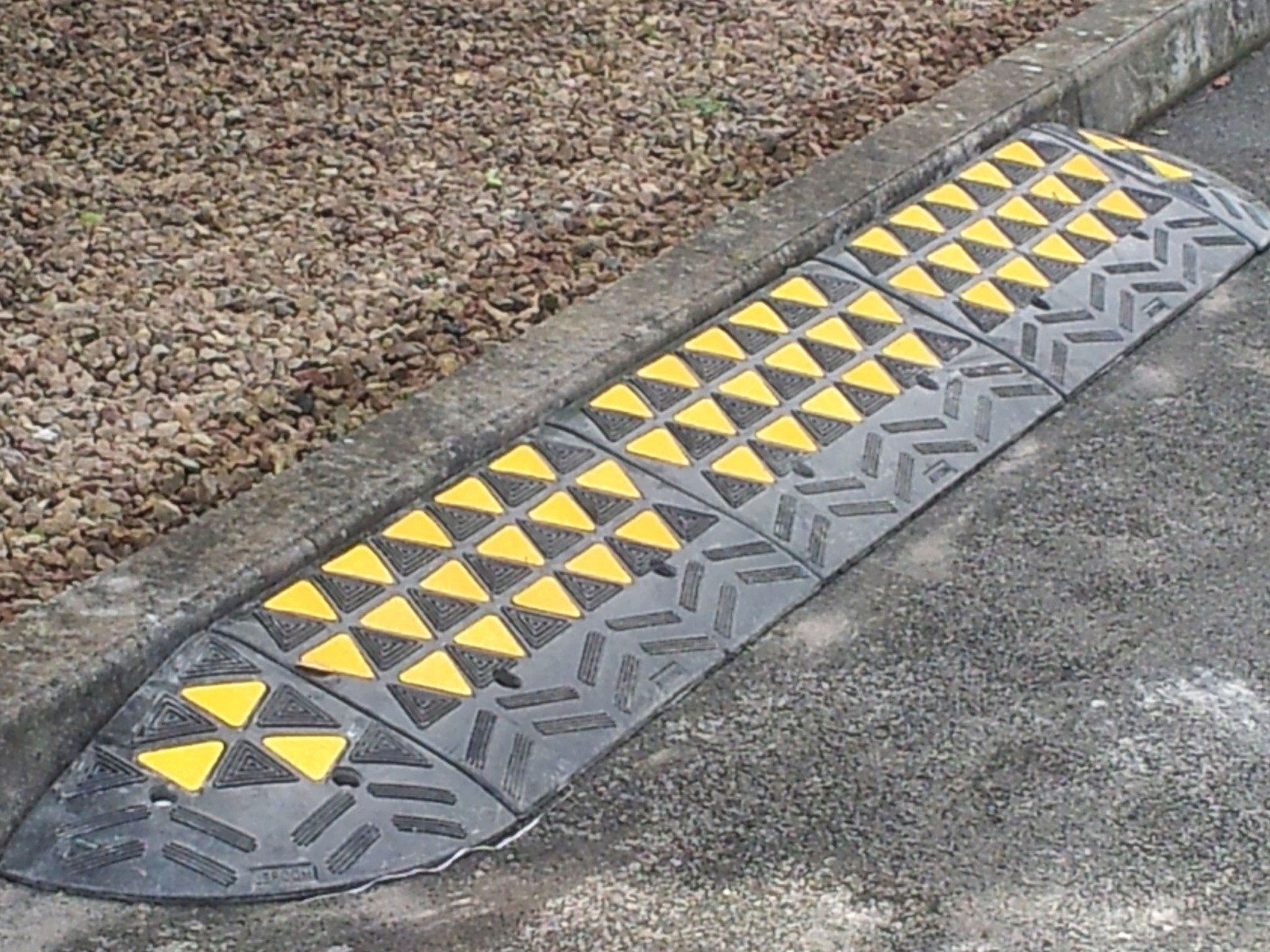

Rubber Kerb Ramp Kit

  • Length: 360mm
  • Width: 1920mm
  • Height: 150mm
  • Weight: 44.90kg
  • Capacity: 40,000kg
  • Number of ramps: Two middle ramps (2 x 600mm) & 2 end caps (2 x 360mm)

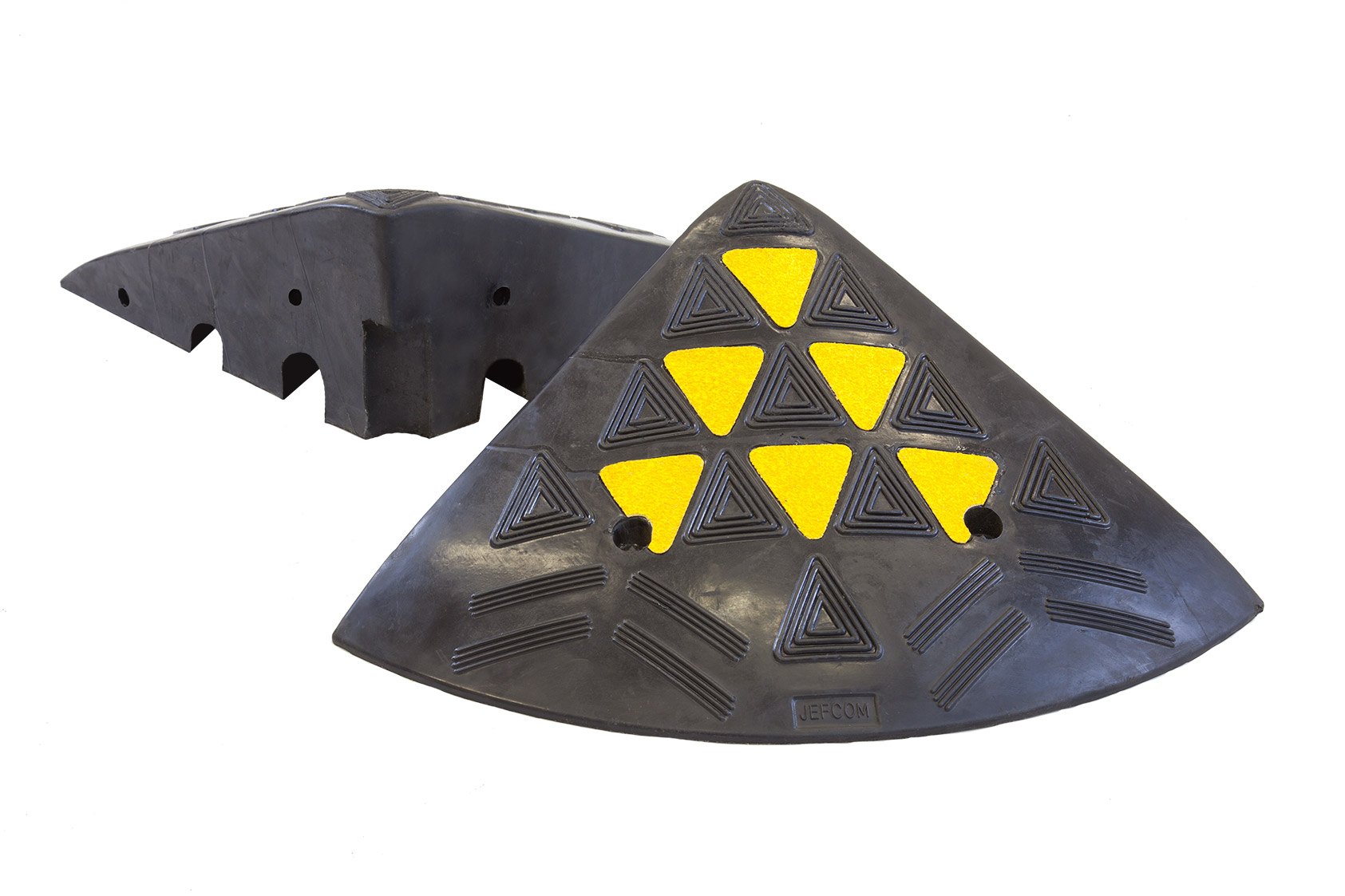

End Cap

  • Length: 360mm
  • Width: 360mm
  • Height: 150mm
  • Weight: 6.35kg
  • Capacity: 40,000kg
  • Number of ramps: 1 end cap
Video

Specifications
SKUTRP2MConf
Capacity (kg)20,000
Height (mm)150
Length (mm)360
Weight (kg)6.35 - 44.90
Width (mm)360 - 1920
One Year WarrantyYes
Bolt DownYes
Easy to FitYes
Fixings IncludedYes
High VisabilityYes
Leave OutsideYes
Channel Size (mm)Channel 1: 33mm x 26.2mm Channel 2: 28.1 x 23.6mm
No. Channels2
Colour OptionBlack
